HOWO 21m Aerial Platform Truck

The HOWO 21m Aerial Work Vehicle represents a sophisticated integration of commercial vehicle durability and precision aerial platform technology. Built on the robust HOWO chassis, this vehicle is engineered to provide safe, stable access to working heights of up to 21 meters, with a maximum working radius that enables operators to reach difficult-to-access areas with precision and control. The vehicle’s design philosophy centers on three core principles: structural integrity, operational precision, and comprehensive safety.

The chassis selection reflects the demanding nature of aerial work applications. The HOWO chassis is available in multiple cab configurations including double row, single row, and one-and-a-half row options, with both left-hand drive and right-hand drive configurations to accommodate international market requirements. The chassis is powered by a reliable diesel engine ranging from 95 to 130 horsepower, meeting Euro 3, 4, or 5 emission standards based on regional requirements. The 6-speed manual transmission provides optimal power delivery for both highway transit and precise positioning at job sites. Wheelbase options of 3360mm and 3800mm allow for configuration flexibility based on operational requirements.

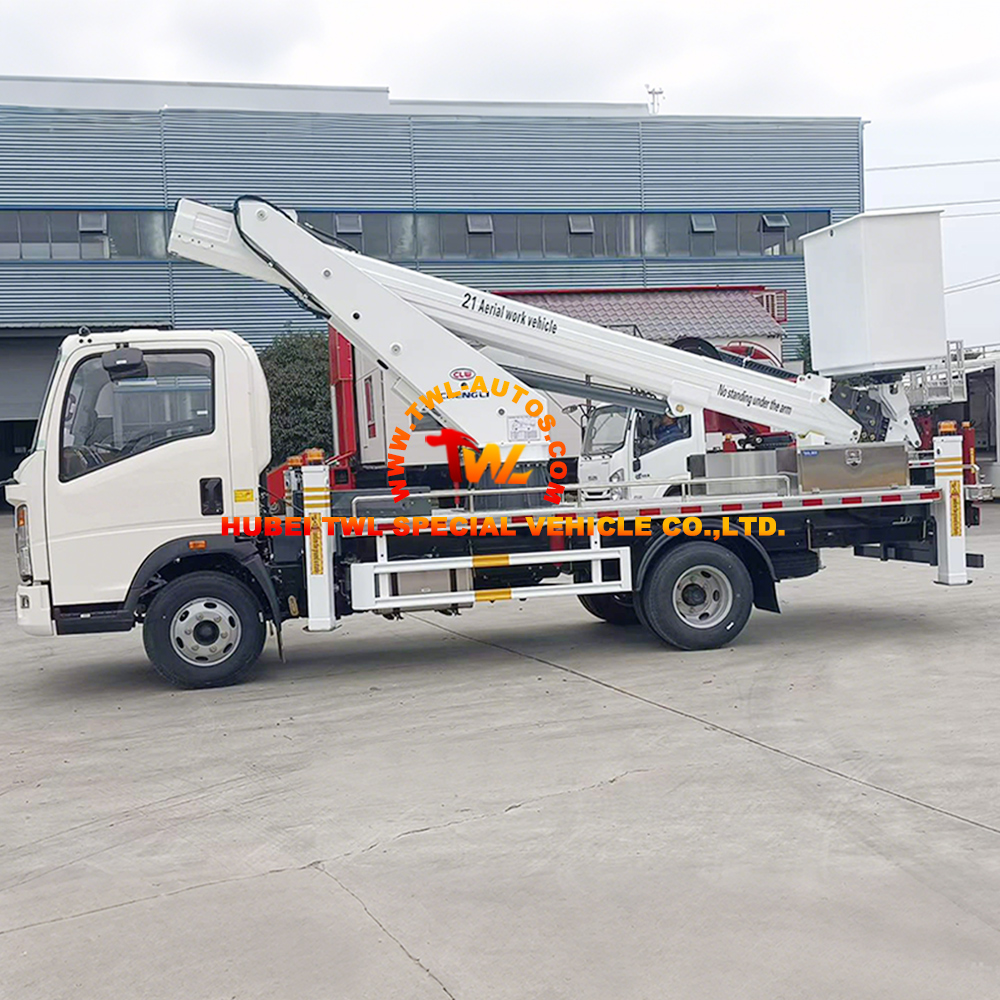

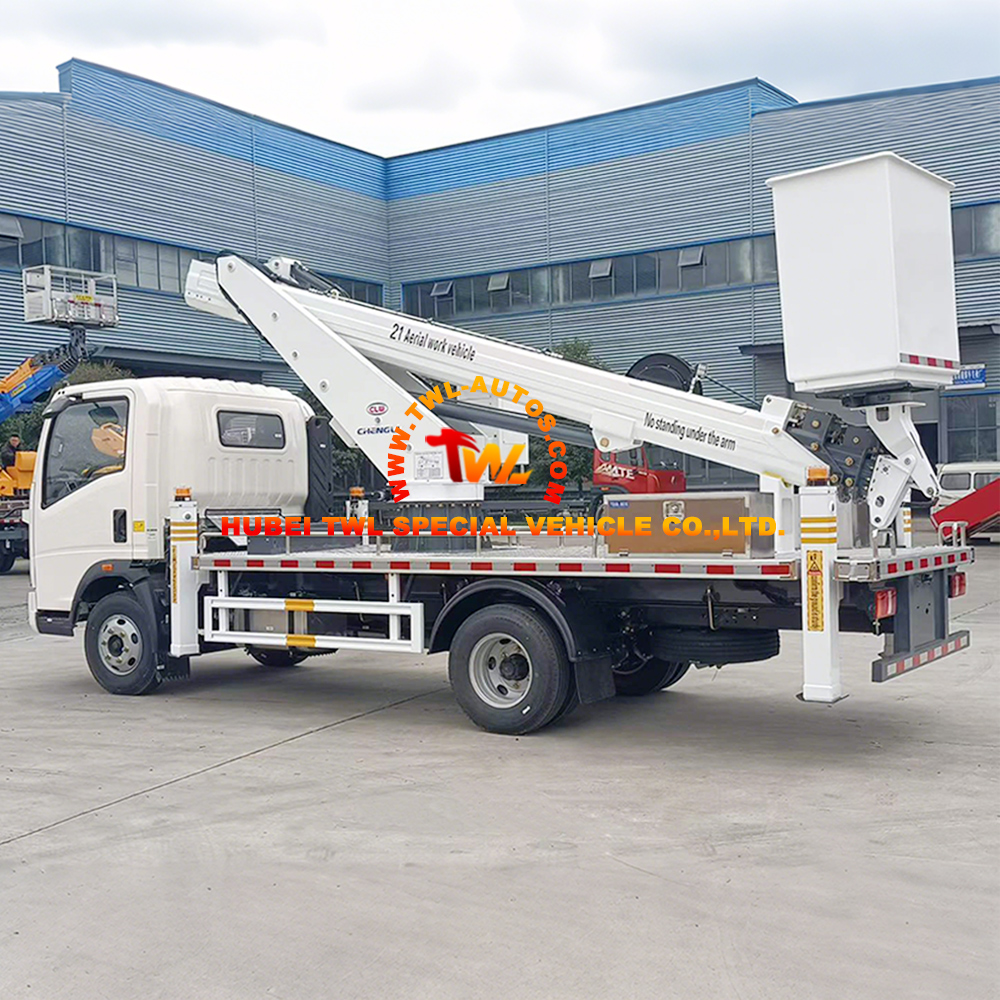

The aerial work platform system is engineered for maximum stability and reach. A five-section synchronized telescopic boom provides smooth, controlled extension to achieve a maximum working height of 21 meters. The boom structure is designed with high-strength steel construction, ensuring structural integrity throughout the full range of motion. The platform, rated for a 200kg load capacity, features 360-degree rotation capability, allowing operators to position themselves precisely for any task. A stainless steel fence and anti-skid stepping board provide secure footing and fall protection, while the working bucket’s 80-degree maximum working angle enables access to a wide range of positions.

Stability during operation is ensured by a sophisticated outrigger system. The vehicle features four hydraulic telescopic outriggers configured with V-type front outriggers and H-type rear outriggers, providing exceptional stability across varied terrain conditions. The front outriggers offer a lateral span of 3685mm with a 120-degree inclination capability, while the rear outriggers provide a lateral span of 3780mm. Each outrigger can be individually adjusted or linked for simultaneous deployment, allowing operators to level the vehicle precisely even on uneven ground.

Control systems provide both precision and redundancy. The ZYK bus control system delivers electro-hydraulic control with smooth, proportional response for all boom functions. Operators can control the vehicle from two positions: the turntable-mounted controls for ground-level operation, or the wireless remote control for flexibility and optimal positioning. A manual emergency pump provides fail-safe operation in the event of primary system failure, ensuring that operators can always return safely to ground level.

Key Features:

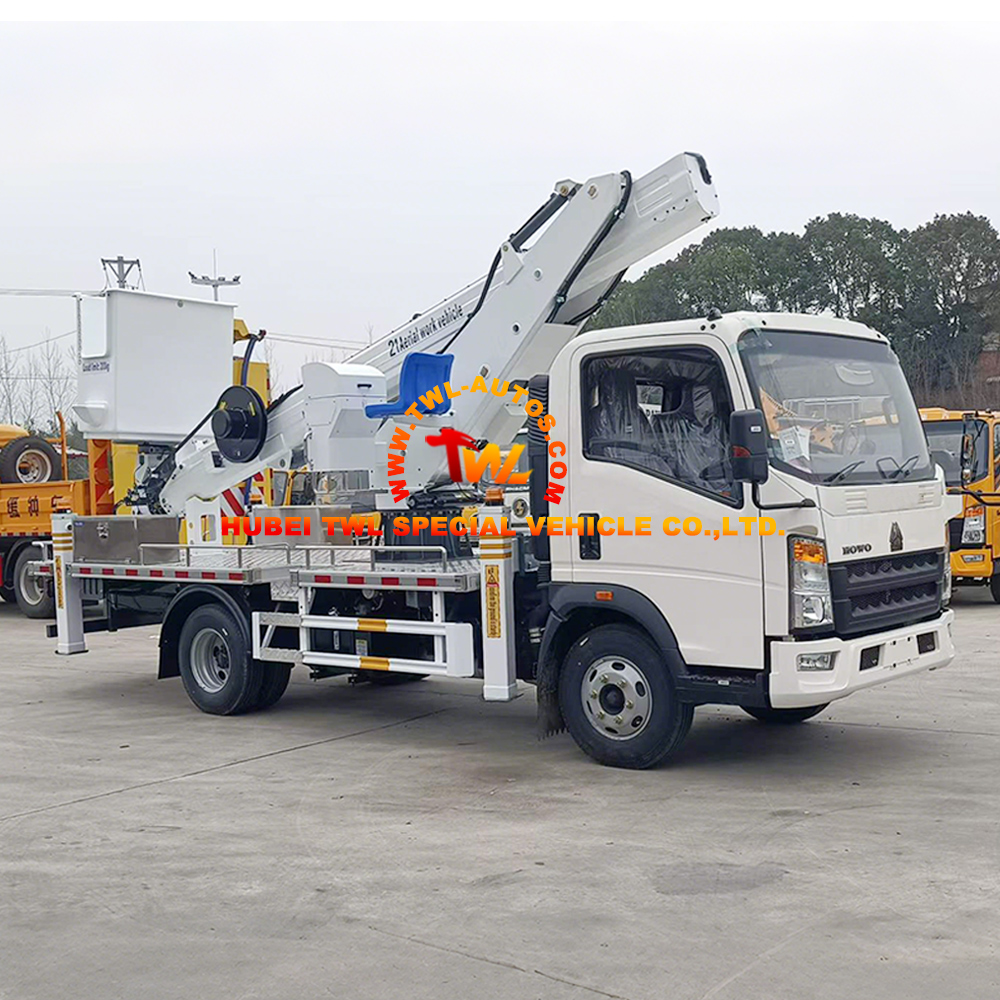

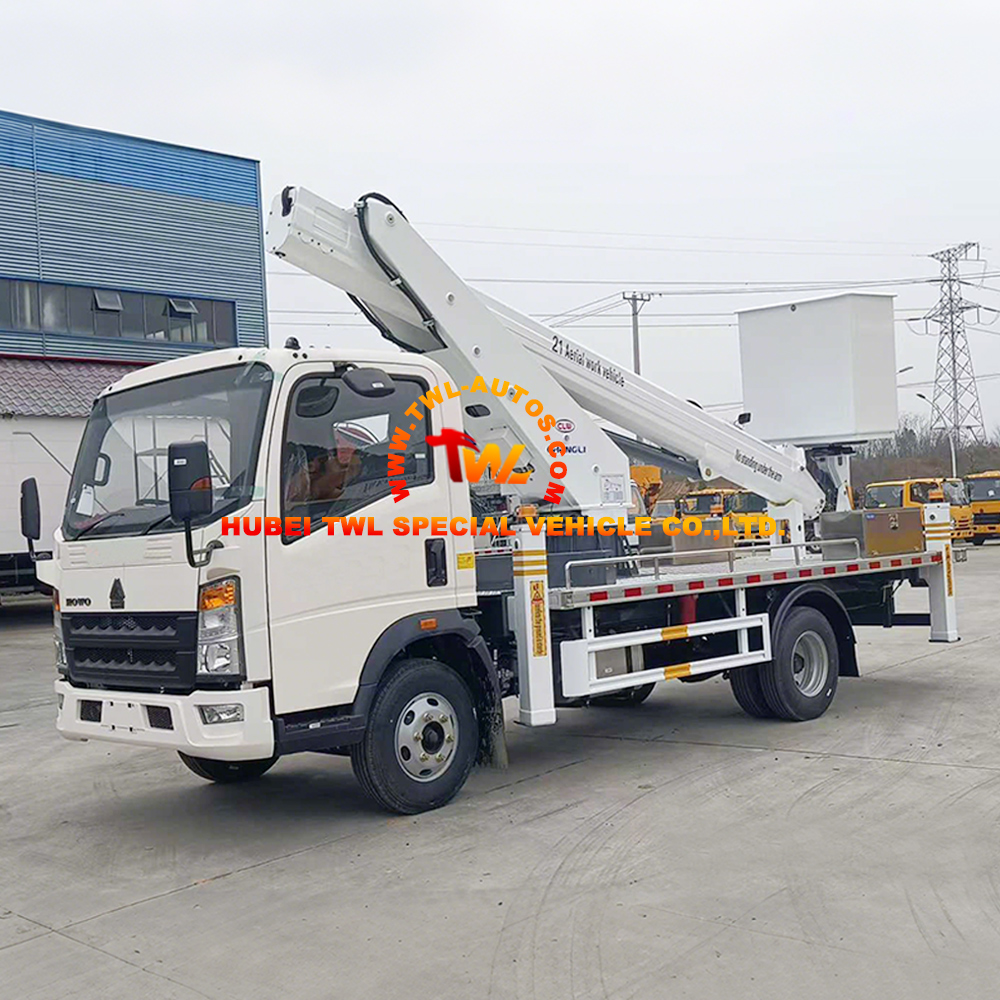

· HOWO Heavy-Duty Chassis with Multiple Cab Configurations: The vehicle is built on the proven HOWO chassis, available in double row, single row, or one-and-a-half row cab configurations to accommodate different operational requirements. Both left-hand drive and right-hand drive options are available for international markets. The chassis is powered by a reliable diesel engine ranging from 95 to 130 horsepower, meeting Euro 3, 4, or 5 emission standards. The 6-speed manual transmission provides optimal power delivery, while wheelbase options of 3360mm and 3800mm allow for configuration flexibility. Tire options include 7.00R16 and 7.50R16, providing appropriate load capacity and road handling characteristics.

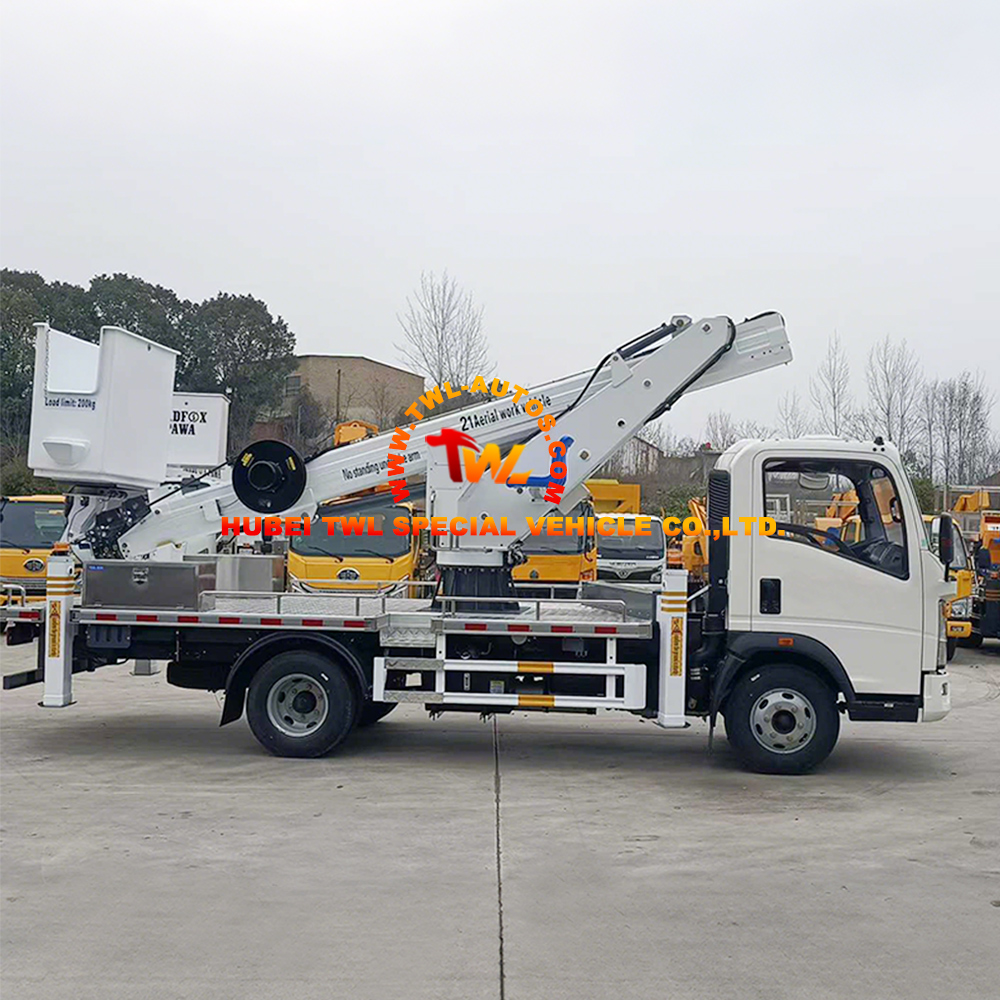

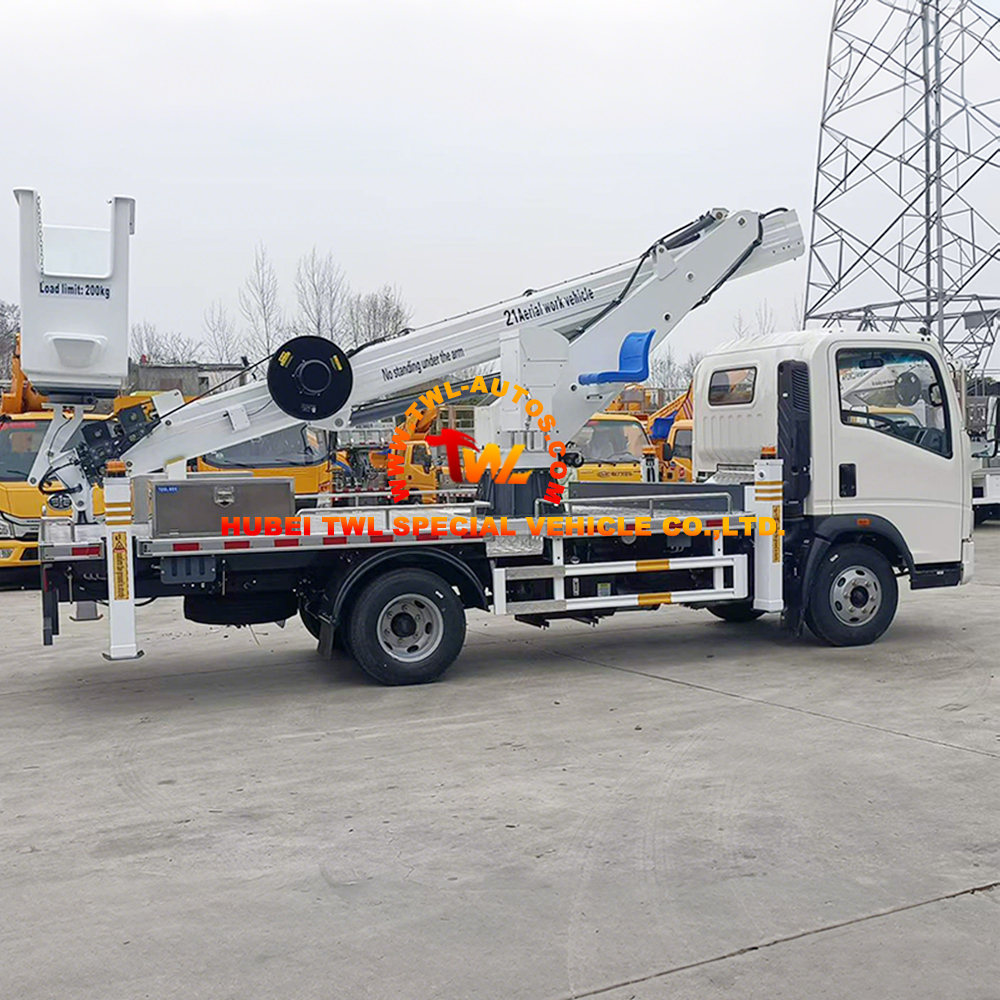

· 21-Meter Maximum Working Height with Five-Section Telescopic Boom: The synchronized five-section working arm provides smooth, controlled extension to achieve a maximum working height of 21 meters. The boom structure is constructed from high-strength steel with precision engineering to ensure structural integrity throughout the full range of motion. The synchronized telescopic design ensures even extension and retraction, minimizing wear and extending component life. The maximum working range of the platform reaches 10 meters or more, allowing operators to access difficult-to-reach areas with precision.

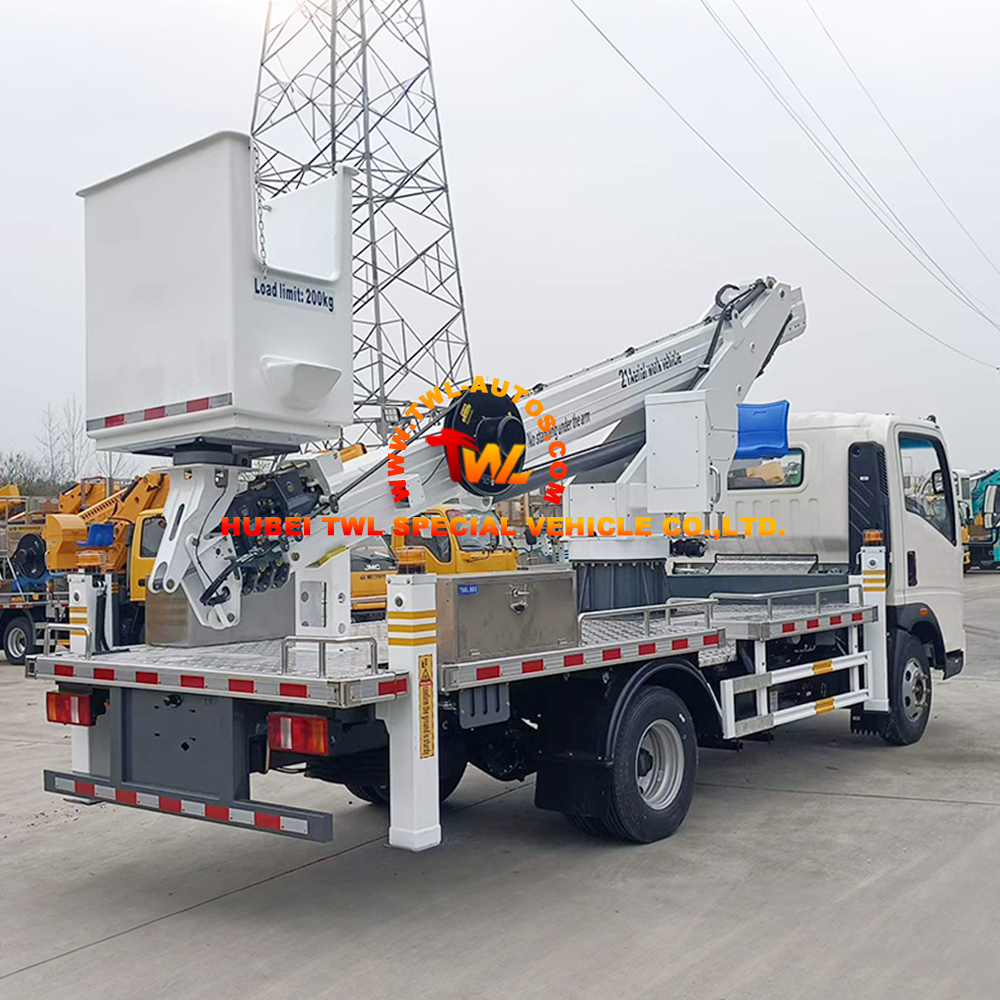

· 200kg Rated Platform Load Capacity with 360-Degree Rotation: The working platform is rated for a 200kg load capacity, accommodating both operator and tools for most aerial work applications. The platform features 360-degree continuous rotation capability, allowing operators to position themselves precisely for any task without repositioning the vehicle. The working bucket achieves an 80-degree maximum working angle, providing access to a wide range of positions. A stainless steel fence and anti-skid stepping board provide secure footing and fall protection, while the platform’s robust construction ensures durability in demanding applications.

· Advanced Outrigger System for Maximum Stability: The vehicle is equipped with four hydraulic telescopic outriggers configured with V-type front outriggers and H-type rear outriggers. This configuration provides exceptional stability across varied terrain conditions, with the V-type front design offering optimal load distribution and the H-type rear design providing broad stability. The front outriggers feature a lateral span of 3685mm with a 120-degree inclination capability, while the rear outriggers provide a lateral span of 3780mm. Each outrigger can be individually adjusted for precise leveling on uneven ground, or linked for simultaneous deployment for faster setup.

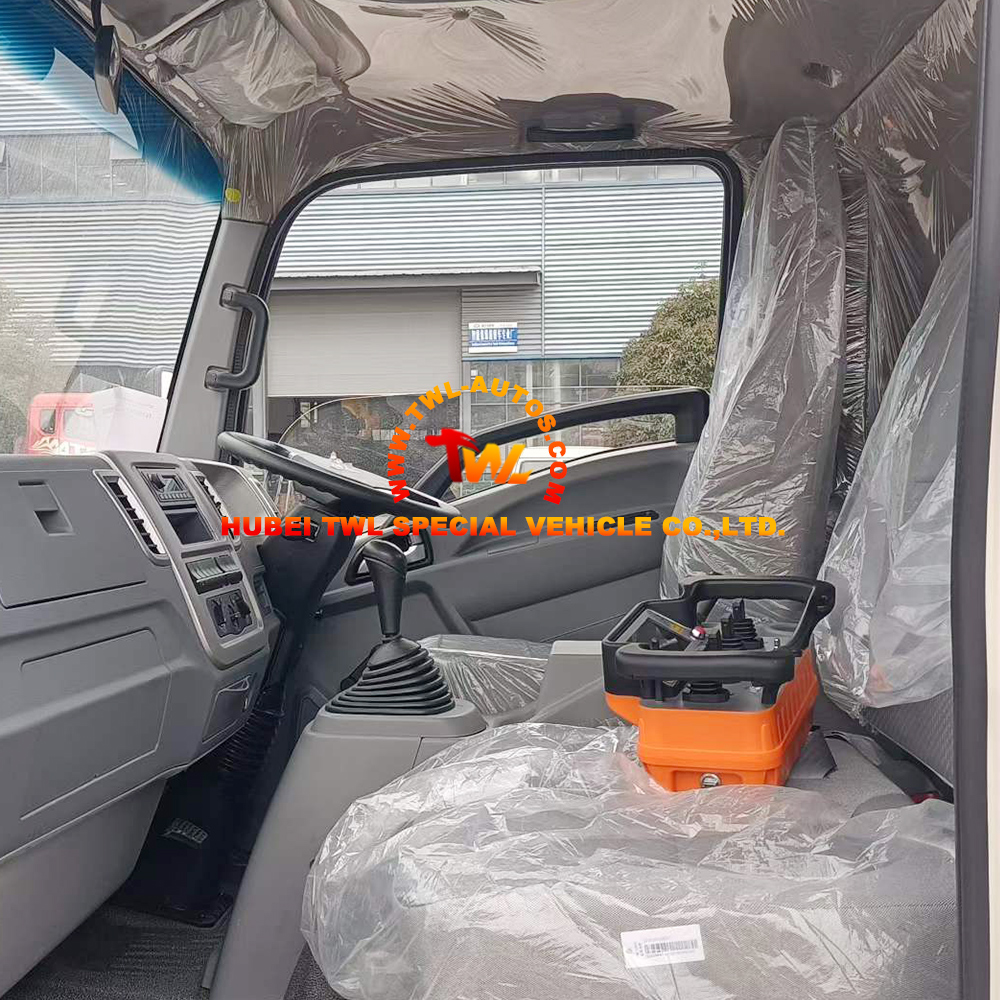

· ZYK Bus Control System with Dual Operation Positions: The ZYK bus control system delivers electro-hydraulic control with smooth, proportional response for all boom functions. Operators can control the vehicle from two positions: the turntable-mounted controls provide ground-level operation with excellent visibility, while the wireless remote control offers flexibility to position the operator optimally for each task. The control system provides precise, intuitive operation that minimizes operator fatigue and enhances safety.

· Comprehensive Safety Systems: Safety is integrated throughout the vehicle’s design. An emergency manual pump provides fail-safe operation in the event of primary system failure, ensuring that operators can always return safely to ground level. The platform features a stainless steel safety fence that provides fall protection, while the anti-skid stepping board ensures secure footing in wet or muddy conditions. The outrigger system includes interlock features that prevent boom operation until outriggers are properly deployed and the vehicle is level. The control system includes automatic limit switches that prevent operation beyond safe parameters.

· 360-Degree Continuous Slewing Capability: The slewing device enables two-way 360-degree continuous rotation, providing full operational coverage around the vehicle. This capability allows operators to position the boom at any angle without repositioning the vehicle, significantly improving efficiency for applications requiring work around the entire vehicle perimeter. The continuous rotation design eliminates the need for repositioning, reducing setup time and increasing productivity.

Application:

· Municipal Infrastructure Maintenance: Ideal for street lighting maintenance, traffic signal repair, signage installation and maintenance, tree trimming, and other municipal services requiring elevated access in urban environments.

· Construction and Building Maintenance: Suitable for exterior building maintenance, façade repairs, window cleaning, painting, and other construction applications requiring precise positioning at height.

· Utility and Power Line Work: Designed for electrical utility maintenance, power line inspection, telecommunications tower work, and other utility applications requiring safe, stable elevated access.

· Industrial Plant Maintenance: Applicable for facility maintenance, equipment servicing, warehouse rack access, and other industrial applications requiring elevated work platforms.

· Events and Entertainment: Suitable for stage setup, lighting rigging, sound system installation, and other event production applications requiring temporary elevated access.
