HOWO 10m³ Asphalt Distributor Truck
The HOWO 10m³ asphalt distributor truck represents a significant advancement in road construction and maintenance technology, combining robust engineering with precise application capabilities. As a specialized vehicle designed for the even distribution of various types of asphalt, this equipment plays a crucial role in creating durable, high-quality road surfaces. With a capacity of 10 cubic meters, it strikes the perfect balance between substantial material hauling and operational efficiency, making it an ideal choice for contractors and government agencies involved in infrastructure development.
HOWO 10m³ Asphalt Distributor Truck
Technical Specifications Overview
| Parameter | Specification |
| Capacity | 10 cubic meters |
| Chassis | SINOTRUK HOWO |
| Engine Power | 300 horsepower |
| Spraying Width | Adjustable up to 4.5 meters |
| Asphalt Spraying Volume | 2.5-3.5 L/m² |
| Working Speed | 5-20 km/h |
| Heating System | Italian Riello diesel burner (200,000 kcal/h) |
| Control System | Siemens modular design with touchscreen interface |
| Insulation | 50mm rock wool insulation layer |
Competitive Advantages of Asphalt Distributor Trucks
The HOWO 10 asphalt distributor truck incorporates numerous high-performance components and engineering innovations:
1. Chassis Configuration: Built on the robust SINOTRUK HOWO chassis, equipped with weichai 300 horsepower engine for reliable performance under demanding conditions.
2. Intelligent Control System: Features Siemens modular design controls with touchscreen operation in the cab and backup controls at the rear operation platform, ensuring operational flexibility and reliability.
3. Spraying System: Utilizes QGB950 asphalt pump with 950L/min flow capacity and 36 individually controlled nozzles, enabling distribution widths up to 4.5 meters.

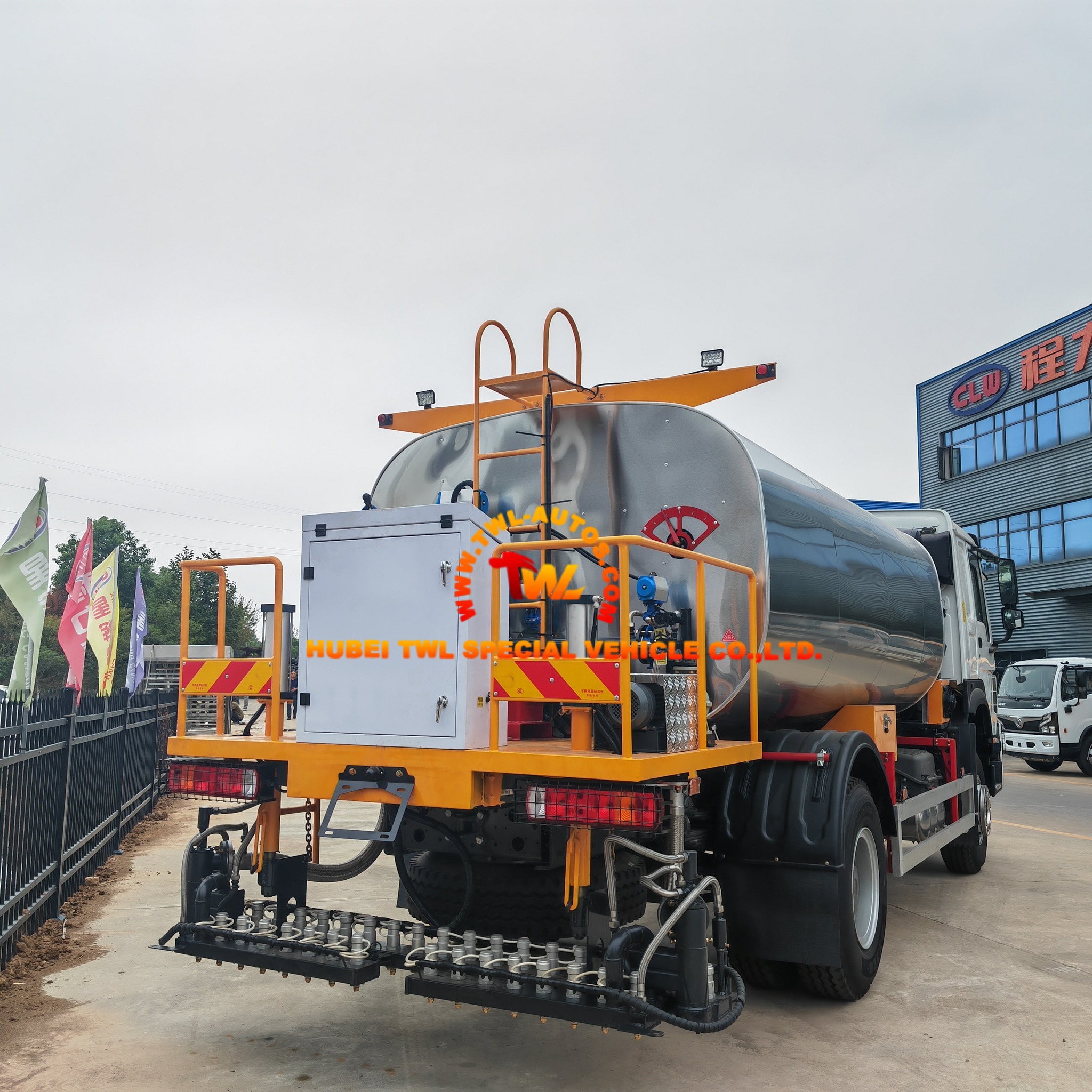

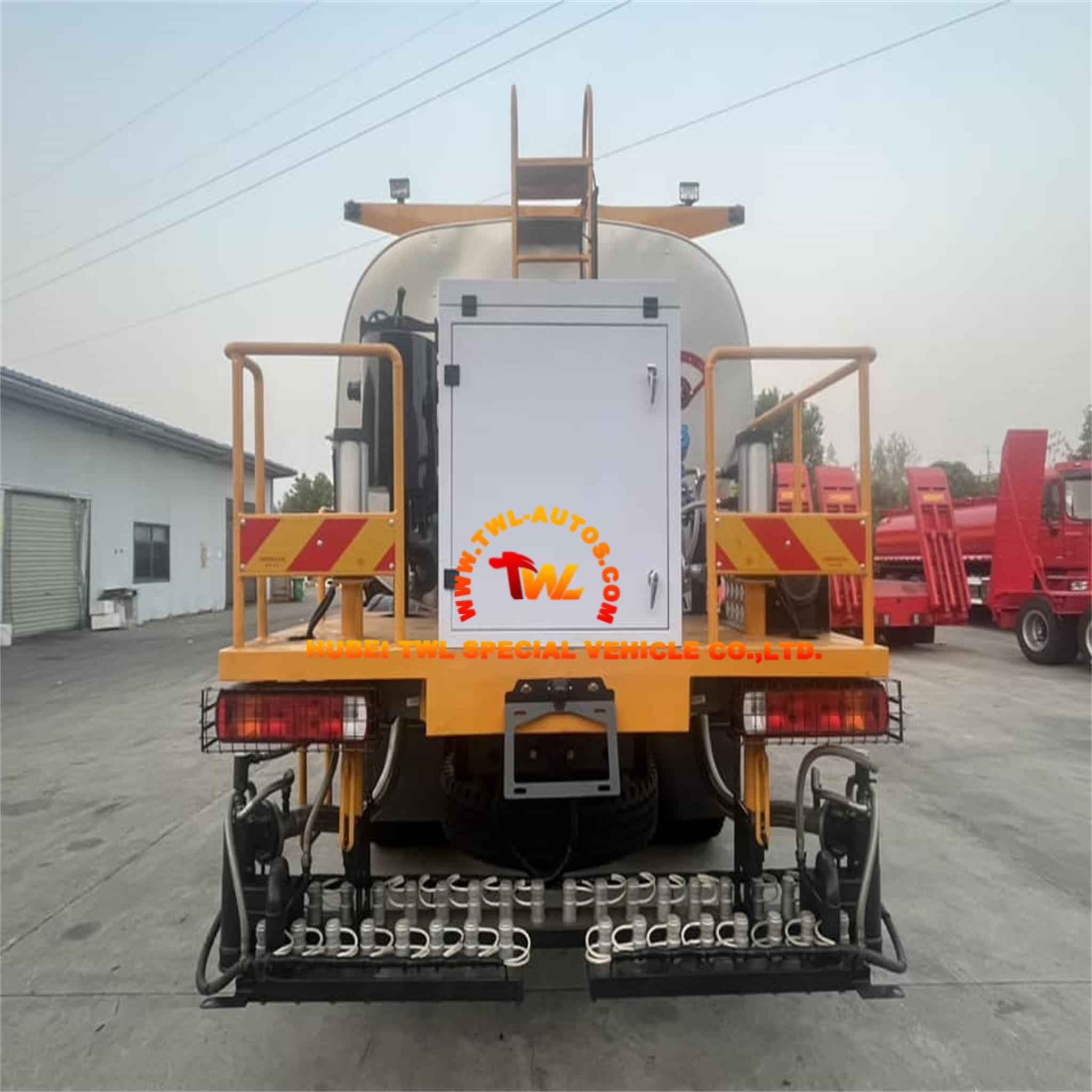

4. Structural Design: Incorporates three-section folding spray bar construction that facilitates multiple spraying layers and obstacle avoidance, enhancing operational versatility.
5. Nozzle Maintenance: Integrated nozzle cleaning system utilizes diesel fuel and high-pressure air to remove residual asphalt, preventing clogging and extending component lifespan.
6. Safety Compliance: Meets China National VI emission standards with advanced ABS systems, representing the latest in environmental and safety technology.
7. Superior Insulation Performance: Featuring high-quality insulation materials, CLW trucks maintain optimal asphalt temperature with static heat preservation performance ≤12°C/8 hours, ensuring proper viscosity during application.
8. International Component Quality: Critical components including hydraulic pumps, hydraulic motors, asphalt pumps, proportional valves, and automatic control systems source from internationally recognized manufacturers, ensuring reliability and extended service life.
9. Precision Control Systems: Advanced computer-controlled systems automatically measure vehicle speed and calculate asphalt pump rotation based on input distribution parameters, maintaining spraying accuracy within ±2%.
10. Flexible Spraying Options: Manual/automatic control systems enable individual nozzle operation, allowing adjustable distribution patterns from full-width applications to specific section treatments, complemented by handheld spray guns for hard-to-reach areas.
11. Rapid Heating System: Equipped with Italian imported burners (200,000 kcal/hour) and thermal oil circulation systems, these trucks achieve heating rates of 10-15°C per hour, significantly reducing preparation time.
12. Enhanced Durability: Stainless steel exterior packaging provides corrosion resistance, while strategically placed insulation prevents operator burns and improves safety.
Application Scenarios of Asphalt Distributor Trucks
Asphalt distributor trucks serve multiple essential functions in road construction and maintenance:
1. Pavement Maintenance: Effectively applies asphalt sealant to existing road surfaces to enhance smoothness and durability, extending roadway lifespan through protective coating applications.
2. New Road Construction: Enables rapid and uniform asphalt distribution during initial road building projects, ensuring consistent substrate quality for superior pavement foundation.
3. Urban Road Repair: Specifically valuable for addressing city road damage including crack filling and pothole repair, with maneuverability suited to urban environments.
4. Waterproof Layer Application: Creates impermeable barriers on road surfaces, protecting underlying structures from moisture damage and prolonging road service life.
5. Synchronized Chip Sealing: Specialized models integrate asphalt spraying and aggregate distribution in a single operation, streamlining the chip seal process for enhanced efficiency.
Conclusion
The HOWO 10 asphalt distributor truck, particularly models manufactured by CLW group, represents an exceptional fusion of durability, precision, and operational efficiency. With its 10-cubic-meter capacity, advanced control systems, and robust construction, it delivers outstanding performance across diverse application scenarios from new road construction to preventive maintenance. The integration of internationally sourced components combined with thoughtful engineering design positions this equipment as a valuable asset for any organization committed to achieving superior road construction quality and efficiency. As infrastructure development continues globally, these specialized vehicles will play an increasingly vital role in building and maintaining the transportation networks that drive economic growth and connectivity.
Product Specification
| Chassis | |
| Overall Dimension | 8500x2500x3320 mm |
| Wheel Base | 4600 mm |
| Front Axle | 7000 kg |
| Rear Axle | 16000 kg |
| Engne | · WP10.300E22 · Original WEICHAI Diesel Engine · Supercharge and inner cooling, four stroke, 6 cylinder in line,direct injection type |
| Fuel Type | Diesel |
| Engine horsepower | 300HP/221KW |
| Emission Standard | EURO II |
| Displacement | 9726(Diesel) |
| Gear box | Manual type,HW19710,10 forward gears & 2 reverse |
| Max Driving Speed | 90 km/h |
| Cabin | · Left hand drive · 4X2/2 axles in total · HOWO HW76 cabin,one and a half row cab · Power steering · Air conditioned · Audio System · High mental bumper · Manual window and door |
| Tire | 295/80R22.5 (6 pieces+1 piece spare tire) |
| Fuel box | 400L |
| Power Supply | With PTO, PTO control mounted in cabin. |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Accessories | · Standard tool kit · Mud flaps · Safety belts |
| Asphalt Tank | |
| Asphalt type | Hot asphalt, modified asphalt, emulsified asphalt |
| Tank size | 10 cbm/10,000L |
| Tank material | High quality carbon steel |
| Outside covering Material | 1mm Stainless plate |
| Insulation layer | 50mm rock wool insulation layer,≤12℃/8h |
| Bitumen Spaying width | 4.5 meters |
| Bitumen Spaying volume | 0.25~3 L/m2 |
| Driving speed when spaying | 2~16 km/h |
| Hydraulic System | |
| Hydraulic pump | Heifei Changyuan brand |
| Driving Motor | AKS05-130 (Ningbo) |
| Proportional valve | Tianwan Brand,EFBG-03-160-HF |
| Bitumen Sprinkler system | |
| Bitumen pump | · QGB950 · 950L/min · High Viscosity Asphalt Pump |
| Asphalt sprinkler nozzle | 34 pcs (one manual button controling for 1 nozzle) |
| Hand spray gun | 6 meters metal hose,suitable for small area and corner construction conditions. |
| Control System | |
| Control Method | Controlled inside truck cabin and at rear working platform |
| Temperature sensor | WZP-230, Chinese brand from shanghai |
| Speed Sensor | GTS211B-N016 |
| Heating System | |
| Heating method | Automatic heating by oil |
| Burner | RIELLO G20/Italy brand |
| Radiator | RISEN brand |
| Heat transfer oil pump | RY40-25-160 from Hebei brand |
| Heat transfer oil pump | motor 380V-2.2KW |
| Gasoline generator | 7kw |
| Low level | automatic alarming system 1pc |
| Intelligent Control
| · Dual control, intelligent control by touch screen computer in the cab and manual control at the rear · One control for each rear asphalt nozzle · Heating method, diesel burner · Tank heating, heat transfer oil tank and pipeline circulation heating · Equipped with a gasoline generator · Spreading volume: 0.3-2.5L/㎡ · Mainly sprays emulsified asphalt · Hot asphalt, SBS modified asphalt, etc. · Mainly can control the spreading volume of asphalt spraying, input the required asphalt volume for work on the touch screen computer in the cab, and after inputting the value, the speed sensor is used to automatically match the pump speed to the vehicle speed, so as to achieve a uniform and uniform asphalt spreading volume during construction at different vehicle speeds (such as setting the spreading volume to 0.3 kg, maintaining about 0.3 kg per square meter during construction) |
| Standard Control
| · Controlled by a manual control box in the cab · With one-to-one control of the tail asphalt nozzle · Heating method: diesel burner · Tank heating, heat transfer oil tank and pipeline circulation heating · Equipped with a gasoline generator · Mainly spray emulsified asphalt, hot asphalt, SBS modified asphalt, etc. · The asphalt pump speed can be adjusted by the vehicle speed and pump speed knob to meet the construction needs of different asphalt spreading amounts. |

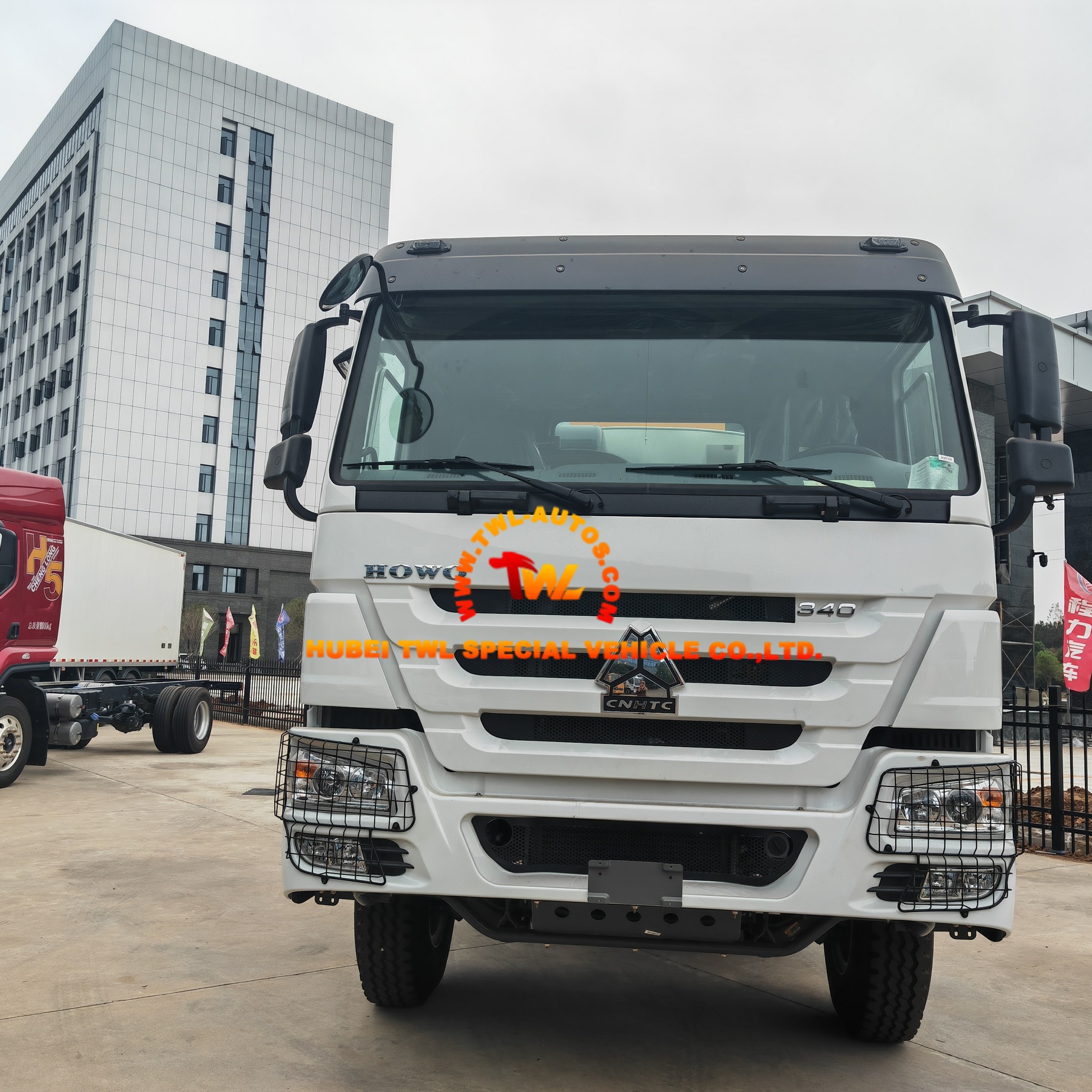

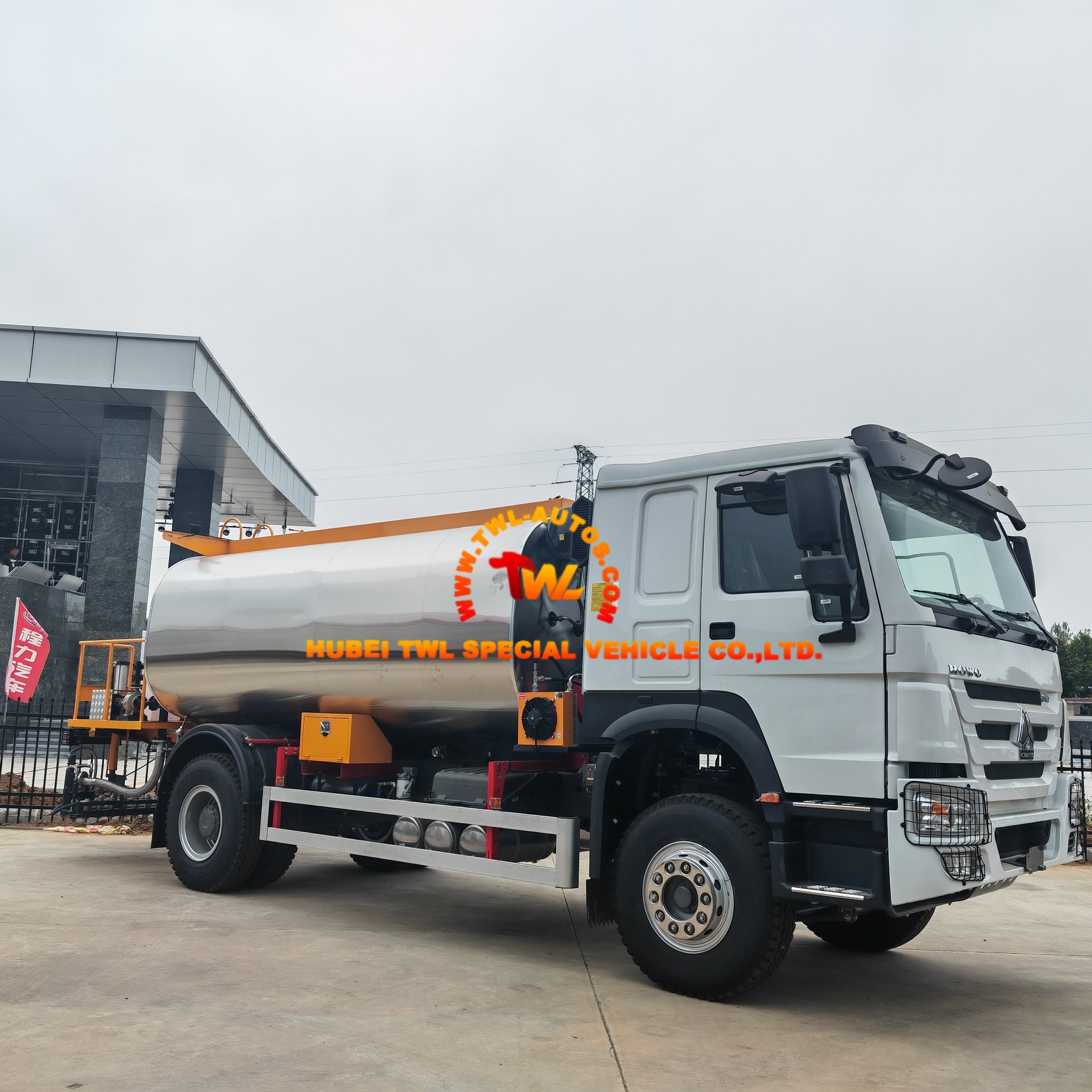

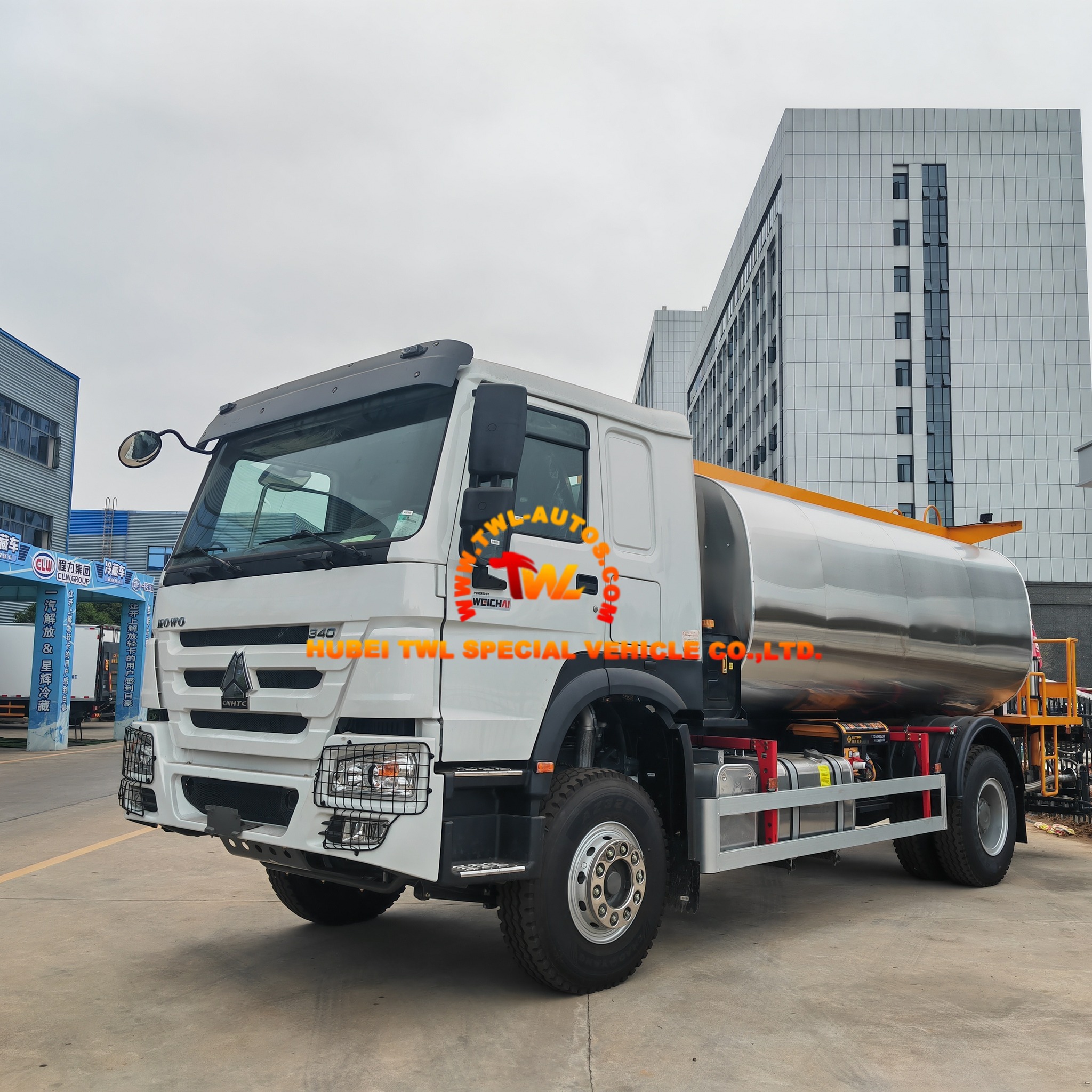

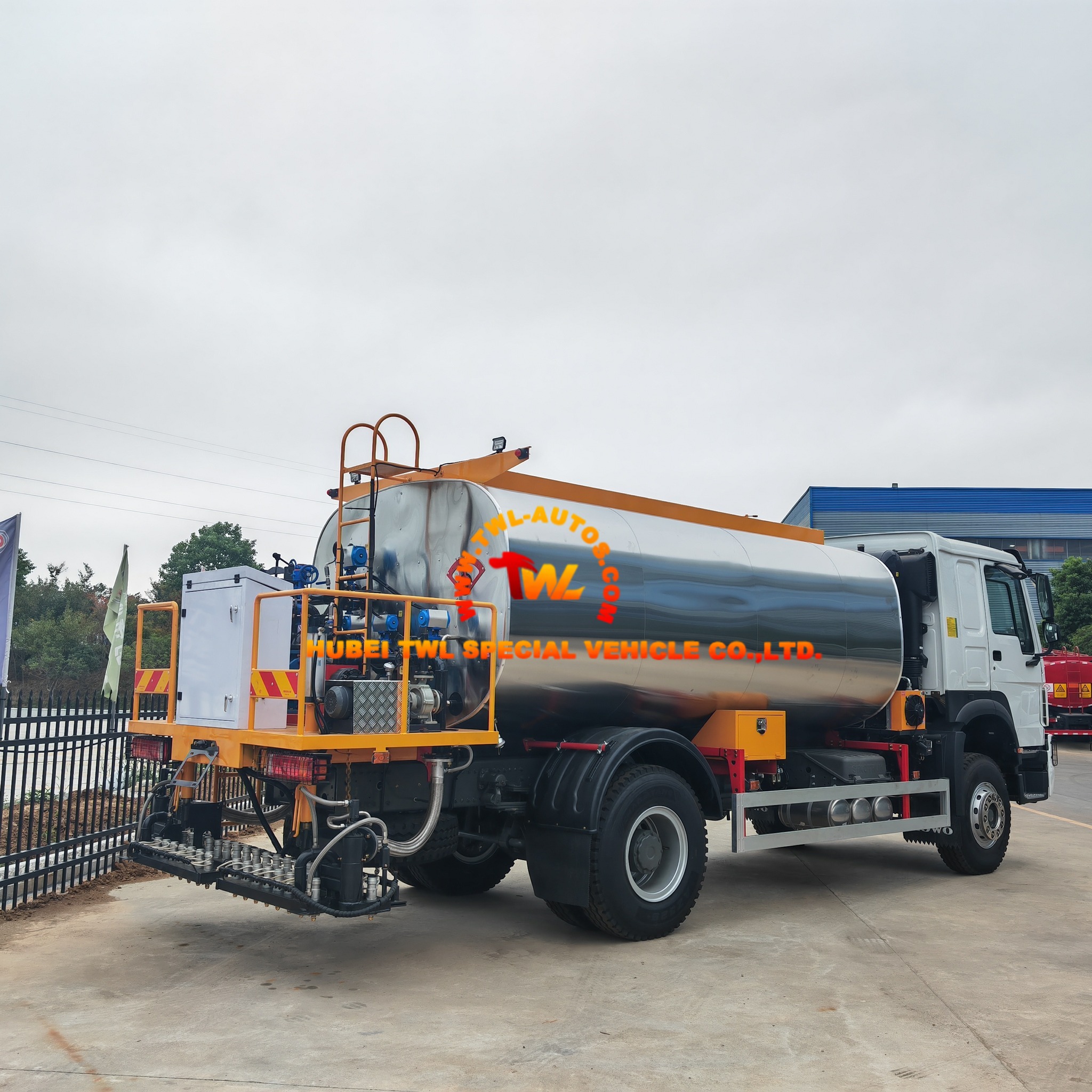

HOWO 10m³ Asphalt Distributor Truck Gallery
