HOWO 10m³ Water Tanker Truck with Sprinkler System
Engineered for versatile municipal and engineering applications, the HOWO 10m³ Water Tanker Truck combines a reliable HOWO light-duty chassis with a 10,000-liter water tank and a complete road sprinkler system. Designed for dust suppression, landscaping irrigation, construction site water supply, and urban cleaning, this multi-functional vehicle delivers exceptional efficiency and durability for government agencies, sanitation bureaus, and construction contractors worldwide.
HOWO 10m³ Water Tanker Truck with Sprinkler System
The HOWO 10m³ Water Tanker Truck is a purpose-built municipal and engineering vehicle designed to address diverse water transportation and road maintenance needs. Built on the proven HOWO light-duty chassis, this vehicle features a 10 cubic meter carbon steel water tank with anti-corrosion treatment, ensuring uniform load distribution and driving stability. The integrated sprinkler system includes front flush, side spray, rear sprinkler, and a high-platform water cannon for multi-directional road spraying and dust control. An independent small diesel generator powers the water pump and high-pressure washing system, enabling continuous operation even when the main engine is off. With its high-pressure hose reel and flexible operation capabilities, this vehicle is widely used across Africa, Southeast Asia, the Middle East, and South America.
Key Features:
· HOWO Light-Duty Truck Chassis: Strong carrying capacity, stable performance, and easy maintenance. Mature global after-sales support network. Suitable for urban roads, rural roads, and construction sites.
· 10m³ Large-Capacity Water Tank: High-quality carbon steel construction with anti-corrosion treatment. Uniform load distribution ensures driving stability. Ideal for long-distance water delivery and large-area sprinkling.
· Full Sprinkler System: Equipped with front flush, side spray, rear sprinkler, and high-platform water cannon. Achieves multi-directional road spraying and effective dust control.
· Independent Small Diesel Generator: Provides independent power for water pump and high-pressure washing system. Truck can still operate when main engine is off, saving fuel and reducing wear.

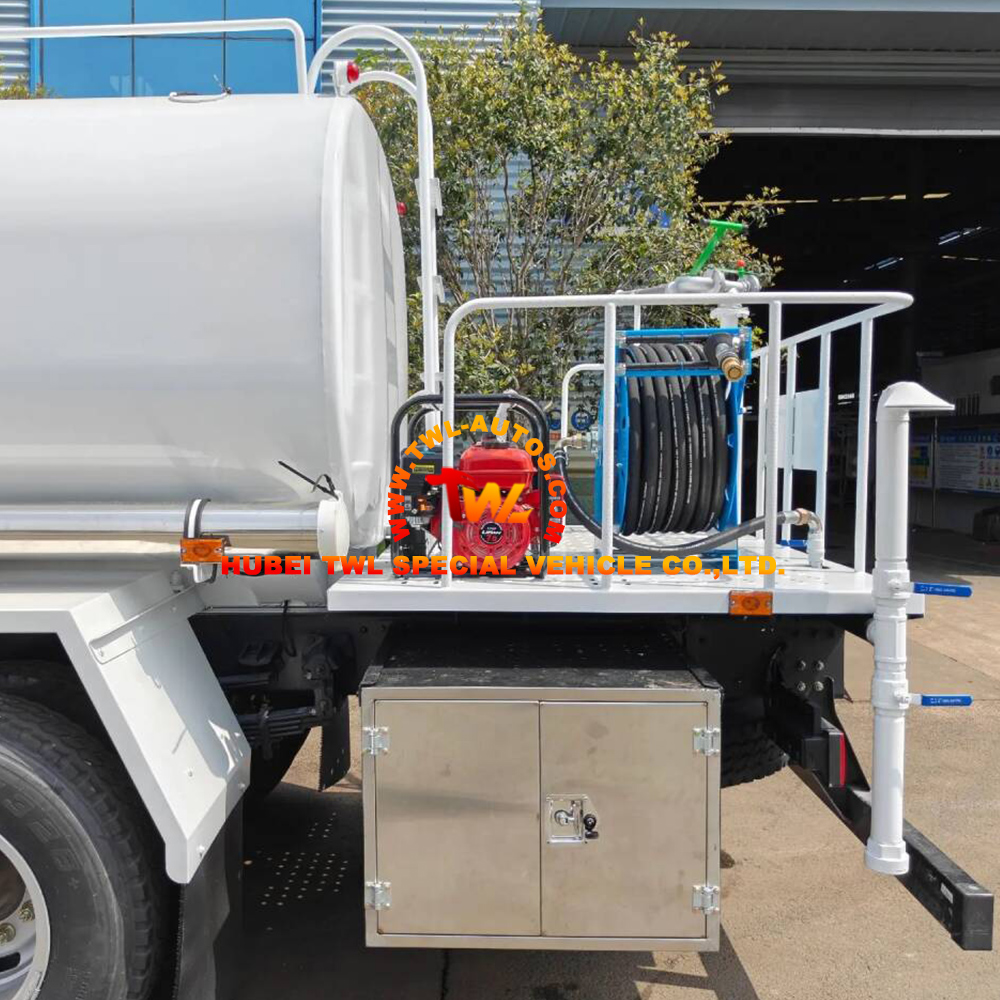

· High-Pressure Hose Reel: Retractable high-pressure water hose reel for flexible washing of sidewalks, walls, tanks, and equipment. Can also be used for emergency firefighting applications.
· Attractive and Practical Appearance: Reasonable layout with easy operation. Non-slip platform and safety ladder for daily use and maintenance.
Application:
· Urban water delivery to communities, housing estates, and offices
· Construction camps and small site water supply
· Road dust suppression and street cleaning
· Landscaping irrigation and agricultural nursery support
· Emergency water supply and backup firefighting
Product Specification
| Chassis Technical Specification | ||
| Chassis brand | HOWO Lhd or Rhd | |
| Driving mode | 4X2 | |
| Gross vehicle weight | 11,000kg | |
| Wheelbase | 3800mm | |
| Cabin | Howo classic cabin | |
| With air conditioner | ||
| Engine | Engine brand | Yuchai engine, YC4E140-33 |
| Horsepower | 140 hp | |
| Displacement | 4.26L | |
| Emission standard | Euro 6 | |
| Transmission | WLY, Manuel, WLY6TS55, 6 forward gears and 1 reverse | |
| Front axle loading | 3,200kg | |
| Rear axle loading | 8,000kg | |
| Tyre | 8.25R20 , 6 pieces with 1 spare tire | |
| Brake system | ABS air brake off | |
| Superstructure Parameters | ||
| Water tank volume | 10,000 liters | |
| Loading medium | Potable water or ordinary water | |
| Water tank mterial | Carbon steel or stainless steel 316 | |
| Tank thickness | 5mm, 6mm,7mm as requested | |
| Water pump | High quality stainless steel water pump | |
| Water flow rate | 60m3/h | |
| Other devices | Self-flow valve 1pc; | |
| Fire joint 1pc; | ||
| Discharging pipe 2 pcs. | ||
| DN450 manhole; | ||
| Fence and ladder; | ||
| Vice-beams, anti-wave clapboard; | ||
| Level gauge at rear of truck. | ||
