HongYan 8x4 50Tons 360 degree Rotary Wrecker Tow Truck
The HongYan 8x4 50 Tons 360° Rotary Wrecker Tow Truck is a heavy-duty recovery vehicle designed to handle the most demanding towing and rescue operations. Built on the reliable HongYan chassis with a powerful Weichai engine, this rotator tow truck combines exceptional strength, stability, and advanced recovery functions.
Equipped with a 360-degree rotating crane and robust under-lift towing system, it can efficiently lift, recover, and tow disabled vehicles, heavy-duty trucks, buses, construction machinery, and accident-damaged vehicles. Its versatile design makes it an essential asset for highway rescue, municipal emergency services, and large fleet operators.
Manufactured with high-strength steel and advanced engineering, the HongYan 50T rotary wrecker provides maximum safety, durability, and efficiency in challenging recovery situations.
HongYan 8x4 50Tons 360 degree Rotary Wrecker Tow Truck Advantage
1. Heavy-Duty Capacity
50-ton lifting and towing capacity ensures reliable performance for large vehicles such as buses, trucks, and construction equipment.
2. 360° Rotating Crane
Full rotation capability allows flexible recovery from multiple angles, especially in confined or complex accident scenes.
3. Dual Functionality – Lift & Tow
Integrated rotator crane and under-lift system provide versatile solutions for lifting overturned vehicles and towing disabled ones.
4. Strong & Durable Build
Constructed with high-quality steel for superior durability and long service life, even under harsh working conditions.
5. Reliable Powertrain
Equipped with a HongYan chassis and Weichai engine, ensuring powerful performance and easy maintenance with widely available spare parts.
6. Enhanced Stability & Safety
Low center of gravity design and advanced hydraulic system improve operational stability and safety during recovery tasks.
7. Factory-Direct Manufacturing
Produced in Suizhou, Hubei Province—the hub of special-purpose vehicle manufacturing in China—guaranteeing quality and competitive pricing.
Product Specification
| Towing (T) | 100-150 tons | |
| Truck parameter | Vehicle size(mm) | 11995x2495x3630 |
| Total mass(kg) | 32000 | |
| Curb mass(kg) | 19880 | |
| Drive type | 8×4 | |
| Color | According client request | |
| Fuel type | Diesel | |
| Oil consumption per100km(L) | 30 | |
| Max speed | 90 | |
| Engine parameter | Model | Weichai WP12.400E201 Four-valves engine Euro 2 emission Engine power:400HP |
| Gear box | FAST 12JSD200T-B fuller technology | |
| Clutch | Eaton 430 diaphragm clutch | |
| Driving axles | MAN technology 16tons double reduction axle | |
| Front axlea | MAN technology 7.5tons | |
| Chassis information | Steering | Right hand drive |
| Tyre | 315/80R22.5 with one spare tyre | |
| Fuel tank | 400L Aluminum alloy fuel tank | |
| Cabin | HY half heightened half lengthened roof cabin,A/C | |
| Others | WABCO valves, four-point floating cab, 2 sets of hazardtriangle, 50ton jack, fire extinguisher. | |
| Rotation towing truck UpperEquipment showing | 360 degree rotation wrecker type Towing capacity: 50tons 50tons crane lifting capacity Two units winch. each one is 25tons The two six variant boom, Three arm, Split type carriage, Bilateral linkage operation device, Front bumper with counterweight, After workinglamp three 2 150KN hydraulic winch 55 meters of steel wire rope A washing box U reported fetal device one set Supporting fork 5ton Supporting fork seat 1ton Chainhook 2 1 long line engineering lamp ( LED )1 sets of auxiliary lamp assembly, Auxiliary brake pipe assembly of 1 sets. | |

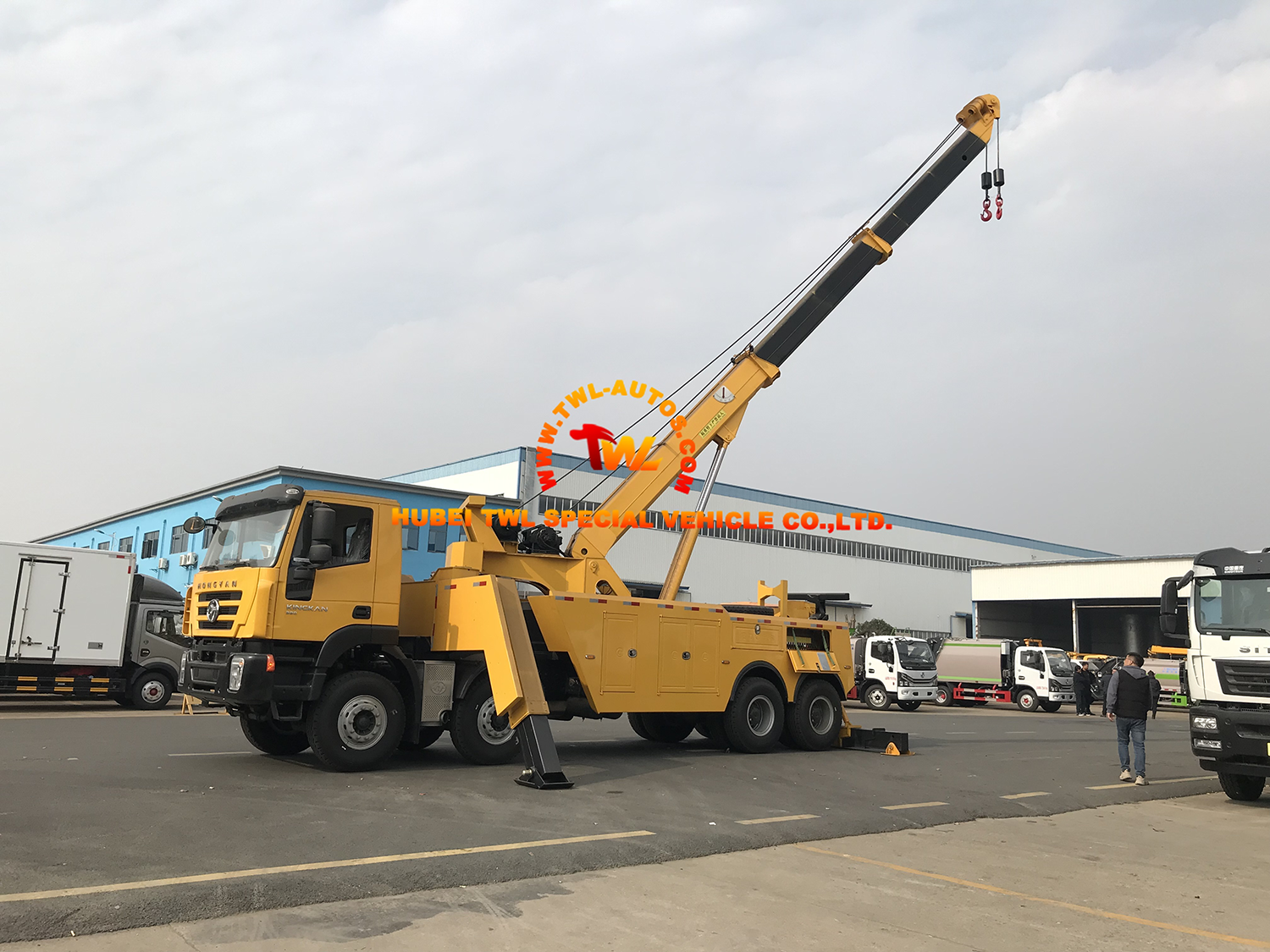

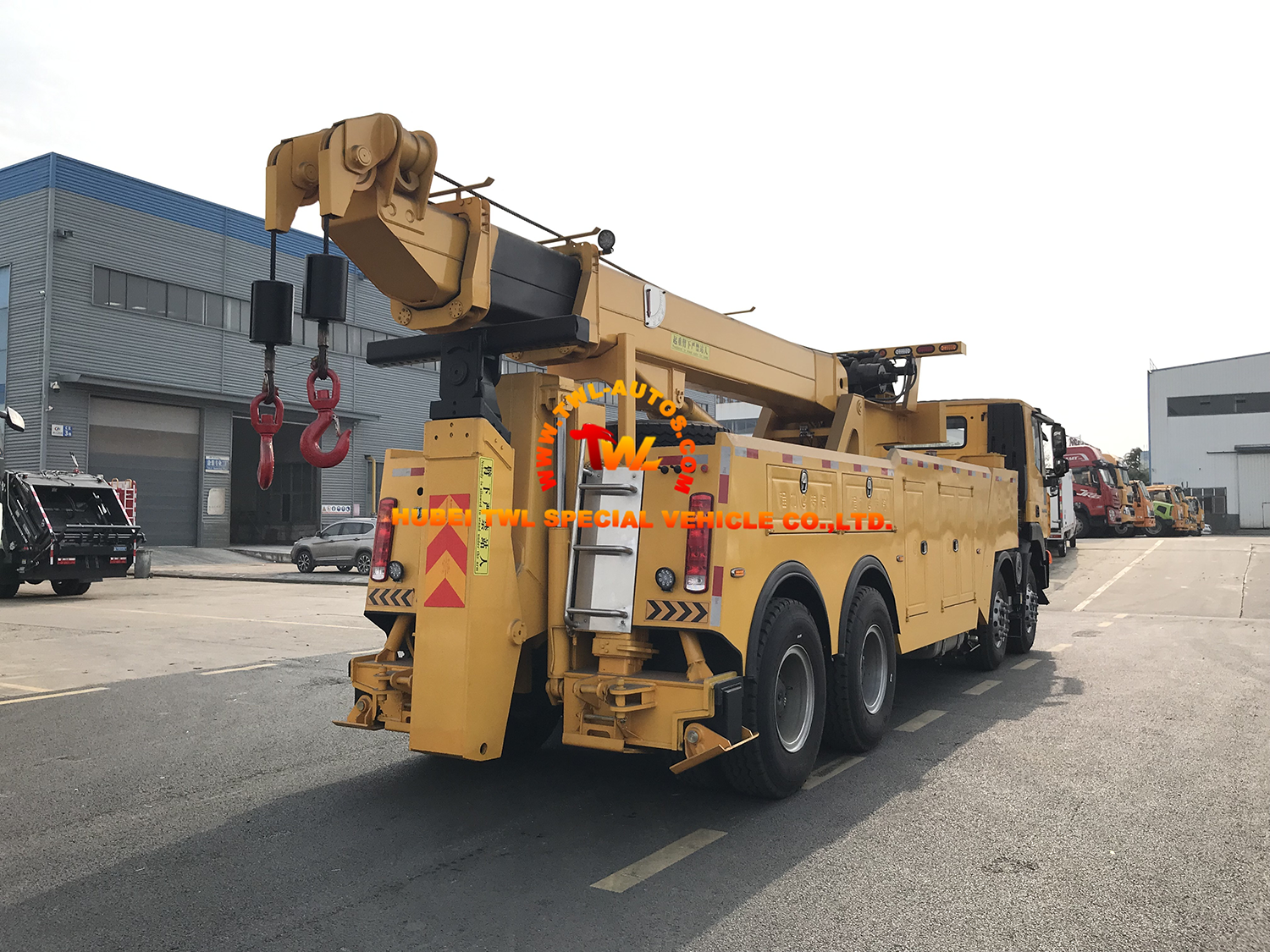

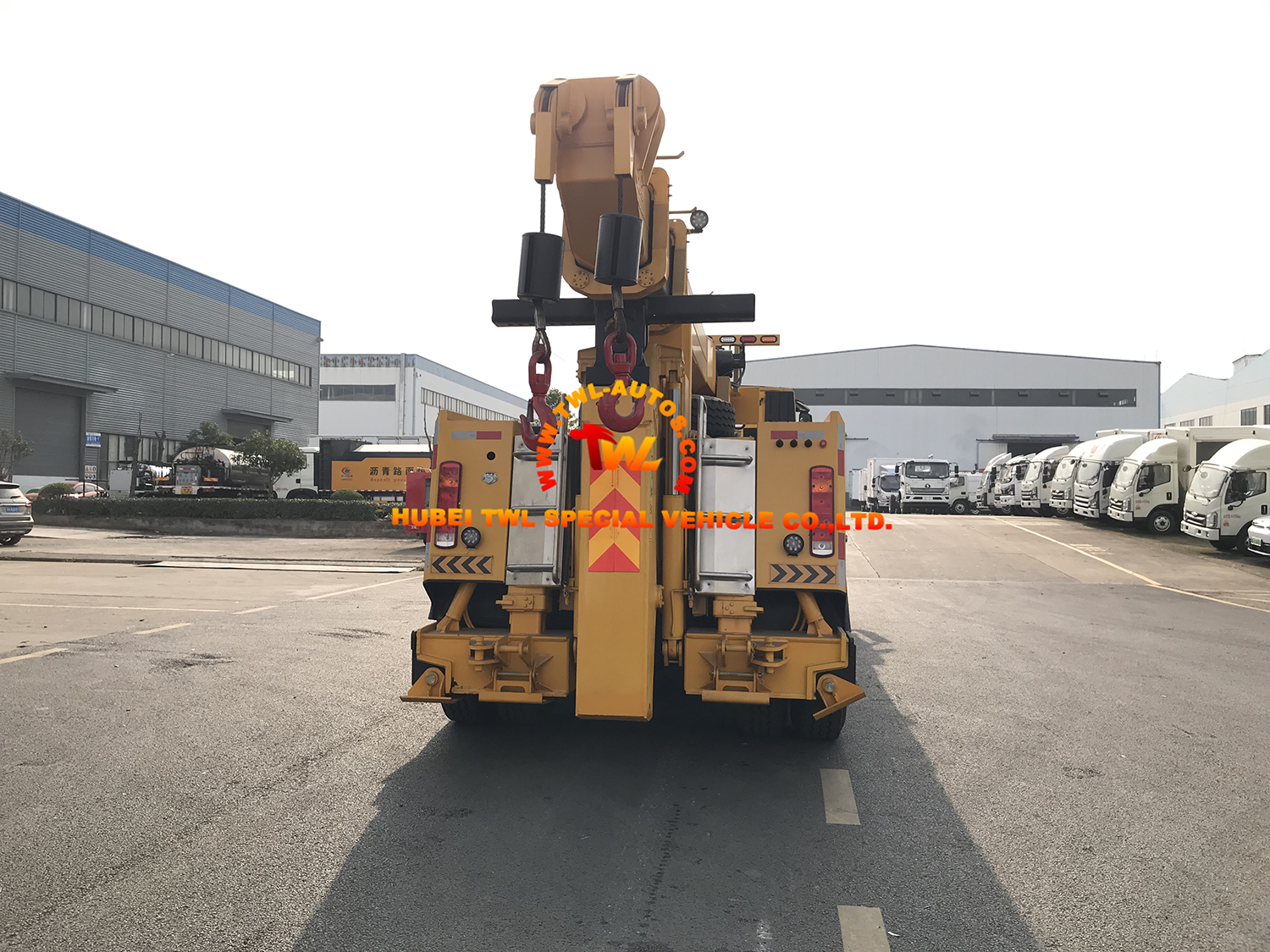

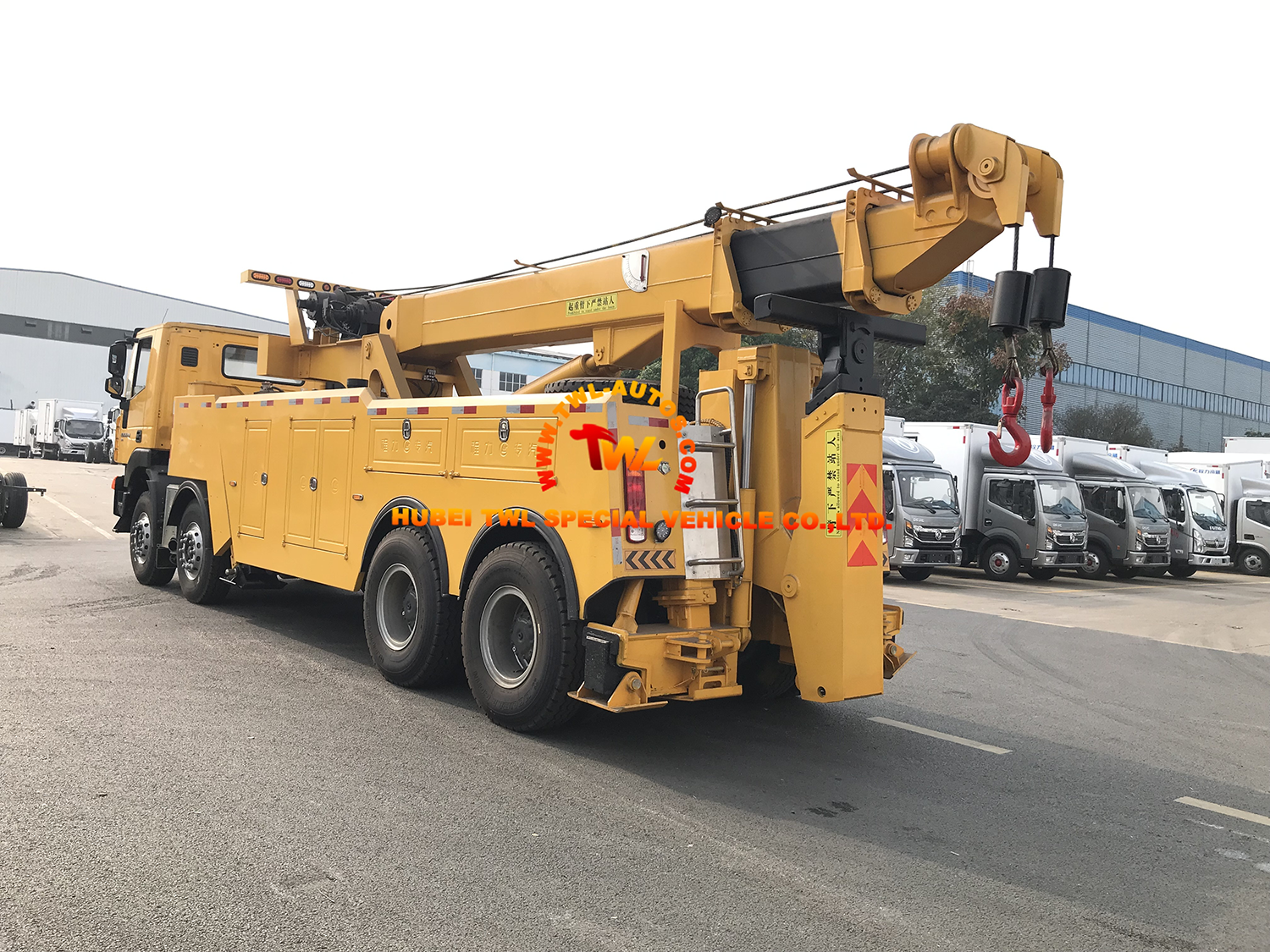

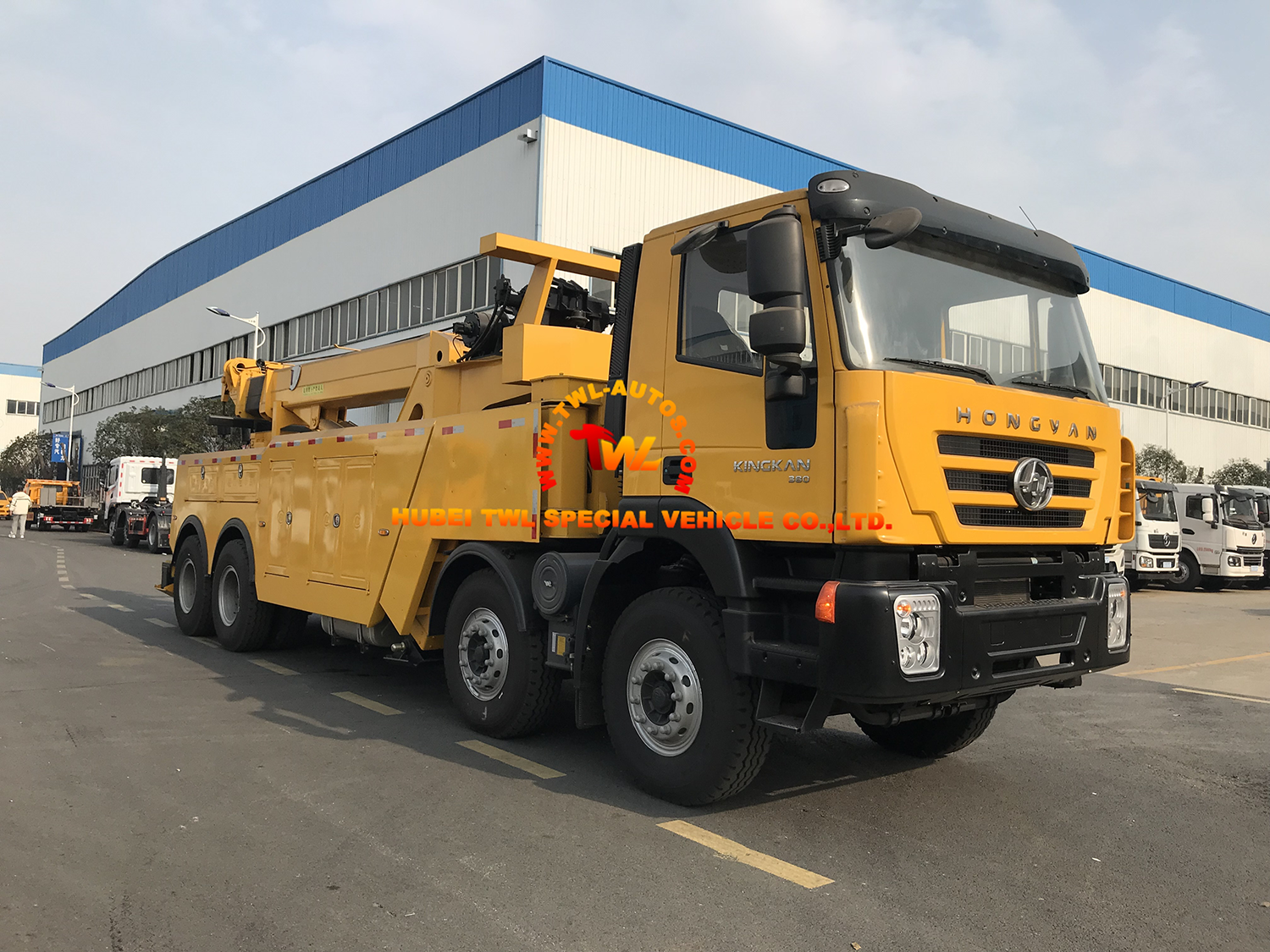

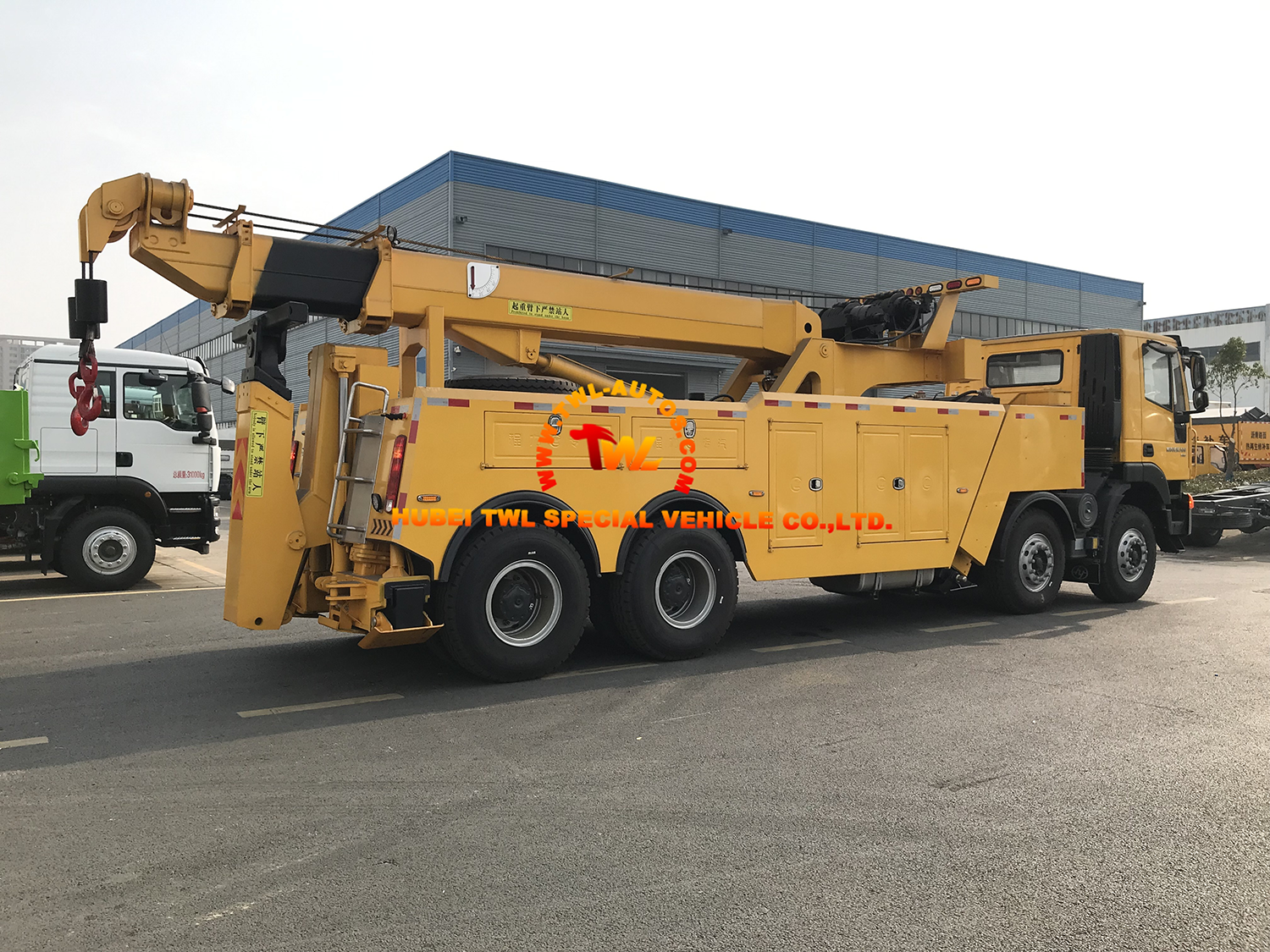

HongYan 8x4 50Tons 360 degree Rotary Wrecker Tow Truck Gallery
