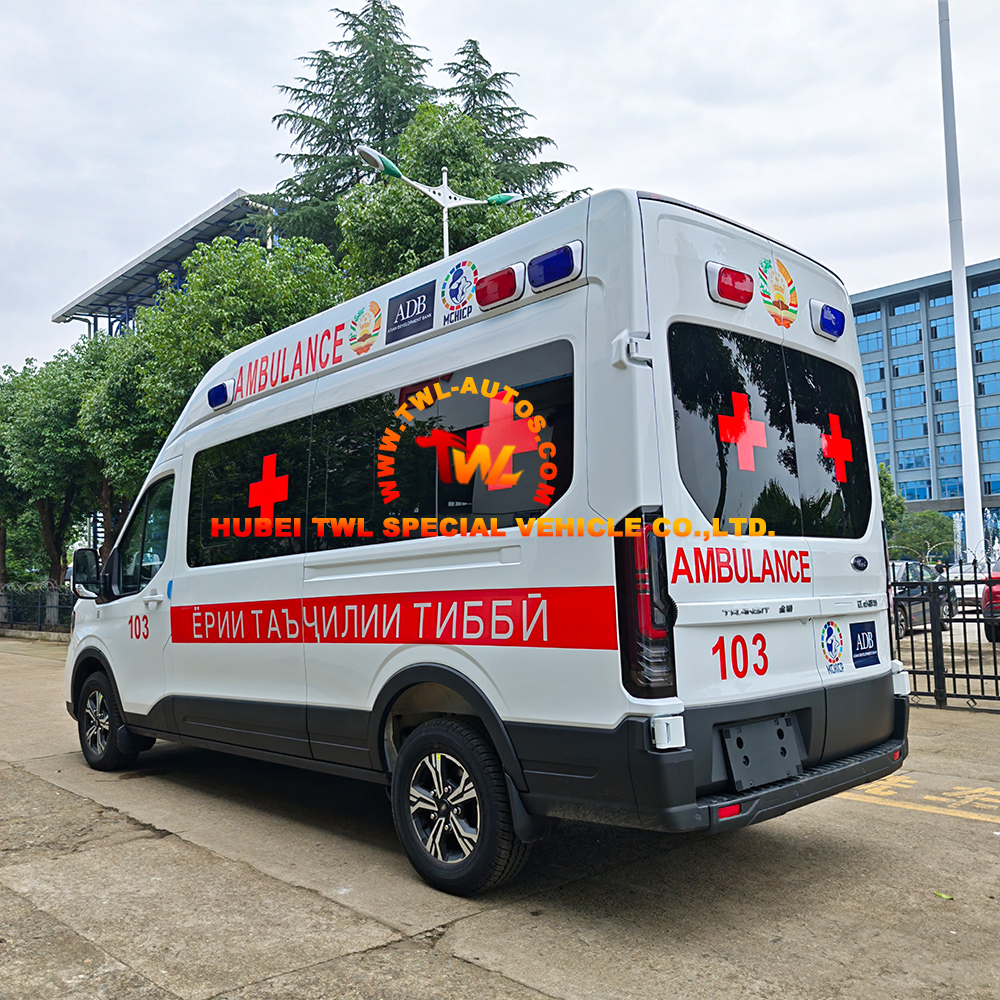

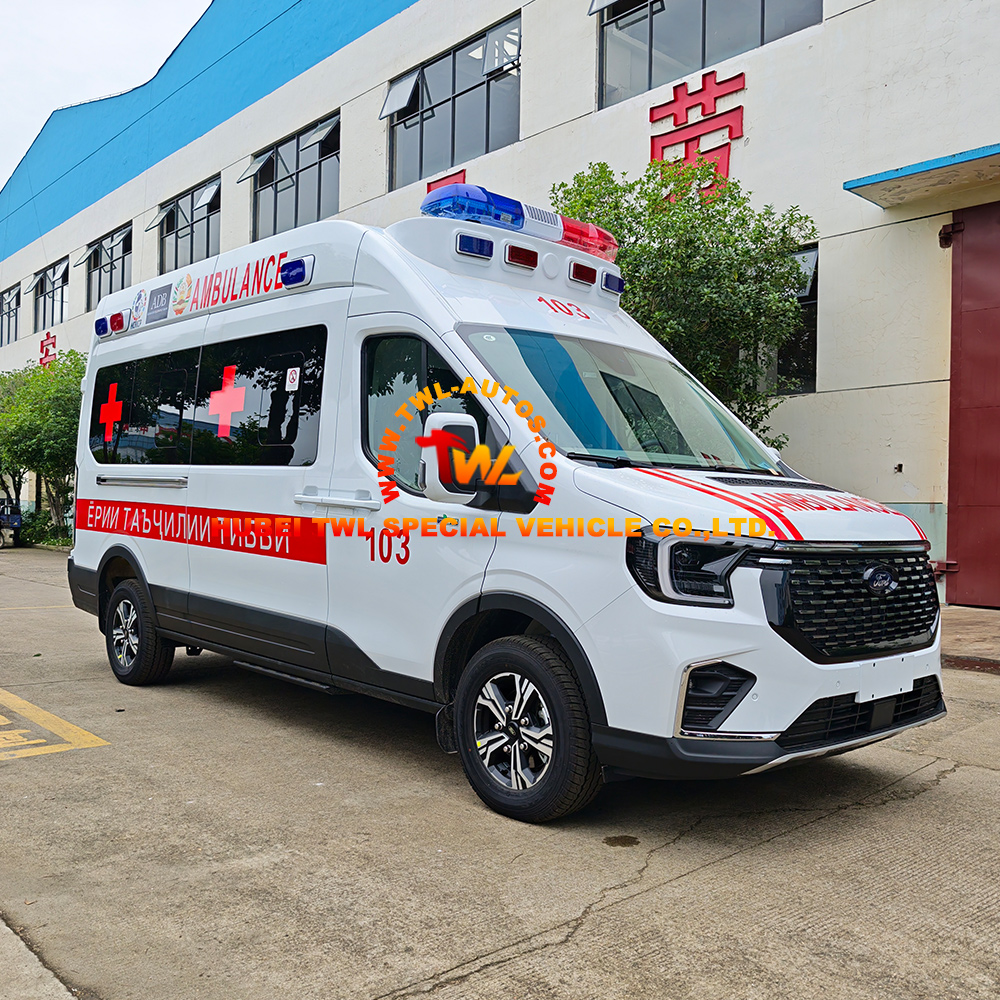

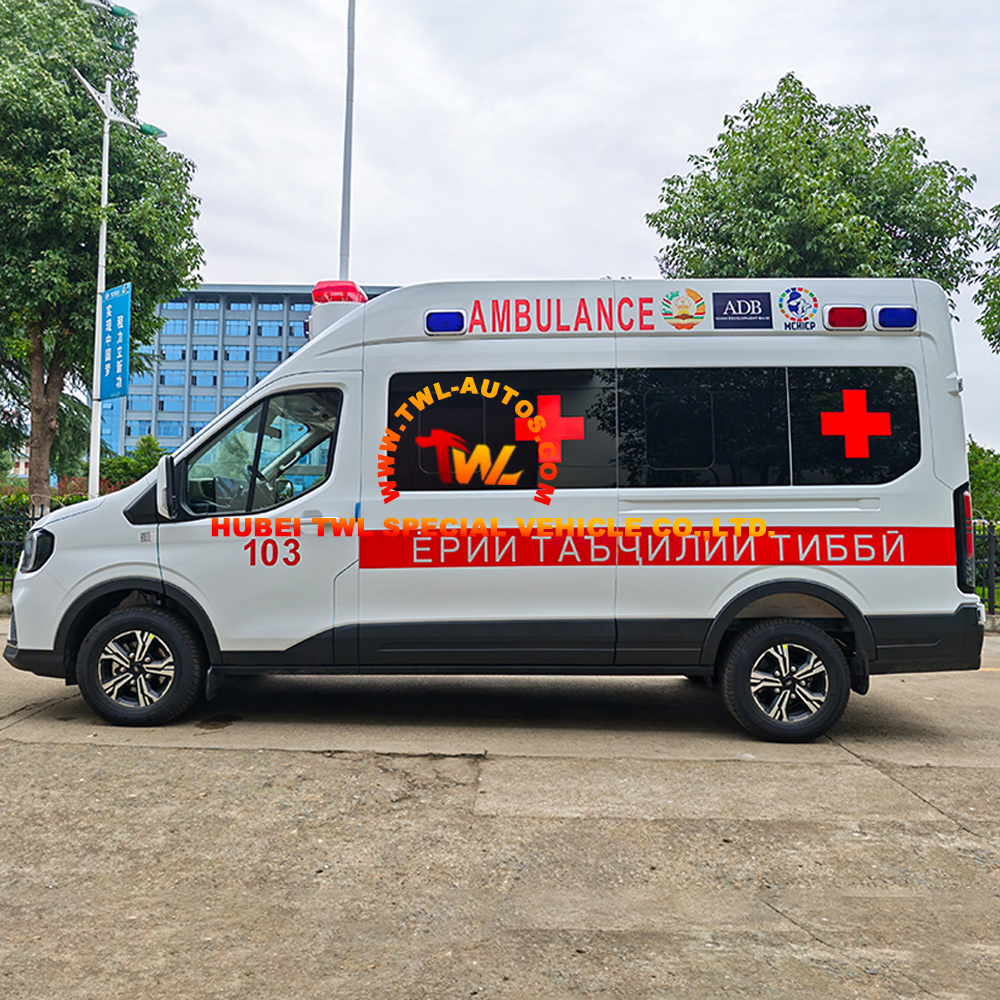

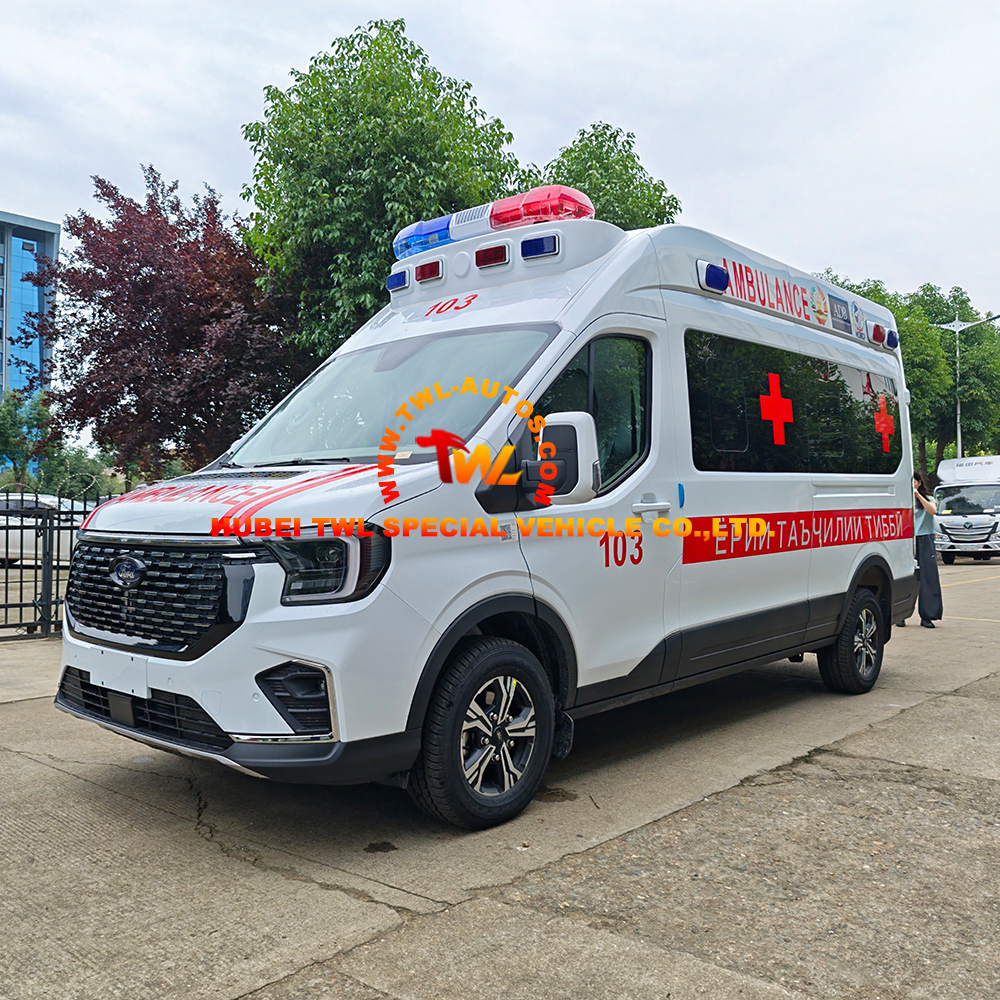

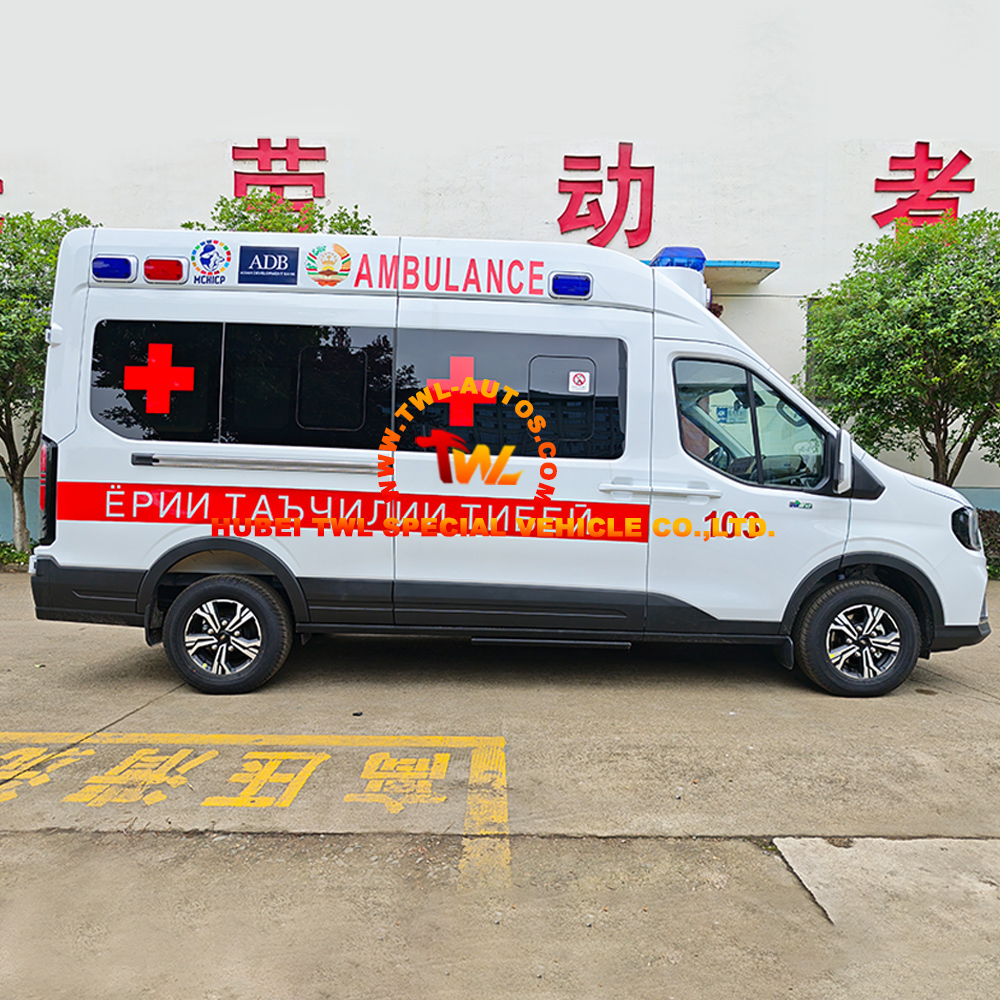

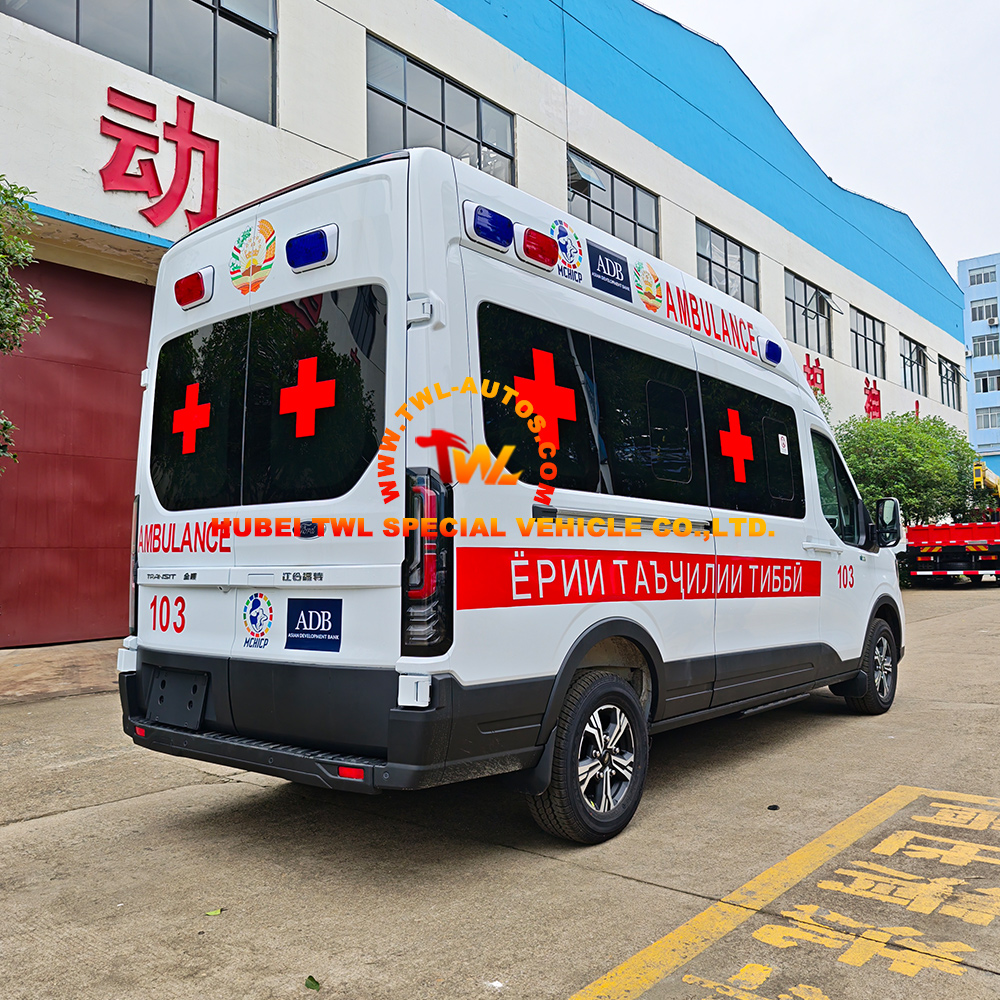

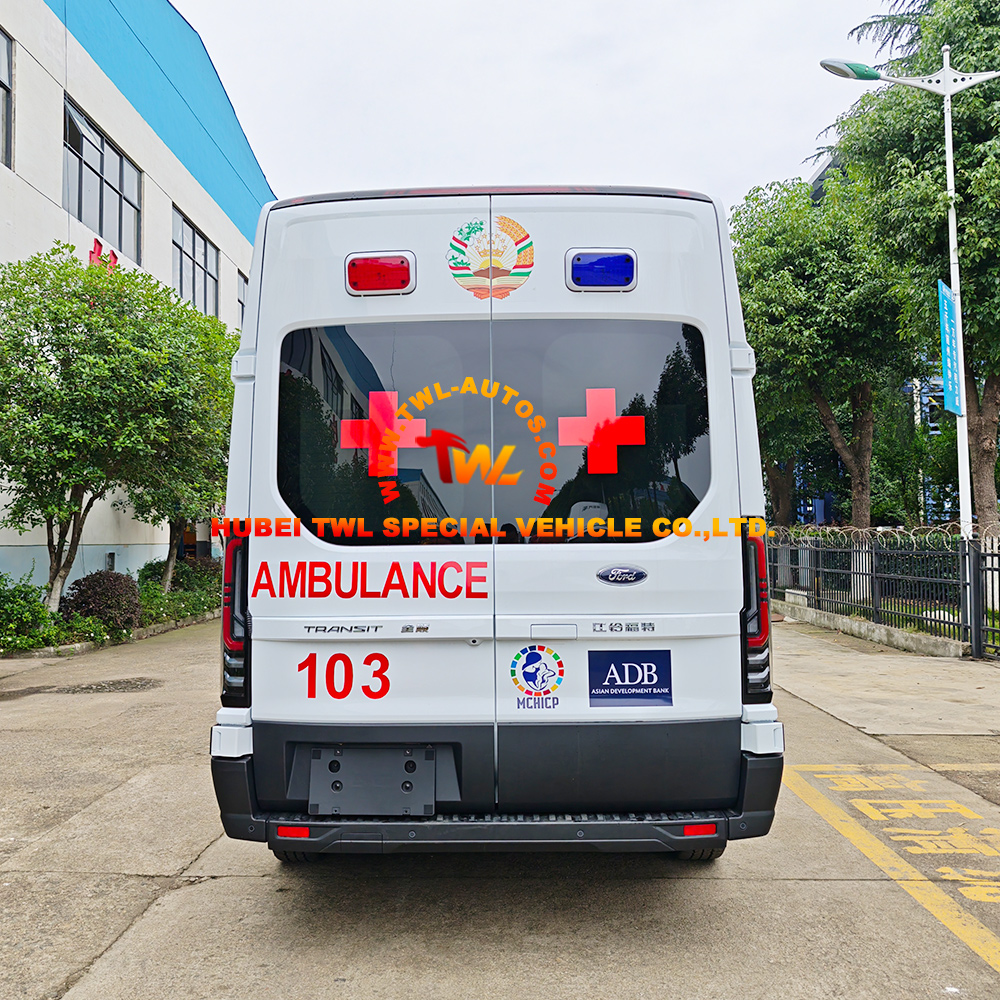

Ford Transit T8 ICU Ambulance

The Ford Transit T8 Ambulance is a professional-grade emergency medical vehicle designed for hospitals, emergency medical service providers, and public health institutions requiring advanced life support and critical patient transport. Built on the all-new Ford Transit T8 commercial chassis – renowned for its 5.25-ton load capacity and lowest-in-class fuel consumption of 7.5L/100km – this vehicle features a Ford PUMA 2.3T diesel engine delivering 175HP (128kW) with Euro VI compliance, paired with an 8-speed automatic transmission for smooth, responsive operation in emergency scenarios. The high-top wide-body medical cabin is constructed with antibacterial composite materials and fully sealed seams, featuring ICU-grade medical equipment including multi-parameter ECG monitors, ventilators, defibrillators, and negative pressure suction devices. The advanced negative pressure isolation system provides directional airflow with filtration efficiency exceeding 99.995% for particles of 0.3 microns, preventing cross-infection and pollution leakage. The medical cabin features intelligent timed ultraviolet disinfection lamps, medical-grade anti-slip flooring, guide rail-type infusion racks, and comprehensive storage for emergency drugs and equipment. With 68 reinforced boron steel points and high-strength body construction, this ambulance provides exceptional occupant protection during emergency response.

Key Features:

1. Ford Transit T8 All-New Platform – Industry-Leading Performance: The Transit T8 is the first product under Ford’s Qingtian architecture, offering:

· 5.25-ton load capacity and 13m³ cargo space

· Lowest fuel consumption in its class (7.5L/100km)

· 68 reinforced boron steel points for superior body strength

· 30% slope parking and starting capability

· Minimum idle noise of 46dB for quiet operation

2. Ford PUMA 2.3T Diesel Engine – Powerful & Efficient: 175HP (128kW) with maximum torque of 430 Nm. Euro VI emission compliance. 8-speed automatic transmission for smooth response in emergency scenarios.

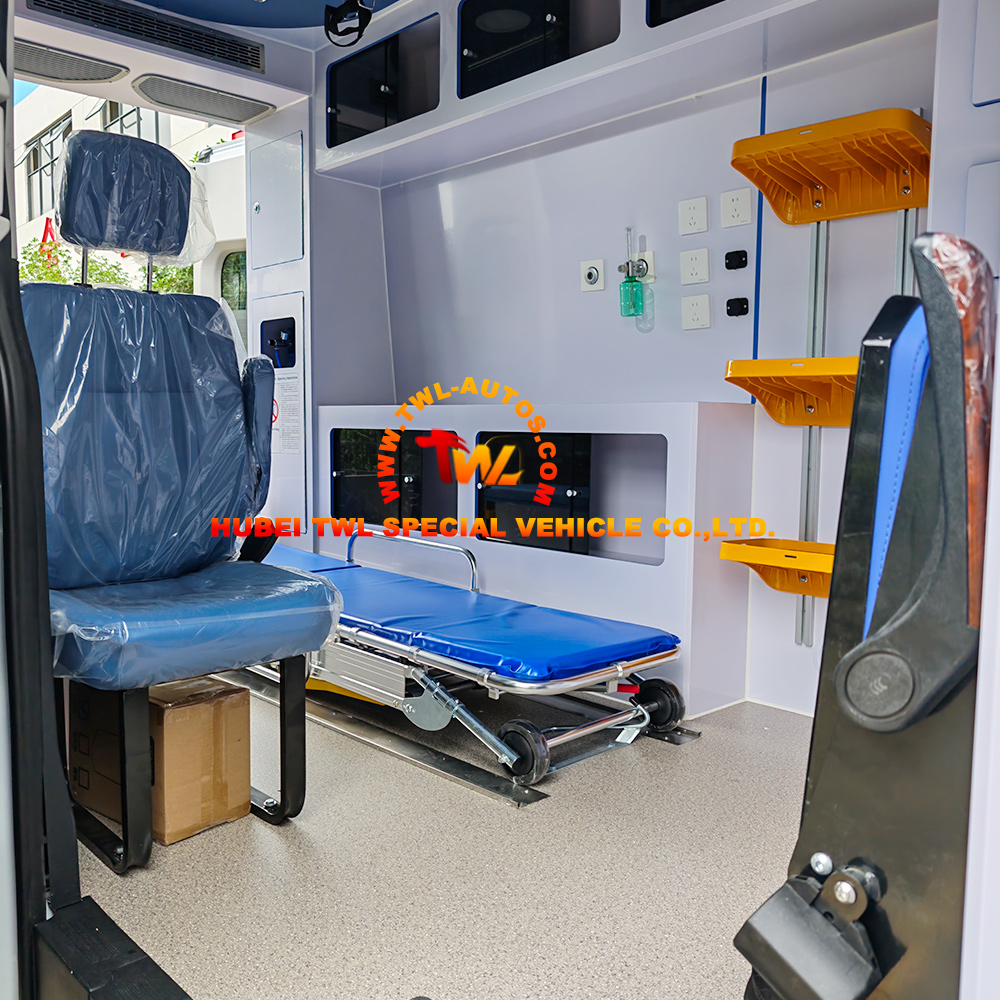

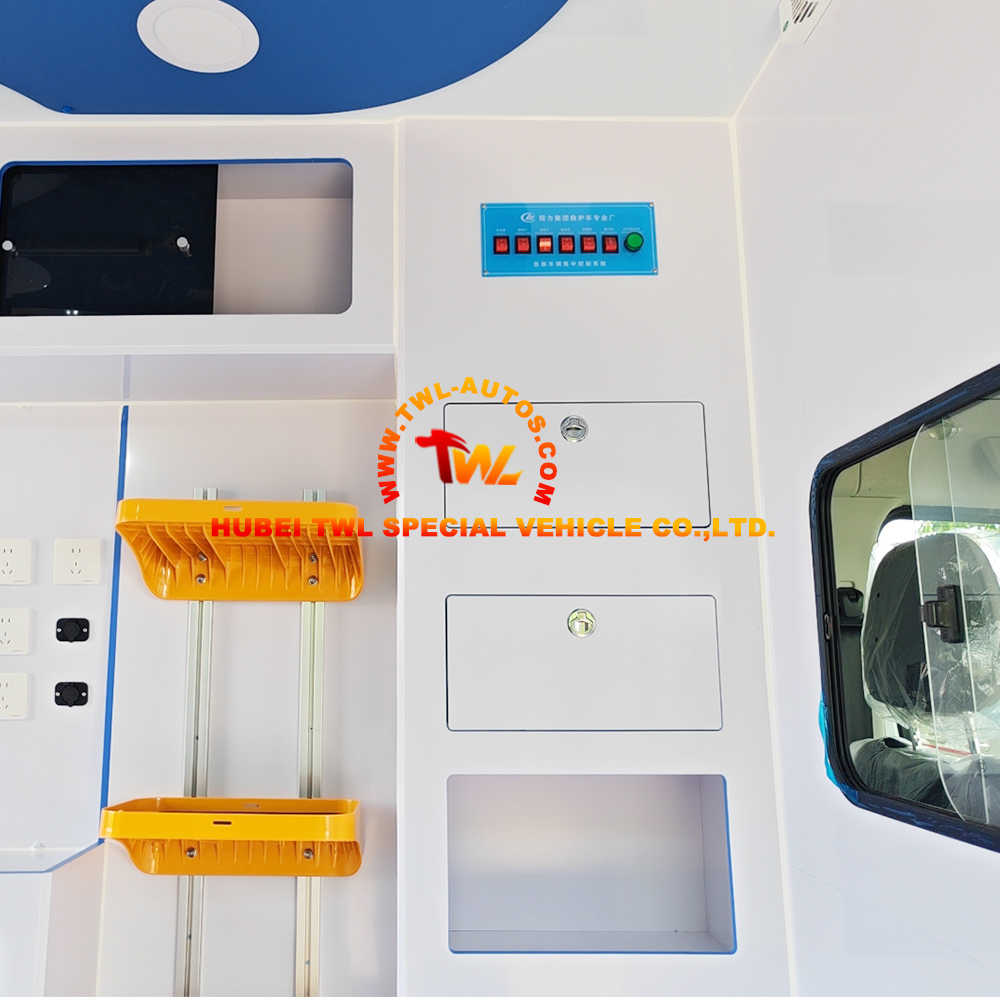

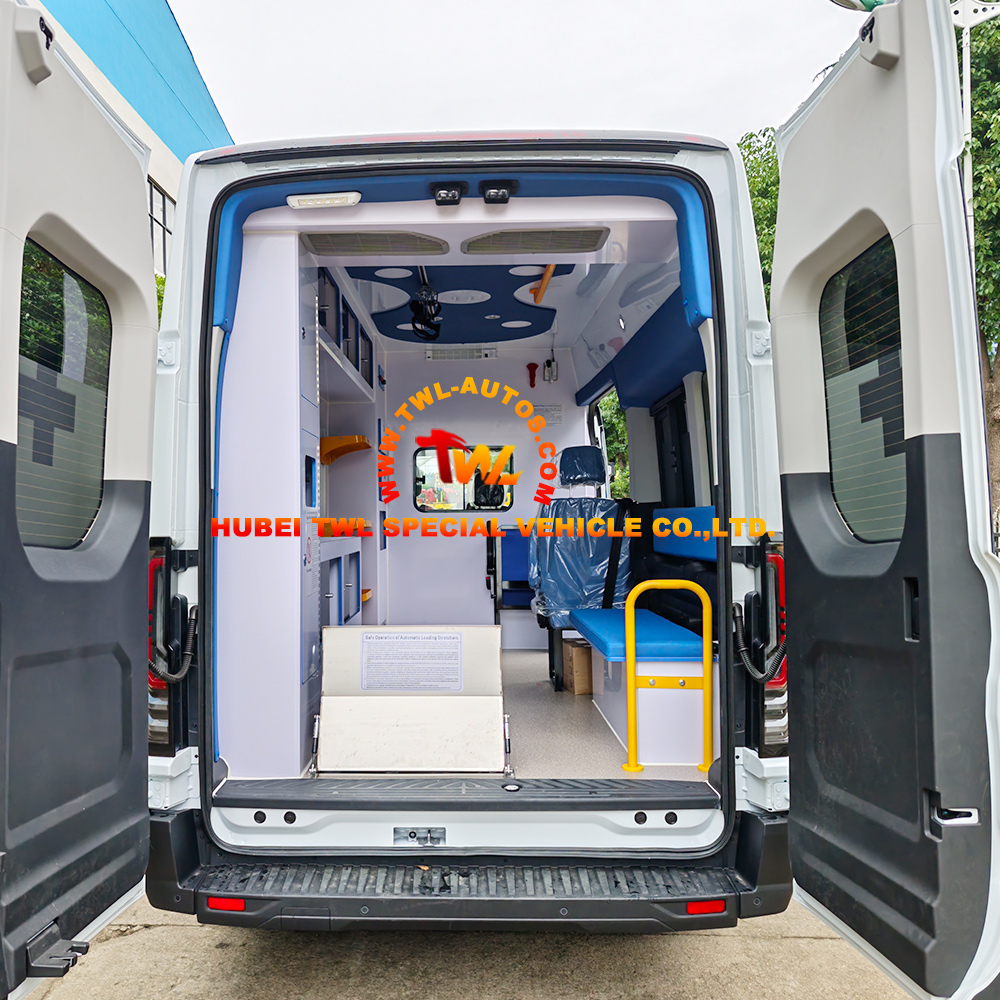

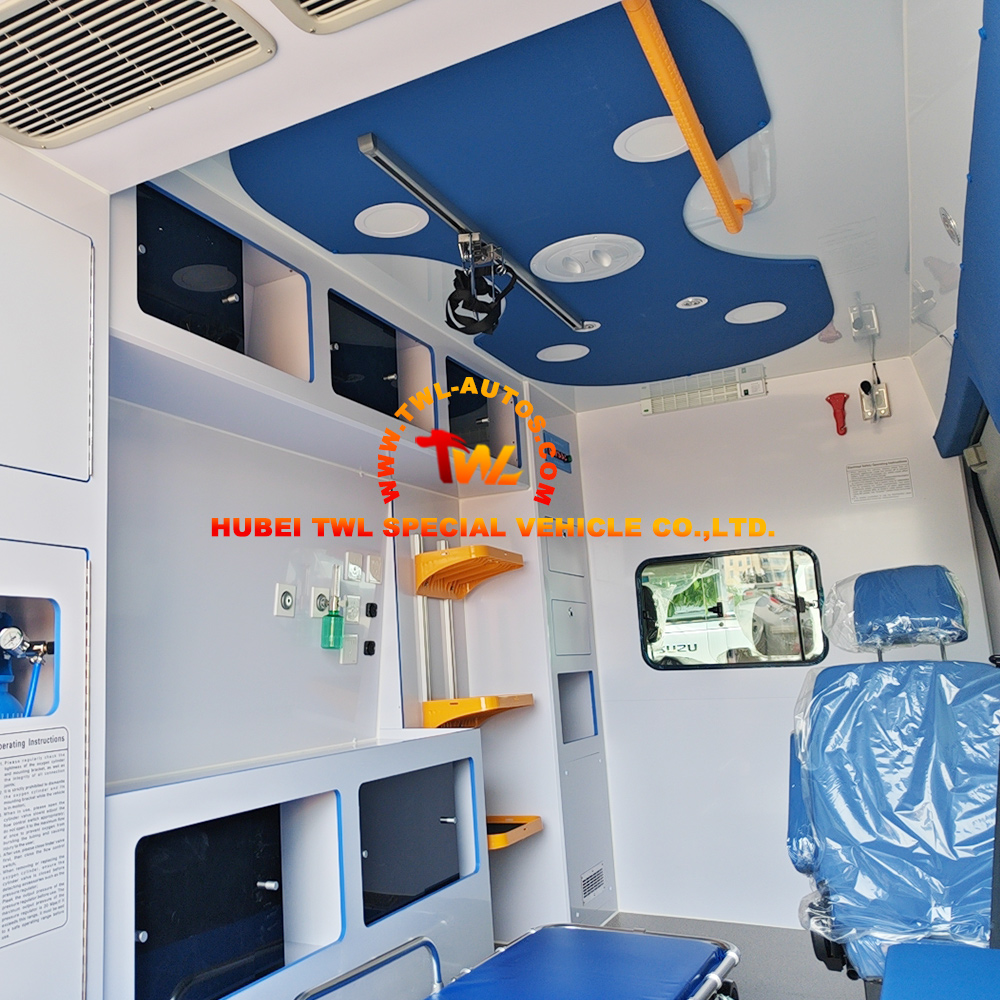

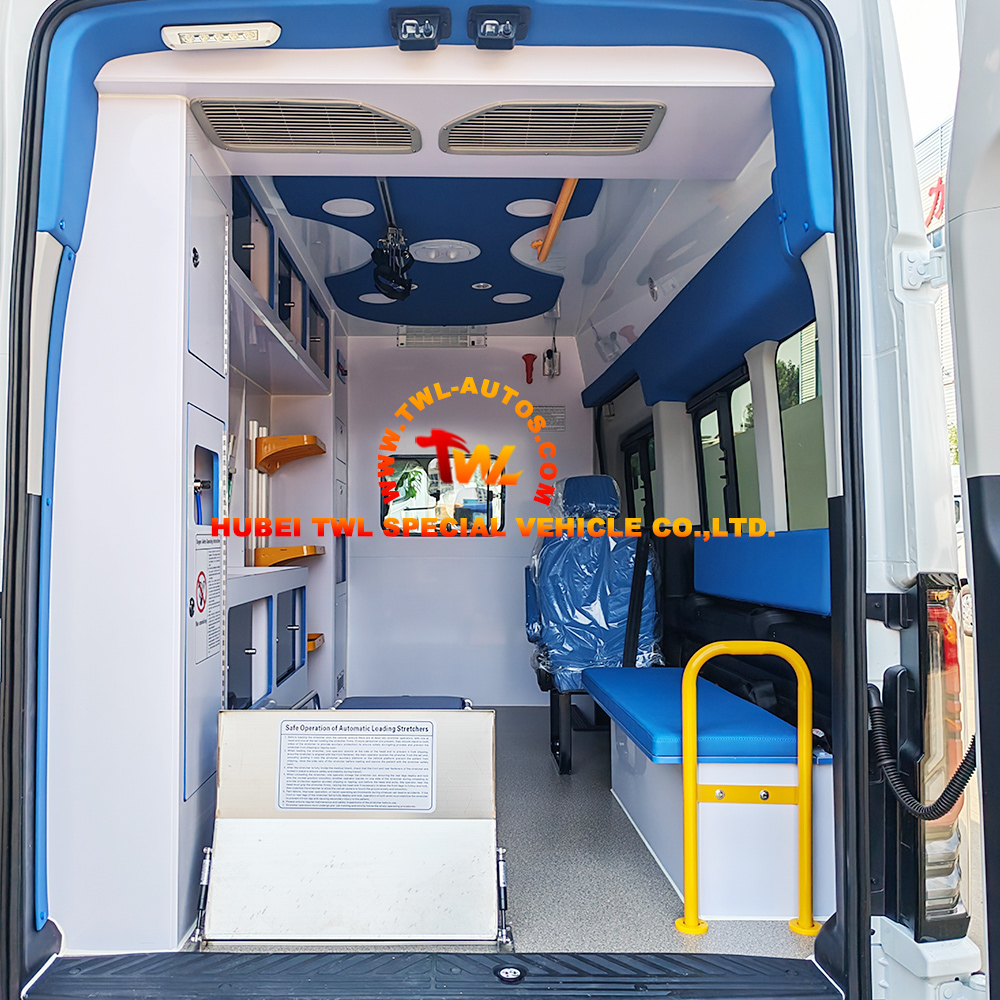

3. High-Top Medical Cabin – ICU-Ready Environment: Antibacterial composite material interior with fully sealed seams. Medical-grade anti-slip, waterproof, easy-clean flooring. Intelligent timed ultraviolet disinfection lamps for sterile cabin environment. Comprehensive medical storage cabinets with oxygen cylinder cabinet.

4. Negative Pressure Isolation System – Infection Control: Directional airflow design with cabin pressure maintained below outside (-30Pa to -10Pa). Multi-layer ultra-fine glass fiber filtration with 99.995% efficiency for 0.3μm particles. Prevents contamination leakage and cross-infection. Ideal for infectious disease patient transport.

5. ICU-Grade Medical Equipment Suite:

· Multi-parameter ECG monitor for real-time vital sign tracking

· Ventilator for respiratory support

· Defibrillator for cardiac emergency response

· Negative pressure suction device for secretion removal

· Dual 10L oxygen cylinders (15MPa) with central oxygen supply

· Guide rail-type infusion rack with folding hooks

6. Comprehensive Advanced Safety Systems:

· ABS with EBD and four-wheel disc brakes

· ADAS (Advanced Driver Assistance System) for collision prevention

· 360° panoramic camera for complete visibility

· Lane departure warning and lane keeping assist

· Driver monitoring system (DMS) for fatigue detection

· Rollover intervention (RMI) and blind spot detection (BSD)

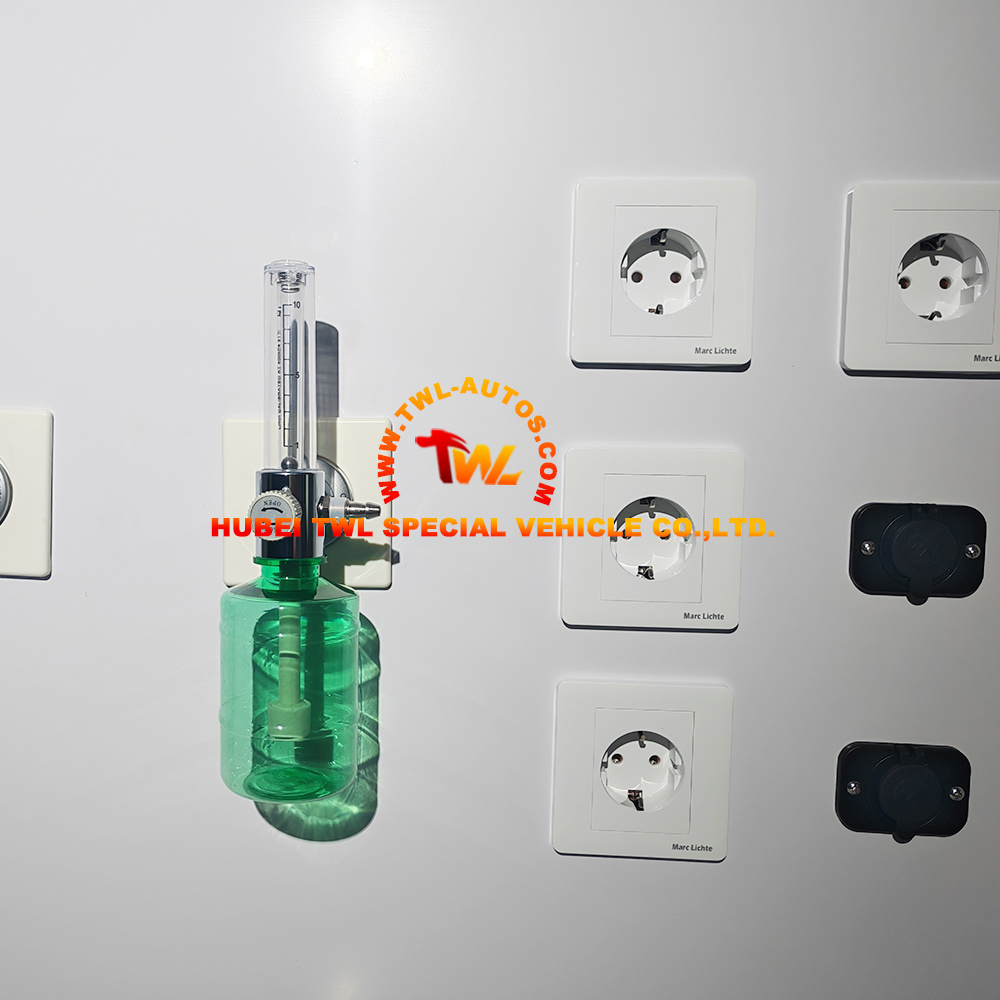

7. Power Supply & Electrical Infrastructure: 2KVA UPS inverter with 12-380V input range. Multiple 220V power sockets for medical equipment. Intelligent battery management with maintenance-free batteries. 70L fuel tank for extended range.

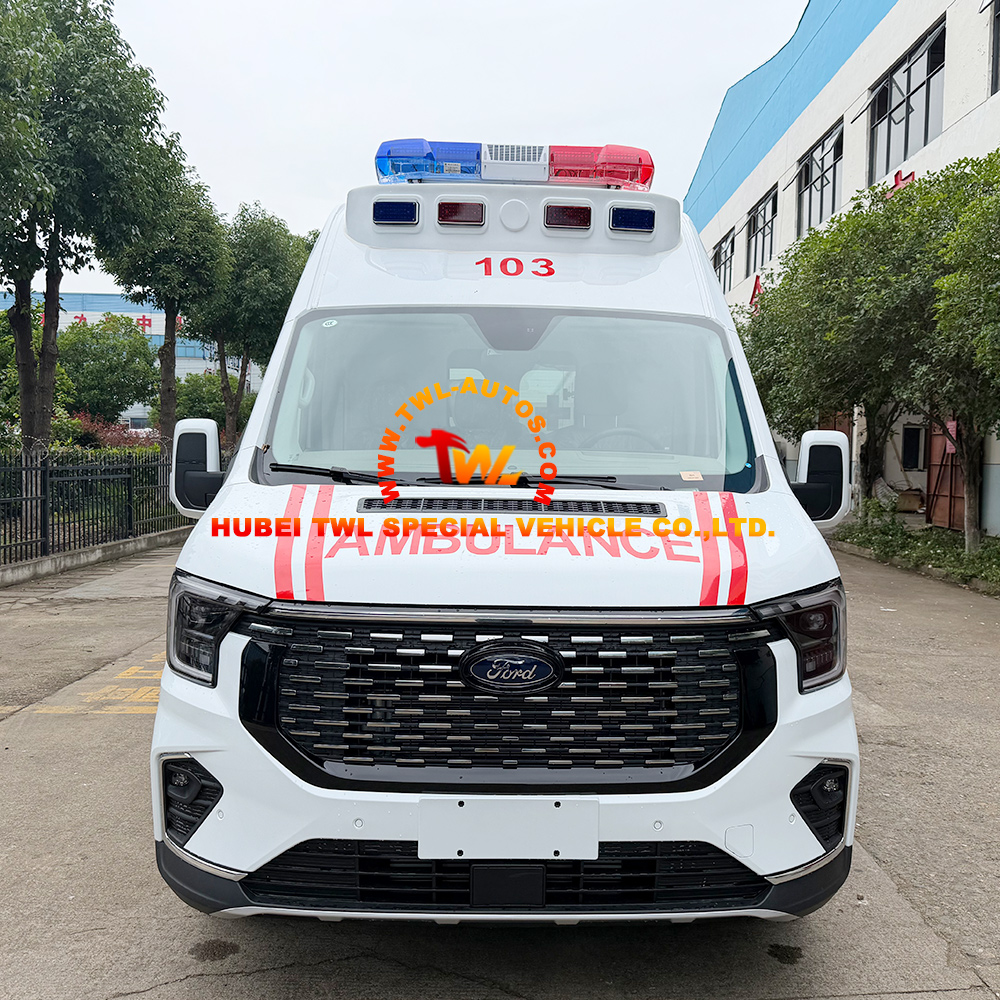

8. Emergency Warning & Lighting Systems: Full roof-mounted ambulance warning light bar with blue/white strobe warning lights. High-frequency flash warning system. 100W external speaker for public address. Interior LED lighting with spotlights for medical procedures.

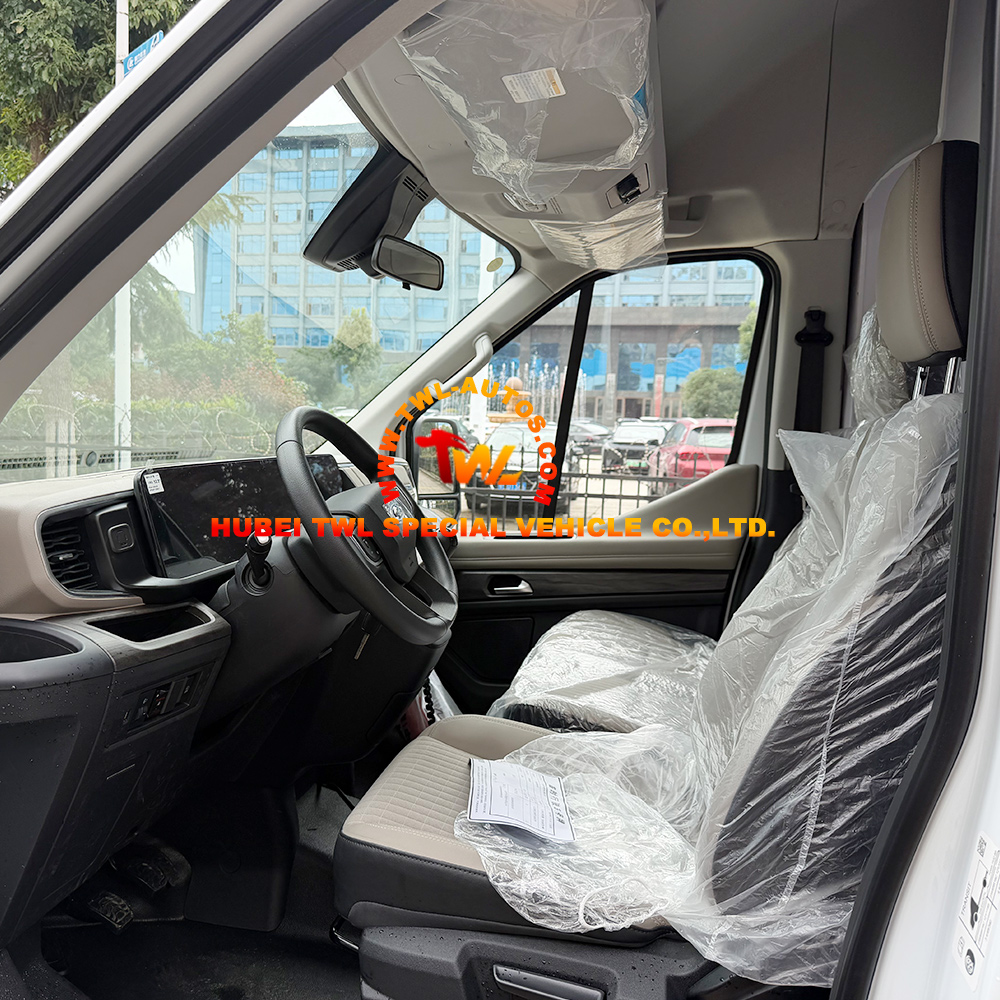

9. Operator & Patient Comfort: Separate front/rear cabin climate control systems. Independent rear cabin air conditioning. Two-way ventilation fan for fresh air circulation. Ergonomic driver seat with full adjustability.

Application:

· Hospital Emergency Transport: Critical care patient transfer between hospitals and emergency departments. ICU-level support during transport.

· Pre-Hospital Emergency Medical Services: Emergency response and on-scene critical care. Rapid patient stabilization and transport.

· Mass Casualty Incident Response: Multi-patient transport capability for disaster scenarios. Mobile emergency treatment platform.

· Infectious Disease Transport: Negative pressure isolation system for safe transport of contagious patients.

· Public Health Emergency Response: Pandemic response, disease outbreak management.

· Event Medical Standby: Sporting events, concerts, large public gatherings requiring on-site emergency medical support.
