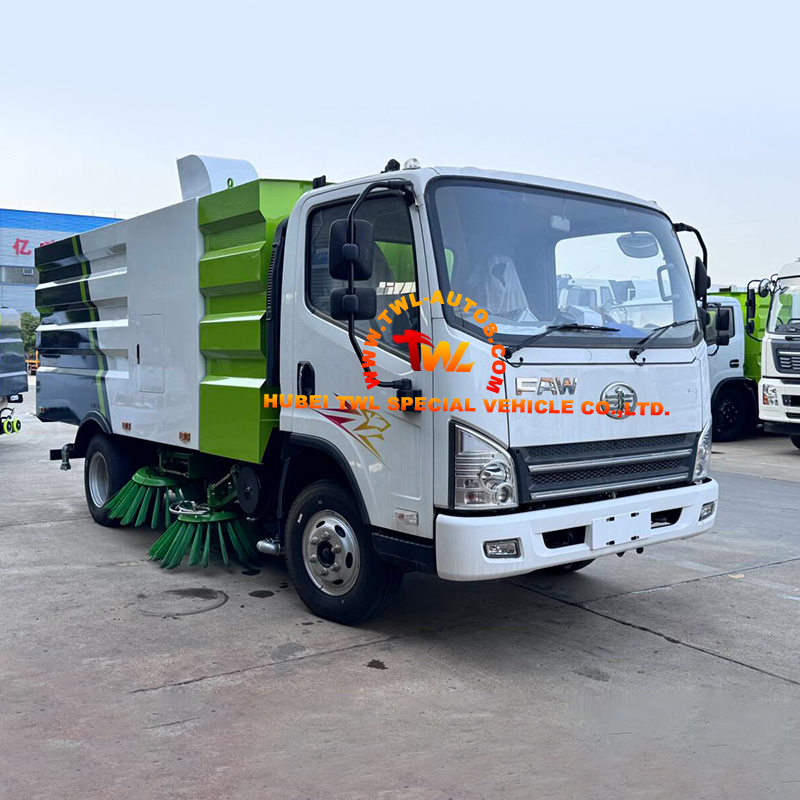

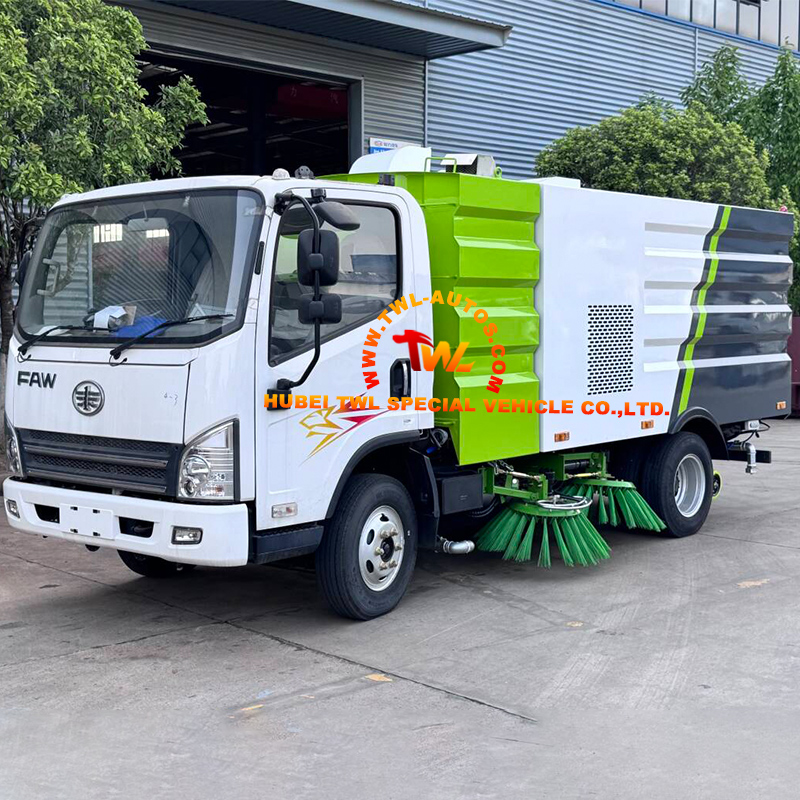

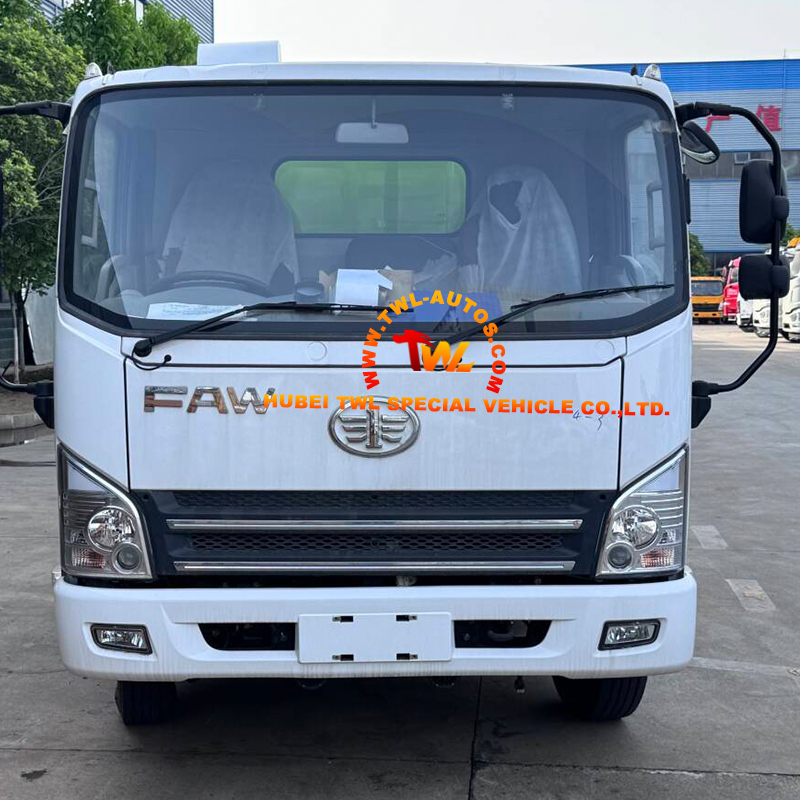

FAW RHD 5.5m³ Road Sweeper Truck

The FAW RHD Road Sweeper Truck is a professional-grade right-hand drive sanitation vehicle designed for municipalities, industrial facilities, airports, and private contractors in RHD markets who demand efficient, reliable street sweeping. Built on the FAW VH 4×2 RHD chassis with 3,300mm wheelbase and GVW of 8,000kg, this vehicle features a dual-engine power system: a YUCHAI 130hp (95kW) main engine for driving and a JMC 87hp auxiliary engine dedicated to powering the sweeping system. The auxiliary engine drives the hydraulic oil pump and high-pressure centrifugal fan, which creates high-speed airflow that brings garbage inside through the suction pipe and nozzle. The 5.5m³ dustbin (stainless steel) uses regenerative air suction technology to collect debris, sand, and fine particles with up to 99% efficiency. The 1.5m³ carbon steel water tank supplies low-pressure fog-type water spray for dust suppression, while the closed-loop water recycling system reduces water consumption by 30%. The center four sweeping discs feature adjustable width from 2,300 to 2,800mm, adapting to narrow lanes or wide highways. Sweeping speed ranges from 3-15 km/h with suction capacity density of 2.0g/cm³ and sweeping efficiency ≥96%. The garbage box dumping angle is ≥45°, with hydraulic tilt mechanism emptying the bin in ≤2 minutes. The intelligent touchscreen cockpit interface provides real-time monitoring of suction pressure, water flow, and engine status, with one-touch start/stop and mode switching. Auto-adjust brush pressure automatically optimizes cleaning for different road surfaces (asphalt, cobblestone, etc.). The low-noise design (<75 dB) complies with urban noise regulations. Safety features include rearview cameras, emergency braking, and rollover-proof cabin structure.

Key Features:

1. FAW VH 4×2 RHD Chassis – Right-Hand Drive for RHD Markets: The FAW VH chassis is specifically designed for RHD markets including Southeast Asia, UK, Australia, and other right-hand drive countries. The 3,300mm wheelbase provides excellent maneuverability for navigating narrow city streets and urban routes. GVW of 8,000kg provides stable platform for sweeping operations.

2. Dual-Engine Power System for Efficient Cleaning: The YUCHAI 130hp (95kW) main engine drives the vehicle, while the JMC 87hp auxiliary engine powers the sweeping system – including the hydraulic oil pump and high-pressure centrifugal fan. This dedicated power design ensures consistent sweeping performance and reduces wear on the main engine.

3. 5.5m³ Stainless Steel Dustbin – High-Capacity & Corrosion-Resistant: The 5.5m³ dustbin is constructed from stainless steel for corrosion resistance and long service life. Uses regenerative air suction technology to collect debris, sand, and fine particles with up to 99% efficiency. Garbage box dumping angle ≥45° with hydraulic tilt mechanism emptying bin in ≤2 minutes.

4. 1.5m³ Carbon Steel Water Tank with Low-Pressure Fog Spray: The 1.5m³ water tank supplies low-pressure fog-type water spray for effective dust suppression without excessive water usage. Closed-loop water recycling system reduces water consumption by 30%.

5. High-Performance Center Four Sweeping Discs: Center four sweeping discs with adjustable width from 2,300 to 2,800mm. Sweeping speed 3-15 km/h. Suction capacity density 2.0g/cm³ for effective debris collection. Sweeping efficiency ≥96% for thorough cleaning.

6. Intelligent Touchscreen Control System: The digital touchscreen cockpit interface provides real-time monitoring of suction pressure, water flow, and engine status. One-touch start/stop and mode switching simplify operation and improve precision. Auto-adjust brush pressure automatically optimizes cleaning for different road surfaces (asphalt, cobblestone, etc.).

7. Durability & Low Maintenance Design: Reinforced chassis with anti-corrosion coating withstands harsh environments (coastal, deicing salt zones). Stainless steel filter system reduces maintenance frequency by 40%. Low-noise design (<75 dB) complies with urban noise regulations. Modular component design with easily replaceable critical parts (fans, filters).

8. 360° Safety Protection: Safety features include rearview cameras for blind spot visibility, emergency braking for collision avoidance, and rollover-proof cabin structure to protect operators in accidents.

Application:

· Urban Road Maintenance: Daily street sweeping in downtown areas, pedestrian zones, bus lanes, and bike lanes. The adjustable brush width adapts to narrow lanes and wide highways.

· Industrial Zones: Removal of metal shavings, gravel, sand, and construction residue from factory perimeters and industrial parks.

· Park & Public Space Hygiene: Gentle brush modes prevent damage to pavements, tiles, or landscaped areas in parks, plazas, and public gardens.

· Airport Operations: Runway, apron, and taxiway sweeping to remove FOD (Foreign Object Debris) that could damage aircraft.

· Parking Lots & Commercial Areas: Efficient cleaning of large parking areas at shopping centers, stadiums, and event venues.

· Highways & Expressways: High-speed sweeping capabilities for highway maintenance and debris removal.
