FAW Jiefang Tiger VH 8m³ Compactor Garbage Truck

The FAW Jiefang Tiger VH Compactor Garbage Truck is a professional-grade waste collection vehicle designed for municipal sanitation departments, residential communities, commercial districts, and industrial facilities requiring high-capacity refuse collection and efficient compaction. Built on the proven FAW Tiger VH 4×2 light-duty chassis with 3,300-3,600mm wheelbase, this vehicle features a Yuchai 130-160HP diesel engine with Euro III/IV/V compliance, paired with a 6-speed manual transmission. The 8m³ arc-shaped garbage compartment is constructed from 5mm-thick Q345 carbon steel, providing maximum resistance to corrosion, impact, and deformation. The high-pressure hydraulic system delivers efficient compaction with a compaction ratio of up to 3:1, significantly increasing load capacity per trip and reducing transport trips to disposal sites. The fully sealed compression design prevents liquid leakage and odor during transport, making it suitable for sensitive residential and commercial areas. The PLC control system allows one-touch dumping and compaction with automatic/manual operation modes, simplifying operation and reducing training requirements. The hydraulic automatic rear loading hopper with continuous cycle operation ensures efficient waste loading. The Tiger VH cab features air conditioning for driver comfort during long collection shifts. This compactor truck is the ideal solution for household waste, industrial garbage, and landfill transport.

Key Features:

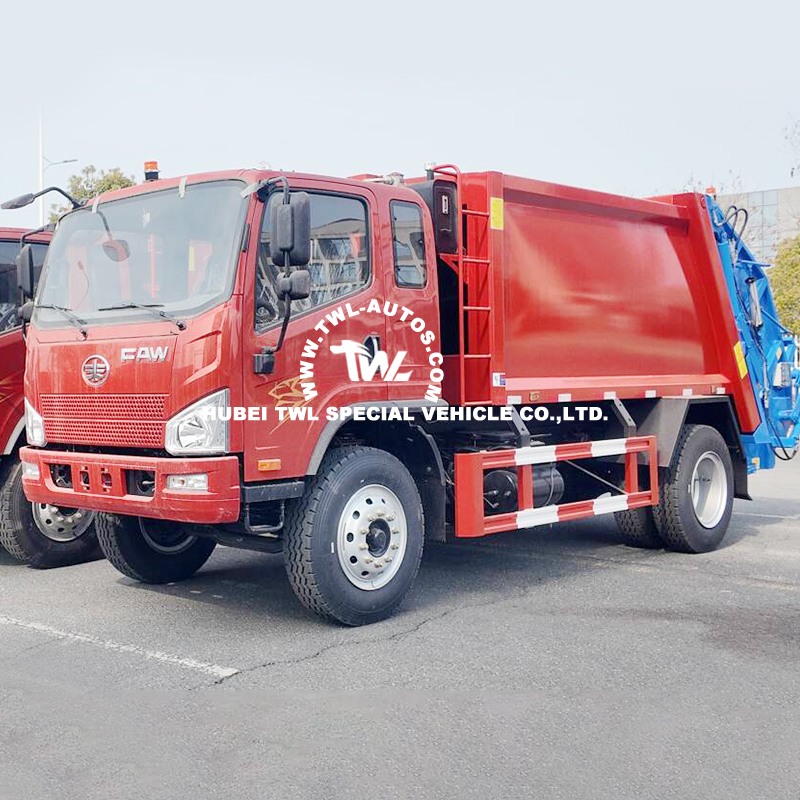

1. FAW Tiger VH 4×2 Chassis – Reliable & Maneuverable: The FAW Tiger VH chassis with 3,300-3,600mm wheelbase provides excellent stability and maneuverability for urban waste collection routes. GVW 8,000-10,000kg. 7.50R16 or 8.25R16 tires (6+1 spare). Tiger VH cab with A/C for driver comfort.

2. Yuchai 130-160HP Engine – Torque & Fuel Efficiency: The Yuchai diesel engine delivers high torque output for heavy compaction cycles and hilly terrain. Euro III/IV/V compliance ensures eco-friendly operation. Fuel-efficient design reduces operating costs.

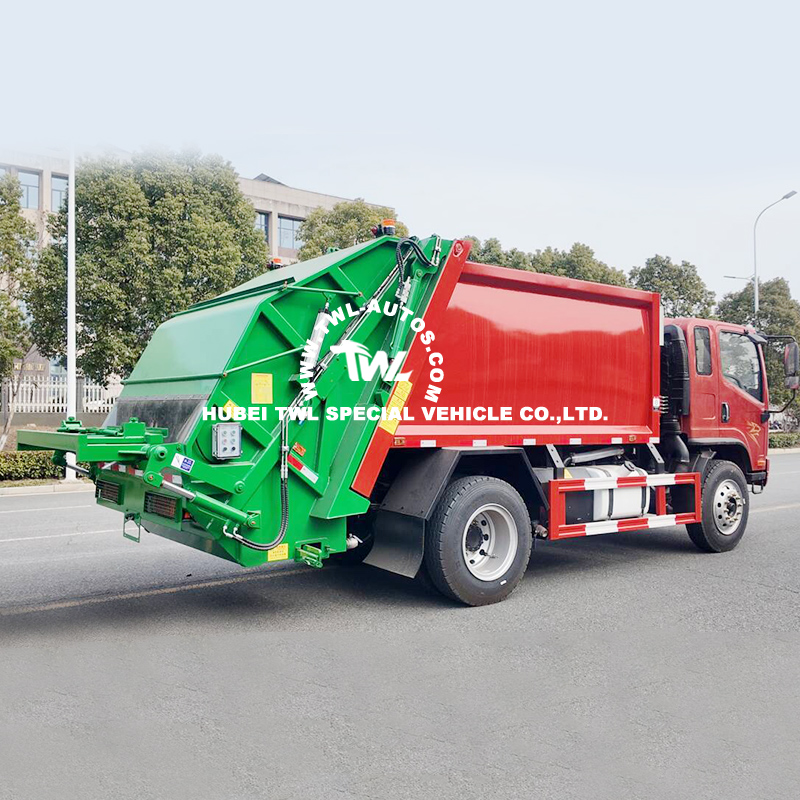

3. 8m³ Arc-Shaped Q345 Carbon Steel Body – High-Strength Construction: The garbage compartment is constructed with 5mm-thick Q345 carbon steel on sides and floor – high-strength material specifically chosen for waste compaction applications. Arc-shaped design promotes efficient waste flow and uniform compaction. Reinforced structure ensures longevity even under extreme compaction cycles.

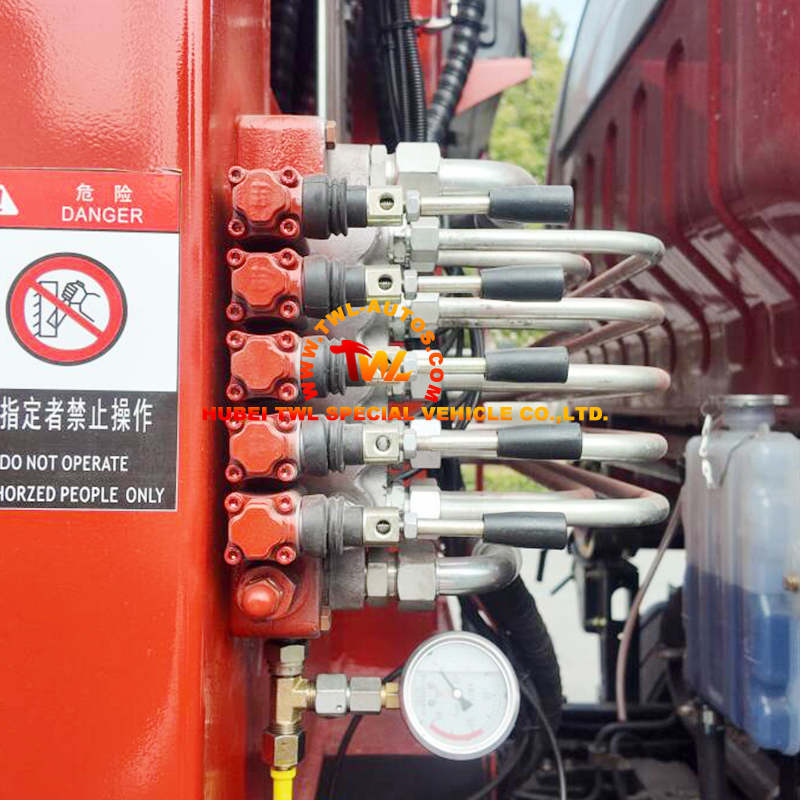

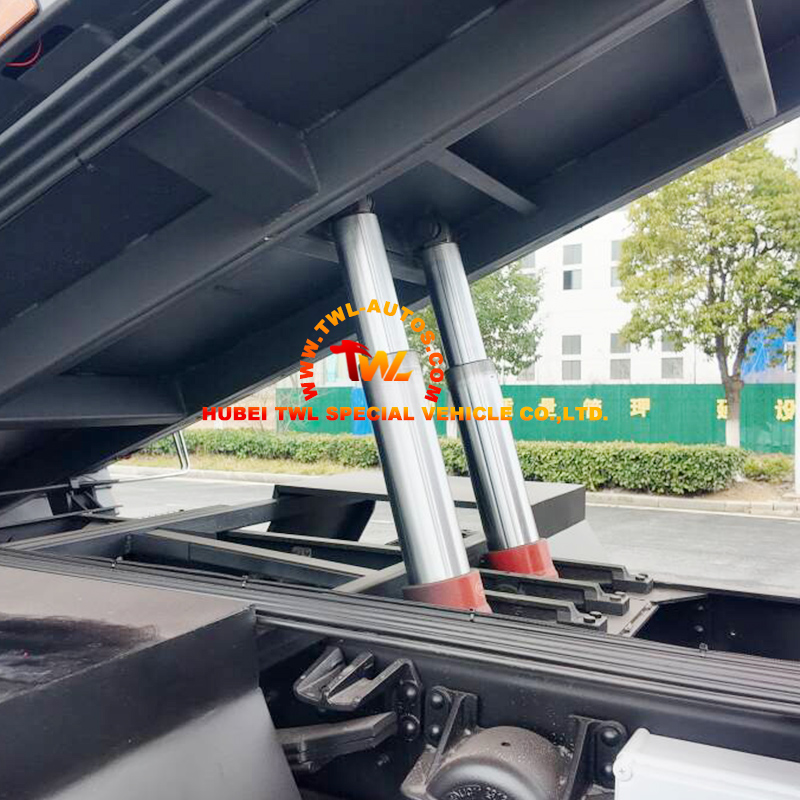

4. High-Pressure Hydraulic Compaction System – Efficient & Powerful: High-pressure hydraulic cylinders provide powerful, efficient compaction with a compaction ratio of up to 3:1. Significantly increases load capacity per trip and reduces number of transport trips to disposal sites. Fast cycle times keep collection routes on schedule.

5. Fully Sealed Leak-Proof & Odor-Free Design: The fully sealed compression design prevents liquid leakage during transport, protecting streets and neighborhoods from contamination. Odor containment improves community relations and operator working conditions.

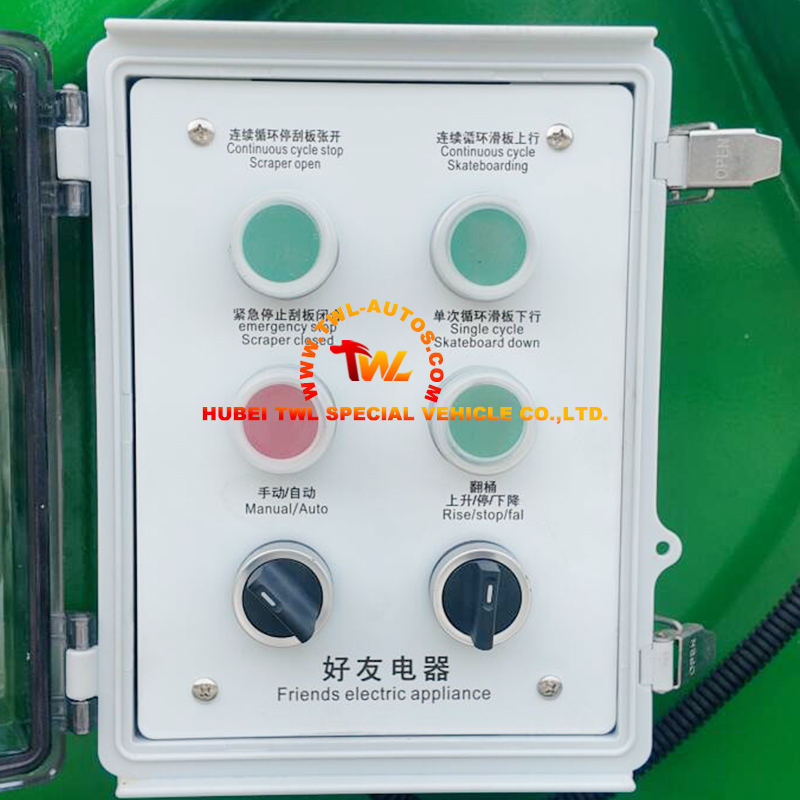

6. PLC Control System – One-Touch Operation: The PLC control system allows operators to perform dumping and compaction functions with one-touch controls. Automatic/manual operation modes provide flexibility. Intuitive interface minimizes operator error and improves route efficiency.

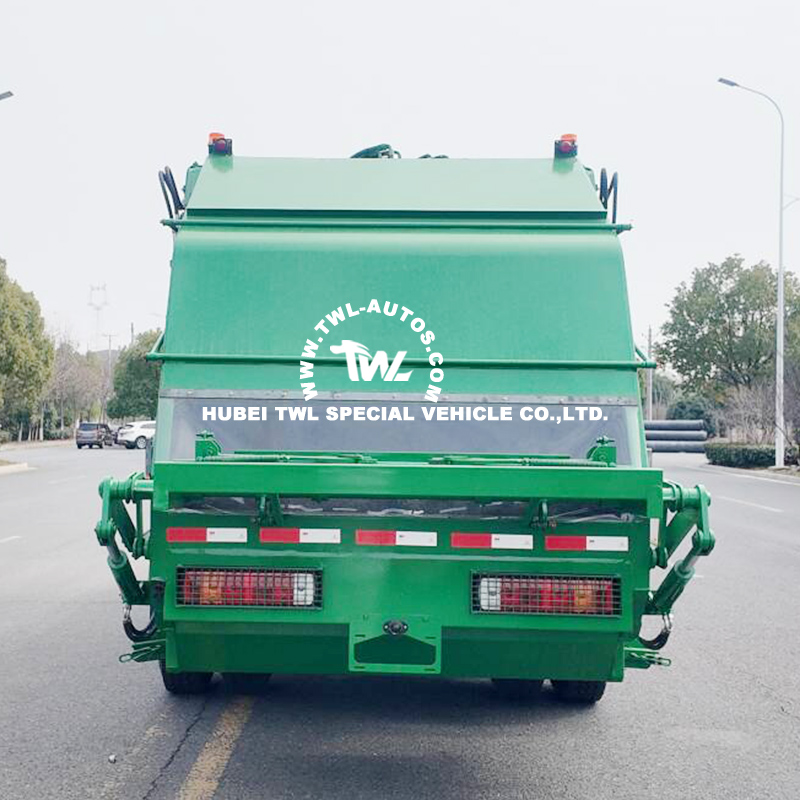

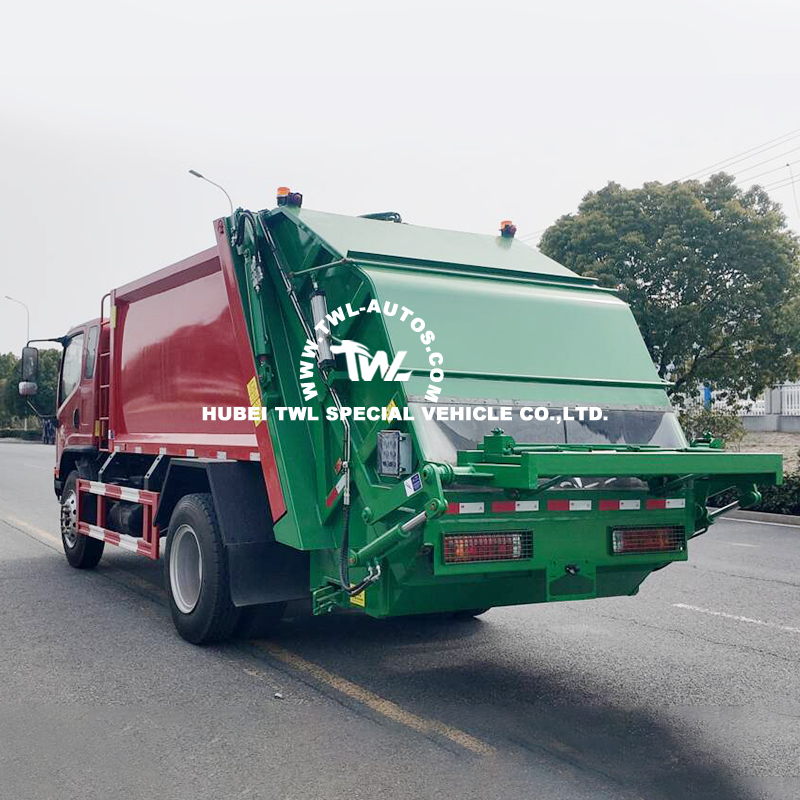

7. Hydraulic Automatic Rear Loading Hopper: Continuous cycle operation for efficient waste loading. Scraper open/close and skateboard up/down functions. Emergency stop for operator safety.

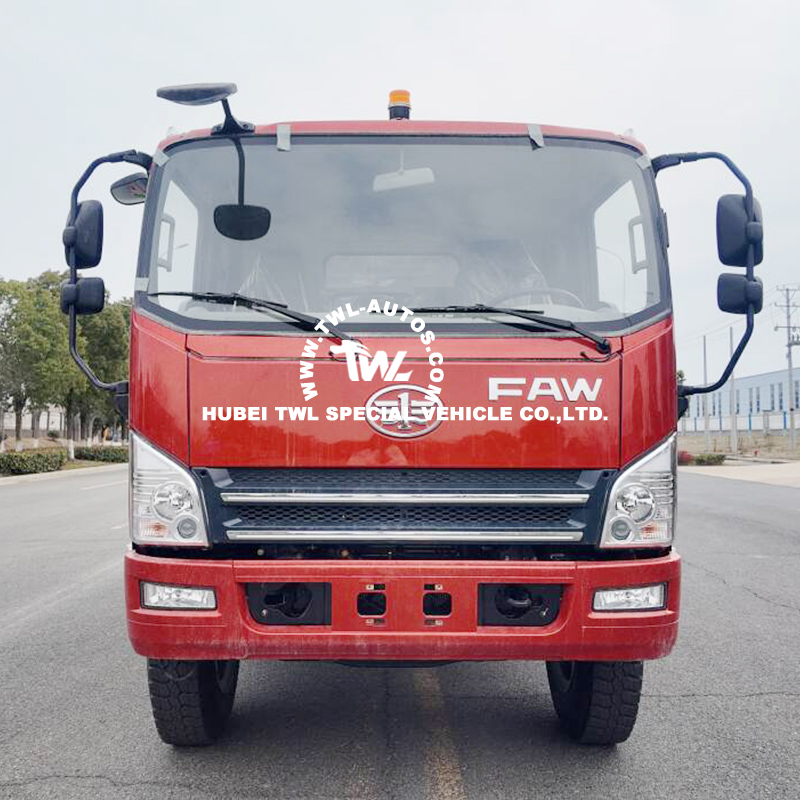

8. Ergonomic Driver Cabin: Air conditioning for climate comfort. Easy access to controls and good visibility for safe maneuvering in congested urban areas.

Application:

· Municipal Waste Management: Urban and routine garbage collection for cities and towns. The 8m³ capacity and high compaction ratio reduce trips to landfills.

· High-Density Areas: Cities, residential zones, and commercial districts requiring frequent, high-volume collection. Sealed design prevents odor and leakage in populated areas.

· Industrial Waste Collection: Collection of industrial garbage, manufacturing waste, and commercial refuse from factories and business parks.

· Landfill Transport: Efficient transport of compacted waste to landfills and transfer stations, reducing fuel costs and vehicle wear.

· Hygiene Maintenance: Effective waste compaction and sealed transport reduce litter, pest risks, and environmental contamination.
