FAW Jiefang 16m Articulated Aerial Work Platform Truck

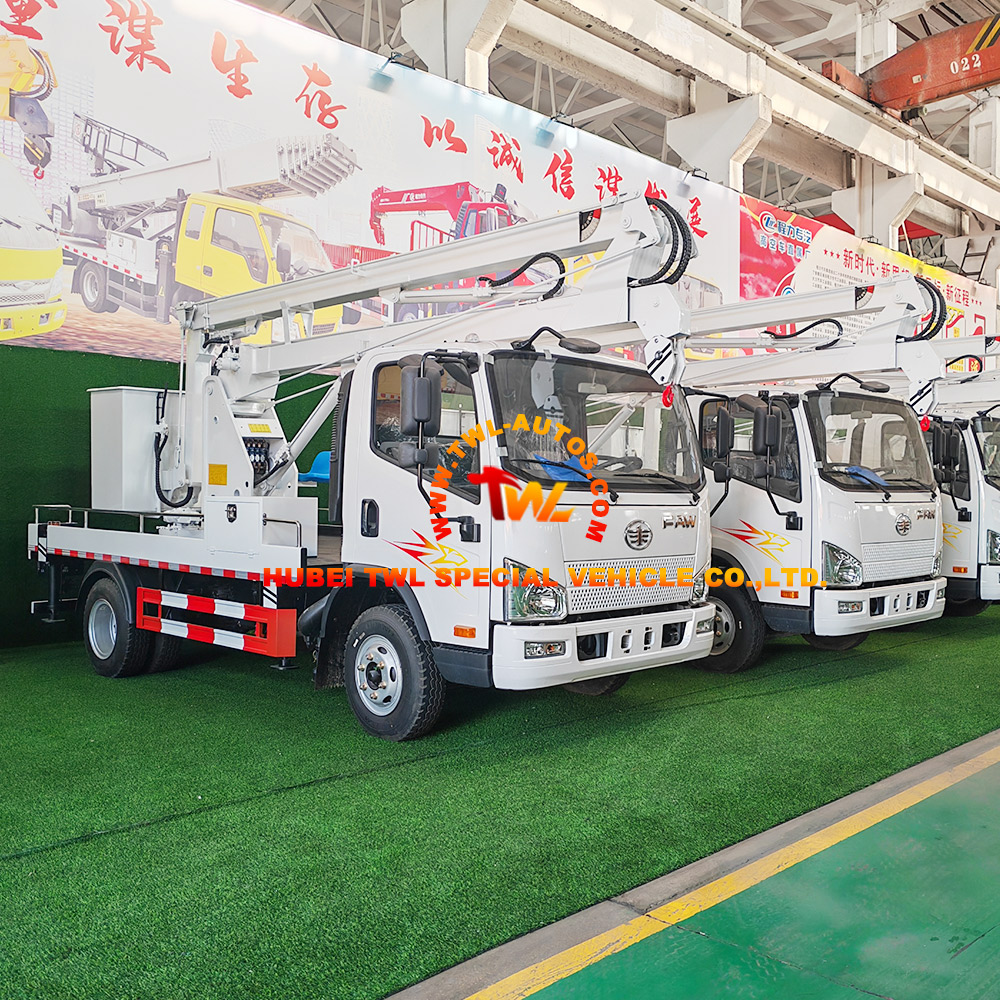

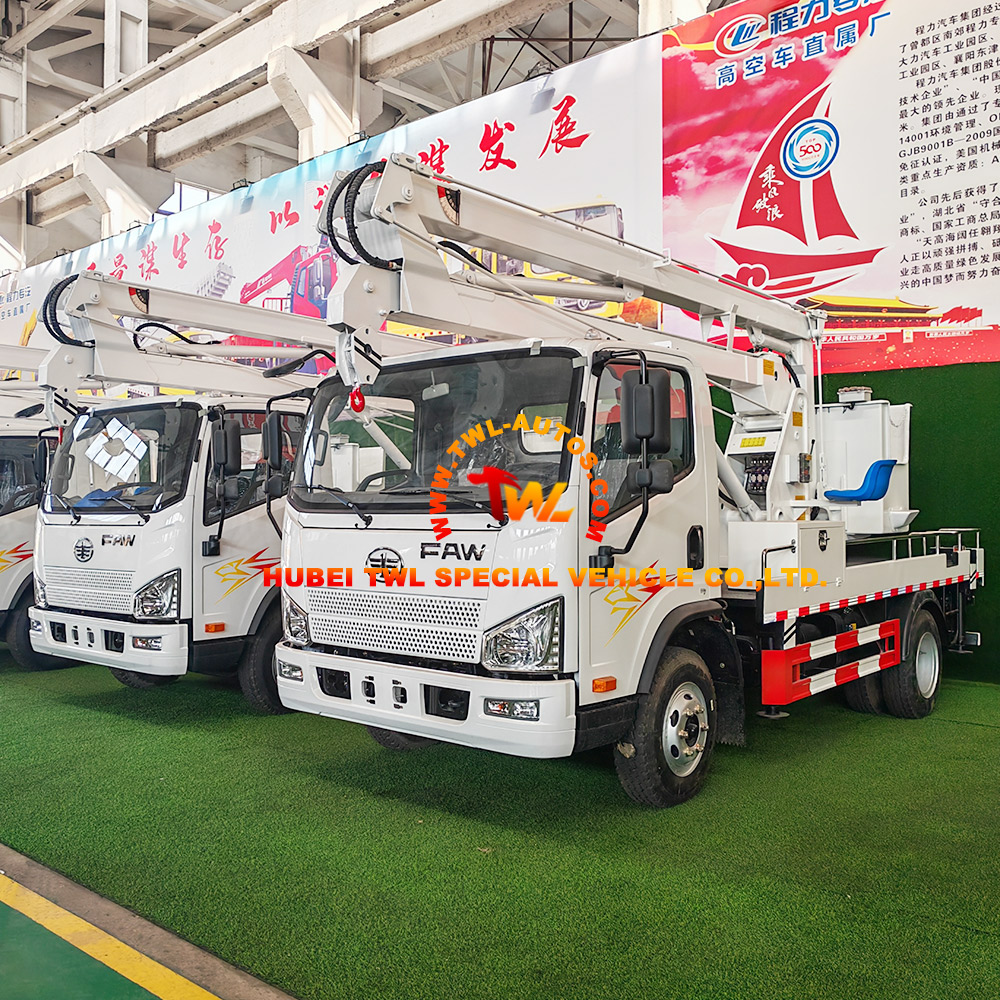

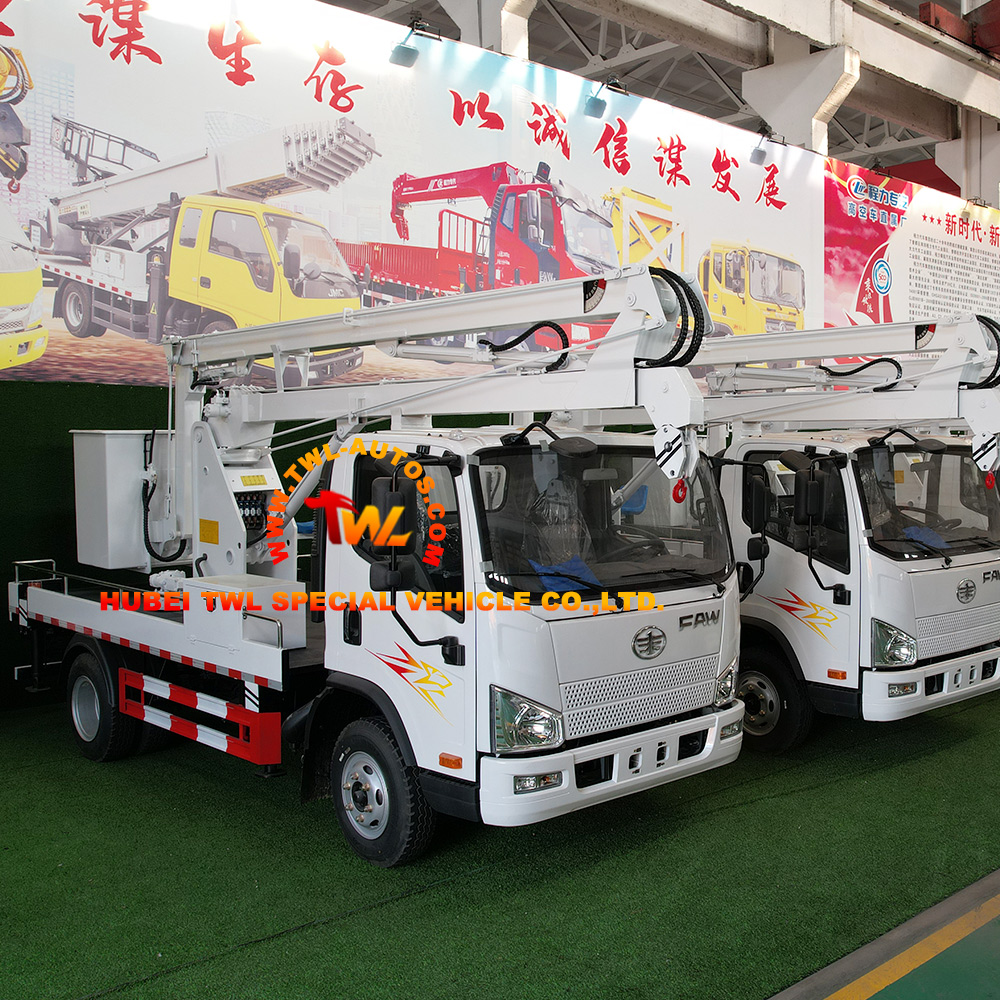

The FAW Jiefang Articulated Aerial Work Platform is a professional-grade elevated access vehicle engineered for precision in confined spaces and complex urban environments. Built on the robust FAW 4×2 single-axle chassis with a 3,900mm wheelbase, this vehicle combines proven mobility with a highly versatile 3-section articulated arm. The boom’s unique design allows it to fold from 0 to 70 degrees relative to the horizontal plane, enabling it to effortlessly reach over and around obstacles, making it the ideal solution for complex urban maintenance tasks like street light repair and power line maintenance where straight booms cannot navigate. Unlike straight booms, this jointed design provides exceptional flexibility to access difficult-to-reach areas, from behind obstacles to deep into narrow spaces, ensuring no job is out of reach. Safety is paramount, especially around power sources. This platform is equipped with a fully insulated bucket rated to withstand 600 volts, providing a critical layer of protection for operators during electrical repairs and high-voltage line maintenance. Powering this reliable machine is a Yuchai 4-cylinder, 130 HP engine, paired with a dependable domestic Wanliyang 6-speed manual transmission. This combination ensures ample power and fuel efficiency for both transit and on-site operation. The 2-ton front and 9.8-ton rear axles provide a stable foundation for all lifting tasks. For maximum safety during operation, the vehicle features H-type front and rear outriggers. All four stabilizers are equipped with hydraulic locking devices, securing the platform firmly on the ground. The hydraulic system itself is designed with redundancy in mind, incorporating 11 oil cylinders and bidirectional balance valves or hydraulic locks on critical functions to prevent accidental movement. The aerial structure is built from high-strength Q345 steel profiles with a 4mm thickness, ensuring long-term durability and resistance to fatigue. The 65L hydraulic tank with a level gauge and a system operating pressure of 16 MPa guarantee consistent and powerful performance.

Key Features:

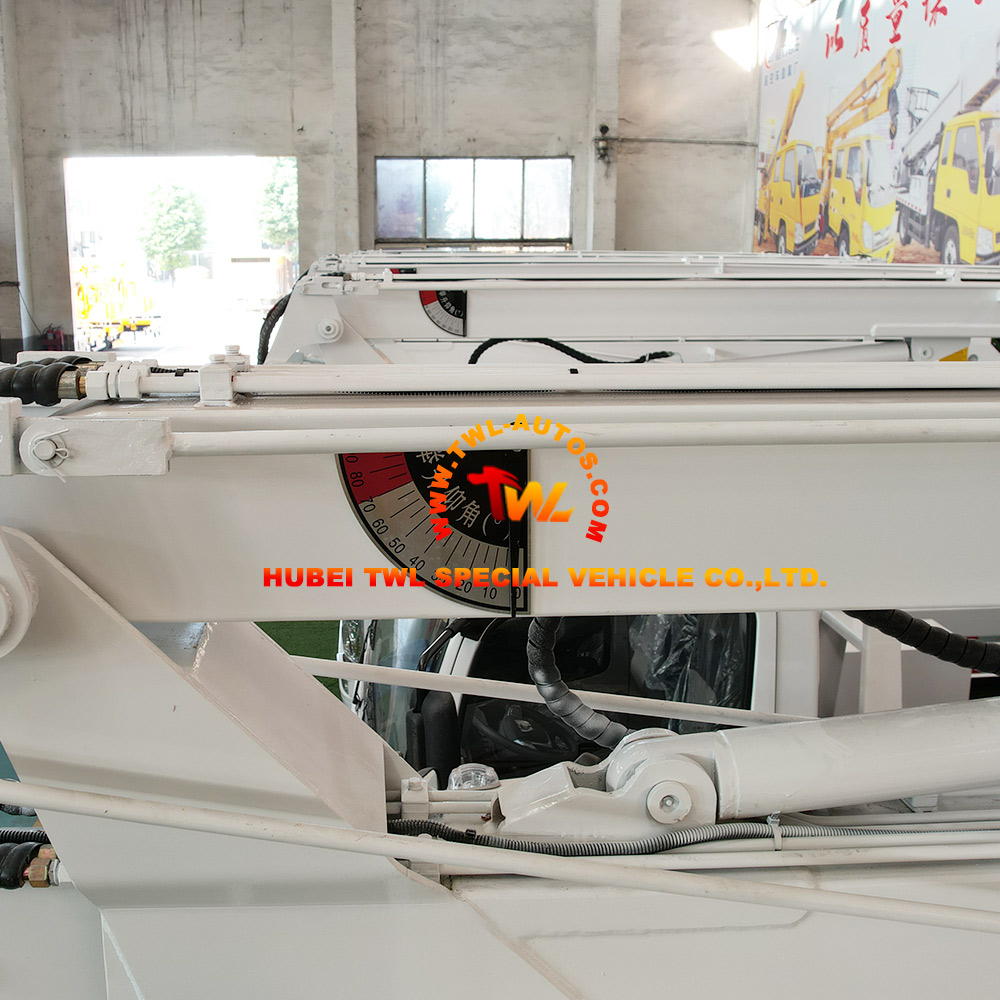

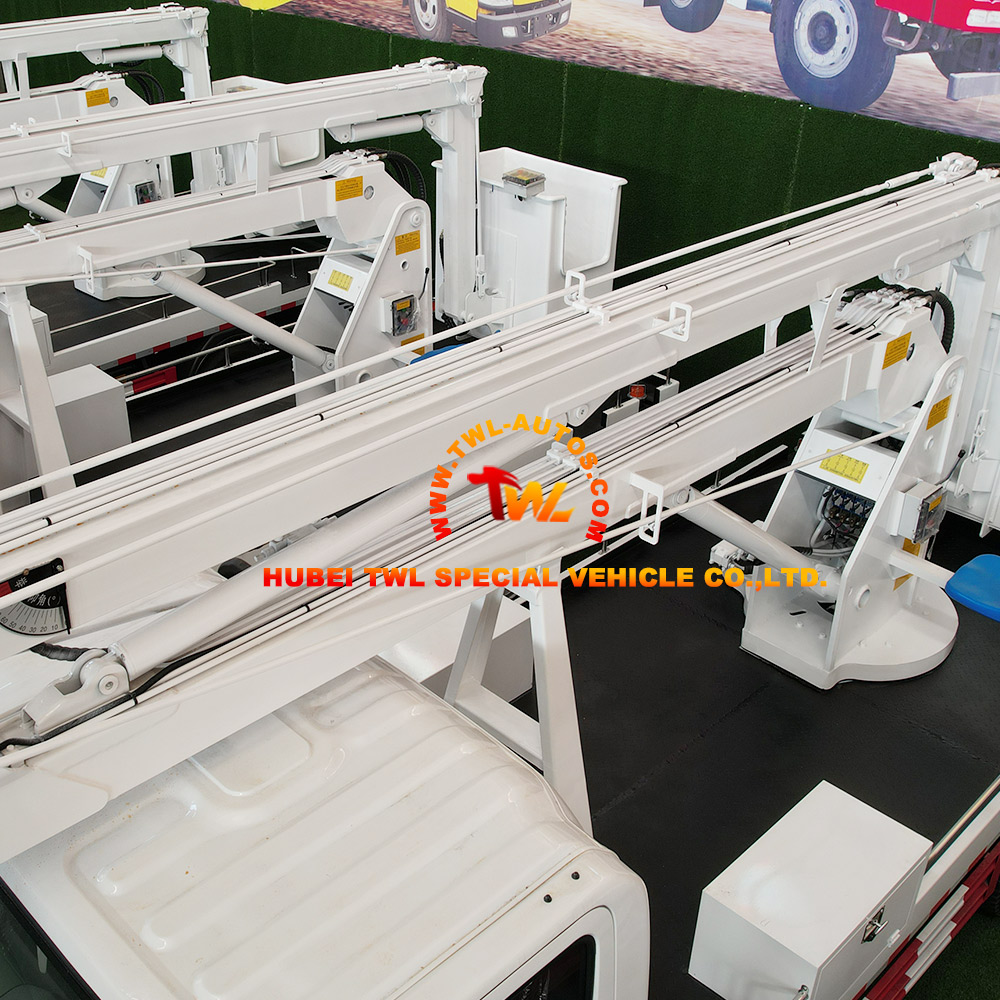

· Unmatched Maneuverability with Articulated Boom: The core of this platform is its 16-meter high-reaching, three-section articulated arm. Unlike straight booms, this jointed design provides exceptional flexibility to access difficult-to-reach areas, from behind obstacles to deep into narrow spaces, ensuring no job is out of reach. The boom folds from 0 to 70 degrees relative to horizontal.

· Engineered for Electrical Safety: Safety is paramount, especially around power sources. This platform is equipped with a fully insulated bucket rated to withstand 600 volts, providing a critical layer of protection for operators during electrical repairs and high-voltage line maintenance.

· Robust & Reliable Power System: Powering this reliable machine is a Yuchai 4-cylinder, 130 HP engine, paired with a dependable domestic Wanliyang 6-speed manual transmission. This combination ensures ample power and fuel efficiency for both transit and on-site operation. The 2-ton front and 9.8-ton rear axles provide a stable foundation for all lifting tasks.

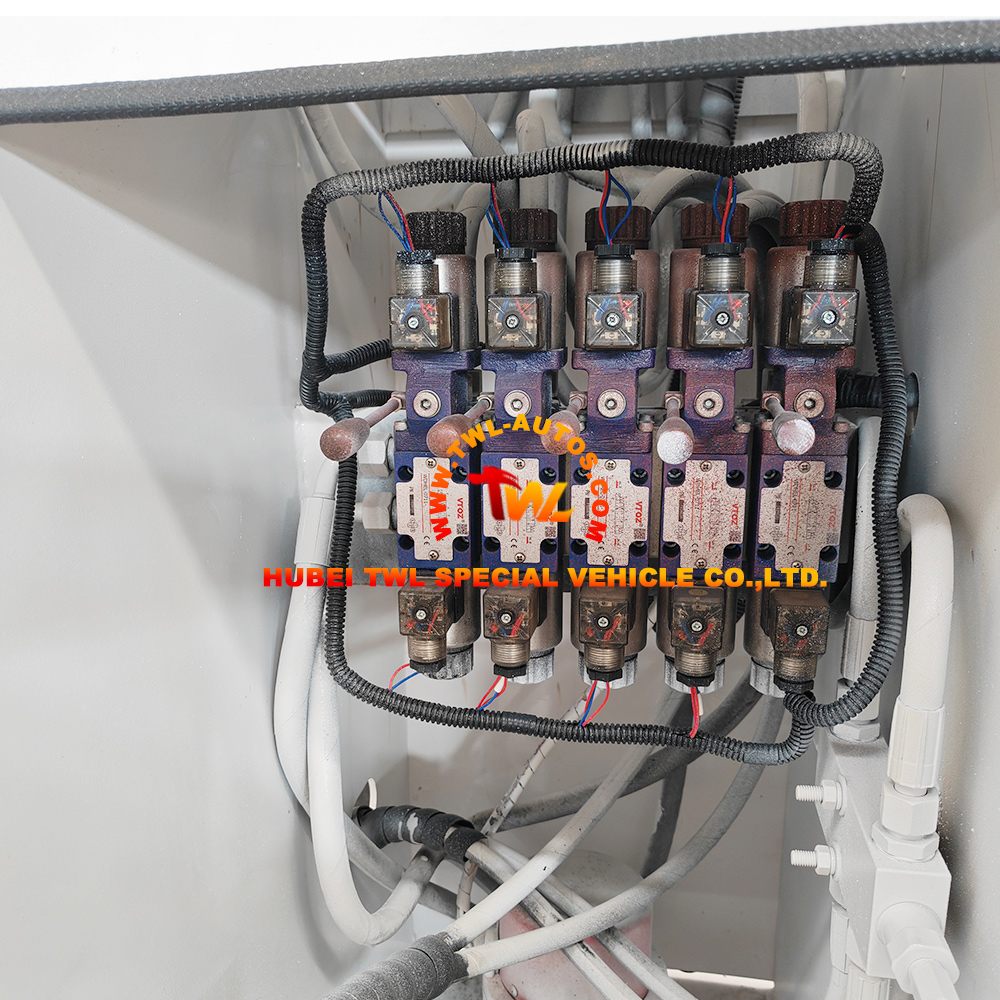

· Enhanced Stability and Operational Safety: For maximum safety during operation, the vehicle features H-type front and rear outriggers. All four stabilizers are equipped with hydraulic locking devices, securing the platform firmly on the ground. The hydraulic system itself is designed with redundancy in mind, incorporating 11 oil cylinders and bidirectional balance valves or hydraulic locks on critical functions to prevent accidental movement.

· Durable Construction for Long-Term Use: The aerial structure is built from high-strength Q345 steel profiles with a 4mm thickness, ensuring long-term durability and resistance to fatigue. The 65L hydraulic tank with a level gauge and a system operating pressure of 16 MPa guarantee consistent and powerful performance.

Application:

· Street Light Maintenance & Repair: Reaching over traffic lanes, trees, and other obstacles to access street lights for bulb replacement, fixture repair, and photoelectric cell maintenance.

· Power Line & Electrical Utility Maintenance: Safe access to distribution lines, transformers, and electrical components with 600V insulated bucket protection for live-line work.

· Telecommunications Tower Access: Servicing antennas, receivers, and cabling on cell towers and communication structures, especially in congested urban sites.

· Building Facade Inspection & Maintenance: Accessing building exteriors for cleaning, inspection, painting, and repairs where obstacles like balconies or architectural features block straight booms.

· Tree Trimming Near Power Lines: Precise positioning of the articulated arm to prune branches around power lines while maintaining safe distance with insulated bucket.

· Industrial Plant Equipment Access: Reaching elevated equipment, piping, and structural components in factory environments with limited maneuverability.

· Signage & Billboard Installation: Installing and maintaining large signs, billboards, and advertising structures over sidewalks, parking lots, and other obstacles.
