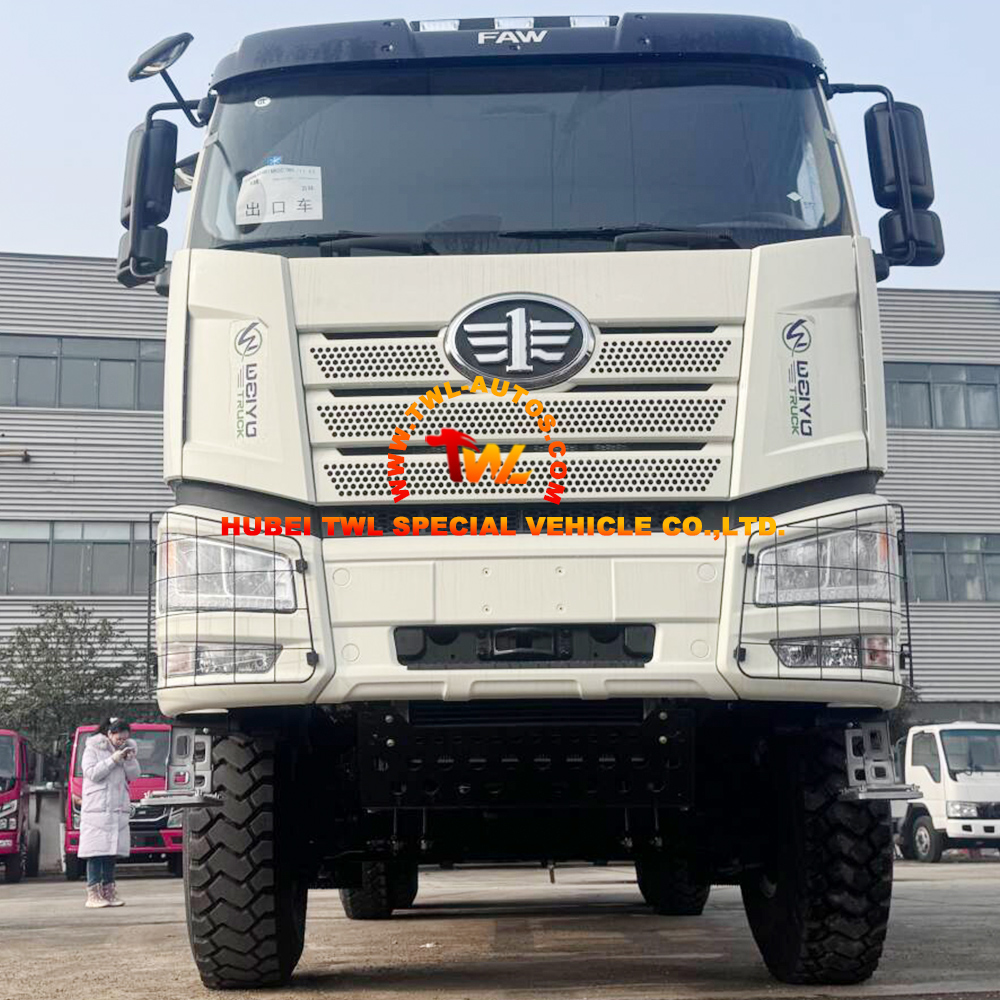

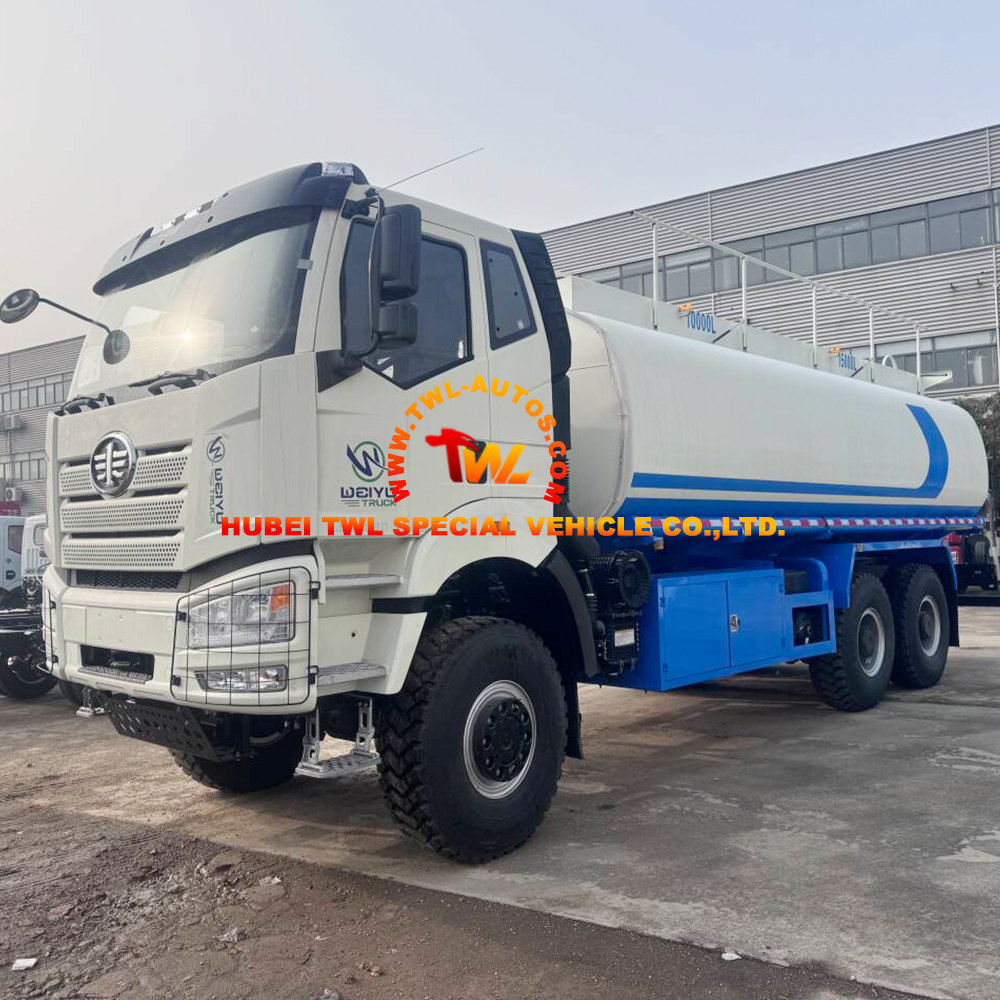

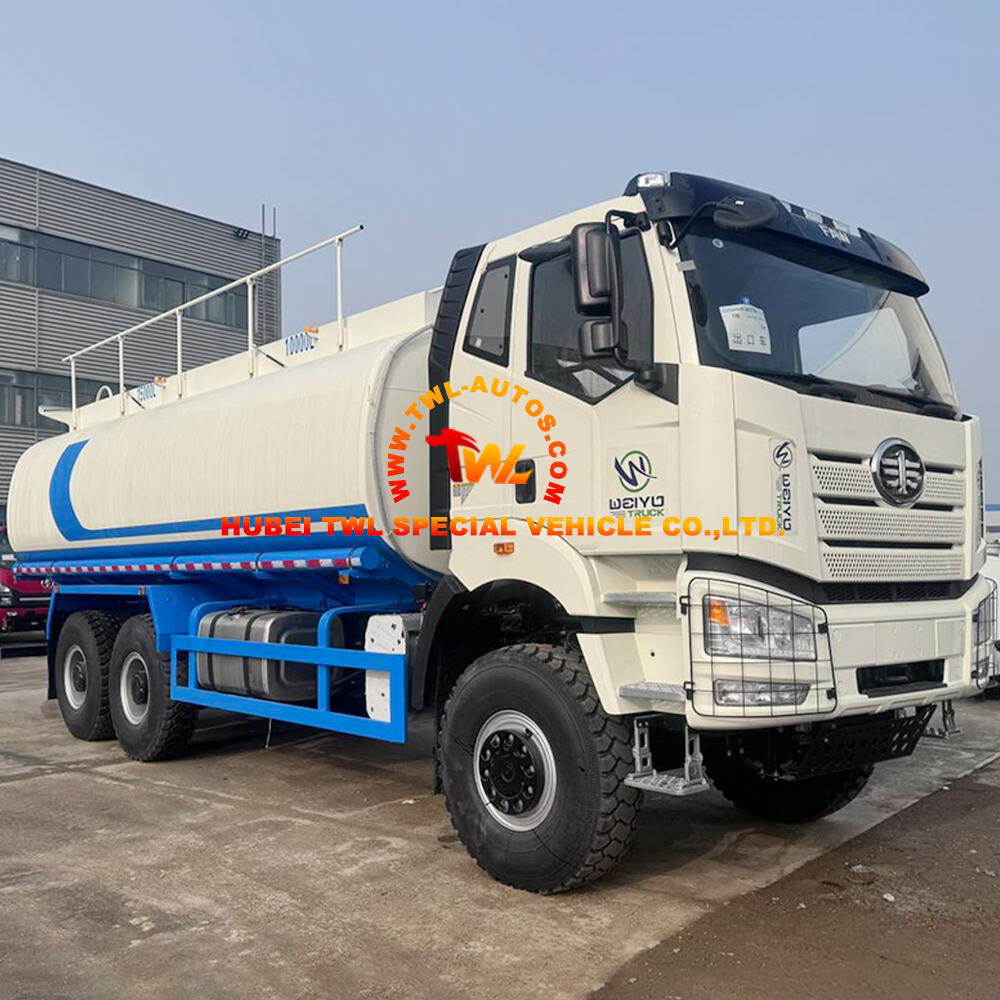

FAW J6P 6x6 390HP 25,000 Liter Fuel Delivery Truck

The FAW J6P 6×6 390HP Fuel Delivery Truck is a purpose-built, heavy-duty fuel tanker engineered to meet the demanding requirements of fuel transportation and on-site refueling operations in challenging environments. With a substantial 25,000-liter (25 cubic meters) capacity and robust all-wheel drive configuration, this vehicle is specifically designed for mining sites, construction projects, oil fields, and remote area fuel supply where standard trucks cannot operate effectively.

Built on the legendary FAW J6P heavy-duty chassis, this 6×6 diesel fuel bowser combines a powerful 390HP turbocharged engine with a reinforced drivetrain to deliver exceptional performance in rough terrain and off-road conditions. The tank body is constructed from high-quality Q235 carbon steel with 4mm thickness, ensuring durability and safety during fuel transport. Equipped with an integrated pumping system and fuel dispenser, this vehicle serves not only as a transport solution but also as a mobile refueling station for on-site dispensing.

This fuel tanker has been specifically engineered and tested for West African operating conditions, with features that address the unique challenges of high temperatures, rough roads, and remote locations. As a factory-direct manufacturer, we deliver guaranteed quality, competitive pricing, and extensive export experience to African markets.

Key Features

1. 6×6 All-Wheel Drive System
Superior Traction:
Unlike standard 4×2 or 6×4 trucks that can become stuck in soft ground, this vehicle delivers power to all six wheels for exceptional mobility in mud, sand, and off-road conditions.

Rough Terrain Capability:
Navigate unpaved roads, construction sites, mining areas, and oil field locations with confidence—even after heavy rains.

Remote Site Access:
Reach locations that would be impossible with conventional fuel trucks, eliminating the need for intermediate fuel transfers.

2. Powerful 390HP Engine
FAW CA6DM2-39E3F Turbo Diesel:
11.04-liter displacement with direct injection and intercooling technology.

1,750 N·m Maximum Torque:
Strong low-end torque for pulling full loads through challenging terrain and up steep grades.

Proven Reliability:
FAW engines are known for durability and long service life in demanding applications.

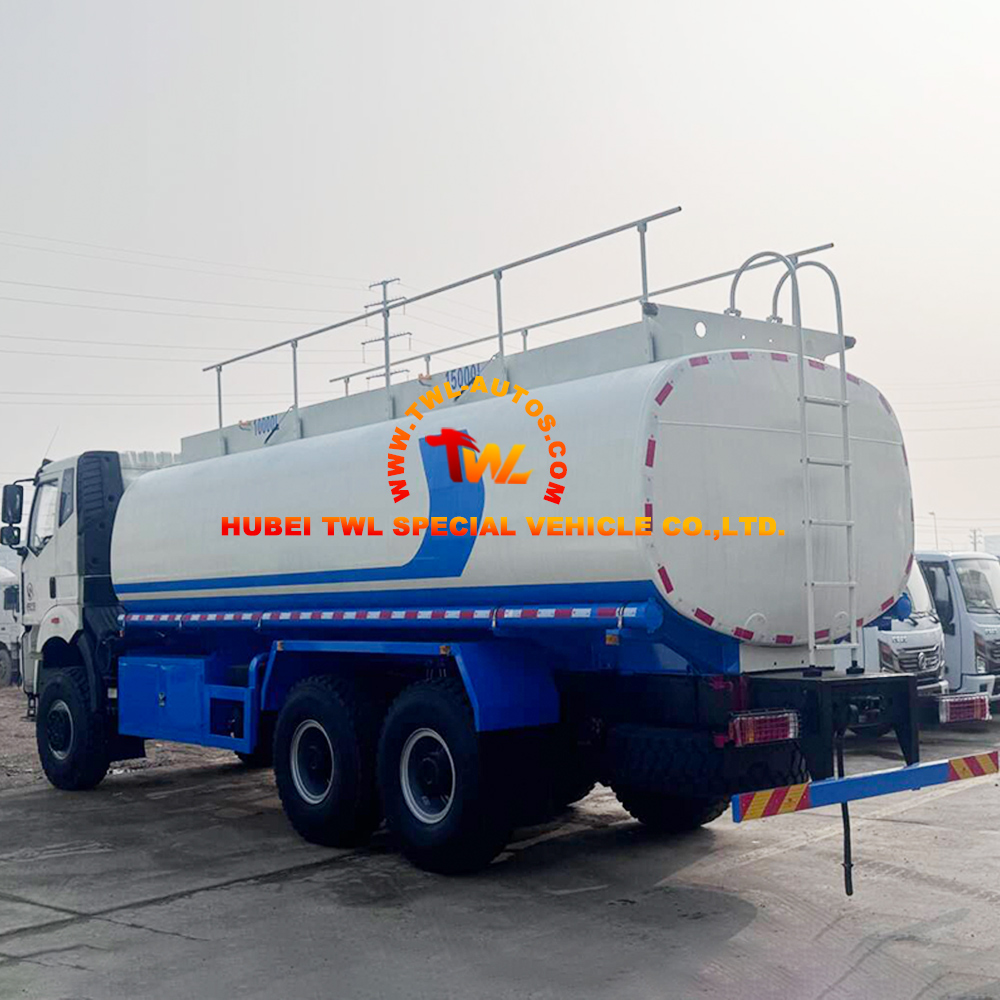

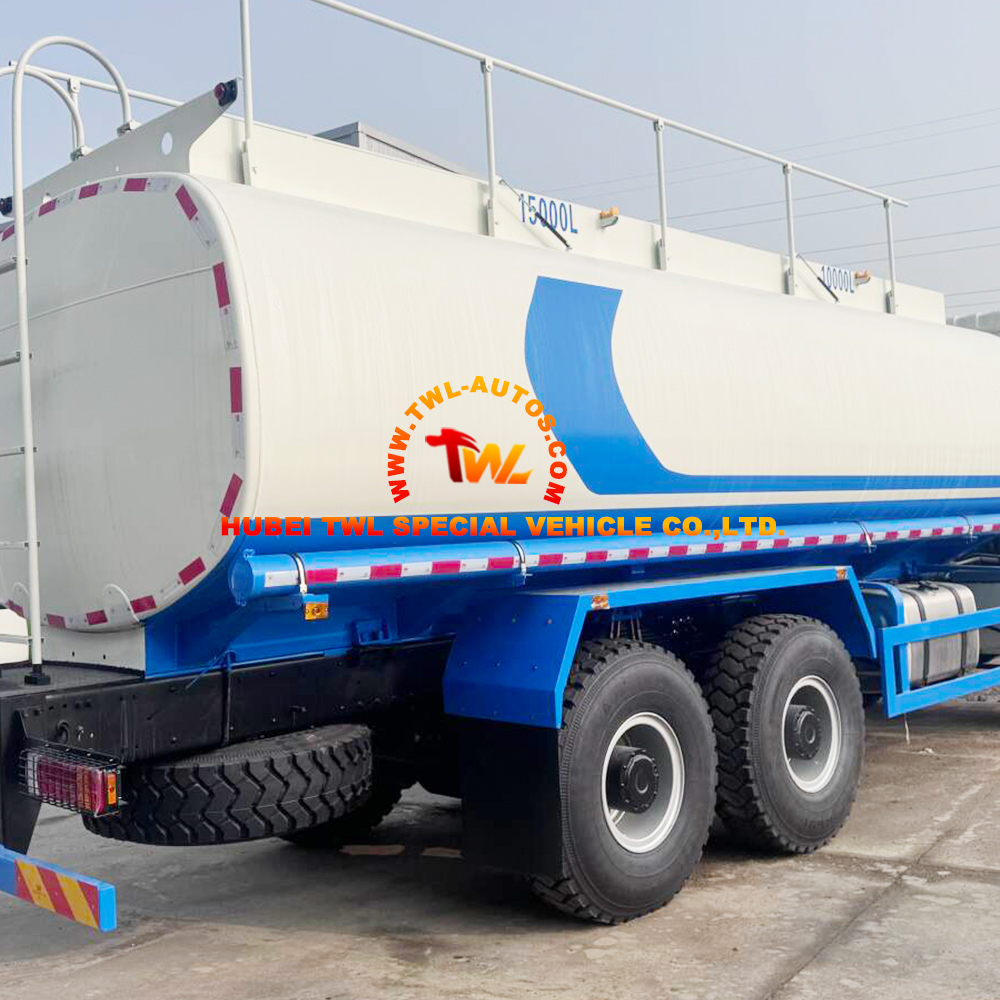

3. 25,000 Liter Carbon Steel Tank
Q235 Carbon Steel Construction:
4mm uniform thickness for impact resistance and long service life.

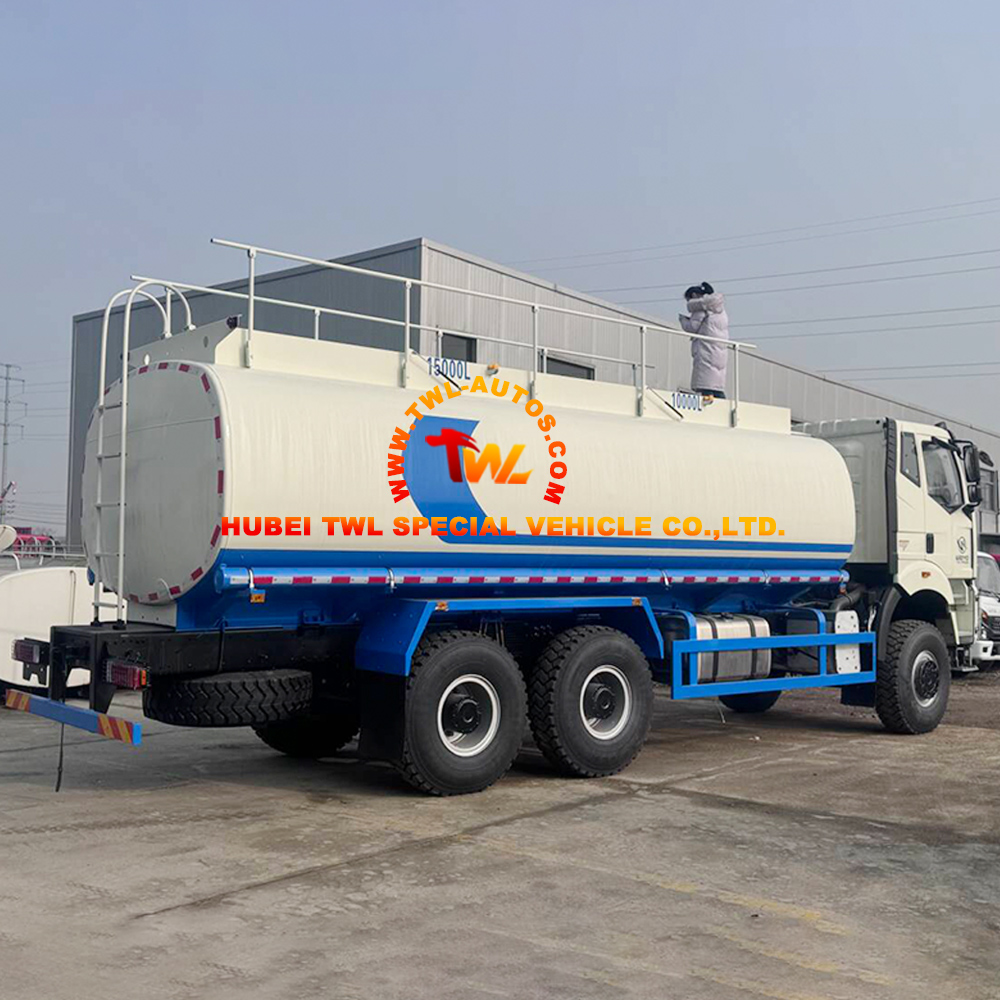

Dual Compartments:

Compartment 1: 10,000 Liters

Compartment 2: 15,000 Liters

Multi-Fuel Capability:
Transport two different fuel grades (diesel and gasoline) in a single trip, or deliver to multiple customers without mixing.

Two Manholes:
Safe access to each compartment for inspection, cleaning, and maintenance.

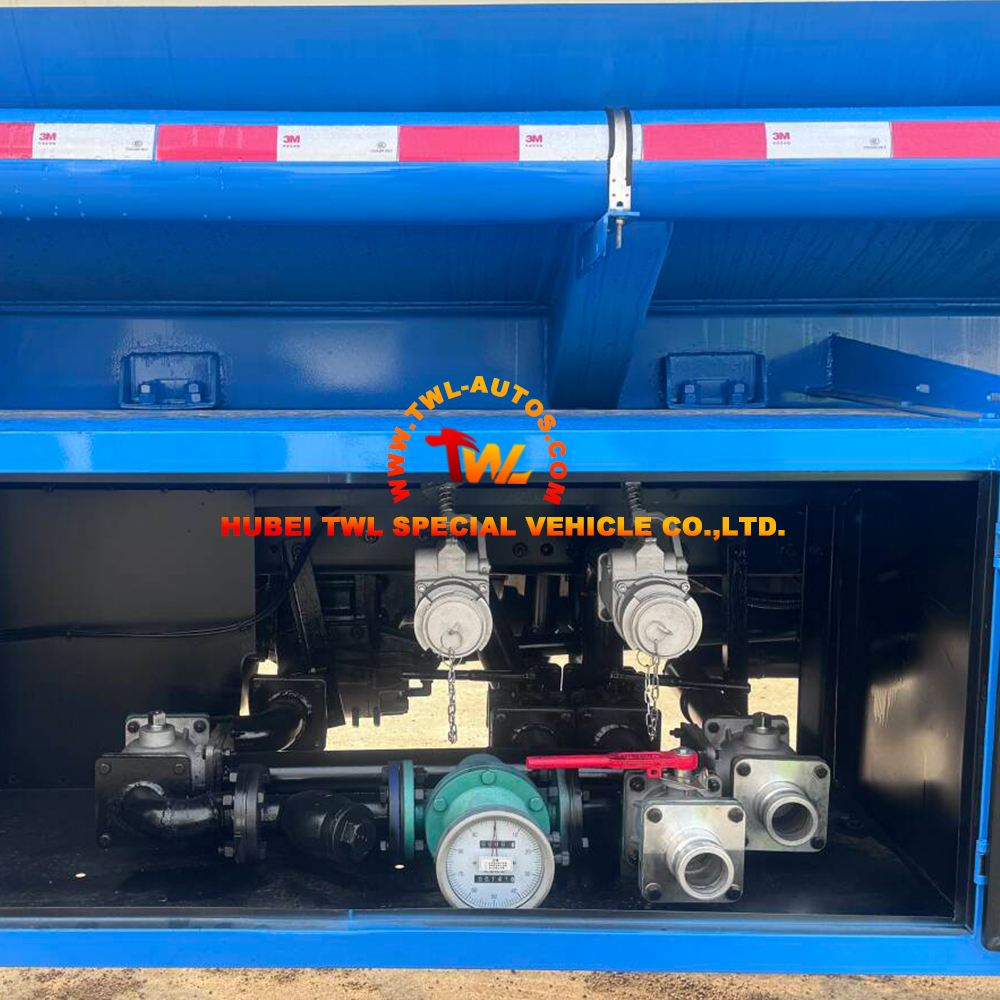

4. Complete Fuel Dispensing System
Integrated Oil Pump:
Heavy-duty pump for efficient loading and unloading.

Fuel Dispenser with Meter:
Enables retail fuel sales or on-site refueling with accurate measurement.

Filling Nozzle Included:
Ready to operate immediately upon delivery.

Mobile Refueling Station:
The truck serves as both transport vehicle and dispensing unit—no additional equipment needed.

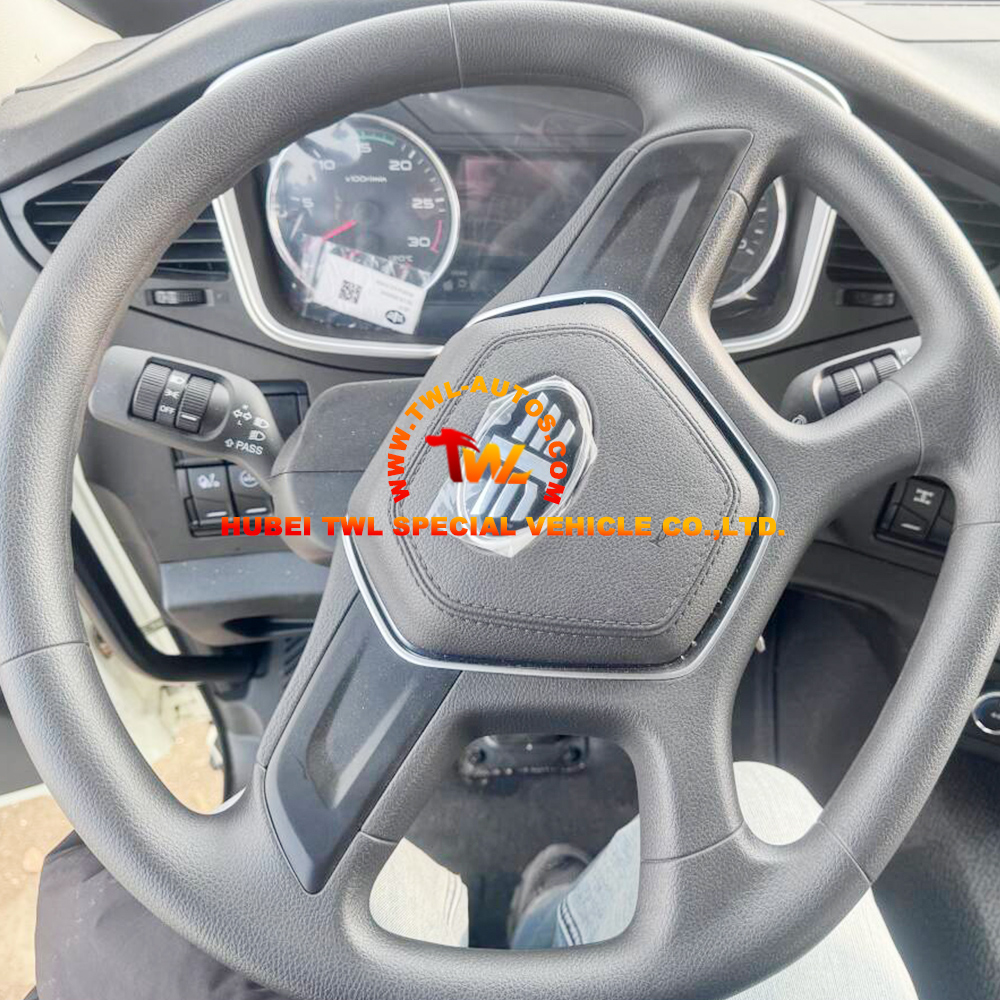

5. Practical Cabin Design
J6P Flat-Top Half Sleeper:
Spacious interior with room for driver休息 during long trips.

Mechanical Suspension Seat:
Reduces fatigue on rough roads by absorbing vibration and shocks.

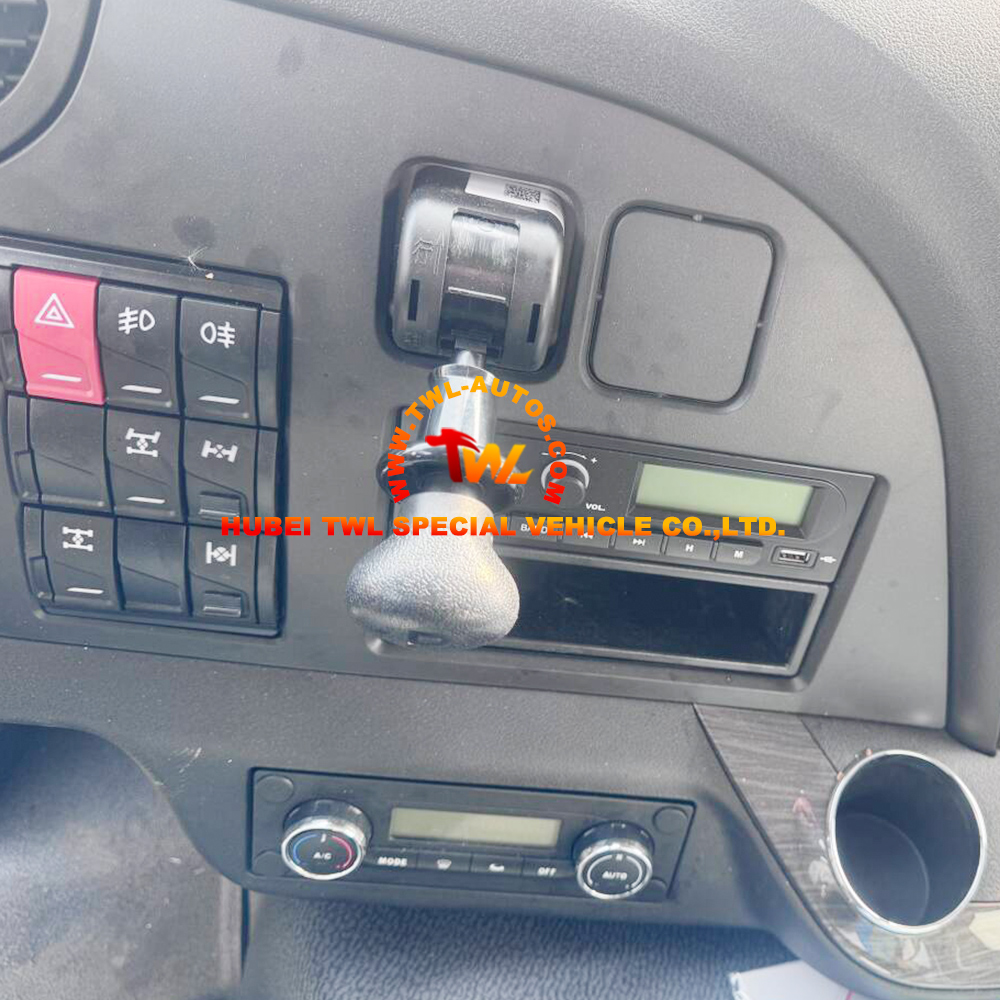

Automatic Air Conditioning:
Maintains comfortable cabin temperature in hot West African climates.

Manual Windows & Mirrors:
Simple, reliable operation with components that are easy to repair or replace in remote locations.

6. Reinforced Drivetrain

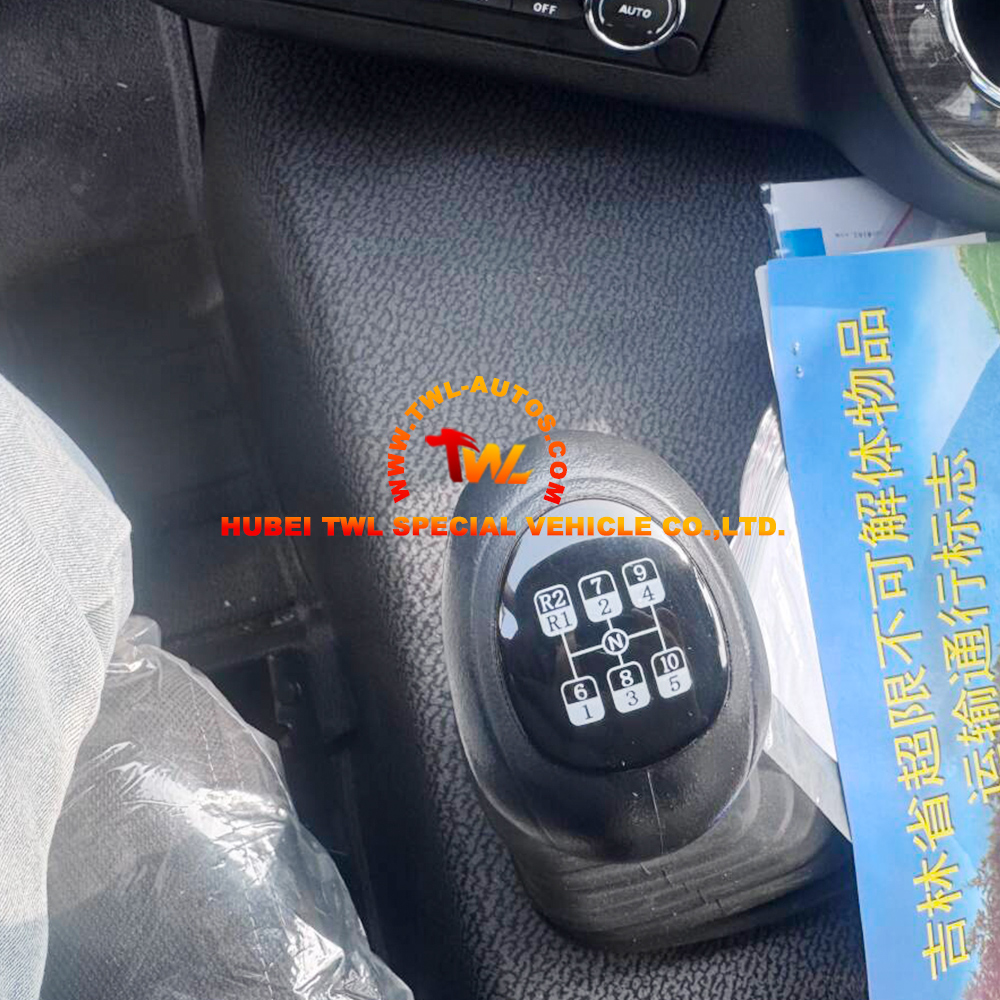

10-Speed Manual Transmission:
10 forward gears + 2 reverse for optimal gear selection in any condition.

Heavy-Duty Clutch:
Reinforced for full-load operation.

Robust Axles:
Built to handle the stresses of off-road fuel transport.

Applications

· Mining Operations
Refuel haul trucks, excavators, and loaders directly at the mine site. The 6×6 drive system accesses active mining areas where road conditions change constantly.

· Construction Projects
Provide fuel to earthmoving equipment, generators, and vehicles at remote construction camps and highway projects.

· Oil Fields
Transport diesel to drilling rigs, pump stations, and worker camps in exploration and production areas.

· Fuel Distribution
Operate as a primary delivery vehicle for distributors serving customers in regions with unpaved roads.

· Agriculture
Deliver fuel to farms, irrigation pumps, and equipment in rural areas with limited road infrastructure.

· Government & Military
Support remote operations, disaster relief, and infrastructure projects requiring reliable fuel supply.

· Aviation Support
Refuel aircraft at remote airstrips and unpaved landing zones.
