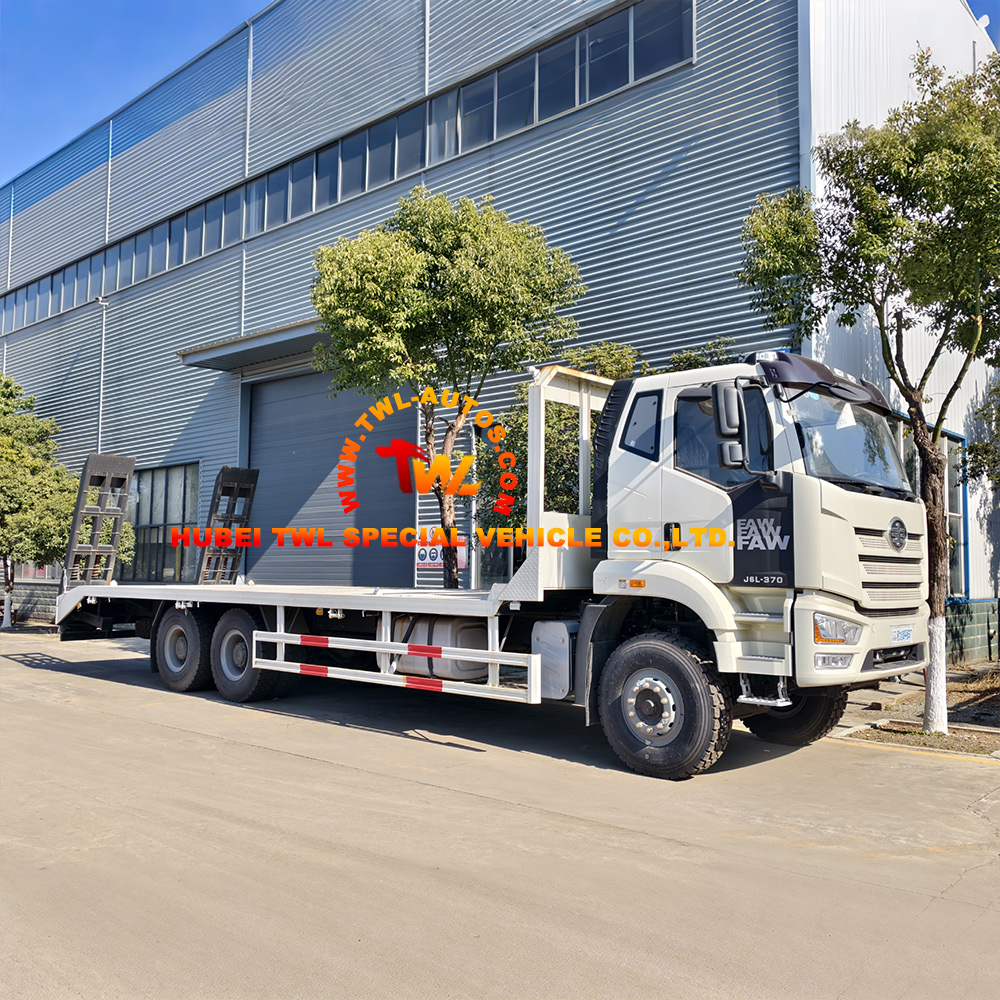

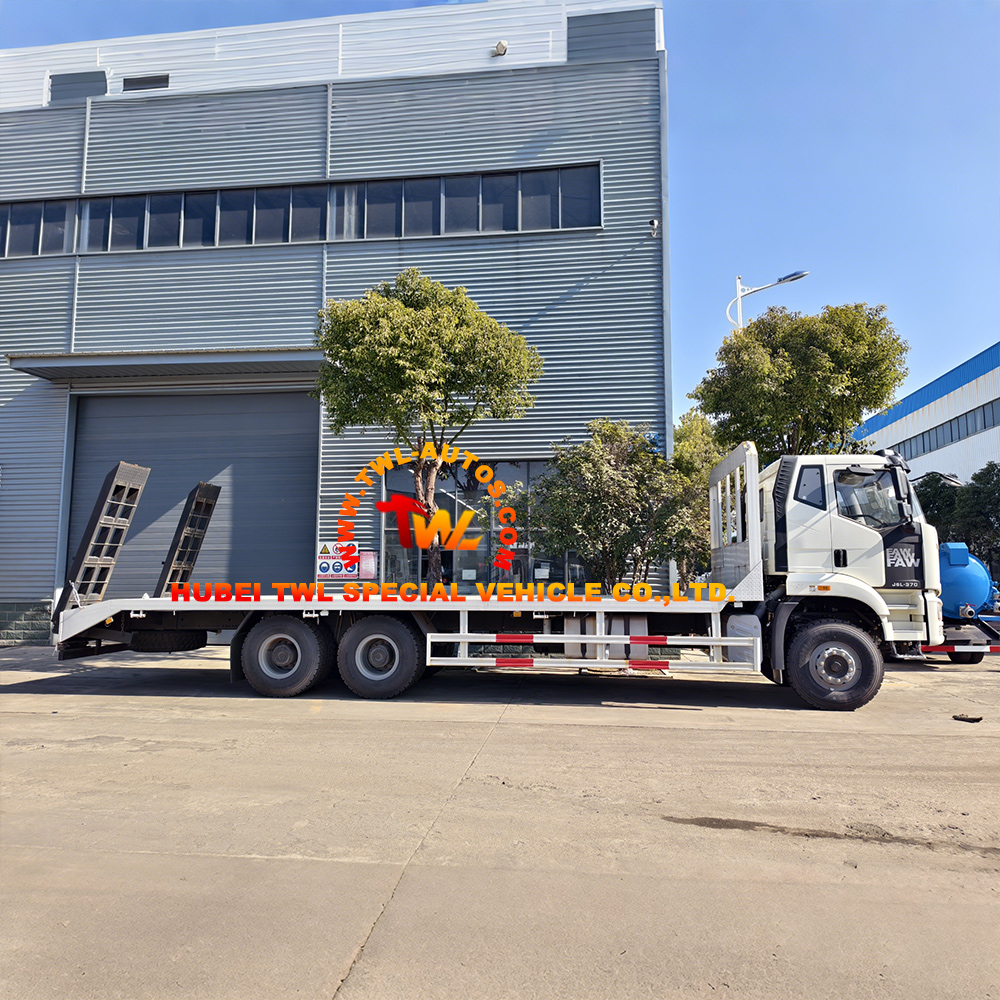

FAW J6P 370HP 6x4 Flatbed Transport Truck

The FAW J6P 370HP 6×4 Flatbed Transport Truck is a purpose-built heavy-duty vehicle designed to address the critical logistics needs of construction, agricultural, and industrial operations. Recognizing that the transport of heavy machinery and oversized equipment requires exceptional structural integrity, load capacity, and practical design features, FAW has engineered this vehicle to deliver reliable performance in the most demanding conditions. The vehicle’s design philosophy centers on three core principles: structural strength for heavy loads, practical utility for efficient loading and unloading, and durability for long service life in harsh operating environments.

The vehicle’s foundation is the FAW J6P chassis, a platform renowned in the commercial vehicle industry for its reliability, strength, and suitability for heavy-duty applications. The chassis features reinforced sections specifically designed to accommodate the stresses of heavy machinery transport, with a rear suspension of 3100mm and a reinforced frame that provides exceptional structural integrity. The chassis includes reserved space for a lorry crane leg, offering flexibility for specialized transport needs and enabling the installation of additional equipment for enhanced functionality.

Key Features:

· FAW J6P Heavy-Duty Chassis with Reinforced Construction: Built on the proven FAW J6P platform, the chassis features reinforced sections specifically engineered for heavy machinery transport. The rear suspension measures 3100mm, providing exceptional stability under load. The reinforced frame includes reserved space for a lorry crane leg, offering flexibility for specialized transport applications. This robust foundation ensures structural integrity and long service life under demanding operating conditions.

· Powerful 370HP Engine with 6×4 Drive Configuration: The CA6DL2-37E3F engine delivers 370 horsepower of reliable performance for hauling heavy loads across varied terrain. The 6×4 drive configuration provides exceptional traction and load distribution, essential for navigating construction sites, unpaved roads, and challenging terrain. The 10-forward, 2-reverse transmission enables optimal power delivery for both highway travel and low-speed maneuvering.

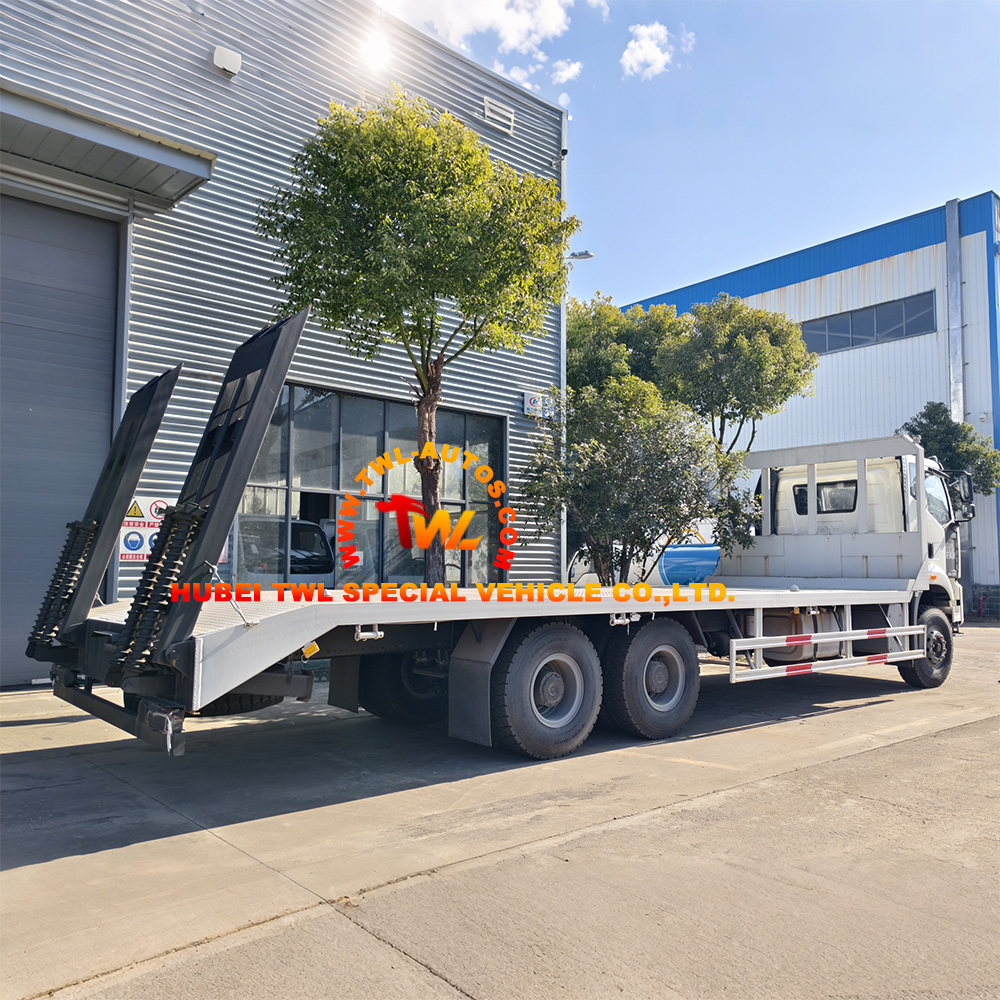

· Spacious 9-Meter Flatbed with Heavy-Duty Construction: The flatbed measures 9,000mm in length by 2,500mm in width, providing ample space for transporting excavators, bulldozers, loaders, rollers, and other heavy machinery. The 8mm patterned anti-slip plate ensures secure footing for equipment and operators. The support structure features 120x120x6 mm square tube supports and manganese steel main beams, delivering exceptional compressive strength and a service life of 10 years or more.

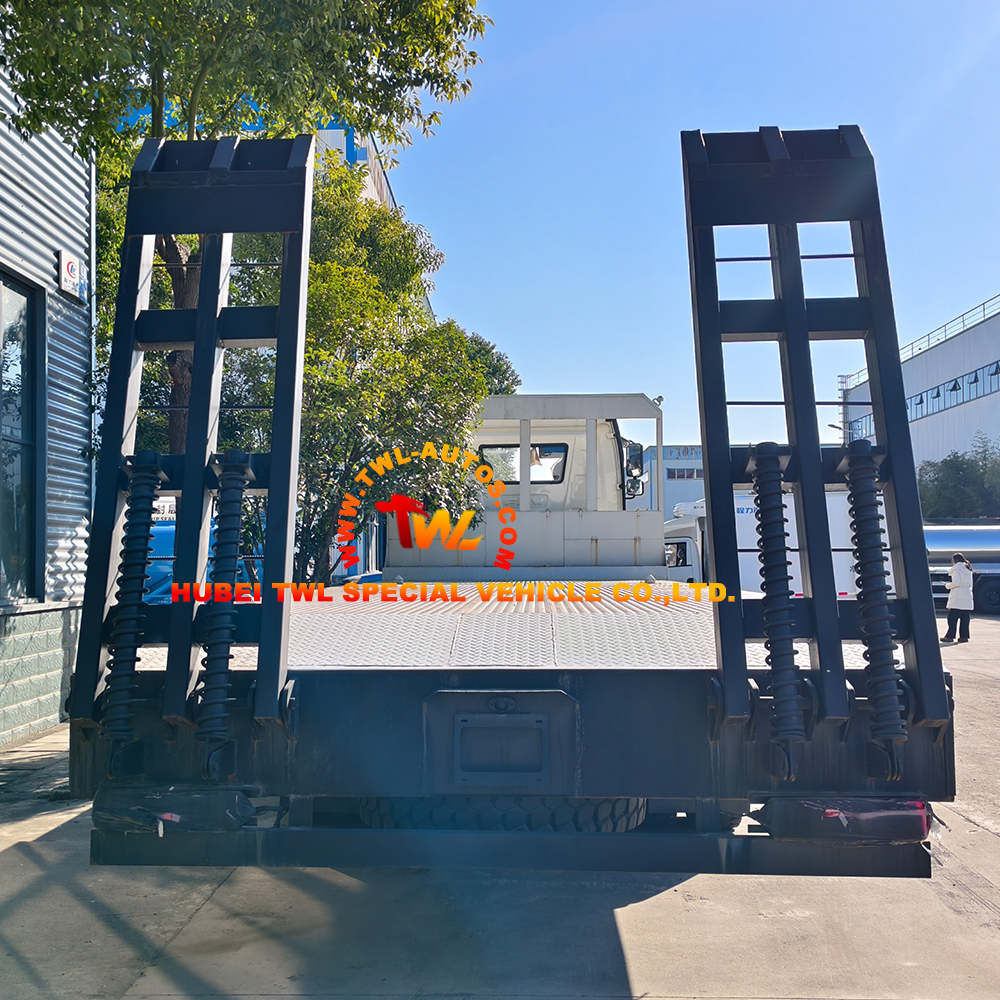

· Mechanical Ladder with Rear Support Legs: The loading system includes a mechanical ladder constructed from three steel bars with double springs, enabling easy ascent of heavy equipment onto the flatbed surface. Rear support legs provide stability during loading operations, ensuring the vehicle remains level and secure when heavy machinery is moving onto or off the platform. The independent operation eliminates the need for additional hoisting equipment.

· Comprehensive Cargo Securing System: Three rope fastening devices are positioned on each side of the flatbed, providing multiple attachment points for securing cargo. Four positioning protrusions on the flatbed surface help prevent cargo from sliding during transit, ensuring equipment remains securely in place during cornering, braking, and travel over uneven surfaces.

· Durable Components for Harsh Operating Conditions: The vehicle is equipped with a 400L steel fuel tank for extended range, a metallic bumper for enhanced durability, and an integrated iron oil-bath air filter that provides superior filtration in dusty environments. The aluminum radiator and twin fuel filter system ensure reliable cooling and fuel delivery under heavy load conditions.

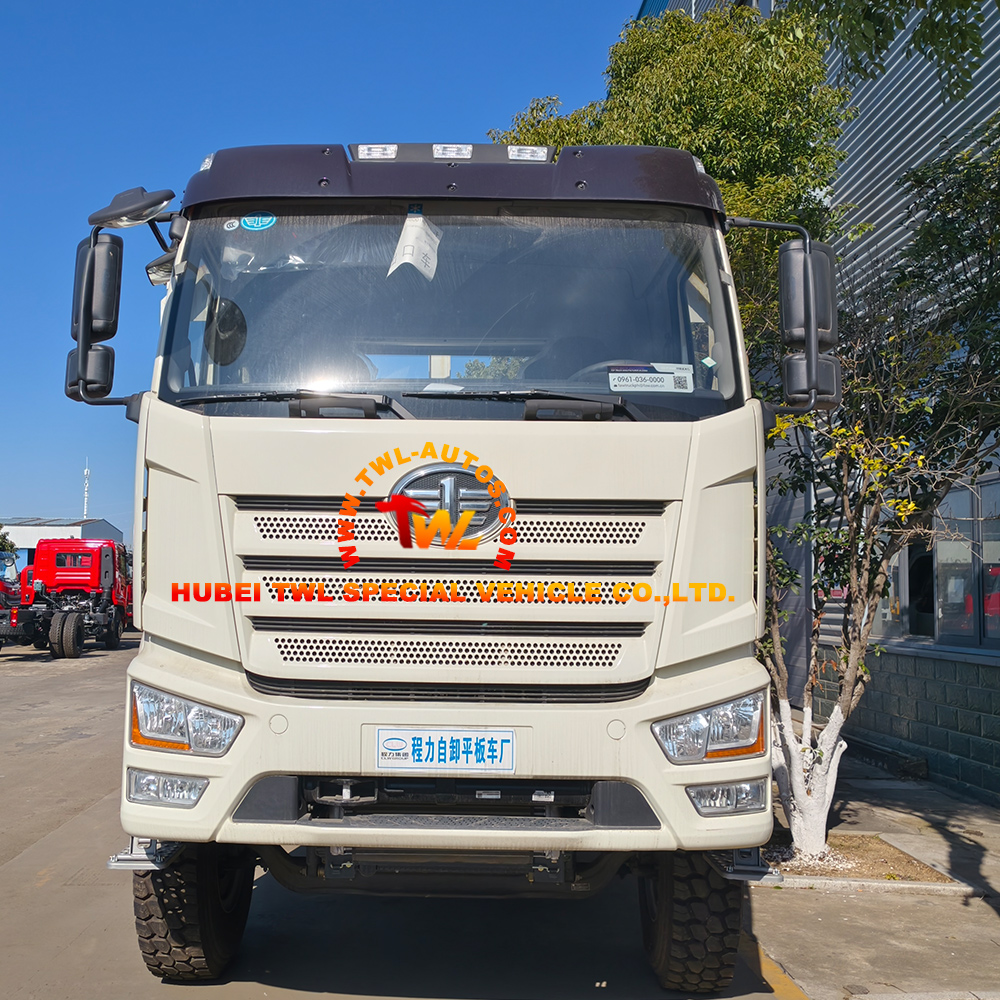

· Practical Cab Design with Operator Comfort Features: The cab features a single row and half configuration with left-hand drive, air conditioning, and a four-point spring suspension system that reduces operator fatigue during extended journeys. The 150Ah battery ensures reliable starting power in all conditions, while the streamlined design focuses on utility and functionality.

Application:

· Construction Industry: Transporting heavy machinery including excavators, bulldozers, loaders, rollers, and small cranes between construction sites. The vehicle’s robust construction and heavy-duty flatbed enable safe and efficient movement of equipment essential for infrastructure development.

· Agricultural Machinery Transportation: Moving tractors, combine harvesters, seeders, and other agricultural equipment between farms, dealerships, and service centers. The flatbed’s dimensions accommodate the varying sizes and configurations of modern agricultural machinery.

· Building Material Industry: Transporting prefabricated concrete slabs, reinforcing bars, steel pipes, lumber, and scaffolding materials to construction sites. The flatbed’s open design enables flexible loading configurations for diverse material types.

· Wind Power Industry: Supporting the transport of wind turbine components including blades, tower sections, and nacelles. The vehicle’s load capacity and flatbed configuration accommodate the specialized logistics requirements of wind energy development.
