FAW J6L 350hp 10CBM Intelligent Asphalt Distributor Truck

Precision asphalt application is critical to pavement quality and material efficiency. The FAW J6L Intelligent Asphalt Distributor Truck is purpose-built to meet this standard. Integrating a fully automatic computer-controlled spraying system with a high-performance heating circuit, the vehicle ensures consistent spray rates independent of travel speed. The 10,000-liter tank capacity, combined with a durable FAW chassis and a comprehensive cleaning system, delivers reliable operation across diverse project conditions. Designed with input from paving professionals, this distributor reduces material waste, extends component life, and provides operators with intuitive control—whether from the cab or the rear platform.

Key Features:

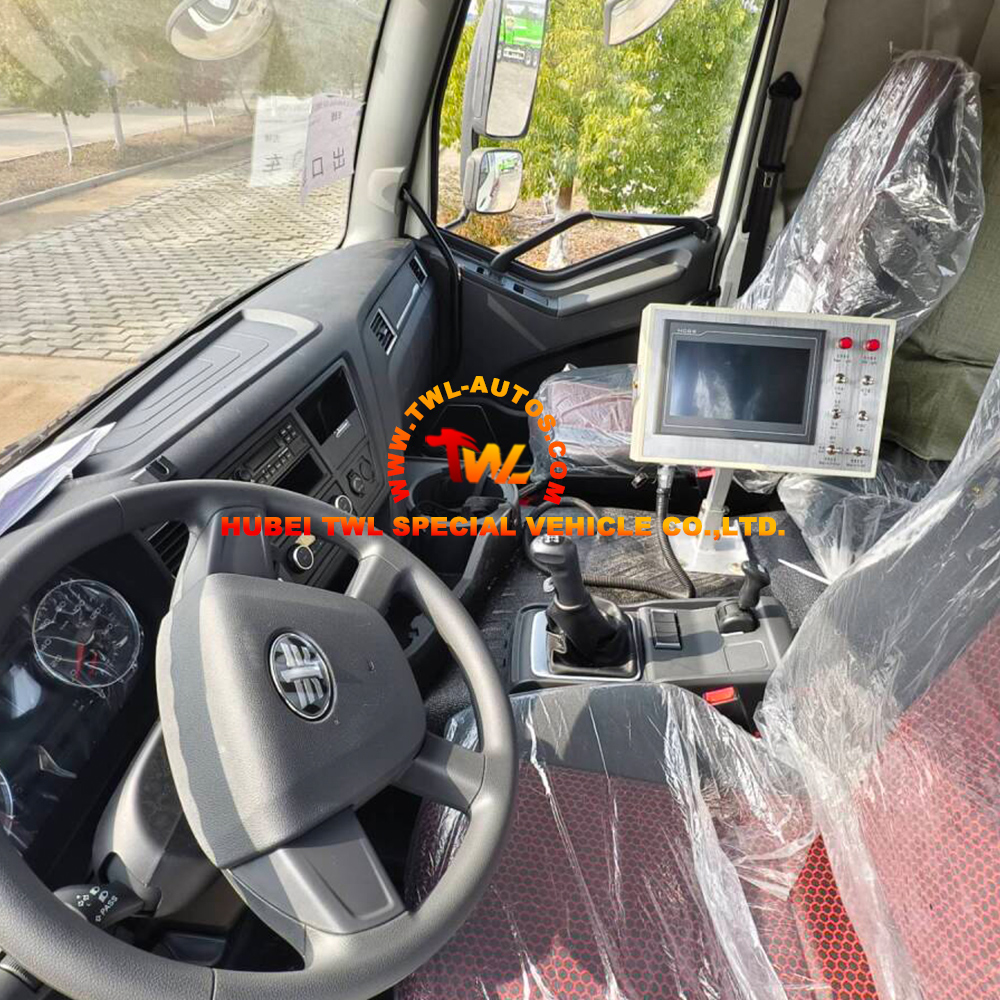

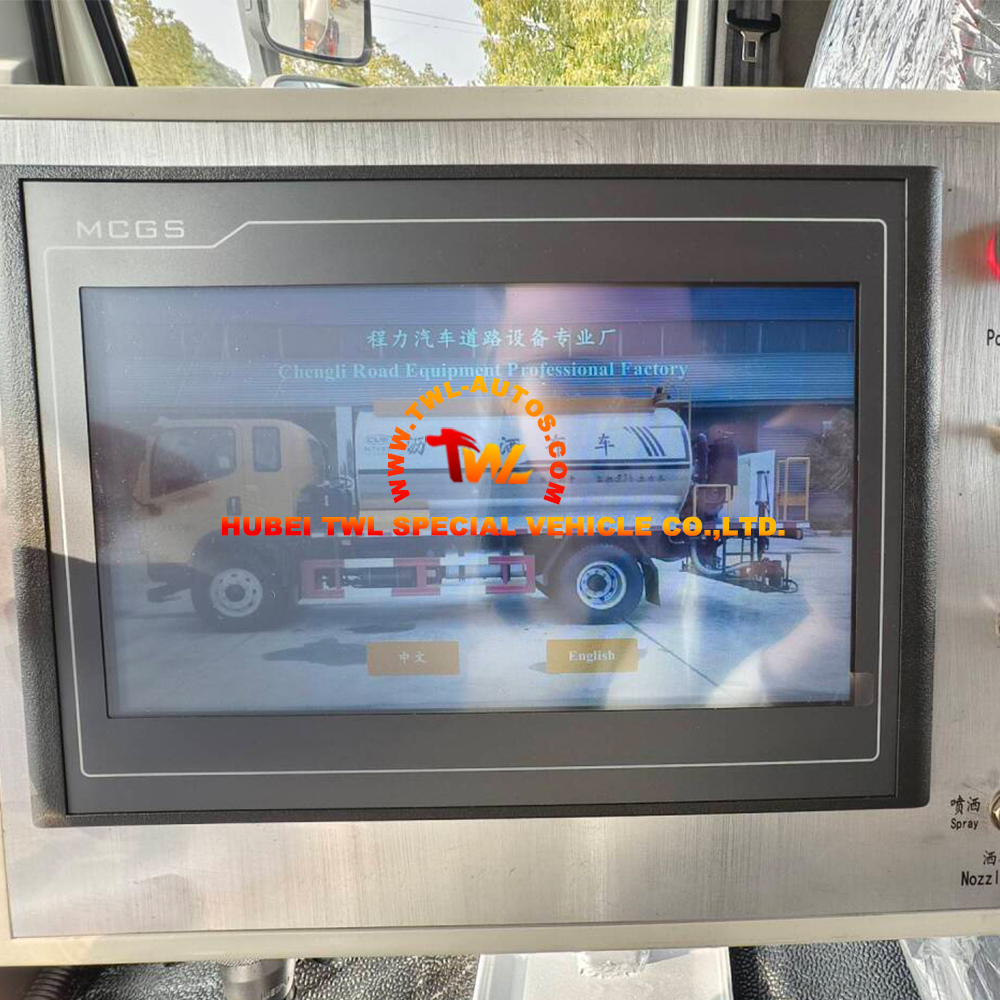

· Intelligent Automatic Spray Control: The system features a fully automatic control interface accessible via the in-cab display or rear manual panel. The computer automatically adjusts spray volume in real time based on vehicle speed, ensuring uniform application across varying travel speeds. Operators can set spray width, application rate, and binder type with precision, dramatically reducing material waste and eliminating manual inconsistencies.

· High-Capacity Heating System: Powered by a RIELLO burner and RY air-cooled thermal oil pump, the system delivers rapid heat-up and precise temperature management. The thermal oil circulation loop ensures even heating throughout the asphalt circuit, preventing cold spots and maintaining optimal viscosity for a wide range of binders—including hot asphalt, emulsified asphalt, cutback asphalt, and high-viscosity modified asphalt.

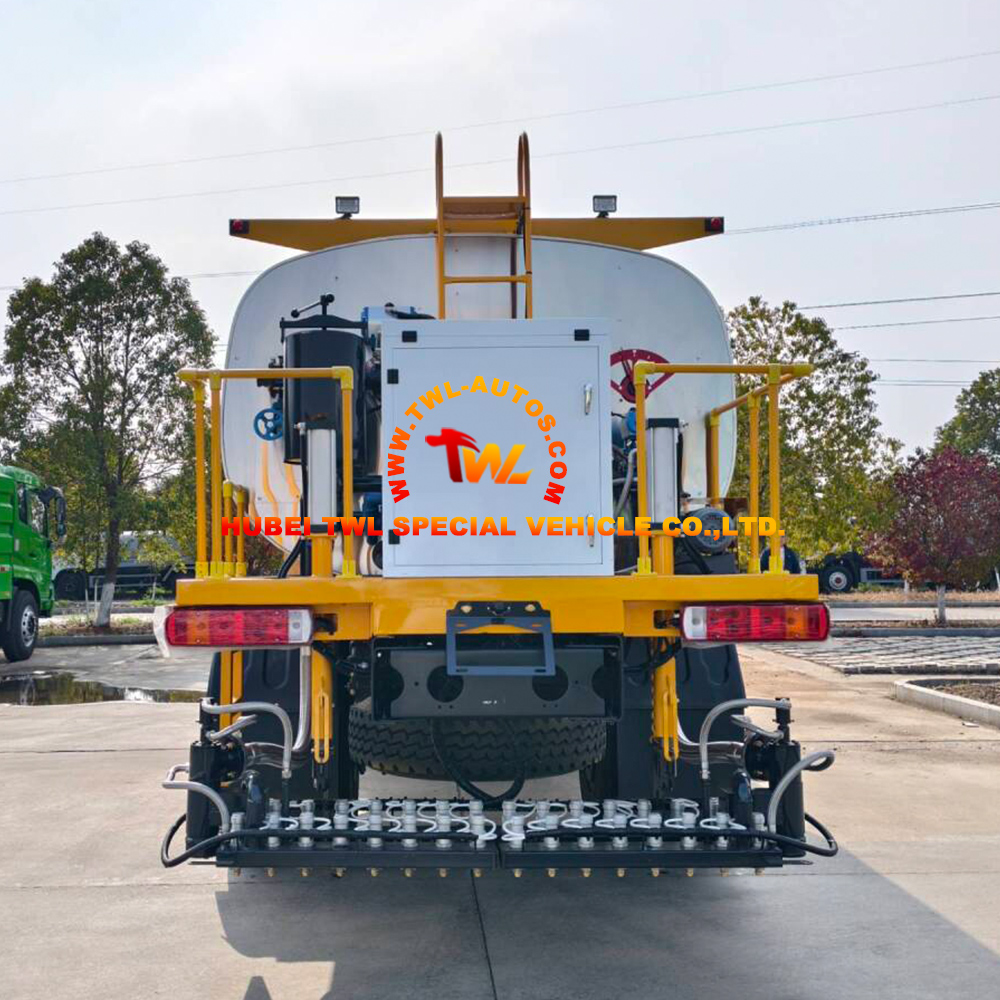

· Robust Fluid Delivery & Precision Nozzles: A QGB high-viscosity insulated pump provides reliable asphalt transfer, while 34 individually controlled precision nozzles mounted on a three-section foldable spray bar enable adjustable spray width and uniform distribution. The spray bar can be raised, lowered, and unfolded to navigate roadside obstacles and accommodate varying road geometries.

· Comprehensive Cleaning & Maintenance System: To prevent asphalt solidification and ensure long component life, the vehicle is equipped with a high-pressure air and diesel cleaning system. This system thoroughly purges the pump, pipelines, and nozzles after each operation, significantly reducing maintenance requirements and preventing costly blockages.

· Reliable Power & Hydraulic Cooling: A 10kW gasoline generator supplies power to the burner, control panel, cleaning system, and auxiliary lighting, enabling heating and system operation even while the truck is stationary. A RISEN hydraulic oil radiator prevents hydraulic system overheating during extended operation, enhancing endurance and protecting component lifespan.

· Operator-Friendly Control Interface: The system supports both automatic and manual operation modes. Automatic mode delivers computer-controlled precision for main spraying tasks, while the rear platform includes a handheld spray gun with a 6-meter metal hose for small areas, corners, and hard-to-reach sections. Operators can switch between cab and rear control points for maximum flexibility.

Applications:

· Highway & Expressway Construction: Achieve uniform tack coat and prime coat application across large-scale paving projects with computer-controlled precision and wide spray bar coverage.

· Municipal Road Projects: Navigate urban environments with flexible spray bar adjustments and handheld spray capabilities for intersections, corners, and utility access areas.

· Airport Runway Paving: Deliver consistent binder application across expansive paved surfaces where uniformity is critical to pavement durability and safety.

· Bridge & Tunnel Deck Waterproofing: Apply specialized modified asphalt or emulsified binders for waterproofing layers with precise temperature control and application rates.

· Rural Road Maintenance: Efficiently handle smaller-scale resurfacing and preservation projects with the flexibility of both automatic and manual spray modes.

· High-Altitude or Remote Environments: The robust heating system and auxiliary generator ensure reliable performance even in demanding climates and off-grid locations.
