FAW J5K 45m Aerial Work Platform Truck
FAW J5K 45m aerial work platform delivers high-altitude performance, strong stability, and advanced safety systems. A reliable boom lift solution tailored for RHD markets such as Tanzania, Kenya, Zimbabwe, and the Philippines.
FAW J5K 45m Aerial Work Platform Truck
The FAW J5K 45-meter aerial work platform is engineered to meet the rigorous demands of high-altitude operations in right-hand drive (RHD) markets. With its impressive working height, exceptional stability, and intelligent safety features, this truck-mounted boom lift is the ideal solution for industries ranging from municipal engineering and electrical utilities to construction and emergency services across Tanzania, Kenya, Zimbabwe, the Philippines, and other RHD countries.
Key Features & Benefits
1. Extensive Working Height & Unmatched Reach
Boasts a maximum working height of 45 meters, effortlessly accessing tall structures, bridges, and power lines.
The flexible telescopic boom provides a wide working radius, minimizing the need for frequent repositioning and maximizing on-site productivity for mid to high-rise projects.
2. Superior Safety & Unshakable Stability
A robust hydraulic outrigger system ensures a solid and stable base during all elevated operations.
Integrated intelligent safety system includes overload protection, tilt alarms, and emergency descent functions.
Optional obstacle detection systems are available to prevent collisions and enhance operational safety.
3. High Efficiency & Exceptional Adaptability
Features a multi-section telescopic boom that can be precisely adjusted to navigate complex and confined workspaces.
360-degree continuous platform rotation allows for pinpoint positioning and accurate task execution.
The optimized hydraulic system ensures smooth, controlled, and responsive lifting and lowering movements.
4. User-Friendly & Intelligent Control Systems
An intuitive electro-hydraulic control system allows for simple and precise operation from the platform or ground.
Select models offer remote monitoring and diagnostics for real-time equipment status updates and simplified maintenance.
5. Versatile Applications Across Industries
This aerial platform is designed for a wide range of applications, making it a valuable asset for:
Municipal Work: Street light maintenance, signboard installation, and bridge inspection.
Power & Telecom: Maintenance of high-voltage lines and communication towers.
Construction: Exterior wall finishing, curtain wall installation, and repair work.
Rescue Services: Facilitating high-altitude emergency response and rescue operations.
6. Built-to-Last Reliability & Low Maintenance
Constructed with high-strength steel and premium branded hydraulic components for durability and a long service life.
A modular design simplifies maintenance and part replacement, significantly reducing downtime and overall operating costs.
Why Choose the FAW J5K 45m for Your RHD Market?
Specifically configured for right-hand drive operation, the FAW J5K is the perfect partner to tackle your most challenging aerial work tasks with confidence, safety, and unparalleled efficiency. It is more than just equipment; it’s a productivity solution built for the specific needs of professionals in Africa and Southeast Asia.
Product Specification
| Parameters Of Truck Chassis | |
| Overall Dimension(LxWxH) | 9260 x 2550 x 3960 mm |
| Gross Vehicle Weight | 18000 kg |
| Curb weight | 16710 kg |
| Wheel Base | 4700mm |
| Cab | FAW J5K Cab |
| Right hand drive | |
| 2 or 3 seats | |
| Air conditioned | |
| Engine | Diesel Engine, Xichai CA6DF2D-18, 180HP, Euro 2 |
| 6 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection | |
| Gearbox | Manual, FAW CA6TBX075M |
| 6 Forward & 2 Reverse Speed | |
| Axle Loading | Front: G116 axle 5000kg |
| Rear: 435 Punch welding axle 11500kg | |
| Tire | 10.00R20 |
| 6 pieces with 1 spare tire | |
| Parameters Of Upper Structure | |
| Boom type | 7 sections sexangular telescopic boom |
| Max. working height | 45 meters |
| Max. working radius | 20 meters |
| Operating height at maximum operating radius | 5 meters |
| Bucket lifting capacity | 200kg |
| Bucket material | High-strength stainless steel |
| Bucket size(LxWxH) | 2000x700x1000mm |
| Rotation Angle | 360 degrees continuous rotation for the main boom |
| Landing leg | 4 units, front V rear V type, individually adjustable |
| Transverse span of front leg: 8200m m | |
| Lateral span of rear leg: 8900mm | |
| Leveling system | Hydrostatic self-leveling |
| Anemometer | When wind speed reaches level 5 or higher, the aerial work platform activates the alarm and restricts operations to ensure operator safety. |
| Basket load sensor | It precisely measures basket’s load, enabling operators to monitor current weight and prevent overload-related safety incidents. |
| Control method | Remote controller with monitor showing display arm length, working height, working radius, tilt angle in English |
| Manual control on the platform with monitor showing display arm length, working height, working radius, tilt angle in English | |
| Manual control in the operator’s cabin | |
| Hoarding&walking platform | Stainless steel fence and anti-slip walking platform |
| Remarks | Color is optional, customized LOGO painting as per client’s request |

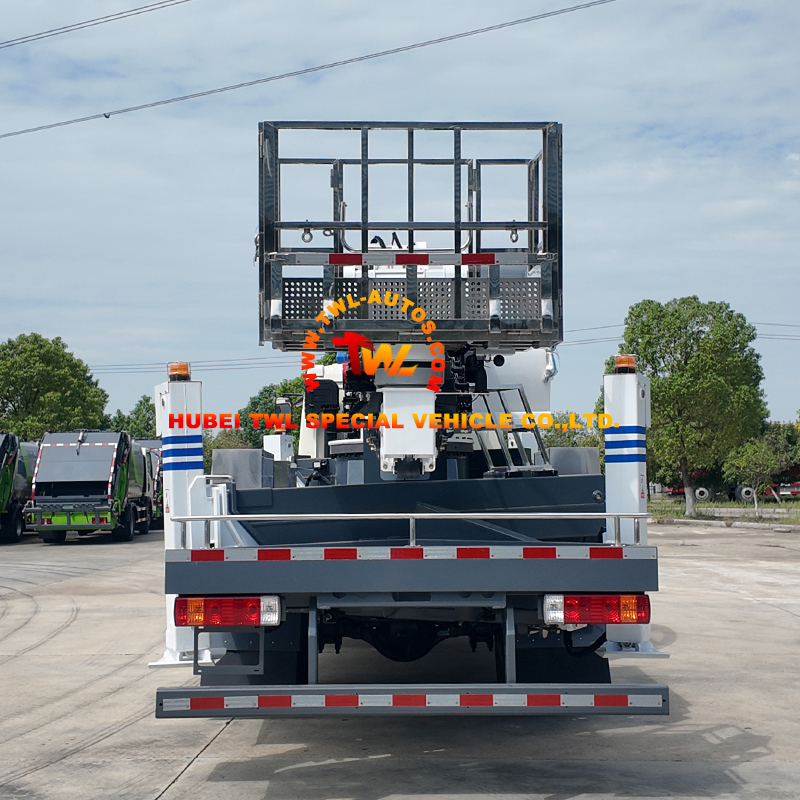

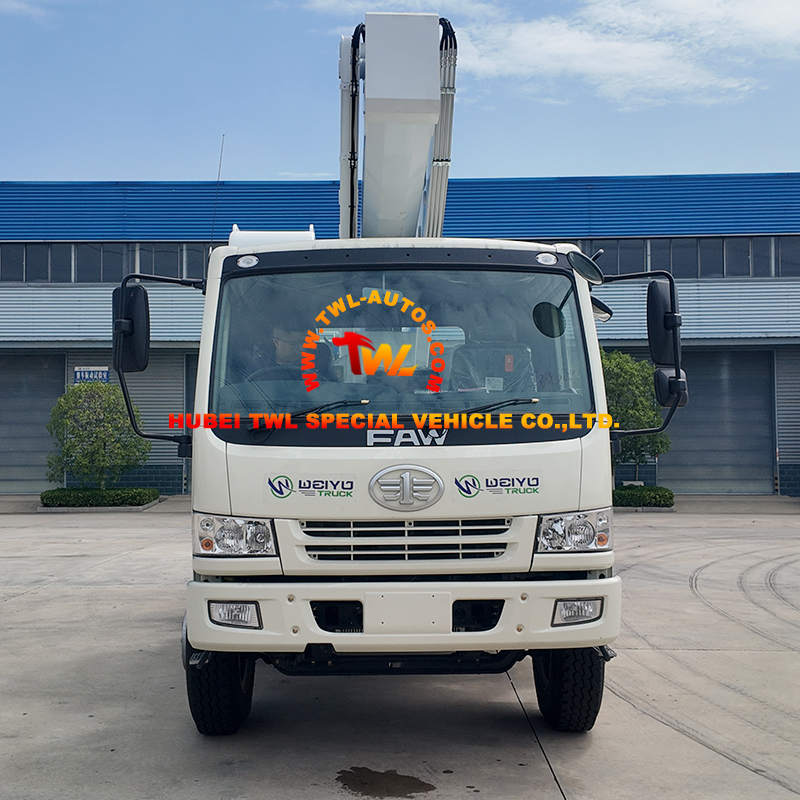

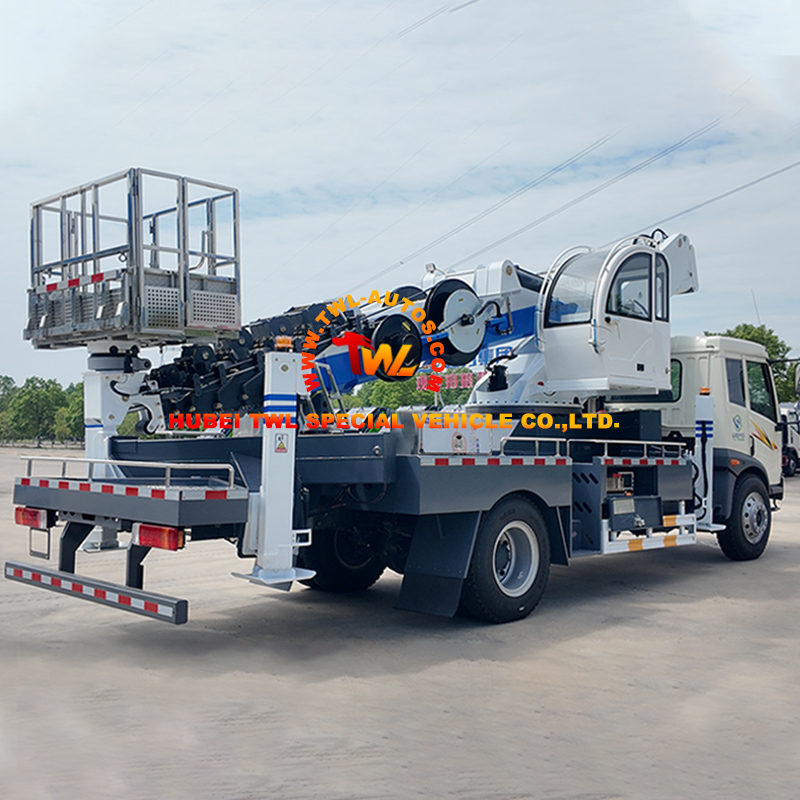

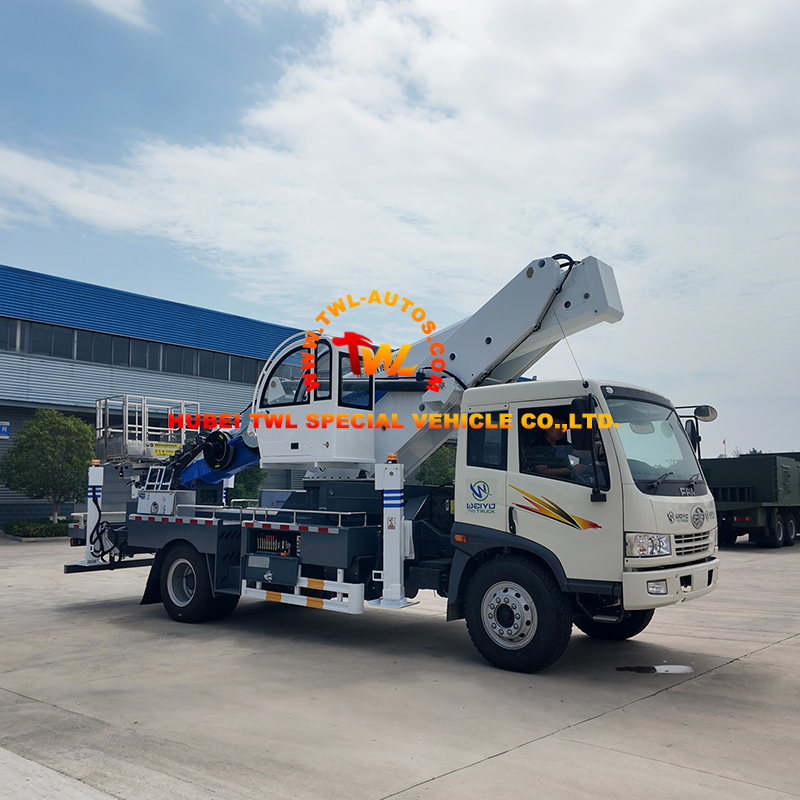

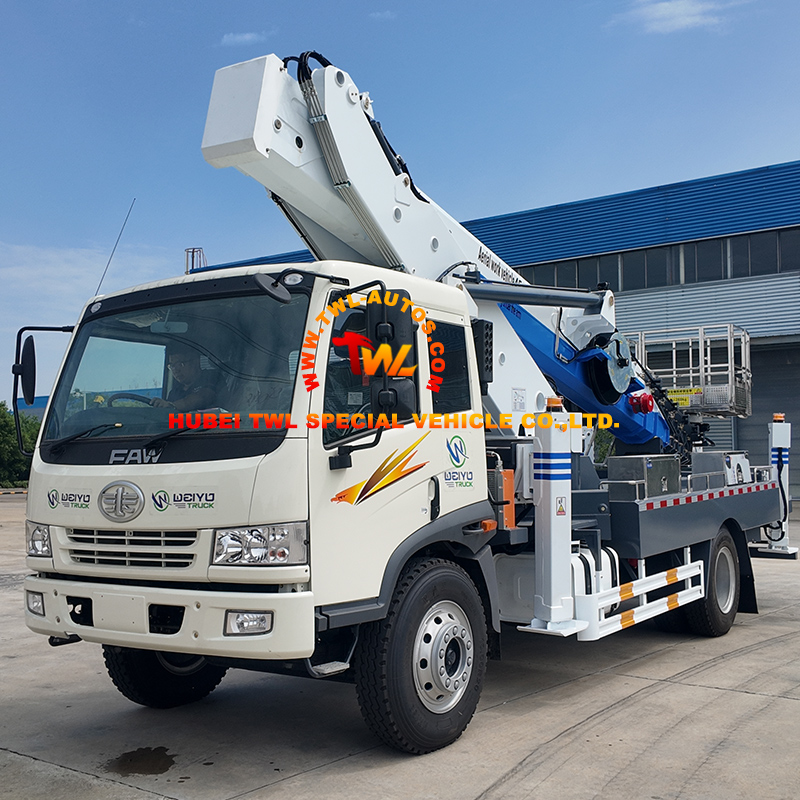

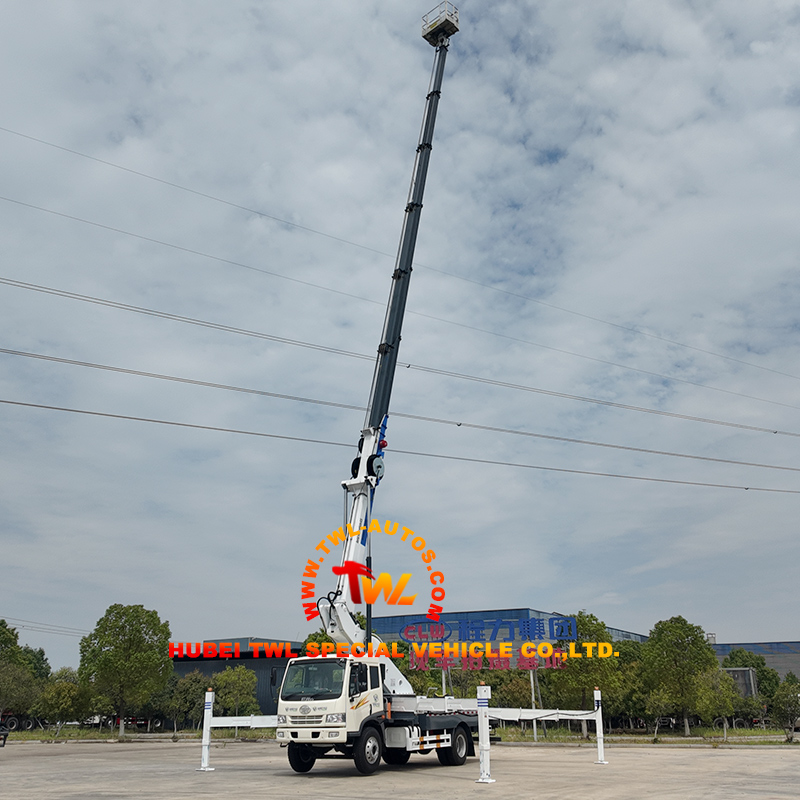

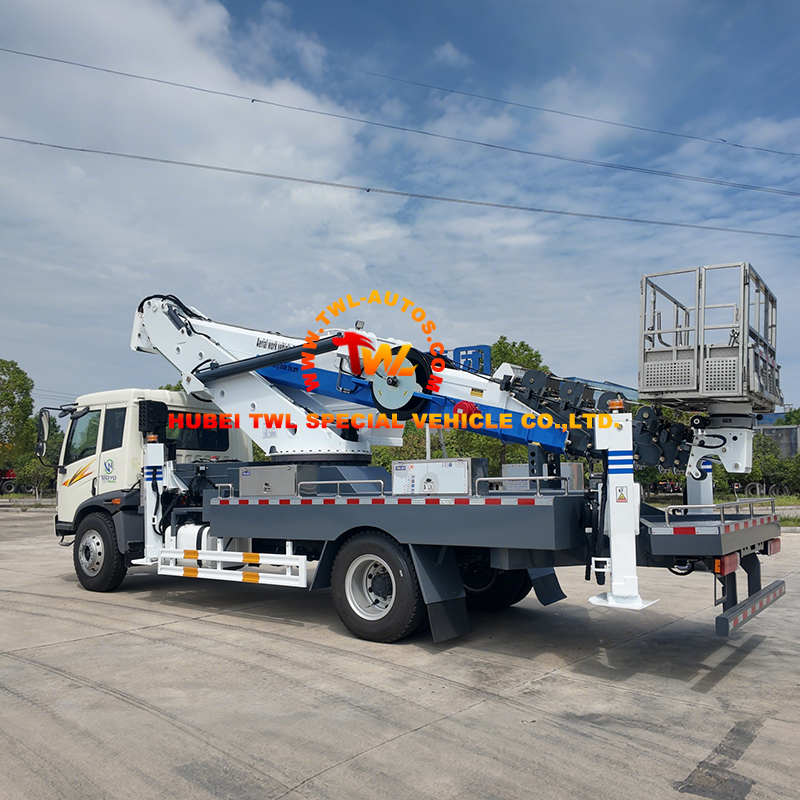

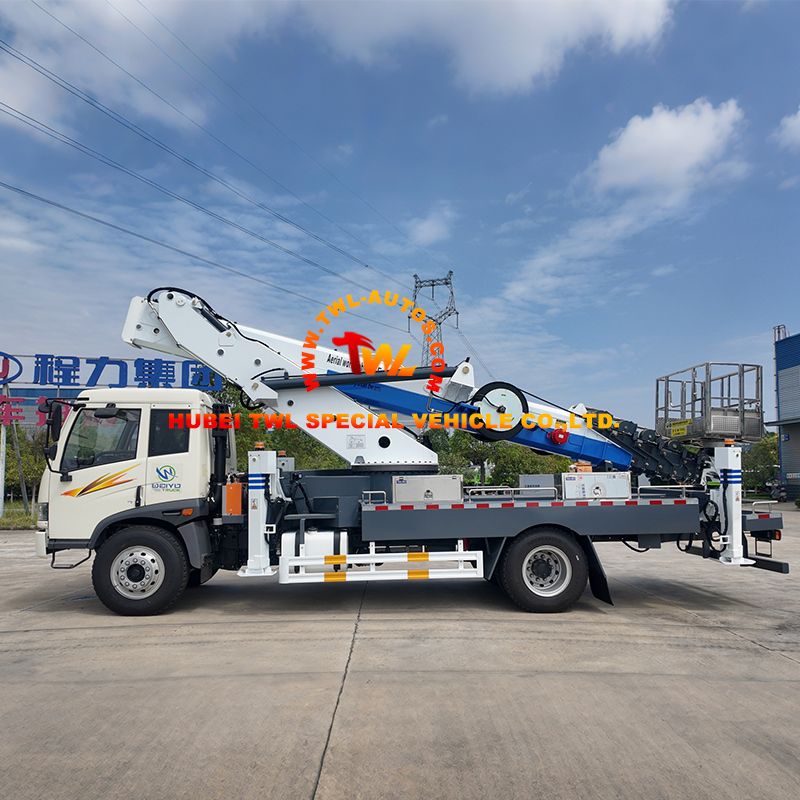

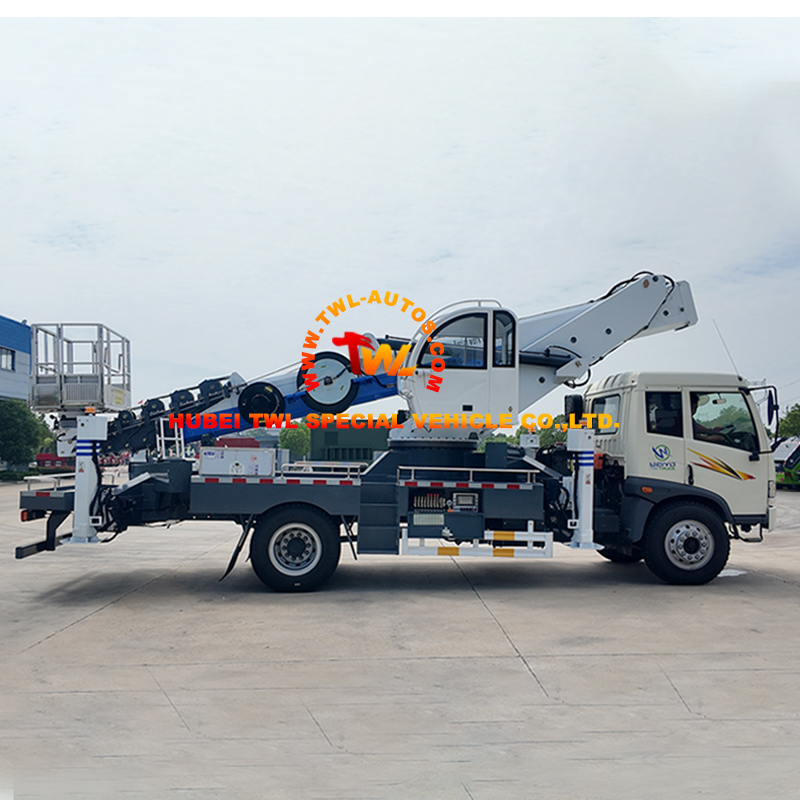

FAW J5K 45m Aerial Work Platform Truck Gallery
