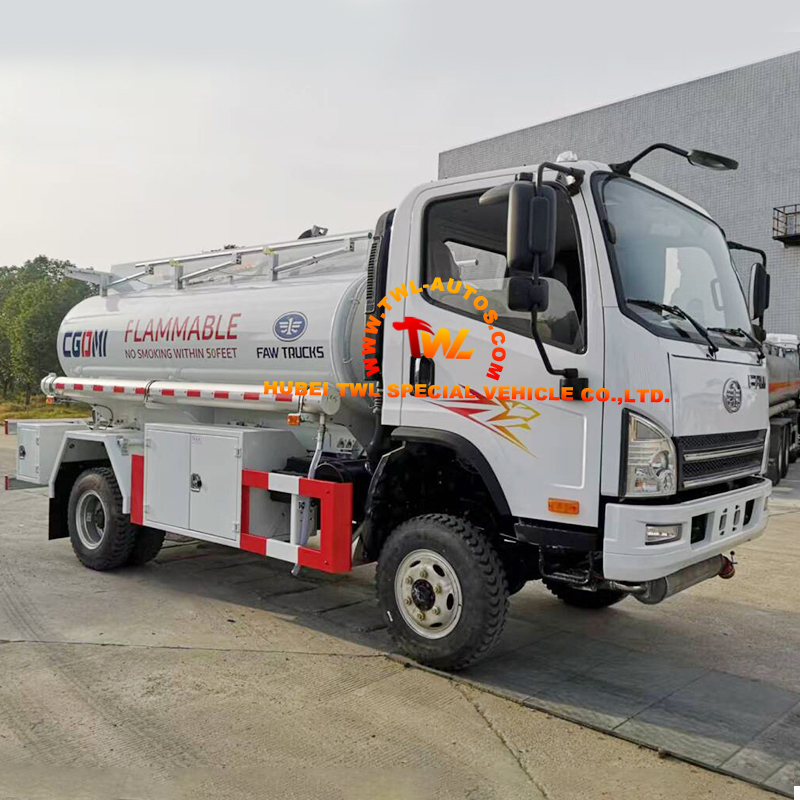

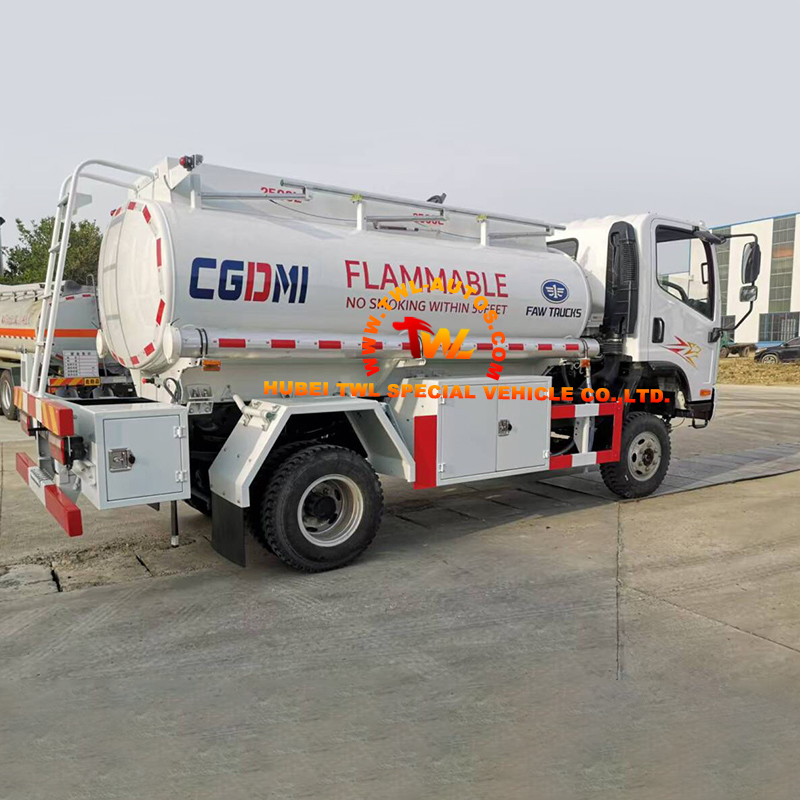

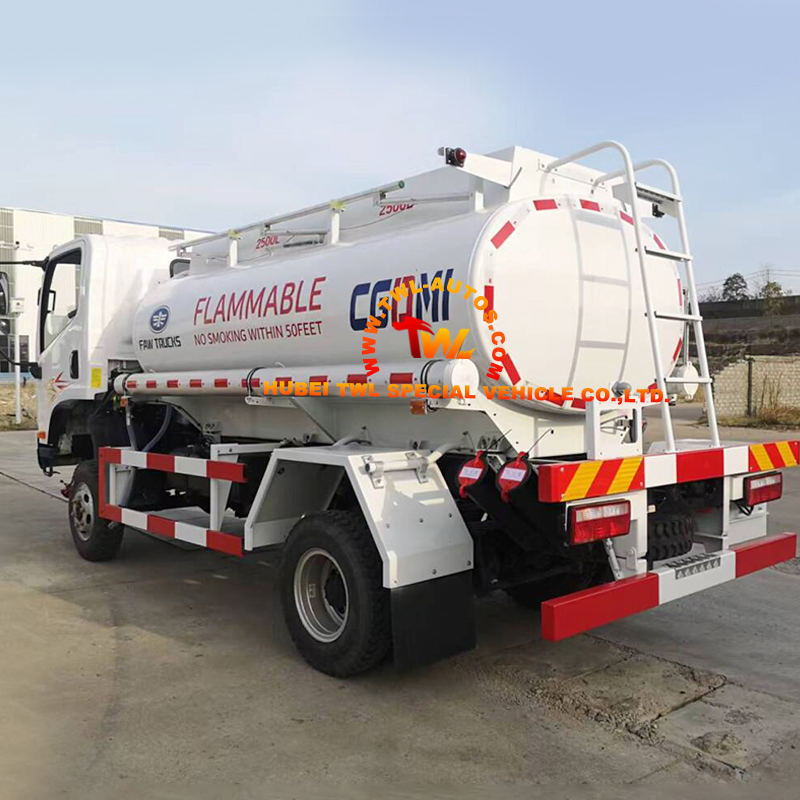

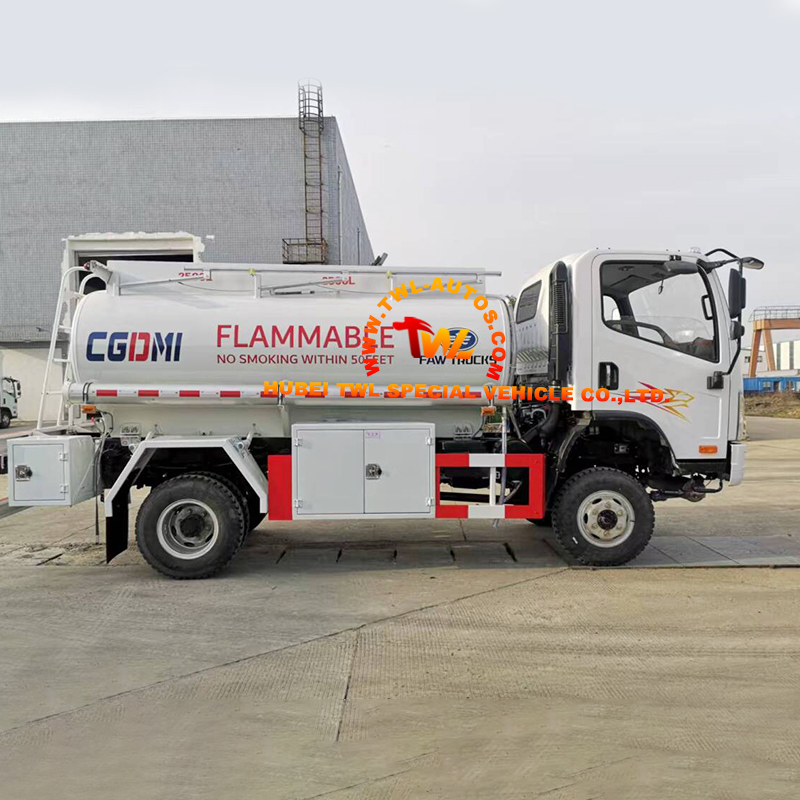

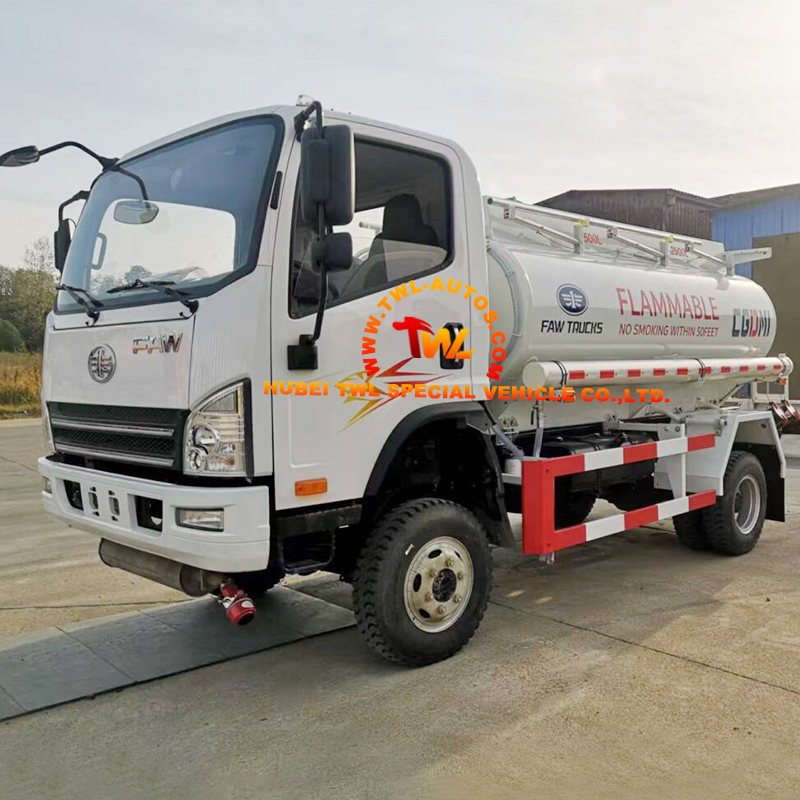

FAW 4x2 5,000L Fuel Tanker Truck

The FAW 5,000L Fuel Tanker Truck is a specialized commercial vehicle designed for the safe and efficient transportation of flammable liquids including diesel, gasoline, kerosene, and non-corrosive chemicals. Built on the heavy-duty FAW Jiefang CA series 4×2 chassis, this vehicle features a robust 5-cubic-meter (5,000L) tank constructed from carbon steel with anti-corrosion epoxy coating to ensure durability and prevent contamination. The tank is reinforced with internal anti-surge baffles and longitudinal baffles to stabilize liquid movement and prevent tank rupture during transit. The high-efficiency rotary vane pump enables rapid loading and unloading at rates up to 400 L/min, minimizing downtime at depots, gas stations, or remote sites. Optional compartmentalized tank design (2-3 chambers) allows simultaneous transport of multiple fuel types. Advanced safety systems include explosion-proof manhole covers, pressure relief valves, anti-static grounding mechanisms, subsea emergency shut-off valve (installed at tank bottom ensuring sealed containment even if pipeline valve is accidentally broken), and spill-proof sensor that detects refueling levels and transmits signals to stop refueling when excessive feed is detected. The anti-static system consists of anti-overflow probe rod, anti-overflow socket, and ground bolt. This tanker complies with stringent international standards including ADR (European Agreement Concerning the International Carriage of Dangerous Goods) and China II emission regulations.

Key Features:

1. FAW Jiefang CA Series 4×2 Reliable Chassis: Heavy-duty chassis for fuel transport applications. 4×2 drive for excellent urban and rural maneuverability. Meets China II emission regulations.

2. 5,000L (5m³) Carbon Steel Tank: 5m³ capacity balancing payload efficiency and maneuverability. Anti-corrosion epoxy coating for durability and contamination prevention. Reinforced with internal anti-surge and longitudinal baffles. Optional 2-3 compartment configuration for multiple fuel types.

3. High-Efficiency Rotary Vane Pump: Up to 400 L/min loading/unloading rate. Rapid transfer at depots, gas stations, and remote sites. Minimizes downtime for logistics operations.

4. Advanced Safety Systems: Explosion-proof manhole covers. Pressure relief valves for overpressure protection. Anti-static grounding mechanism (probe rod, socket, ground bolt). Subsea emergency shut-off valve (stainless steel, corrosion-resistant, ensures tank remains sealed even if pipeline valve is broken). Spill-proof sensor for refueling level detection and automatic shut-off.

5. Vapor Recovery System (Optional): Enhances environmental protection during loading/unloading. Reduces vapor emissions.

6. Structural Integrity: Internal baffles stabilize liquid movement. Longitudinal baffles prevent tank rupture. High-strength materials and automated welding ensure lifespan exceeding 10 years.

7. Compliance: Meets ADR/RID standards for hazardous goods transport. Fire-resistant coatings and anti-static designs.

8. Customizable Options: Compartmentalized tank (2-3 chambers). Fuel dispensers, self-priming pumps, metering systems. Corrosion-resistant liners for chemicals (polyethylene). Tank materials: carbon steel, stainless steel, aluminum, polyethylene.

Application:

· Urban fuel delivery to gas stations

· Remote construction site diesel delivery (excavators, cranes, generators)

· Agricultural support (tractors, harvesters during peak seasons)

· Emergency services (water or firefighting foam deployment)

· Chemical logistics (acids, alkalis, methanol, ethanol with corrosion-resistant liners)
