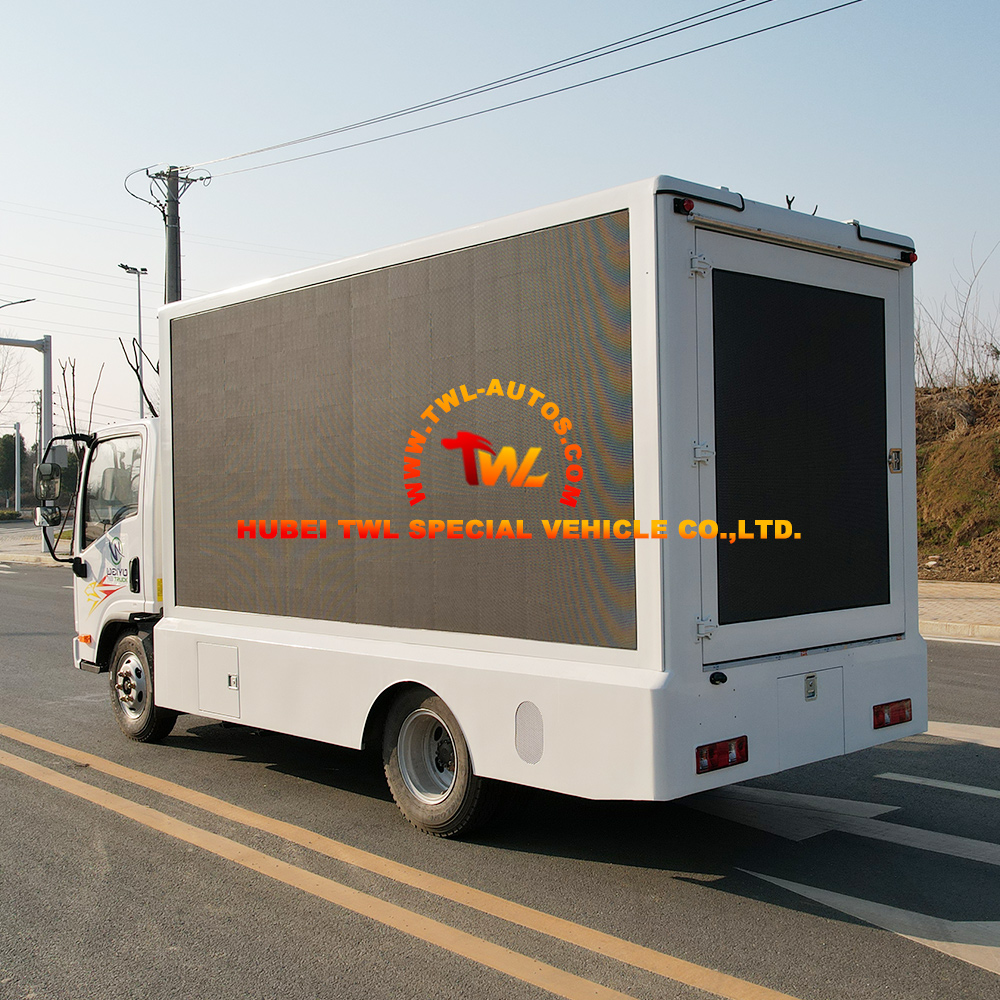

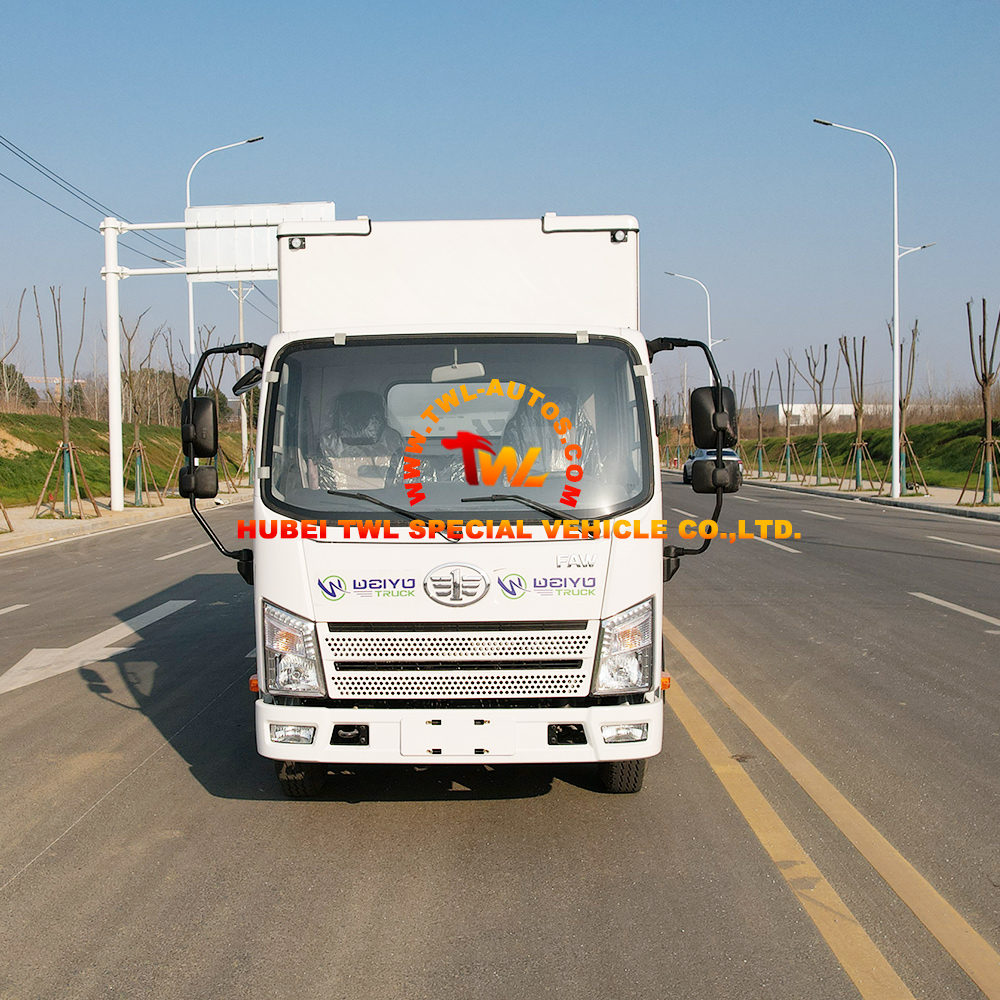

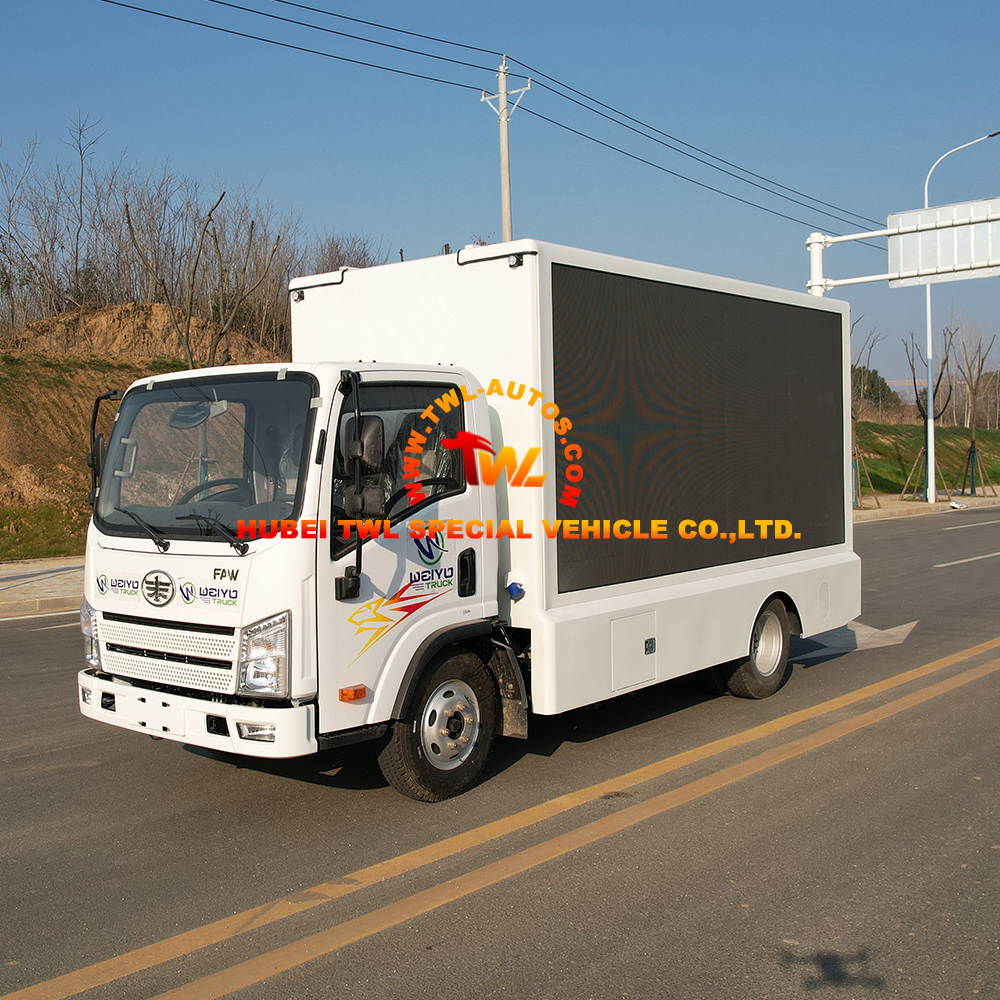

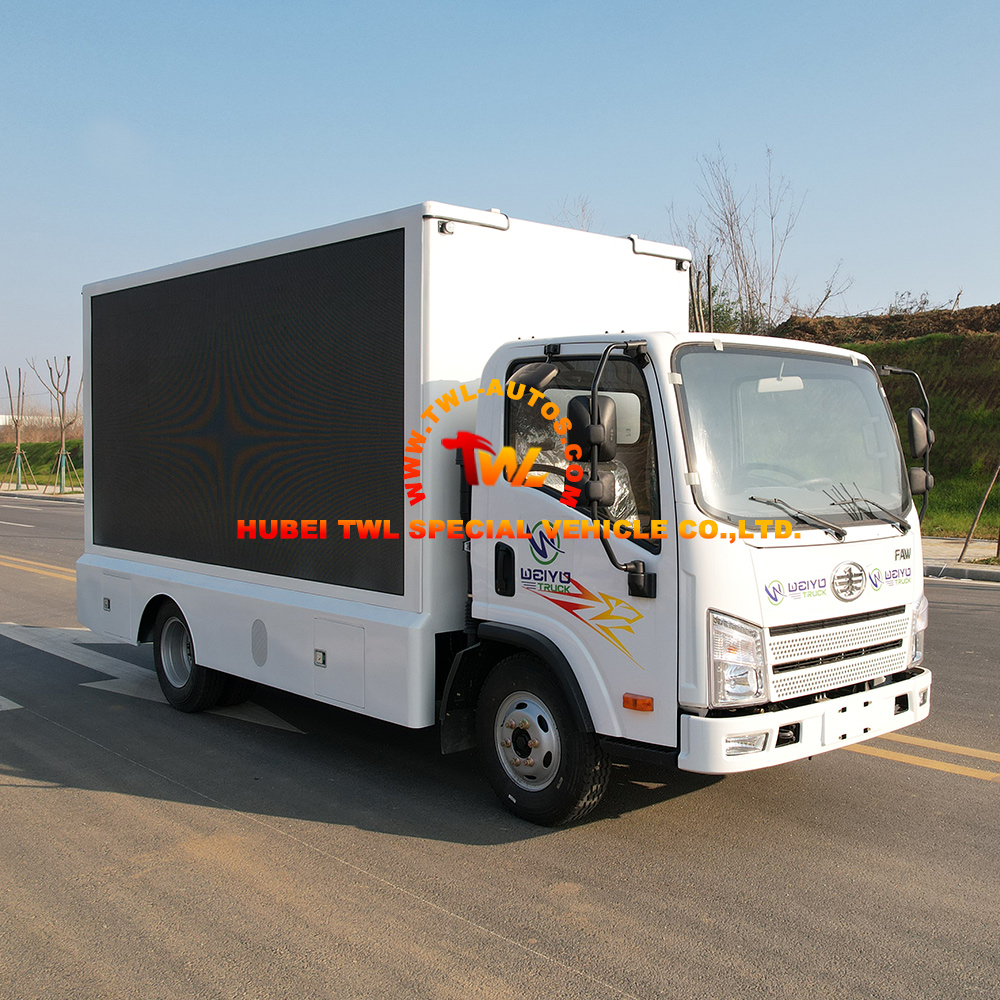

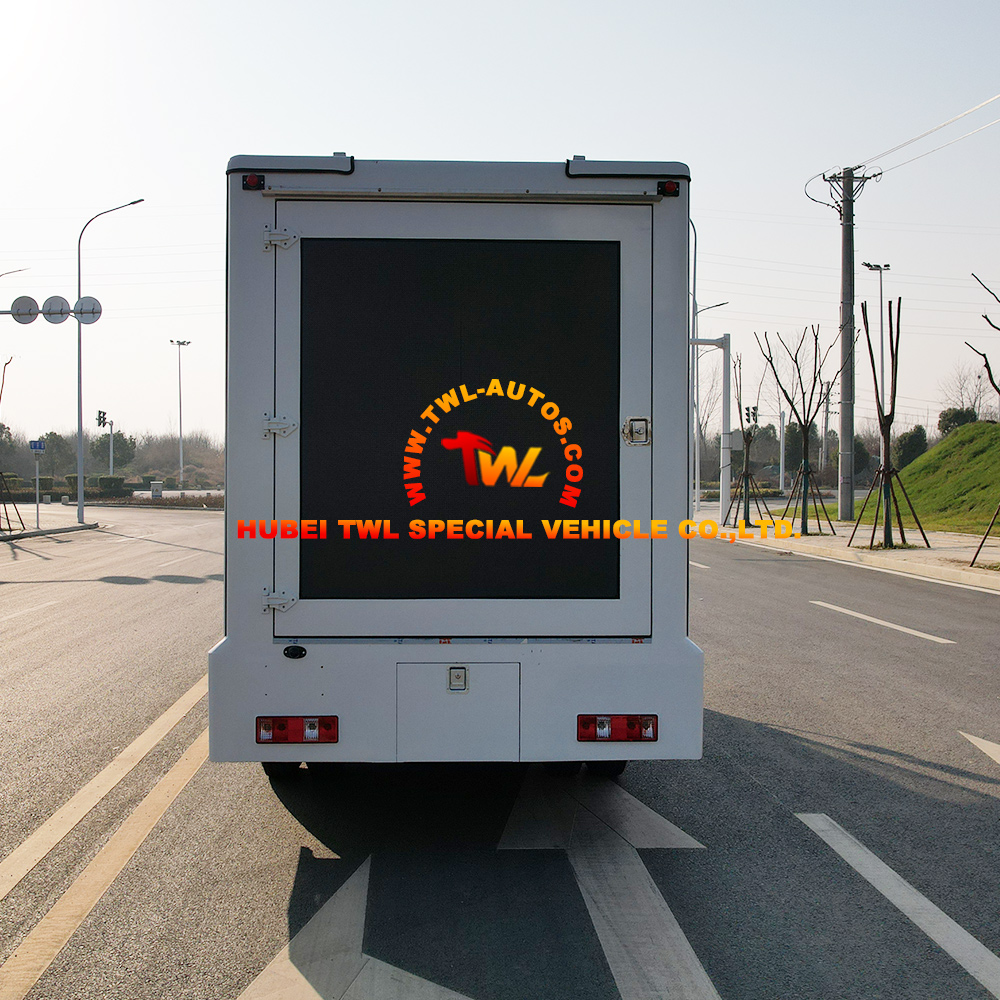

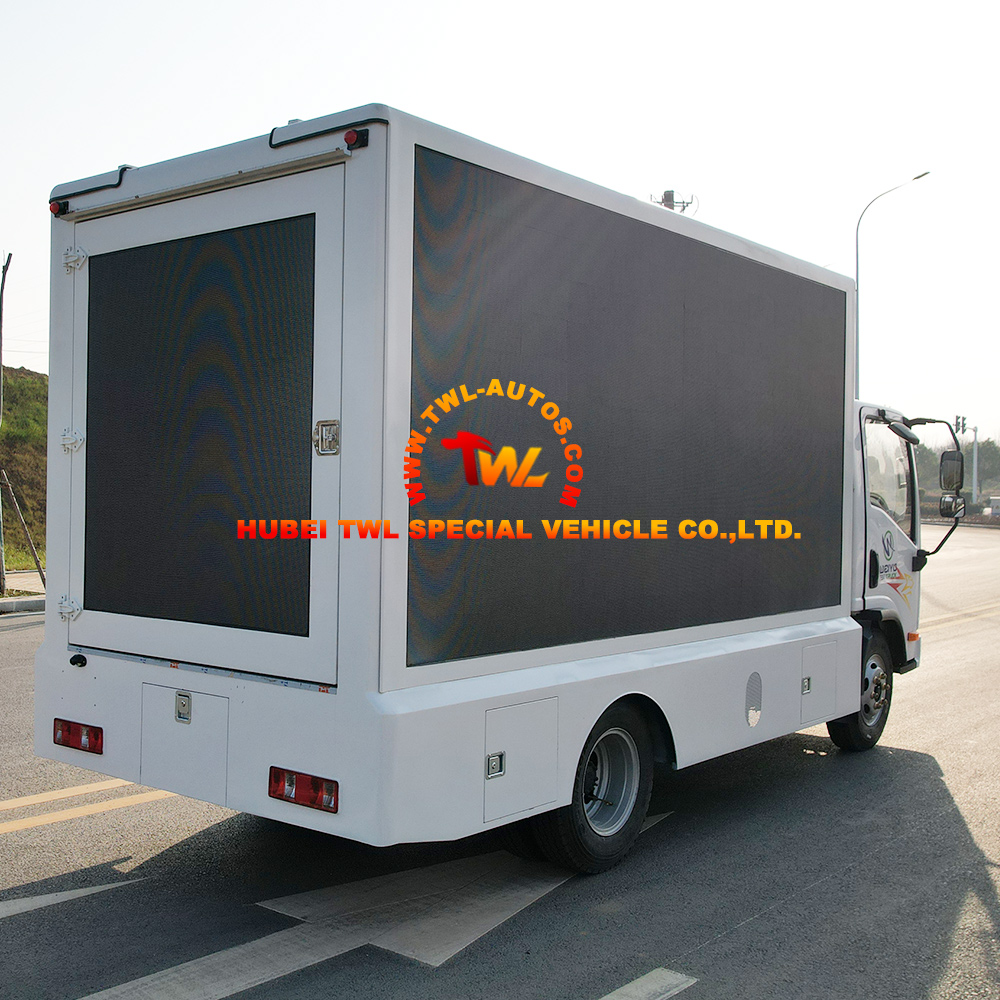

FAW 3-Side P4 Mobile LED Billboard Truck
Engineered for high-impact mobile advertising campaigns, the FAW 3-Side P4 Mobile LED Billboard Truck combines a reliable FAW light-duty 4x2 chassis with three high-resolution P4 full-color LED screens, integrated audio systems, and a foldable stage. Designed for brand promotions, public awareness campaigns, and live events, this self-contained mobile advertising platform delivers brilliant visual content directly to target audiences in multiple locations.
FAW 3-Side P4 Mobile LED Billboard Truck
The FAW 3-Side P4 Mobile LED Billboard Truck is a purpose-built mobile advertising vehicle designed to maximize brand exposure and audience engagement. Built on the reliable FAW light-duty 4×2 chassis with a Weichai 110HP diesel engine, this vehicle delivers exceptional maneuverability for urban advertising routes. The three-side P4 full-color LED screen configuration provides 360-degree visual impact, with two side screens featuring hydraulic lifting capability for adjustable viewing angles. The integrated audio system, onboard generator, and foldable stage with stainless steel guardrails create a complete, self-sufficient promotional platform. Available in Left-Hand Drive configuration with optional Right-Hand Drive conversion, this vehicle is ideal for African markets including Benin, Tanzania, Kenya, and Uganda.
Key Features:
· FAW Light-Duty 4×2 Chassis: Built on the reliable FAW platform with excellent urban maneuverability. Powered by a Weichai 110HP diesel engine. Available in Left-Hand Drive (LHD) with optional Right-Hand Drive (RHD) conversion for African markets.
· Three-Side P4 Full-Color LED Screens: High-resolution P4 LED displays provide crisp, daylight-visible content. Three-screen configuration delivers 360-degree visual impact. Two side screens feature hydraulic lifting for adjustable viewing angles and optimal crowd capture.
· Integrated Audio and Control Systems: Weatherproof audio system with amplifier for clear sound delivery. Control computer for content management. Complete system ensures self-sufficient operation in any environment.
· Onboard Power and Support Systems: Diesel generator provides autonomous power for extended operations. Voltage stabilizer protects sensitive electronics. Ventilation fans and roof hatch ensure proper airflow and operator comfort.
· Foldable Stage with Safety Features: Integrated foldable side stage with stainless steel guardrails provides a secure platform for live hosts, performers, or product demonstrations. Enhances engagement for live events and activations.
· Complete Operational Autonomy: All necessary systems integrated into a single vehicle. No external power or equipment required for full operation.
Application:
· Brand promotions and product launches in urban centers
· Public awareness campaigns for governments and NGOs
· Election campaigning and political outreach
· Cultural festivals, concerts, and live events
· Roadshows and mall activations
· Commercial advertising in high-traffic areas
Product Specification
| General Technical Parameters | |||
| Overall Dimension | 6000x2100x3100(mm) | ||
| Gross Vehicle Weight | 4000(Kgs) | ||
| Curb Weight | 3000(Kgs) | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis model | FAW Tiger VR | |
| Cabin | Single row, Left Hand Driving, with A/C | ||
| Engine | Fuel type | Diesel | |
| Model | Weichai WP2.3NQ110E20 | ||
| Power | 81KW/110HP | ||
| Emission Standard | Euro 3 | ||
| Displacement | 2.3L | ||
| Type | 4 cylinders, water cooled,turbocharged,after cooled ,direct injection. | ||
| Gearbox | Manual type | ||
| WLY 5F and 1R gear | |||
| Axle loading | Front axle: 2,000kgs | ||
| Rear axle: 5,000kgs | |||
| Wheel base | 3300(mm) | ||
| Brake System | Air brake or Oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 +1 pcs | ||
| Clutch | Reinforced diaphragm clutch | ||
| Superstructure Parameters | |||
| LED screen | Screen size | Left: 3840*1760mm | |
| Right: 3840*1760mm | |||
| Rear: 1280*1440mm | |||
| Pixel pitch | 4mm (P4) | ||
| Description | Waterproof, High temperature resistance | ||
| General Configuration | 1. China famous OUMA brand 15kw silent diesel generator | ||
| 2. Industrial computer system | |||
| 3. 40W speaker x 4 units, public amplifier x 1 unit | |||
| 4. Internal and external electrical control switch | |||
| 5. Ventilation fan x 3 units and emergency exit x 1 unit | |||
| 6. 5cm composite steel frame body | |||
| 7. Aluminum checked floor | |||
FAW 3-Side P4 Mobile LED Billboard Truck
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
