Dongfeng Medical Waste Transfer Truck
As a leading special vehicle manufacturer from China, we present the Dongfeng Captain Medical Waste Transfer Truck—a benchmark in reliability, safety, and operational excellence for the global healthcare and waste management sectors. This isn't just a vehicle; it's a comprehensive, compliant transport ecosystem on wheels, designed to mitigate risk and maximize your productivity.
Dongfeng Medical Waste Transfer Truck
Why Partner with Us? We Deliver Unmatched Value
· Direct-from-Factory Pricing: Eliminate middlemen and enjoy superior value. As the OEM manufacturer, we provide high-quality, custom-built vehicles at highly competitive prices.
· Robust Chinese Engineering, Global Standards: We combine the rugged, dependable Dongfeng chassis with internationally recognized components like the ISUZU engine, ensuring a vehicle built to last and perform in demanding conditions.
· Tailored for Your Success: Your operational needs are unique. We offer extensive customization, from box dimensions to branding, ensuring the truck you get is the truck you need.
Key Features That Set Our Truck Apart:

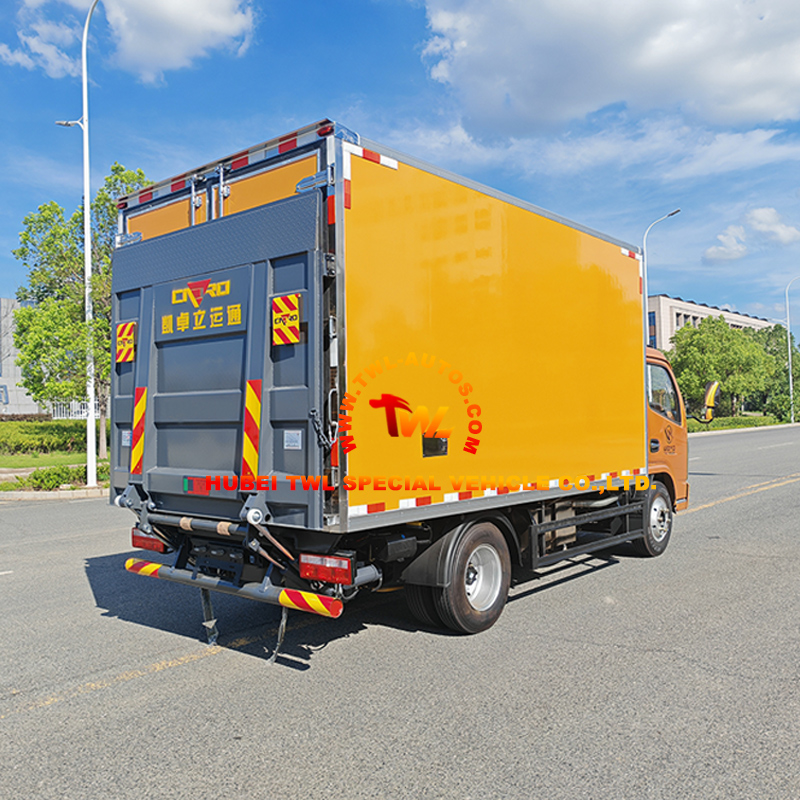

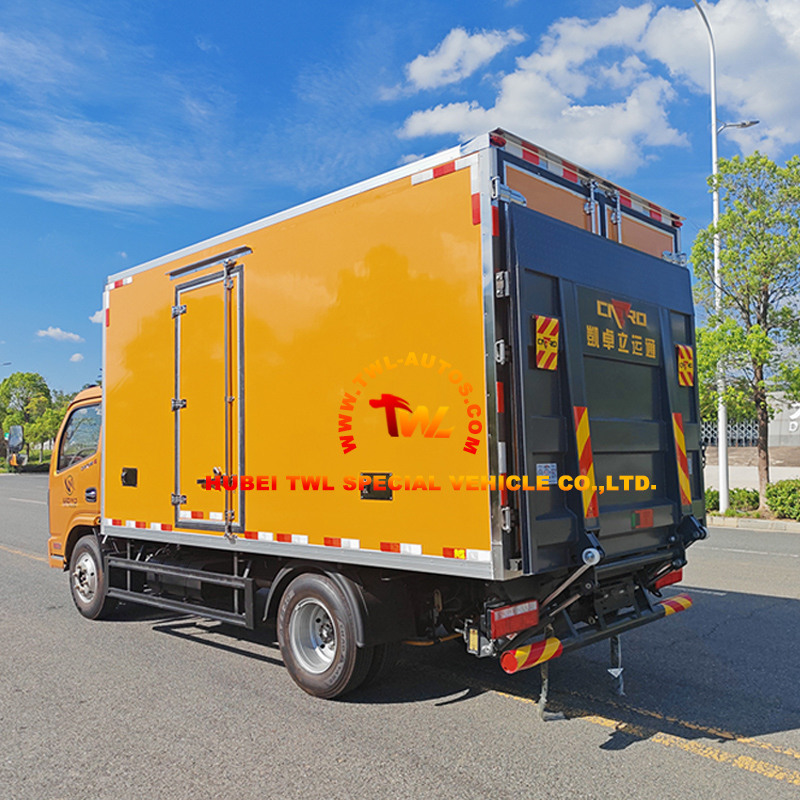

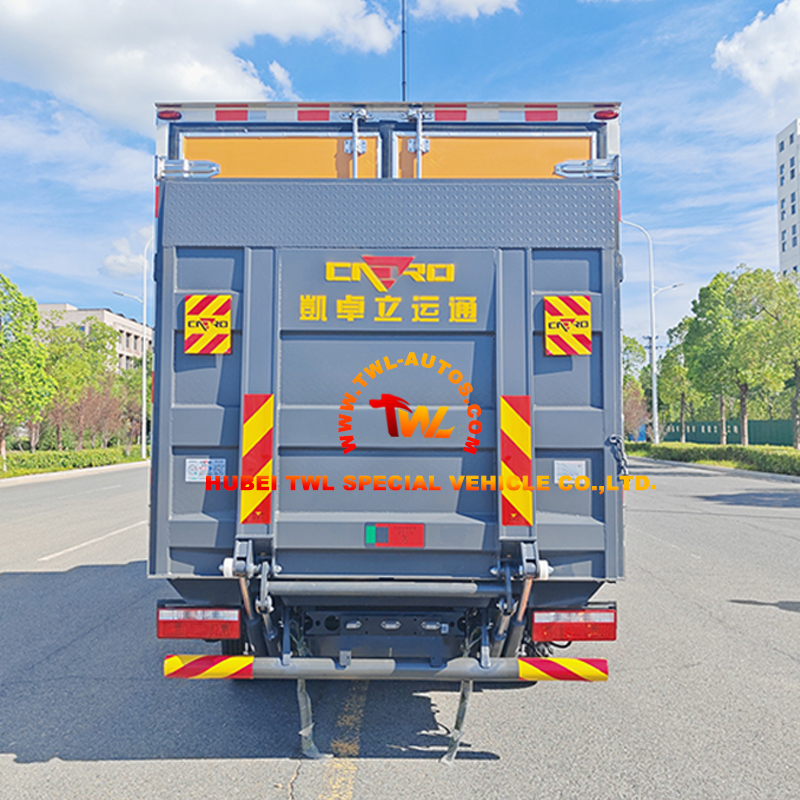

· Effortless & Safe Loading with Integrated Hydraulic Tailgate
Tired of slow, injury-prone loading? Our factory-fitted 1-ton capacity CADOR hydraulic tailboardis a game-changer. It streamlines the entire process, dramatically reducing load/unload times and enhancing worker safety.This key feature translates directly into lower labor costs and faster turnaround times.
· Superior Cargo Integrity with Advanced Cooling & Insulation
The integrity of your sensitive cargo is non-negotiable. The powerful Hanxue L-Z380 refrigeration unitworks in synergy with the 80mm thick XPS insulationto maintain a constant temperature down to -5°C. This “cold chain” guarantee prevents bacterial growth and ensures full regulatory compliance.
· The Highest Standard of Hygiene and Containment
We’ve built a “mobile sanitization zone.” The interior is lined with easy-to-clean, corrosion-resistant 304 Stainless Steel. Coupled with the dual UV germicidal lamp and electric spray disinfection system, it actively neutralizes pathogens during transit, eliminating cross-contamination risks and protecting public health.
· Proven Powertrain for Unwavering Reliability
At its heart lies the legendary ISUZU JE493ZLQ3A diesel engine. Known for its durability and fuel efficiency, this 116HP powerplant delivers the dependable performance you need to keep your fleet on the road and your operations running smoothly.
Technical Specifications at a Glance
Chassis Cab: Dongfeng Captain, Right-Hand Drive (RHD), with A/C
Engine: ISUZU JE493ZLQ3A Diesel, 116HP, Euro 3
Gearbox: WLY 5-Speed Manual
Cargo Box: 3940x2000x1850mm (LxWxH)
Box Construction: Internal 304 Stainless Steel / 80mm XPS Insulation / External FRP Panel
Cooling Unit: Hanxue L-Z380 (up to -5°C)
Disinfection: Ultraviolet Lamp & Electric Spray Device
Key Feature: 1-Ton Hydraulic Lifting Tailboard
Branding: Custom Painting & Logo Application Available
Contact us today for a custom quote! Let’s discuss how this reliable, feature-packed medical waste truck can become the backbone of your transport logistics. As your trusted partner in China, we are committed to providing you with the perfect vehicle and outstanding service.
Product Specification
| Technical Parameters | ||
| Dimensions | Overall dimension(L x W x H) | 5995*2180*2950mm |
| Wheel base | 3308mm | |
| Weight | GVW | 4495kg |
| Curb weight | 3550kg | |
| Technical Parameters for Truck Chassis | ||
| Cabin | l Dongfeng Captain | |
| l Right hand driving | ||
| l 2~3 seats | ||
| l Air conditioned | ||
| Engine | Brand&Model | ISUZU, JE493ZLQ3A |
| Fuel Type | Diesel | |
| Emission | Euro 3 | |
| Horse Power | 116HP | |
| Number of cylinders | 4 cylinders | |
| Displacement | 2.771L | |
| Max.power | 75(KW) /3600rpm | |
| Max.torque | 240(N.m) /2100(rpm) | |
| System | Water cooled,turbocharged,after cooled | |
| Gearbox | Type | Manual |
| Brand&Model | WLY 5 forward and 1 reverse speed | |
| Axle loading | Front axle | 2,200kg |
| Rear axle | 3,500kg | |
| Tire | Specification | 7.0R16 |
| Quantity | 7 pieces including 1 spare tire | |
| Battery | Voltage (V) | 24 |
| Battery capacity (A.h) | 80Ah x 1 | |
| Fuel capacity | 76liters | |
| Technical Parameters for Cargo box | ||
| Box dimension(L x W x H) | 4000x2000x2000mm | |
| Box material | l External fiberglass panel | |
| l Middle 80mm thickness XPS insulation board | ||
| l Internal 304 stainless steel | ||
| Refrigerator Unit | l China famous brand Hanxue L-Z380 | |
| l Temperature down to minus 5℃ | ||
| Disinfection system | l Ultraviolet germicidal lamp on ceiling | |
| l Electric spray disinfection device on ceiling | ||
| Waste collection system | Sewage outlet linked to a stainless steel waste liquid collection box, equipped with a ball valve at the base to prevent leakage and facilitate discharge. | |
| Hydraulic tailboard | 1 ton hydraulic lifting tailboard, China famous brand CADOR. | |
| Sign | Infectious material warning signs are printed on the cargo box. | |
