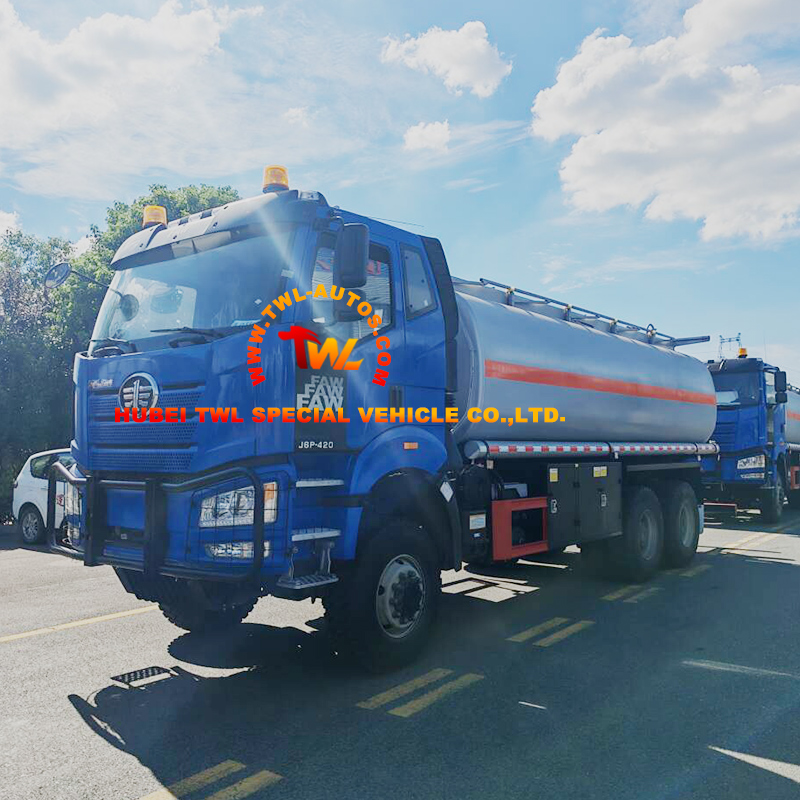

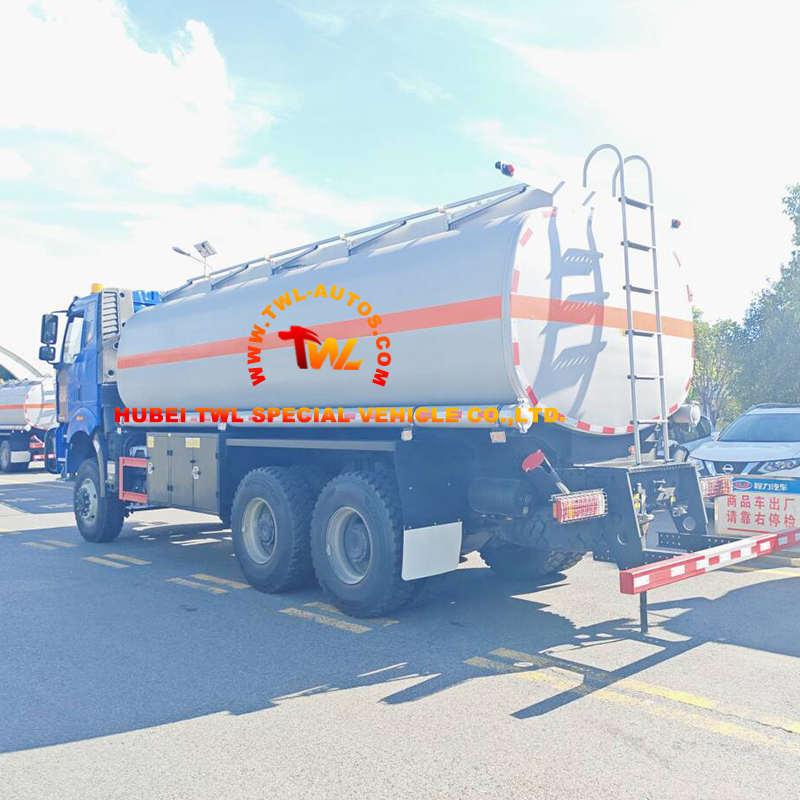

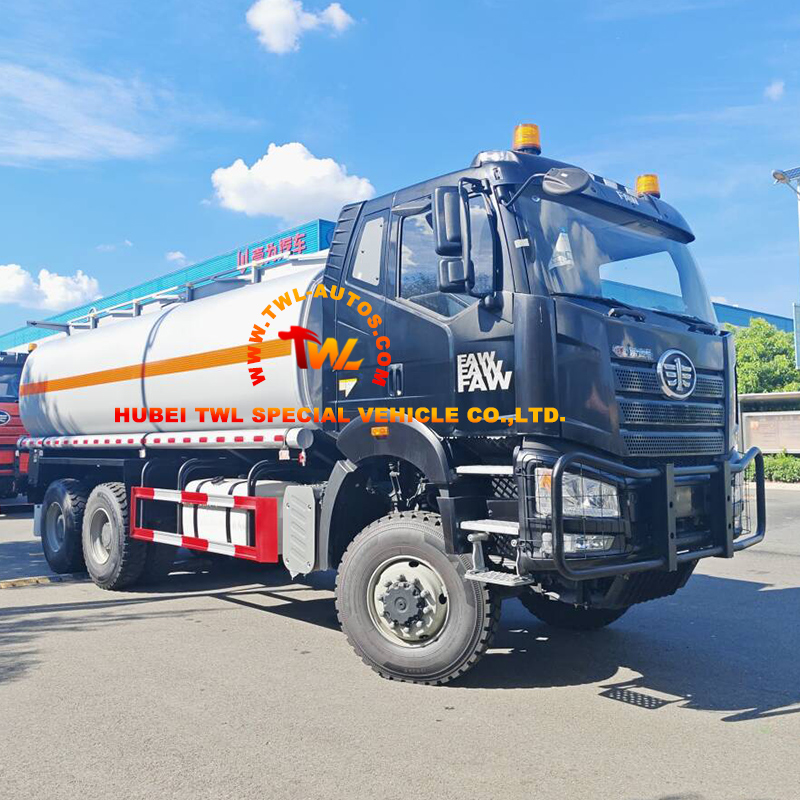

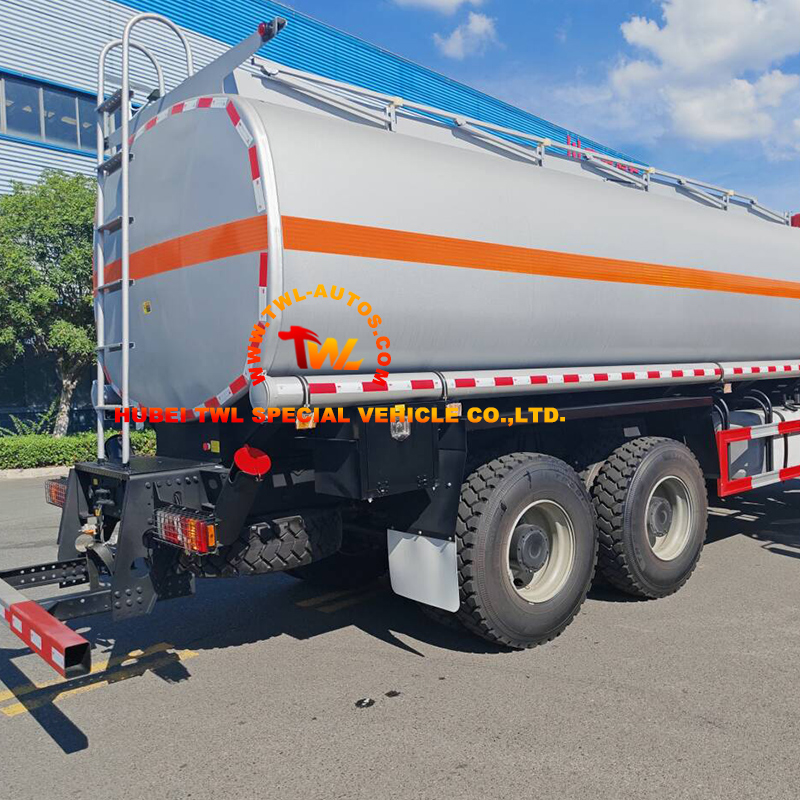

FAW J6P 6X4 420HP 20m³ Fuel Tanker Truck
The FAW J6P 6X4 420HP 20m³ Fuel Tanker Truck is a powerful, high-capacity fuel transportation vehicle designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. Built on the robust FAW J6P heavy-duty chassis and powered by a 420-horsepower engine, this tanker is engineered for long-distance, high-efficiency transport of diesel, gasoline, and other liquid fuels. With a large 20-cubic-meter tank, advanced safety systems, and reliable performance, it is an ideal solution for fuel distribution companies, logistics fleets, and industrial fuel supply operations.
FAW J6P 6X4 420HP 20m³ Fuel Tanker Truck
Key Advantages
1. Powerful & Efficient Chassis
-
FAW J6P 6X4 420HP chassis delivers strong performance, fuel efficiency, and reliability for long-haul transport.
-
High-torque engine ensures excellent gradeability and load-carrying capacity.
-
Comfortable sleeper cab reduces driver fatigue during extended journeys.
2. High-capacity & Safe Fuel Tank
-
Large 20m³ tank maximizes load per trip, improving operational efficiency.
-
High-strength tank construction with optional corrosion-resistant lining for extended service life.
-
Multi-compartment design allows simultaneous transport of different fuel grades.

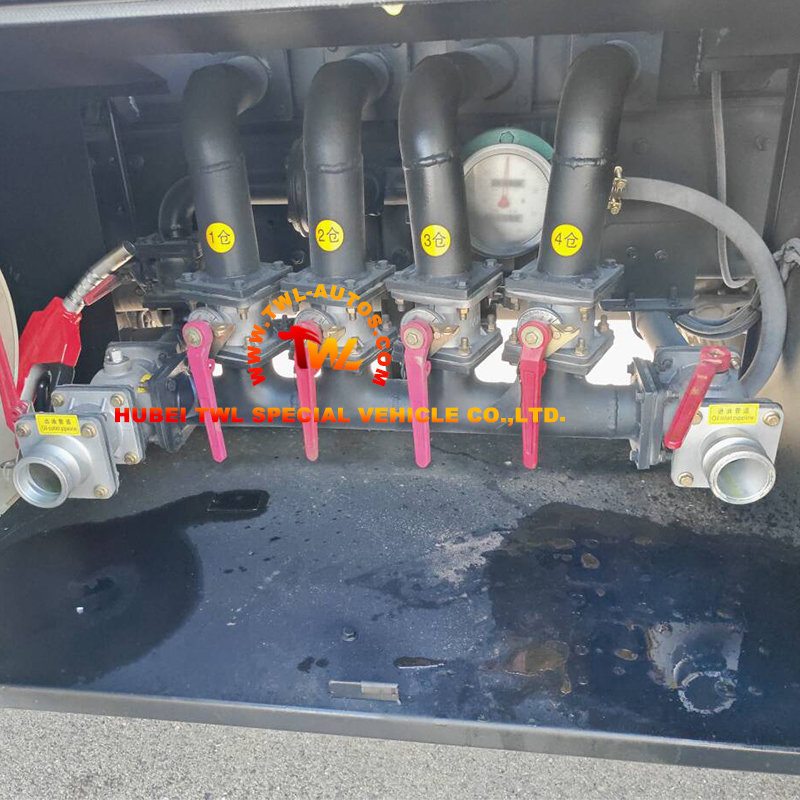

3. Advanced Fuel Handling System
-
Efficient pump system enables fast and safe loading/unloading operations.
-
Accurate metering system ensures precise quantity control and billing accuracy.
-
Bottom loading and vapor recovery options enhance safety and environmental compliance.
4. Comprehensive Safety Features
-
Built to comply with international hazardous material transport regulations (ADR, DOT, etc.).
-
Integrated safety systems include overfill protection, flame arresters, and emergency shut-off.
-
Explosion-proof electrical components ensure safe operation in fuel handling environments.
5. Customizable & Operator-friendly
-
Configurable with various tank materials, compartments, pump systems, and safety packages.
-
Optional features: GPS tracking, remote monitoring, heating system for cold climates.
-
Easy maintenance design with accessible valves, pumps, and inspection points.
Applications
This FAW J6P 6X4 420HP 20m³ Fuel Tanker Truck is suitable for a wide range of fuel transport and distribution scenarios:
-
Fuel Distribution Companies: Transport from refineries or terminals to storage depots and filling stations.
-
Logistics & Transport Fleets: Fuel supply for truck fleets, bus companies, and heavy equipment operators.
-
Construction & Mining Sites: On-site fuel delivery for machinery and generators.
-
Agriculture: Fuel supply for farm equipment and irrigation systems.
-
Industrial Plants: Delivery of fuel for boilers, generators, and processing equipment.
-
Military & Government: Fuel logistics support for base operations and field deployments.
-
Emergency Services: Fuel supply for disaster relief and emergency power generation.
Product Specification
| Category | Parameter | Specification |
| CHASSIS SYSTEM | Model | FAW J6P 6X4 Heavy-duty Truck Chassis |
| Engine | Diesel, 420 HP, Euro V/VI compliant | |
| Transmission | Manual, 12 forward gears, 2 reverse gears | |
| Drive Type | 6X4 Rear-wheel drive | |
| Wheelbase | 4,800mm – 5,800mm (customizable) | |
| Max. Speed | 90-110 km/h | |
| Fuel Tank Capacity | 400-600 liters | |
| Tire Specification | 12.00R20 / 315/80R22.5 radial tires | |
| Brake System | Dual-circuit air brake with ABS optional | |
| Cab | High-comfort sleeper cab, air-conditioned, seating for 2-3 | |
| TANK SYSTEM | Tank Capacity | 20 cubic meters (approx. 20,000 liters) |
| Tank Material | Carbon steel (Q345) or stainless steel (304/316L optional) | |
| Design Pressure | Atmospheric or low pressure (0.3 MPa max) | |
| Tank Compartments | 2-4 compartments (optional for multi-product transport) | |
| Insulation | Optional polyurethane foam with aluminum cladding | |
| Manhole | DN500, with safety valve and locking cover | |
| LOADING/UNLOADING SYSTEM | Pump System | Hydraulic or PTO-driven fuel transfer pump |
| Flow Rate | 150 – 300 liters/minute (adjustable) | |
| Metering System | Mass flow meter with digital display and ticket printer | |
| Piping Material | Stainless steel or carbon steel with anti-corrosion coating | |
| Hose Reel | Optional manual or powered hose reel | |
| Bottom Loading | Bottom loading valves with emergency shut-off | |
| SAFETY & CONTROLS | Safety Devices | Overfill protection, pressure relief valves, flame arrester |
| Grounding System | Static electricity grounding device | |
| Fire Suppression | Optional fire suppression system and fire extinguishers | |
| Monitoring | Level gauge, pressure sensor, temperature indicator | |
| Electrical System | Explosion-proof wiring and lighting | |
| GENERAL VEHICLE | Overall Dimensions | Length: 11.5 – 12.5m, Width: 2.5m, Height: 3.8 – 4.0m |
| Gross Vehicle Weight (GVW) | 40 – 45 tons | |
| Curb Weight | Approx. 13 – 15 tons | |
| Payload Capacity | 25 – 30 tons (approx. 20,000 liters fuel) | |
| Min. Ground Clearance | ≥280mm | |
| Certification | Meets GB, ADR, DOT, and UN standards for fuel transport |
