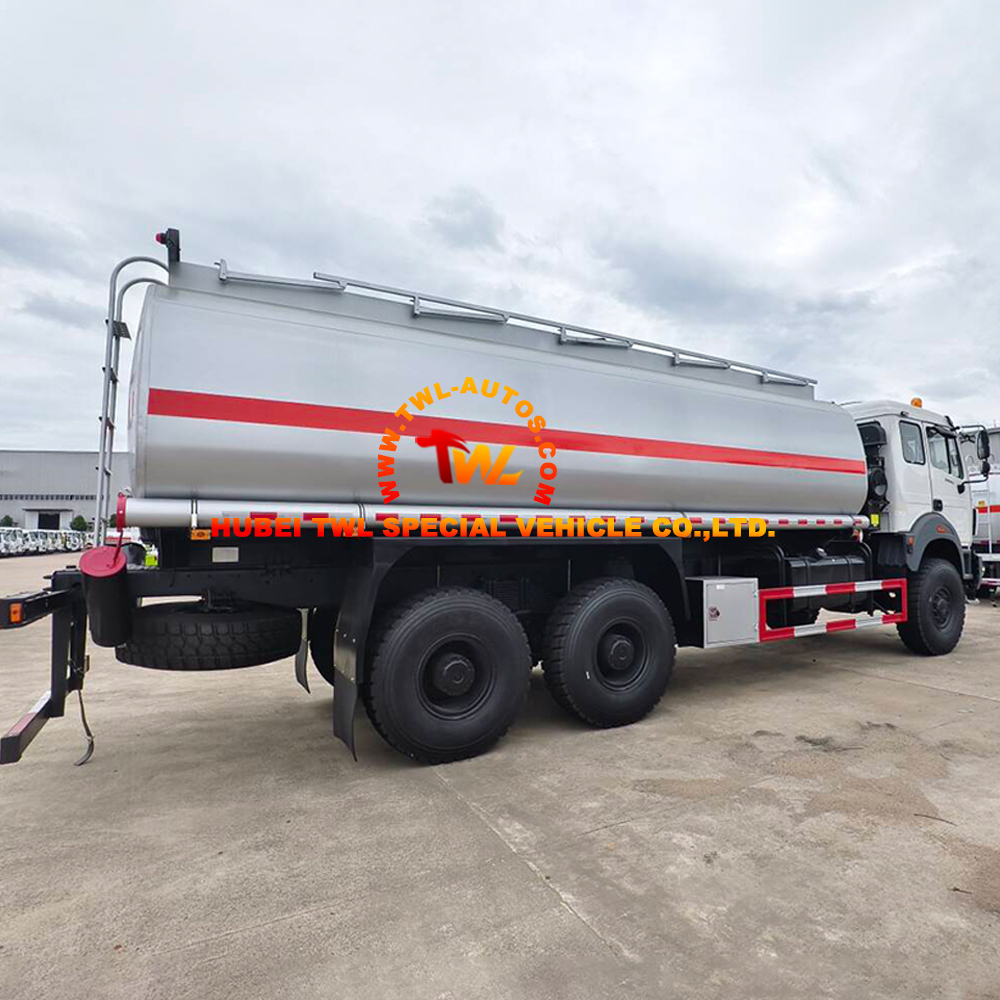

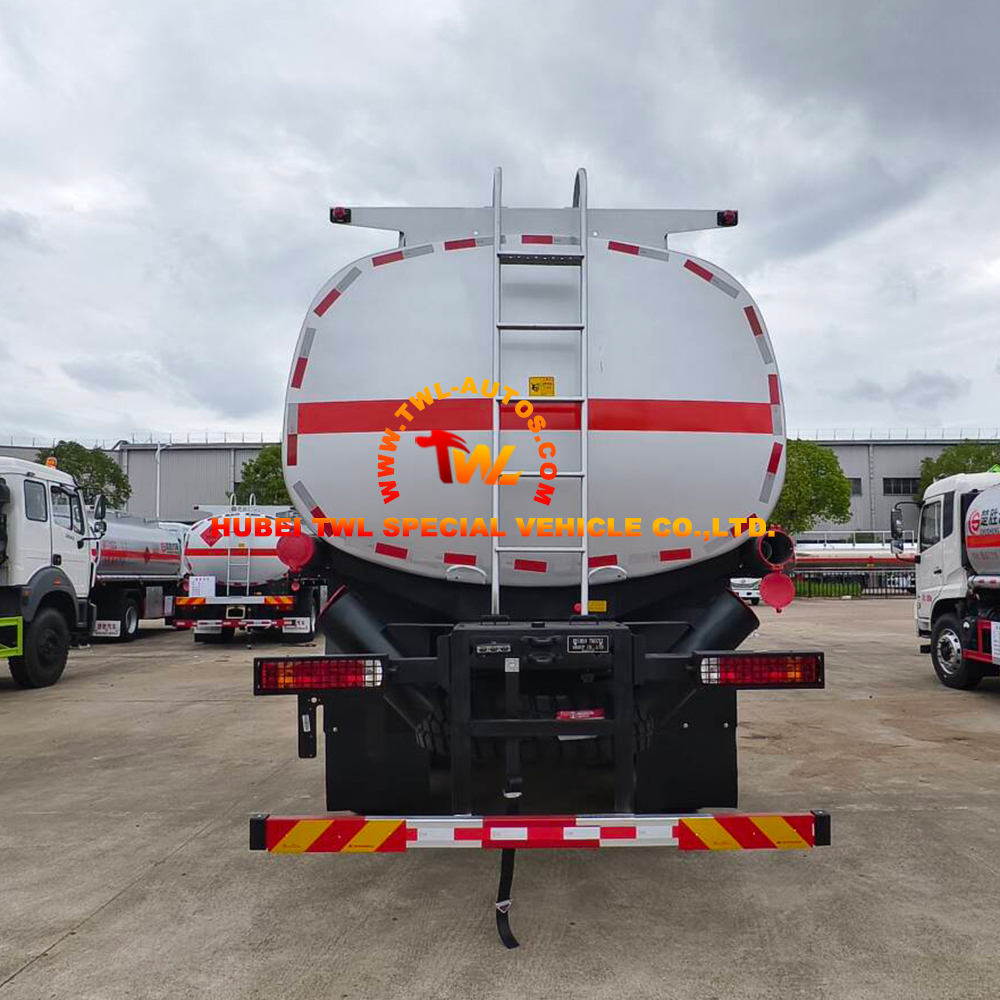

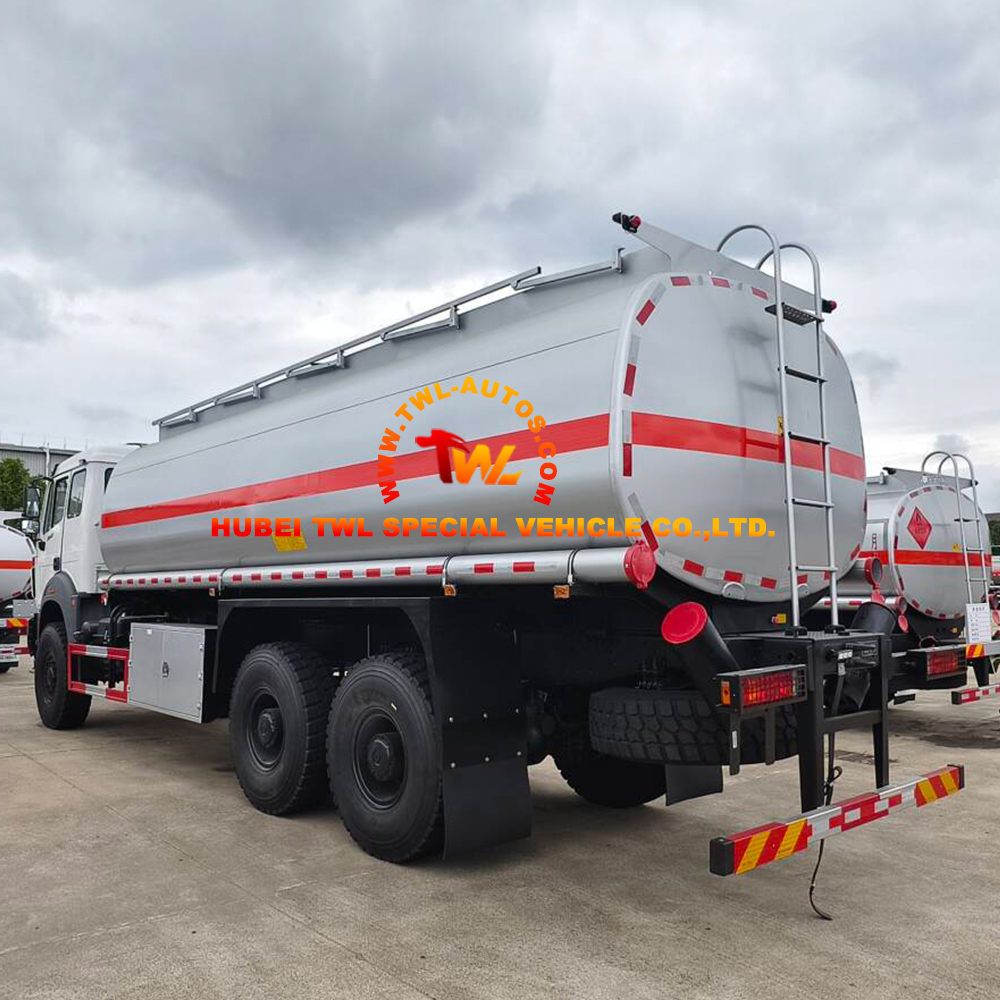

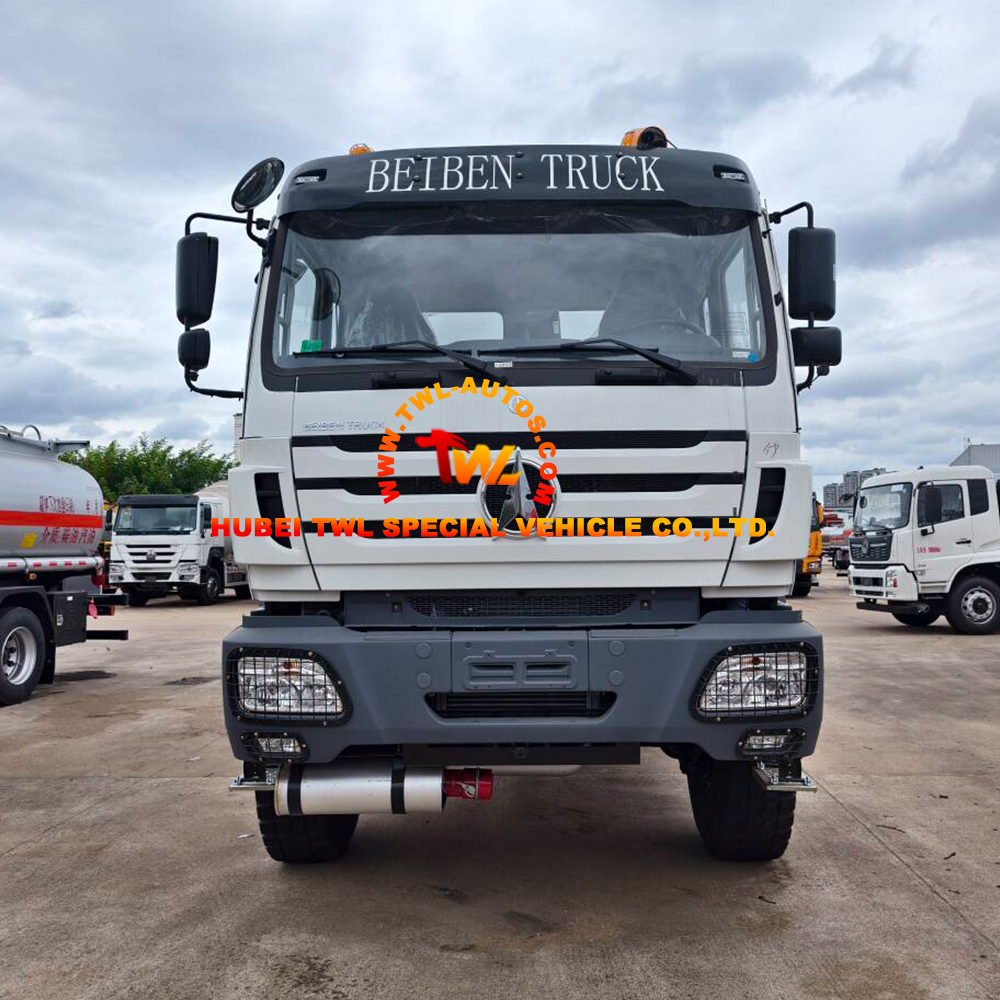

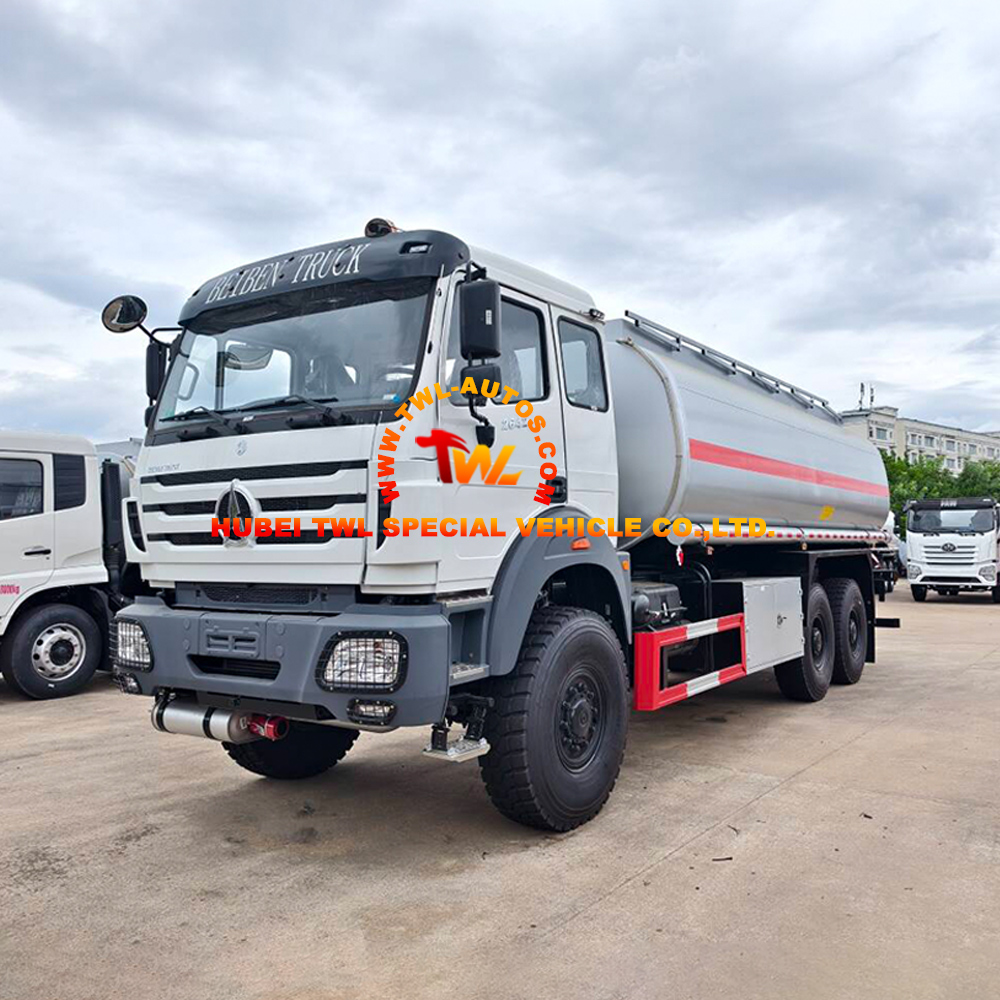

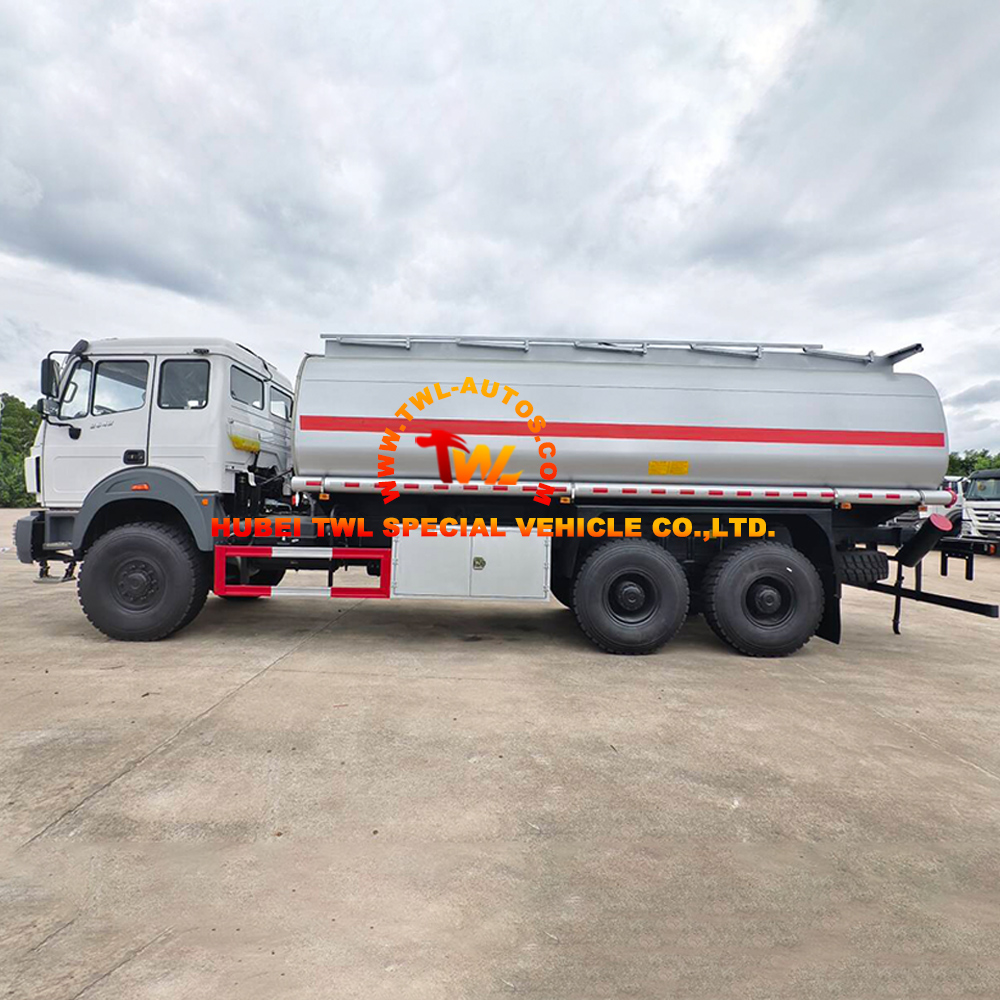

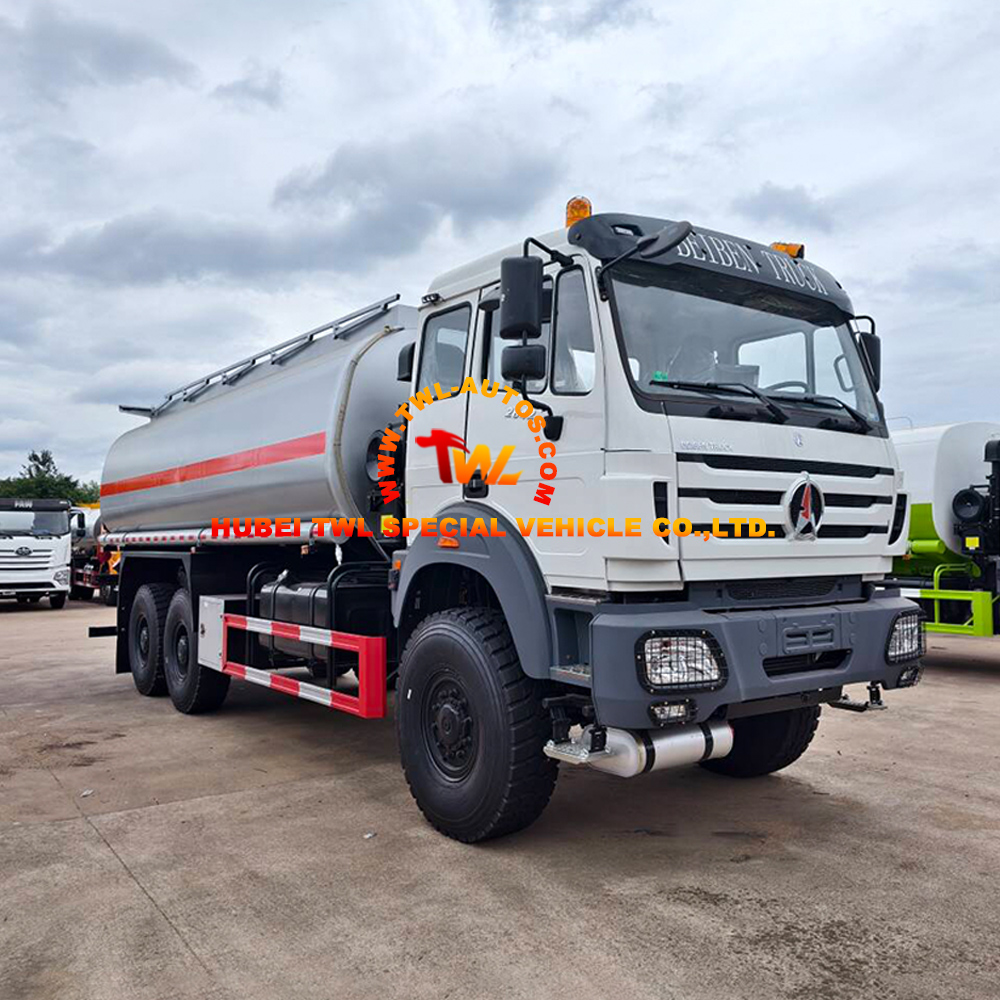

Beiben 6x6 20,000L Fuel Bowser Truck
Deliver fuel reliably to the most remote locations with the Beiben 6x6 Fuel Bowser – a 20,000-liter all-wheel-drive diesel tanker featuring a 420HP WEICHAI engine, 12-speed transmission, dual-compartment carbon steel tank (10,000L+10,000L), integrated fuel pump, and comprehensive safety equipment. Built on the rugged Beiben 6x6 chassis with A/C cab and sleeper, this vehicle provides superior off-road traction for mining operations, oil fields, construction sites, and remote fuel distribution where conventional trucks cannot operate.
Beiben 6x6 20,000L Fuel Bowser Truck

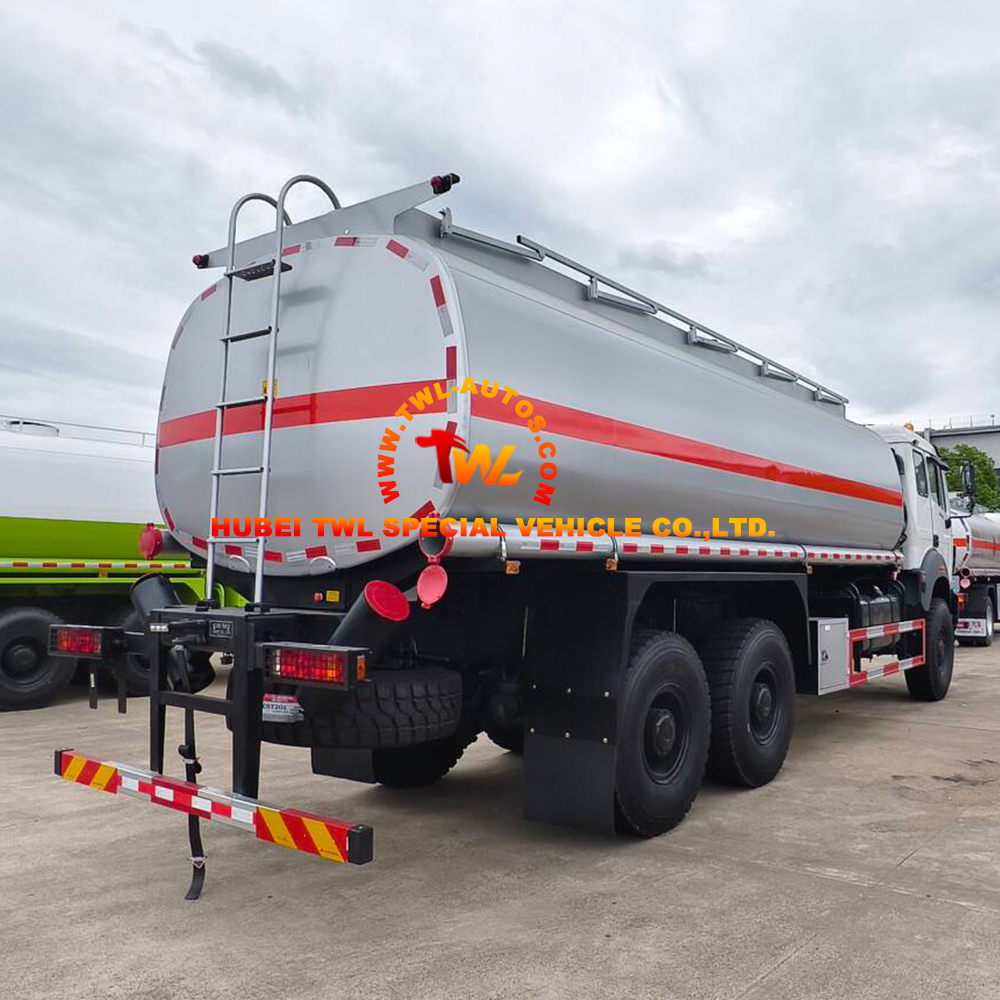

The Beiben 6×6 Fuel Bowser is a professional-grade heavy-duty fuel transport vehicle designed for bulk diesel delivery in challenging off-road environments. Built on the rugged Beiben 6×6 all-wheel-drive chassis with BEIBEN cabin (LHD/RHD with A/C and sleeper), this vehicle features a WEICHAI WP12.420E32 diesel engine delivering 420HP (305kW) with Euro II/III compliance, paired with a 12-speed manual transmission (12 forward + 2 reverse). The 20,000-liter (20m³) tank is divided into two independent compartments (10,000L + 10,000L) for flexible fuel transport, constructed from high-quality carbon steel with 5mm thickness . The integrated pumping system enables efficient loading and unloading . Comprehensive safety features include anti-static grounding, fire extinguisher, emergency shut-off valve, and 3M reflective markings . This 6×6 fuel tanker delivers exceptional performance for off-road fuel logistics.
Key Features:

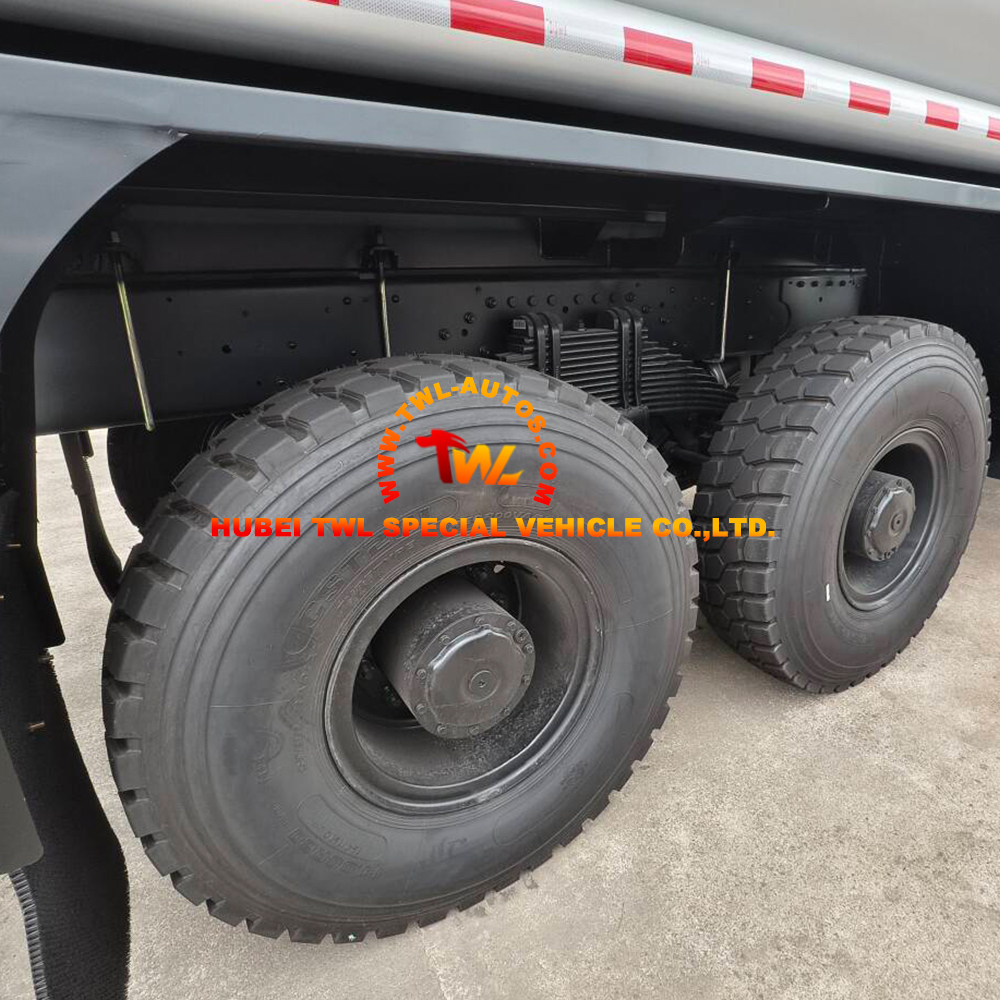

1. Beiben 6×6 All-Wheel-Drive Chassis – Off-Road Capability: The 6×6 drive configuration provides superior traction on mud, sand, snow, and rugged terrain. BEIBEN cabin with A/C, sleeper, and LHD/RHD options. Front axle 7.5-9.5T, rear axles 13-16T×2. 12.00R20 tires (10 + 1 spare).
2. WEICHAI 420HP Engine – Powerful & Reliable: WP12.420E32, 420HP (305kW), 11.596L displacement. 12-speed manual transmission (12F+2R). High low-end torque for off-road terrain.

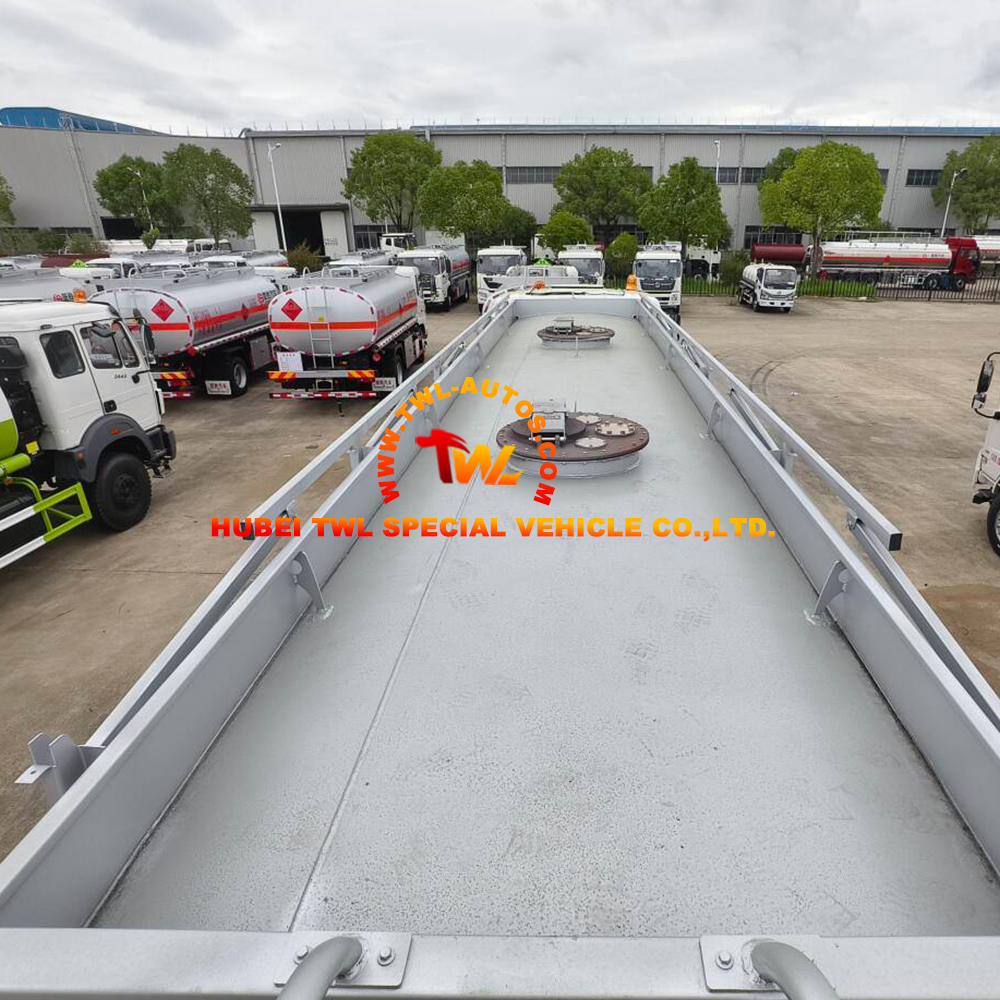

3. 20,000L Dual-Compartment Carbon Steel Tank – Flexible Transport: 20m³ capacity divided into 2 compartments (10,000L + 10,000L). High-quality carbon steel with 5mm thickness. Anti-corrosion treatment. Internal baffle plates.

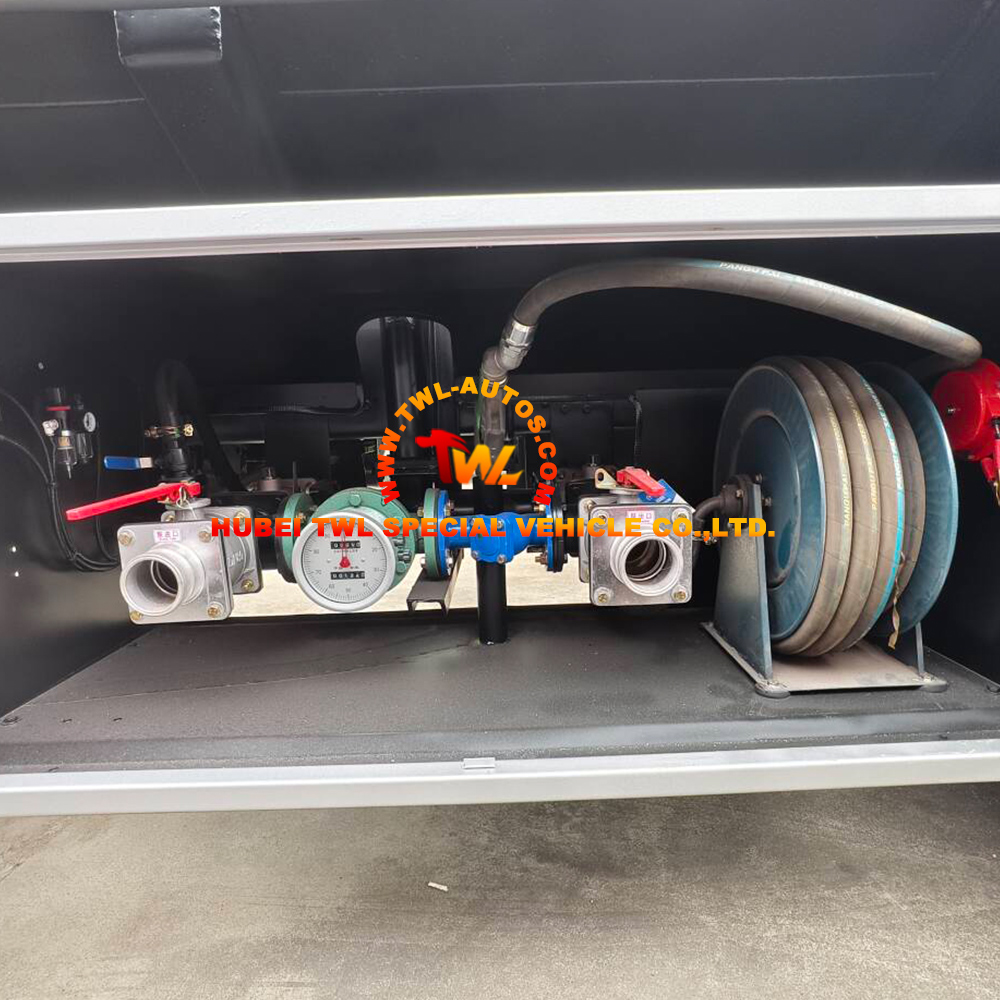

4. Integrated Fuel Pump System: PTO-driven fuel pump with 6m suction head. Efficient loading/unloading for off-road fuel logistics.
5. Comprehensive Safety Equipment: Anti-static grounding belt. Fire extinguisher. Emergency shut-off valve. 3M reflective markings.

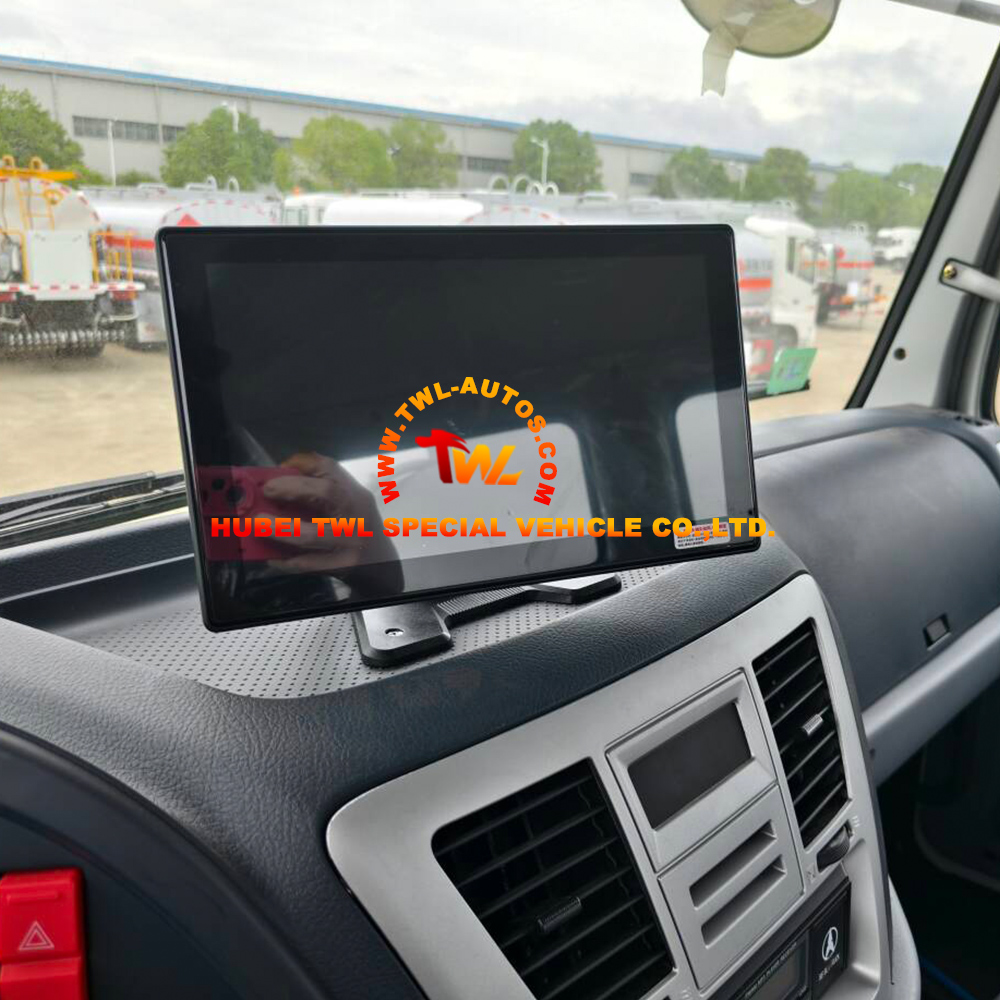

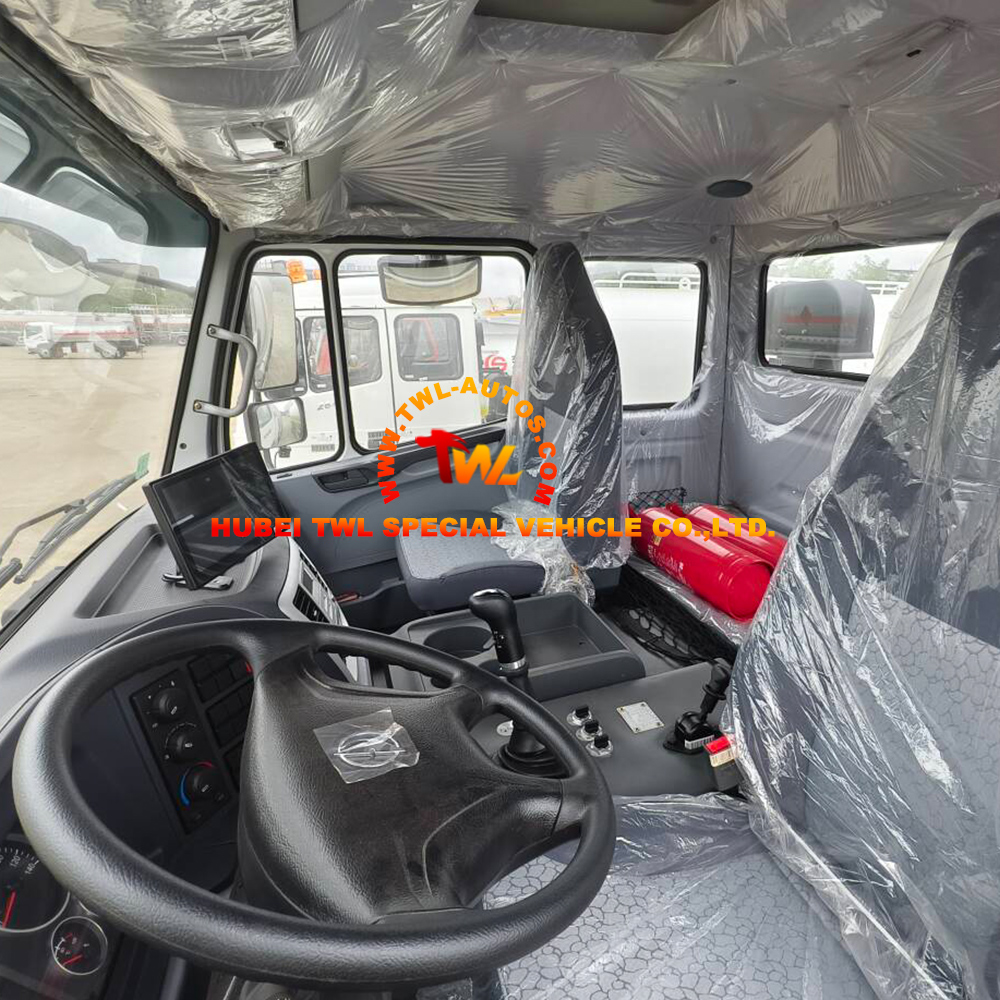

6. Operator Comfort: BEIBEN cabin with air conditioning and sleeper. Ergonomic controls for reduced driver fatigue.
Application:
· Mining Operations: Fuel supply for haul trucks, loaders, and support equipment at remote mine sites. The 6×6 drive provides traction on unpaved mine haul roads.
· Oil and Gas Field Logistics: Remote site fuel delivery for drilling operations and production facilities.
· Remote Construction Site Refueling: On-site diesel delivery for excavators, loaders, and generators in off-grid locations.
· Off-Road Fuel Distribution: Fuel delivery to remote communities, military bases, and government installations.
· Desert and Rugged Terrain Operations: Superior traction on sand, mud, and rocky terrain.
Product Specification
| Chassis | Beiben 6×6 AWD |
| Cab | BEIBEN, LHD/RHD, A/C, sleeper |

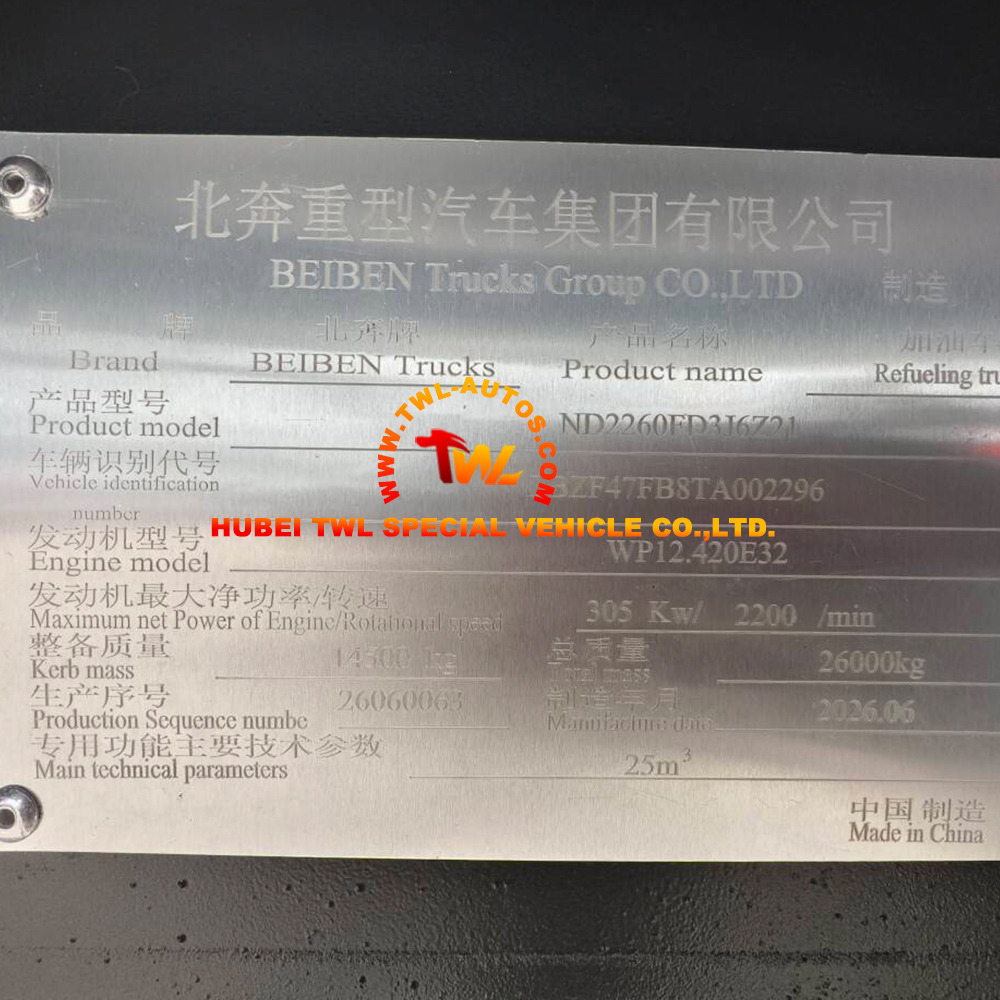

| Engine | WEICHAI WP12.420E32, 420 HP |
| Transmission | 12-speed manual (12F+2R) |
| Tires | 12.00R20 (10 + 1 spare) |
| Tank Capacity | 20,000 L (20 m³) |
| Compartments | 2 (10,000L + 10,000L) |
| Tank Material | Carbon steel, 5mm |
| Pump | PTO-driven, 6m suction |
| Safety | Anti-static, fire extinguisher, emergency shut-off, reflective markings |
| Applications | Mining, oilfield, construction, remote logistics |
