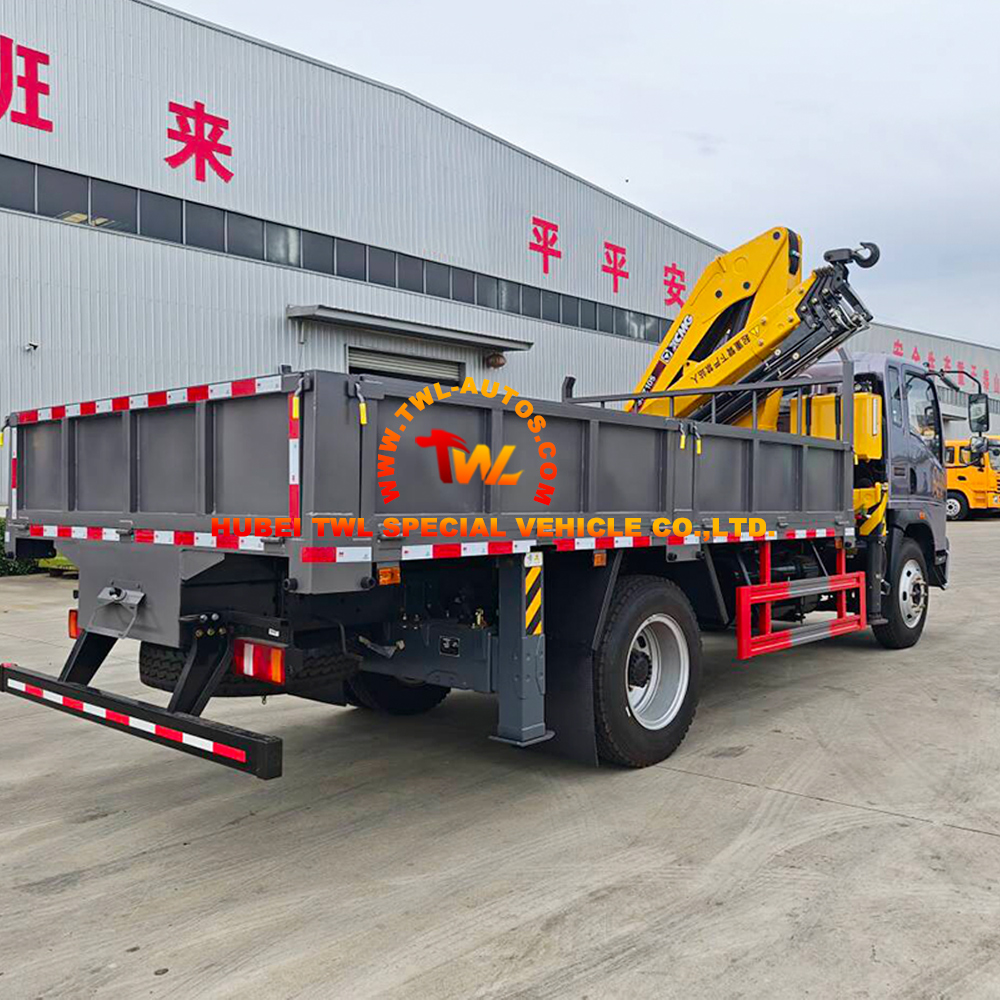

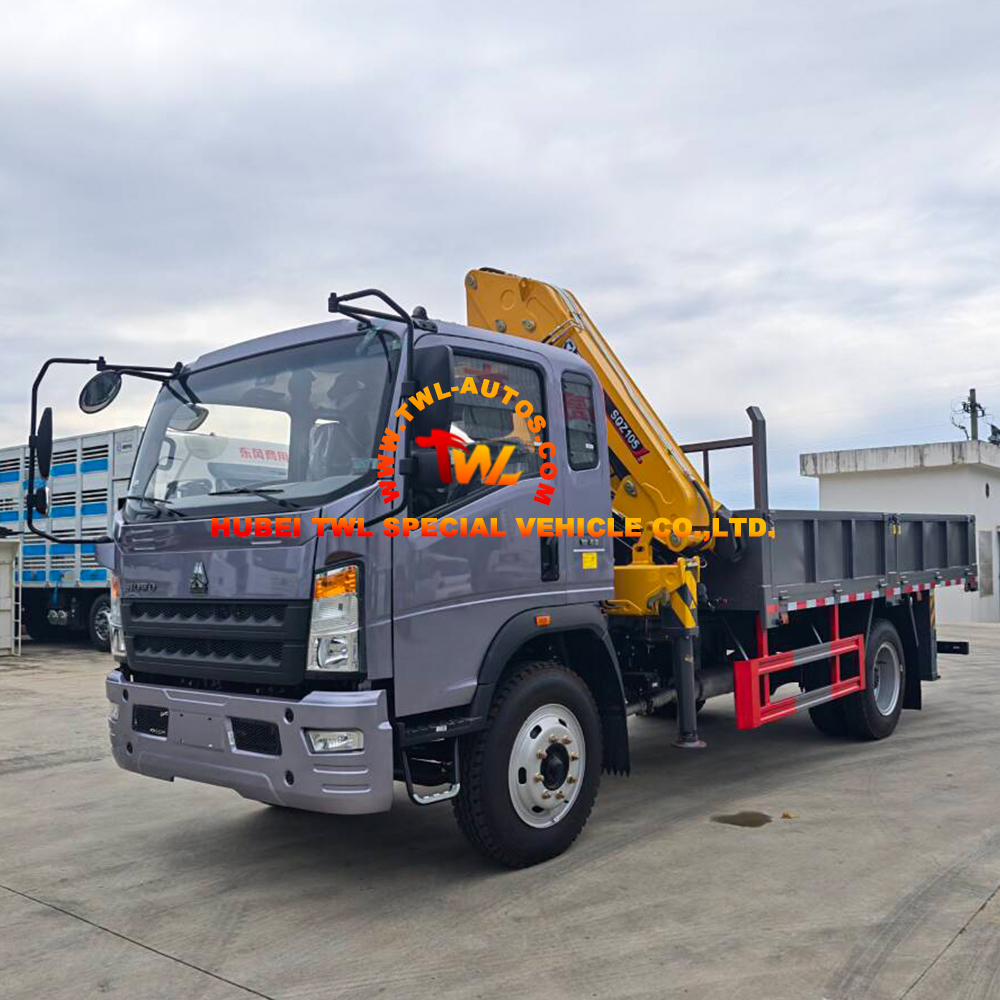

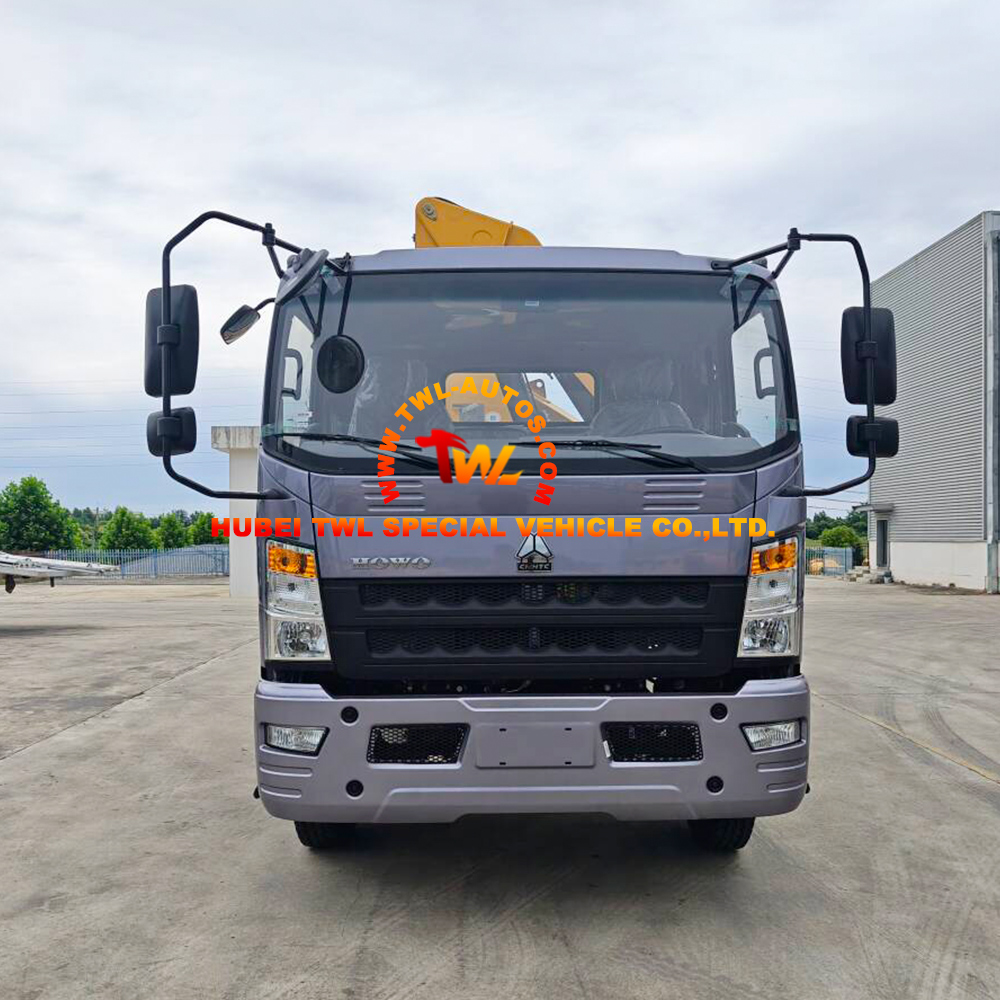

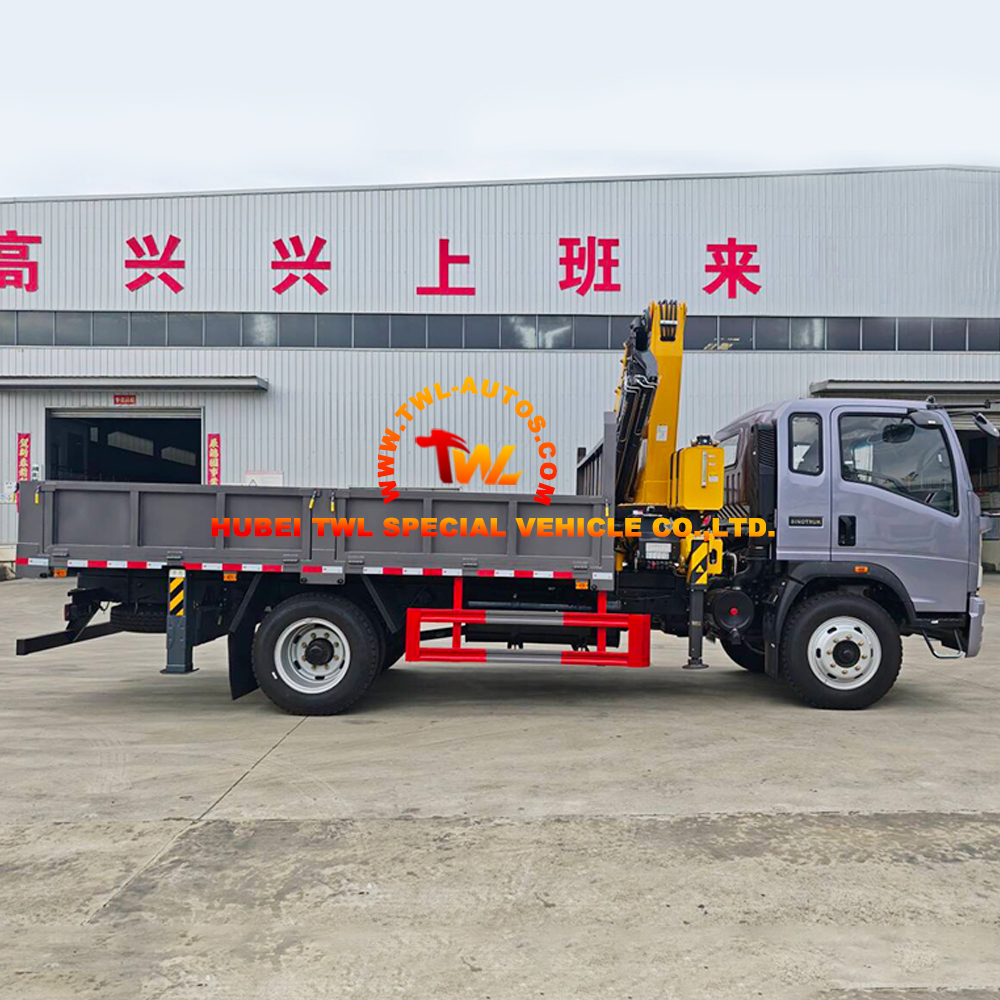

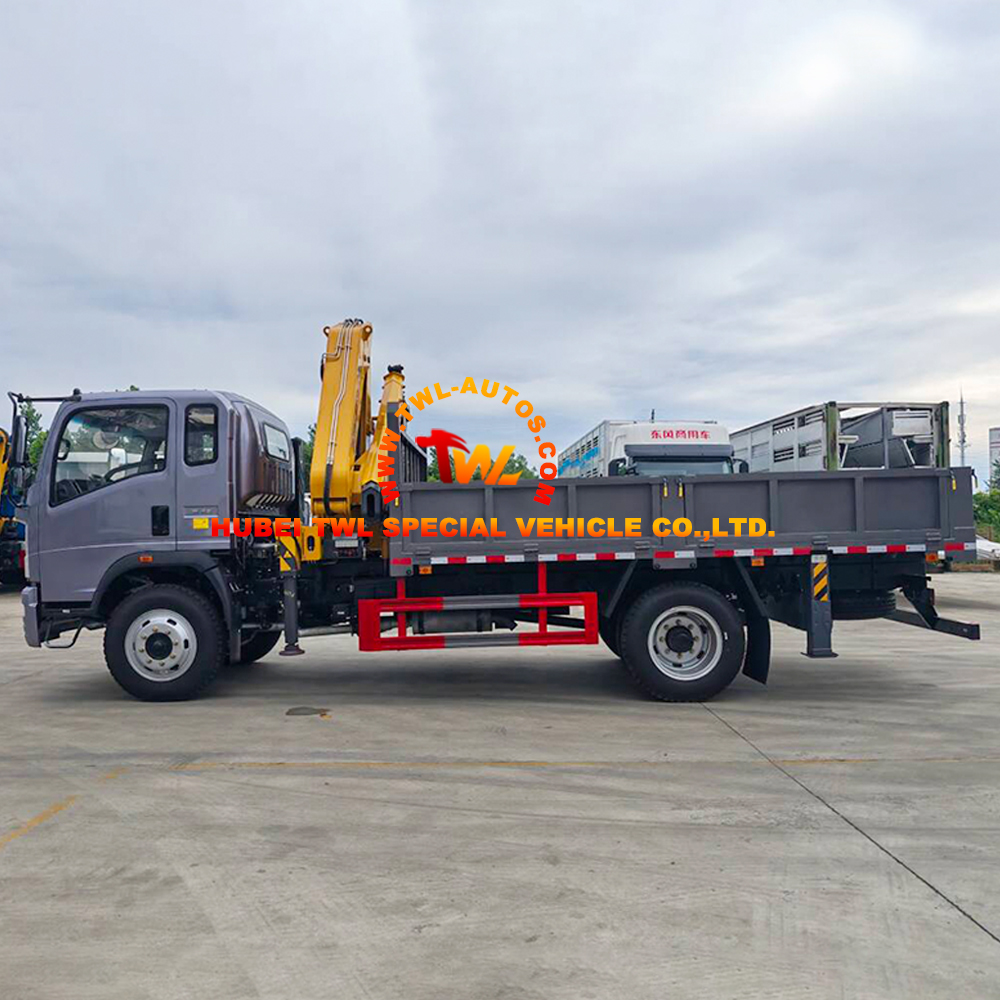

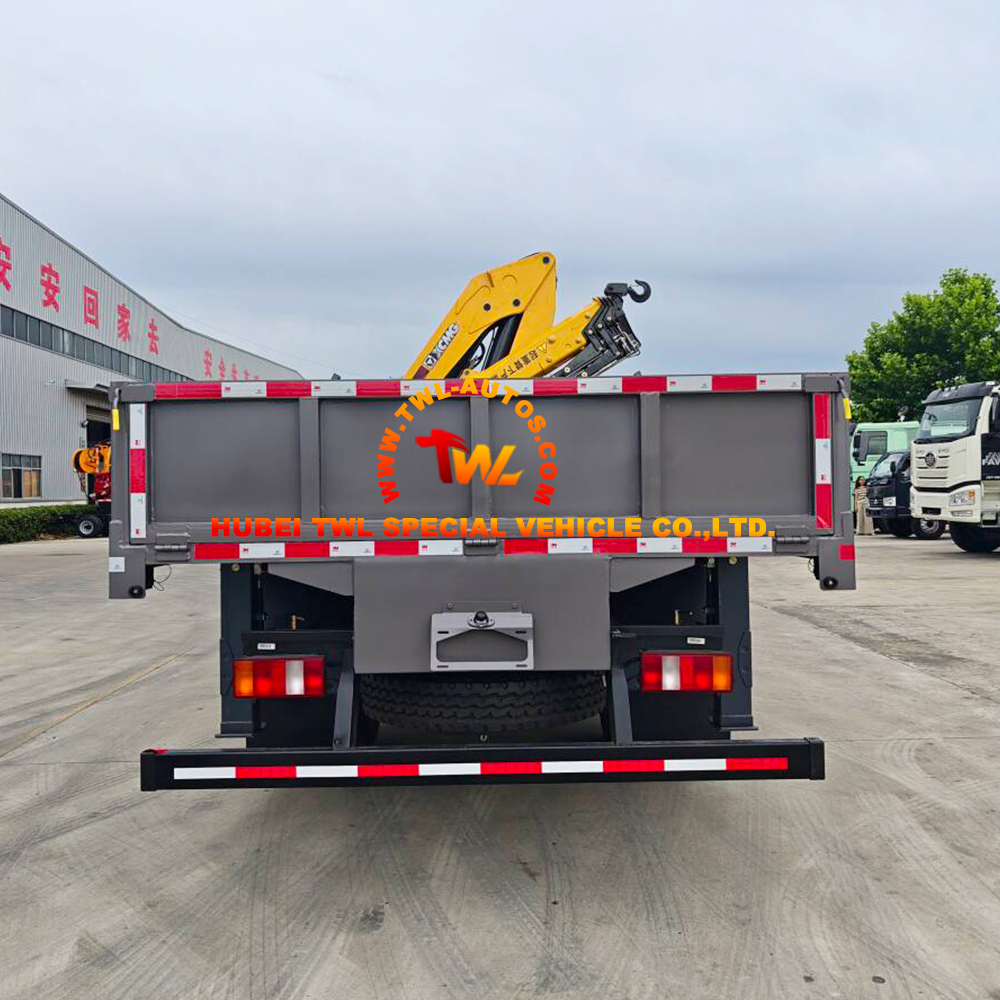

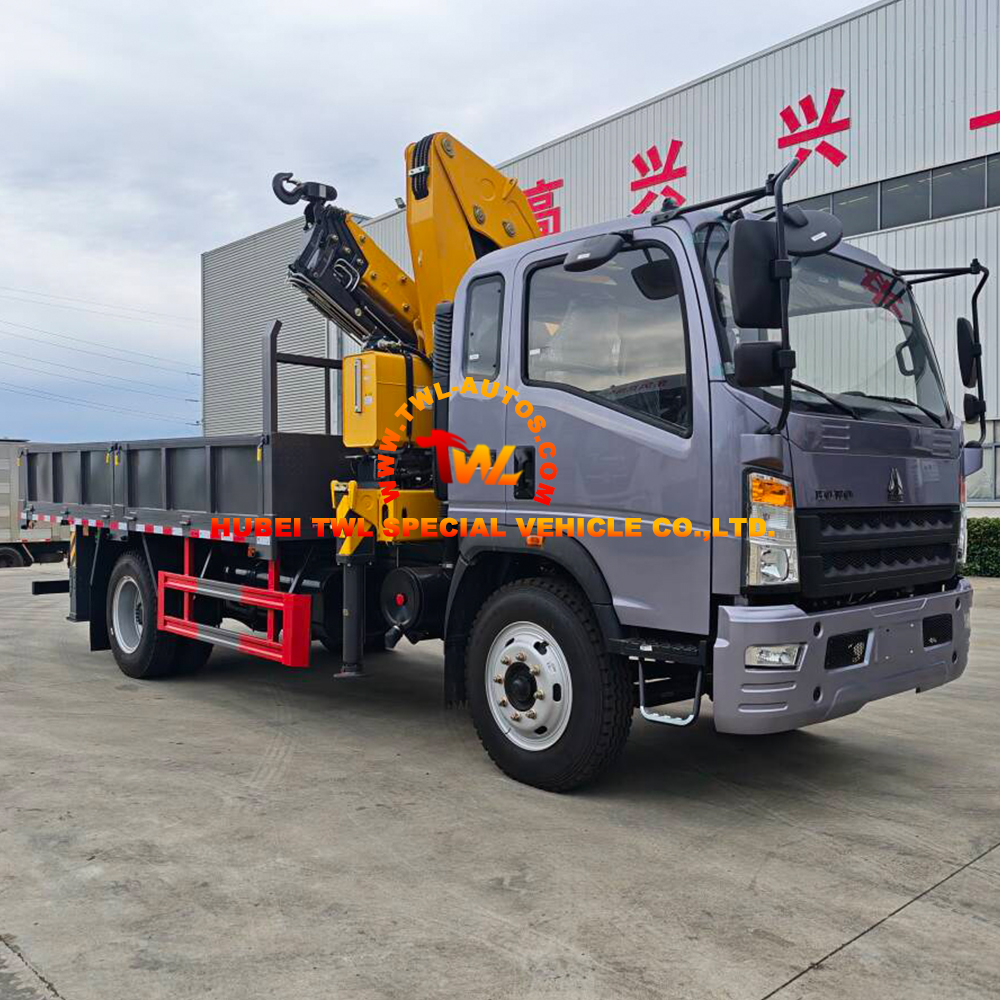

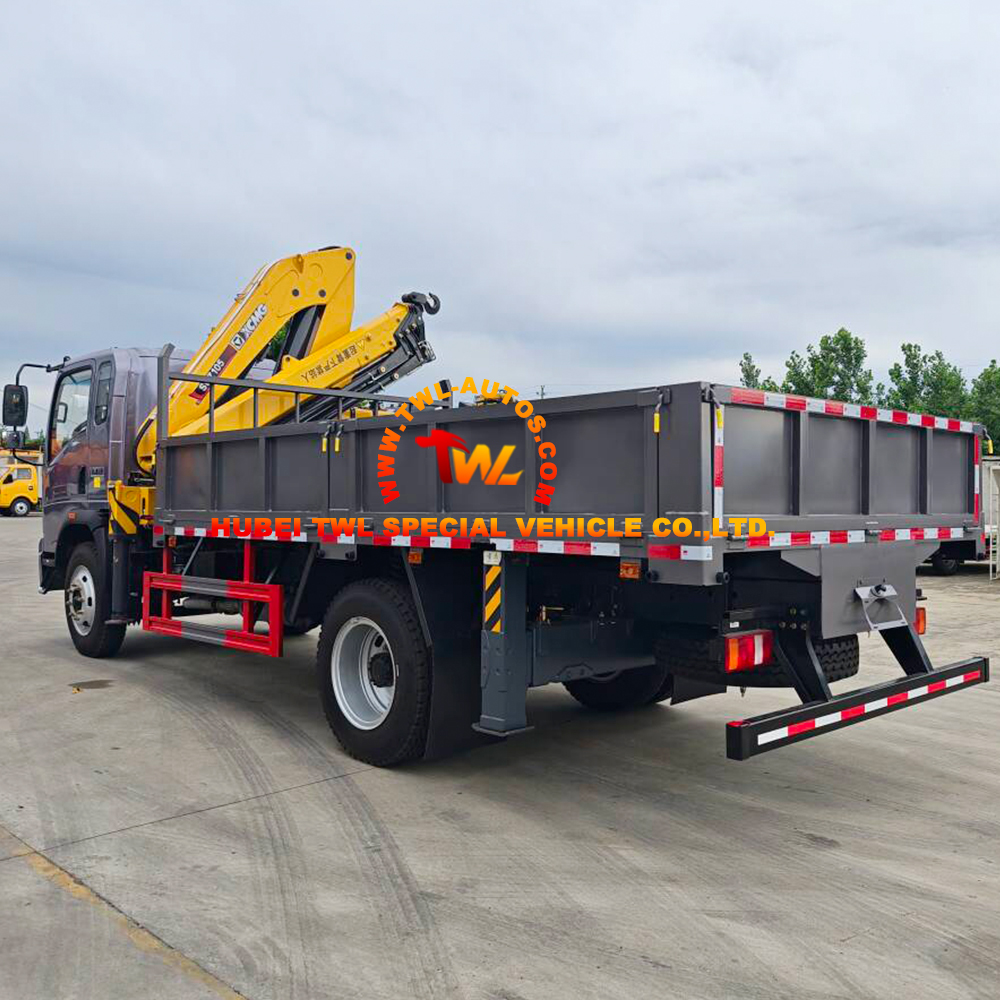

Algeria Sinotruk HOWO 5Ton Crane Truck

The Sinotruk HOWO 4×2 Crane Truck is a versatile integrated lifting and transport vehicle specifically tailored for Algeria’s infrastructure market. Built on the reliable HOWO 4×2 light-duty chassis with a 4,200mm wheelbase and single-row wide-body cab (LHD with A/C and hydraulic power steering), this vehicle features a Yuchai YC4E140-33 diesel engine delivering 140HP (4,257ml, Euro II) with a WLY6TS55 6-speed manual transmission. The XCMG SQZ105 knuckle boom crane is the standout feature – delivering 5,000kg maximum lifting capacity at 2.1m with 105 kN·m lifting moment, 12.75m maximum lifting height, and 360° continuous rotation. The knuckle boom design offers significant advantages over straight boom cranes: the folding design prevents exceeding height limits, ensuring overall vehicle dimensions comply with regulations; it is suitable for sea freight container loading without oversize restrictions; and it provides flexible slewing in confined construction sites, factory areas, and narrow lanes. The full hydraulic dual-pump system ensures smooth operation with overload protection and emergency manual pressure relief. The 4.5m drop-side cargo box (4,500×2,300×550mm) is constructed from thickened manganese steel with 4mm side plates and 5mm floor plate, resistant to abrasion from sand, gravel, and building materials – durable in harsh North African construction sites. The all-side drop-down gates enable convenient loading/unloading, with reinforced heavy-duty cross members and welded reinforcement brackets. The standard wired remote control ensures safe operation, with optional wireless remote control available.

Key Features:

1. Sinotruk HOWO 4×2 Light-Duty Chassis – Stable & Comfortable: The 4,200mm long wheelbase provides stable load-bearing for the 5-ton crane and cargo. The single-row wide-body cab features air conditioning and hydraulic power steering, offering strong comfort for long-distance overseas operations. GVW 10,000kg, curb 6,630kg. 8.25R20 16PR tires (6+1 spare). 220L fuel tank.

2. Yuchai 140HP Euro II Engine – Adapted for Algeria: The YC4E140-33 4-cylinder inline diesel engine delivers 140HP with 4,257ml displacement, meeting export emission standards and adapted to Algeria’s fuel operating conditions. The WLY6TS55 6-speed manual transmission (6F+1R) provides smooth power delivery.

3. XCMG SQZ105 5-Ton Knuckle Boom Crane – Key Advantages over Straight Boom: The knuckle boom (articulated/folding arm) design offers:

· Height Limit Compliance: Folding design prevents exceeding height limits, ensuring overall vehicle dimensions comply with regulations.

· Sea Freight Ready: Suitable for sea freight container loading without oversize restrictions.

· Flexible Slewing: Ideal for confined construction sites, factory areas, and narrow lanes.

· 5,000kg Capacity: Effective lifting at 2.1m radius.

· 12.75m Lifting Height: Extended reach for building material handling.

· 360° Rotation: Full operational coverage.

· Full Hydraulic Dual-Pump System: Smooth operation with overload protection and emergency manual pressure relief.

5. 4.5m Export-Grade Thickened & Wear-Resistant Cargo Box: The drop-side flat cargo box measures 4,500×2,300×550mm with all-side drop-down gates for convenient loading/unloading. Constructed from thickened manganese steel – side plates 4mm, floor plate 5mm – resistant to abrasion from sand, gravel, and building materials. Reinforced with heavy-duty cross members at the bottom and welded reinforcement brackets on the sides.

6. H-Shape Hydraulic Outriggers: 4 pcs hydraulic landing legs provide stable lifting. Red electrophoretic anti-corrosion coating on protective cross members ensures resistance to seawater and road corrosion, suitable for sea freight transport and North Africa’s dry, dusty environment.

7. Control Mode Options: Standard wired remote control for safe operation. Optional wireless remote control for safe long-distance lifting operations.

8. Optional Equipment: Hydraulic tipper box for easy unloading. Custom box thickness. Remote controller. Customized logo and color.

Application:

· Construction Material Handling: Lifting and positioning building materials including sand, gravel, bricks, steel beams, and prefabricated components.

· Infrastructure Projects: Material handling for road construction, bridge building, and utility installation.

· Building Material Transport: Hauling construction supplies to job sites with drop-side gates for easy unloading.

· Container Accessory Lifting: Handling container accessories and equipment at ports and logistics hubs.

· Factory & Industrial Site: Material handling in confined factory areas and narrow industrial lanes.

· Logistics Operations: Loading/unloading heavy cargo from trucks and containers.
