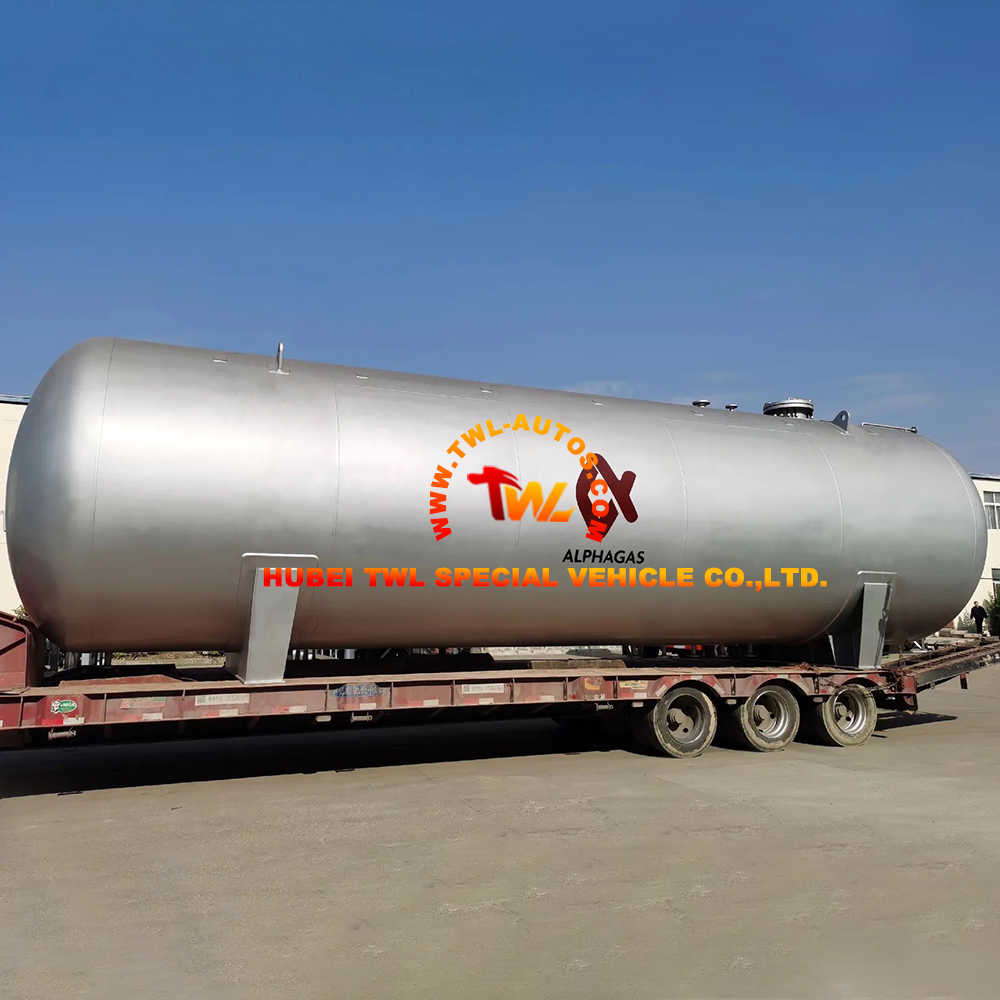

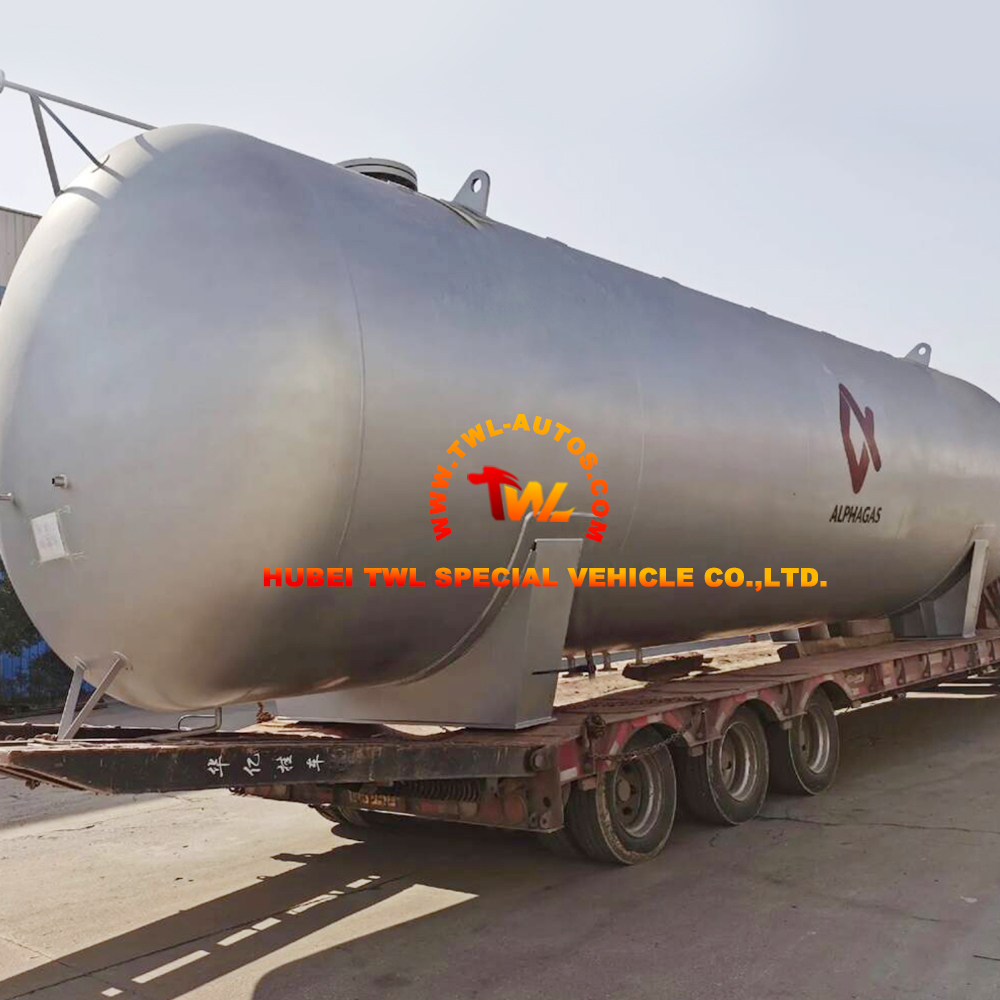

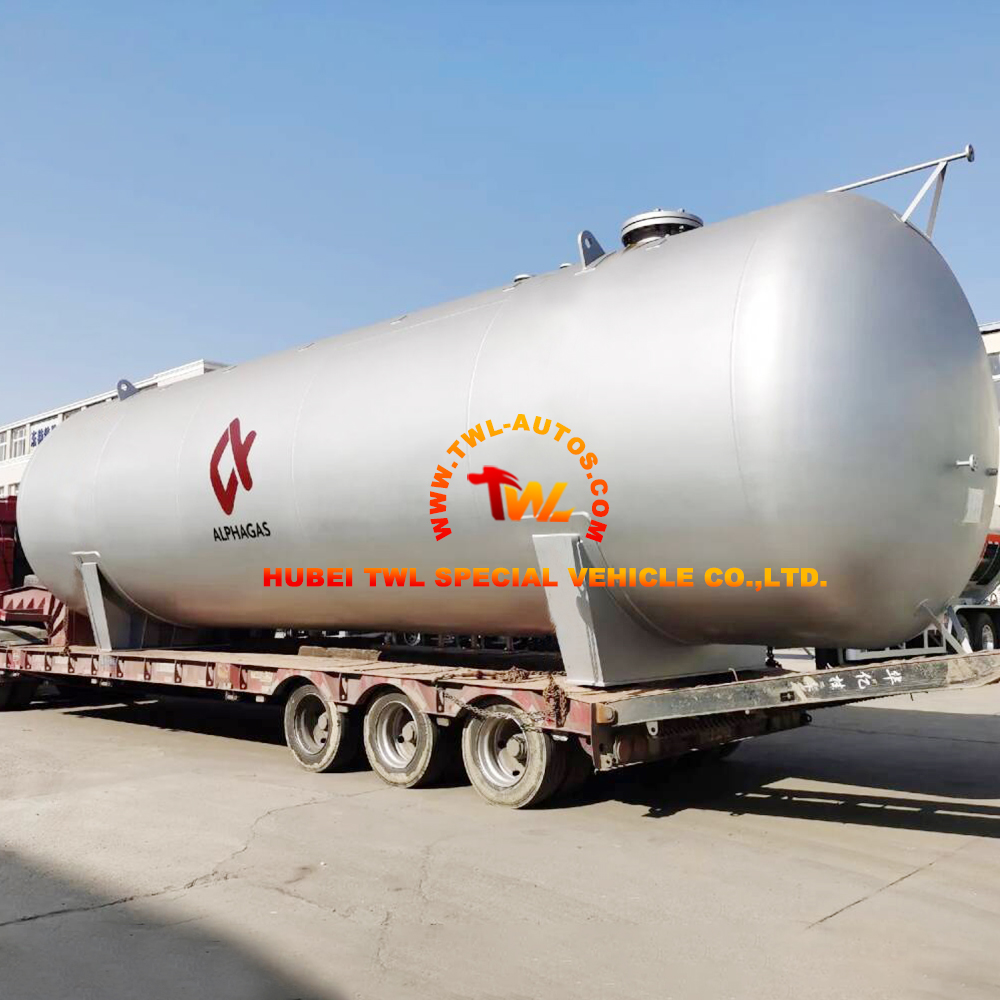

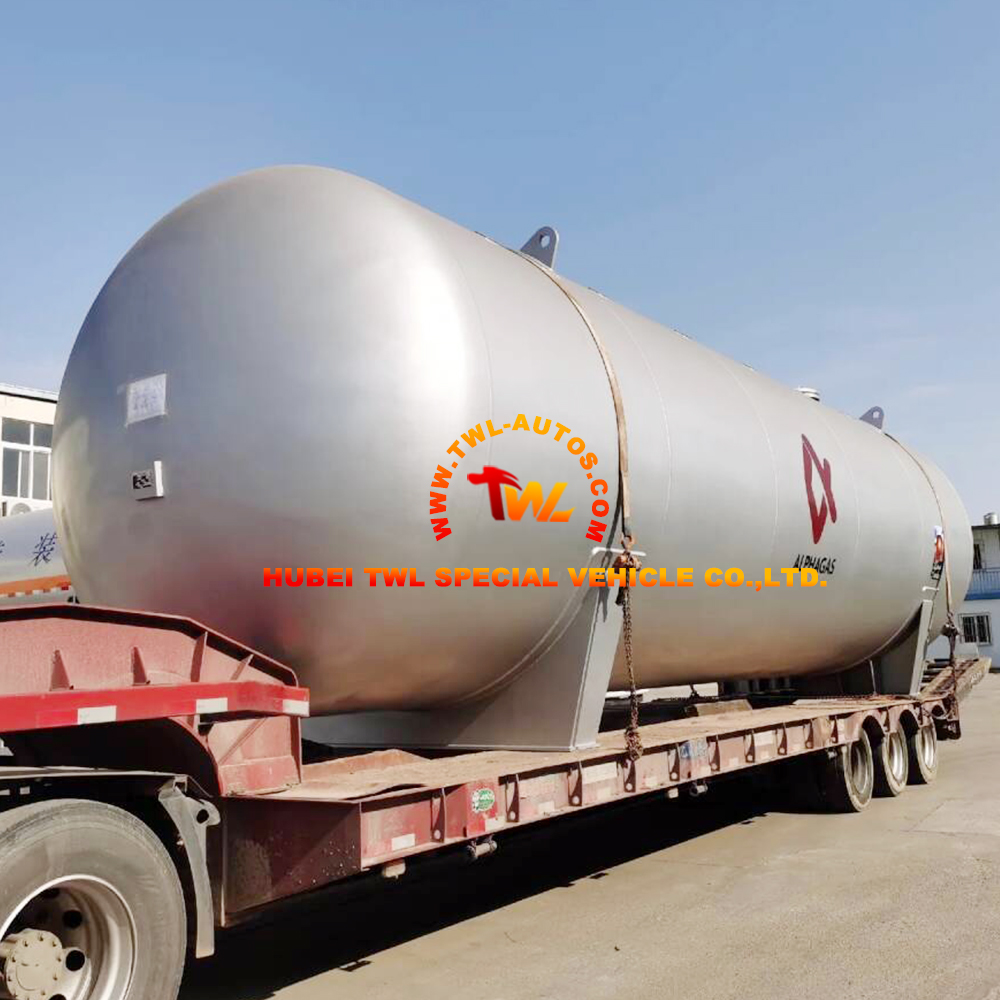

85m³ LPG Storage Tank Trailer
The 85m³ Storage Tank Trailer is a high-capacity, heavy-duty transport and storage solution designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. Engineered for the safe and efficient handling of bulk liquids—including chemicals, fuels, edible oils, and other non-hazardous or hazardous materials—this tanker features a robust construction, advanced safety systems, and reliable performance. With a large 85-cubic-meter capacity, it is ideal for long-haul transportation, industrial supply, and bulk liquid logistics.
85m³ LPG Storage Tank Trailer
As a specialized manufacturer of liquid transport equipment, Hubei TWL Special Vehicle Co., Ltd. delivers high-quality, compliant, and durable tank trailers tailored to industry needs. The 85m³ Storage Tank Trailer is designed with a focus on structural integrity, operational safety, and ease of maintenance. TWL integrates advanced manufacturing techniques, certified materials, and thorough testing to ensure that each tank meets stringent international standards for liquid transport.
Key Advantages
1. Large Capacity & High Efficiency
85m³ capacity maximizes load per trip, reducing transportation frequency and cost.
Optimized tank geometry ensures high volume utilization and stability during transport.
Suitable for both long-distance hauling and temporary on-site storage.
2. Robust & Safe Construction
High-strength steel or stainless steel construction ensures long-term durability and corrosion resistance.
Advanced safety features include pressure relief, emergency shut-off, and anti-static systems.
Compliant with international tank design and transport safety standards.
3. Flexible Configuration
Available in carbon steel or stainless steel, with various internal linings for different liquid types.
Optional insulation for temperature-sensitive liquids (e.g., asphalt, edible oils, chemicals).
Configurable with single or multiple compartments to transport different products simultaneously.
4. Operational Ease & Low Maintenance
Easy-to-operate bottom discharge system with optional pump for fast loading/unloading.
Air suspension ensures smooth ride, protecting both the tank and the cargo.
Low maintenance design with accessible valves, manholes, and inspection points.
5. Regulatory Compliance
Designed to meet GB, ASME, ADR, and other international standards for liquid transport.
Optional certifications (PED, DOT, etc.) available for global market access.
Equipped with mandatory safety and environmental protection devices.
Applications
The 85m³ Storage Tank Trailer is suitable for a wide range of liquid transport and storage applications:
Chemical Industry: Transportation of acids, alkalis, solvents, and liquid chemicals.
Oil & Fuel Logistics: Transport of diesel, gasoline, lubricants, and crude oil.
Food & Beverage: Edible oils, syrups, juices, and food-grade liquids.
Water & Wastewater: Bulk water transport, industrial wastewater, and sludge.
Agriculture: Liquid fertilizers, pesticides, and irrigation water.
Construction: Transport of asphalt, fuel, and liquid concrete additives.
Product Specification
| Category | Parameter | Specification |
| TANK STRUCTURE | Type | Semi-trailer storage tank, cylindrical design |
| Tank Capacity | 85 cubic meters (approx. 85,000 liters) | |
| Design Pressure | Atmospheric or low pressure (customizable: 0.3–0.5 MPa) | |
| Tank Material | Carbon steel (Q345R/SA516) / Stainless steel (304/316L) optional | |
| Coating/ Lining | Internal: epoxy, zinc, or rubber lining; External: anti-corrosion paint | |
| Insulation | Optional polyurethane foam insulation with aluminum cladding | |
| Compartments | Single or multiple compartments (typically 2–3) | |
| TRAILER CHASSIS | Axle Configuration | 3-axle (tri-axle) air suspension or mechanical suspension |
| Suspension Type | Air suspension (standard) or leaf spring suspension | |
| Brake System | Dual-line air brake, ABS optional | |
| Landing Gear | Heavy-duty front landing gear (hydraulic or manual) | |
| Tire Specification | 12.00R20 / 12.00R22.5 (11–12 pcs) | |
| Lighting | LED lights, reflective markings | |
| LOADING/UNLOADING SYSTEM | Manhole Size | DN500 or DN600, with breather valve |
| Discharge Outlet | Bottom discharge valves (butterfly or ball valves) | |
| Pump Option | Optional built-in hydraulic or electric pump | |
| Piping | Stainless steel or carbon steel pipes, flexible hoses optional | |
| Vapor Recovery | Optional vapor recovery unit for environmental compliance | |
| SAFETY SYSTEMS | Safety Valves | Pressure relief valves, vacuum breather valves |
| Emergency Devices | Emergency shut-off, bottom valve remote control | |
| Grounding | Static electricity grounding device | |
| Fire Protection | Fire-resistant coating, optional fire suppression system | |
| Gauging | Level gauge (magnetic or sight glass), temperature sensor | |
| DIMENSIONS & WEIGHTS | Overall Length | 13,000–13,600 mm |
| Overall Width | 2,500 mm (standard) | |
| Overall Height | 3,900–4,100 mm | |
| Tank Diameter | 2,400–2,600 mm | |
| Tare Weight | 10,000–12,000 kg (depending on material and options) | |
| Gross Vehicle Weight (GVW) | Up to 49,000 kg (region-dependent) | |
| Payload Capacity | 35,000–40,000 kg (approx. 70–85 tons of liquid) | |
| CERTIFICATION | Design Codes | ASME, GB/T 19905, ADR/RID (optional) |
| Pressure Standards | PED 2014/68/EU (optional) | |
| Regional Compliance | Designed for Chinese and international transport regulations |
