5T Tilt Tray Flatbed Towing Truck
The 5 Metric Tons Tilt Tray Flatbed Towing/Tow Truck is used by Dongfeng Captain 4x2 Truck Chassis with Tilt Tray Hydraulic Platform Flatbed Towing Truck Bed is a versatile and efficient vehicle designed for safe and easy recovery of disabled/Breakdown, illegally parked, or accident-damaged vehicles, small cars, SUV cars. With a 5-ton payload capacity, hydraulic tilt tray platform, and robust Dongfeng Captain chassis, it is ideal for urban towing, police impounds, and roadside assistance services. Its user-friendly design ensures quick loading and unloading, minimizing towing operational downtime.
5T Tilt Tray Flatbed Towing Truck
Key Features

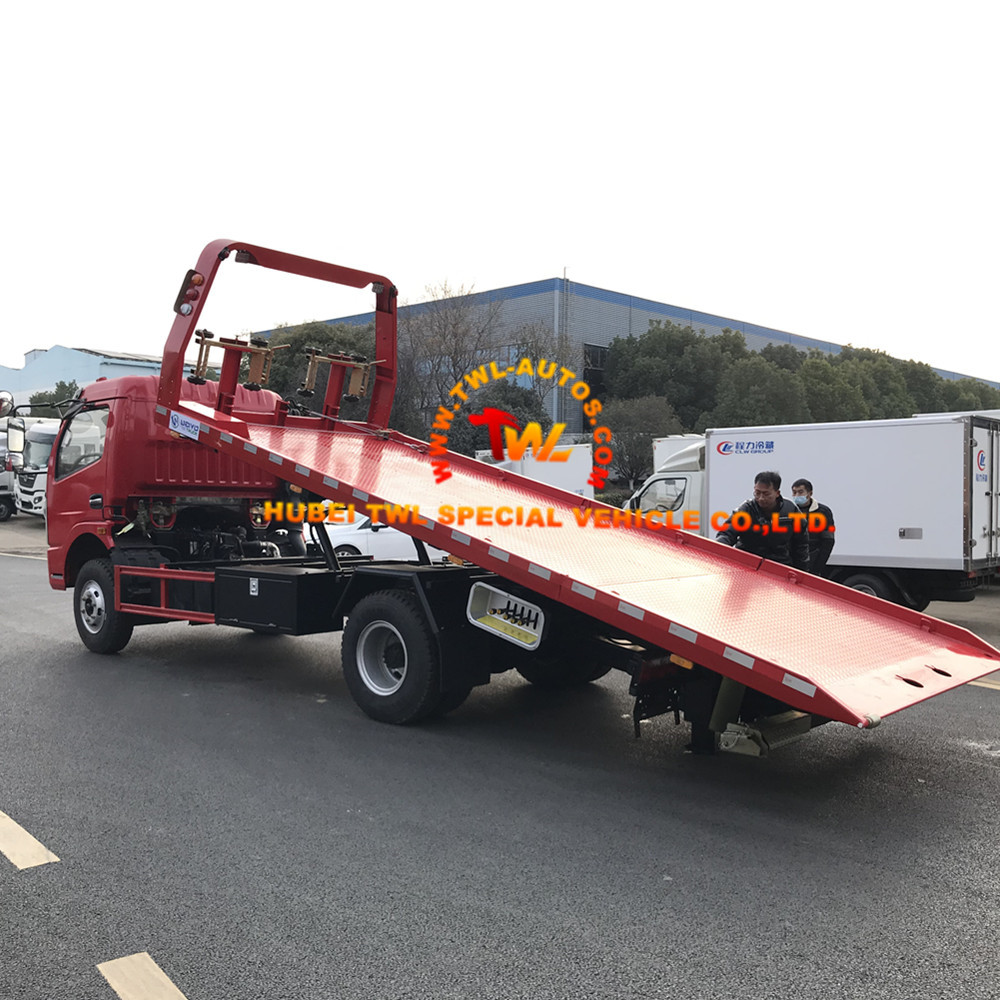

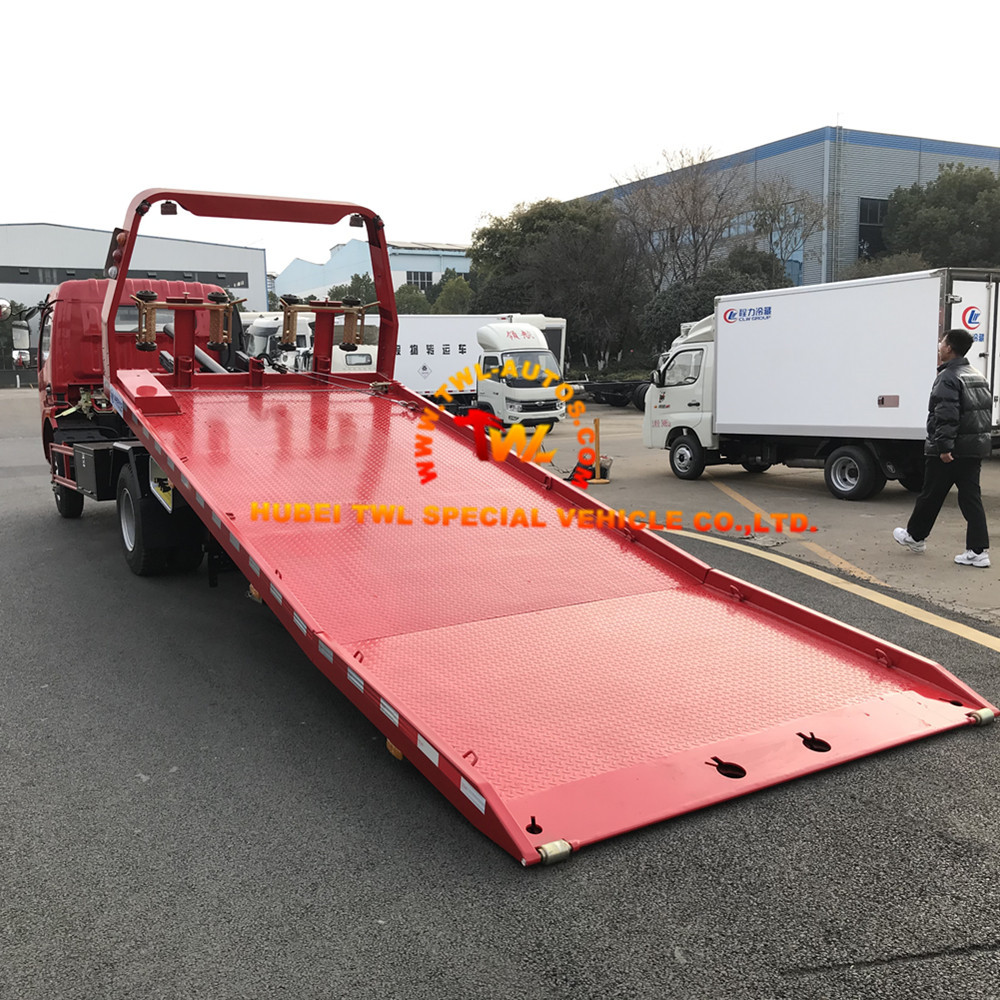

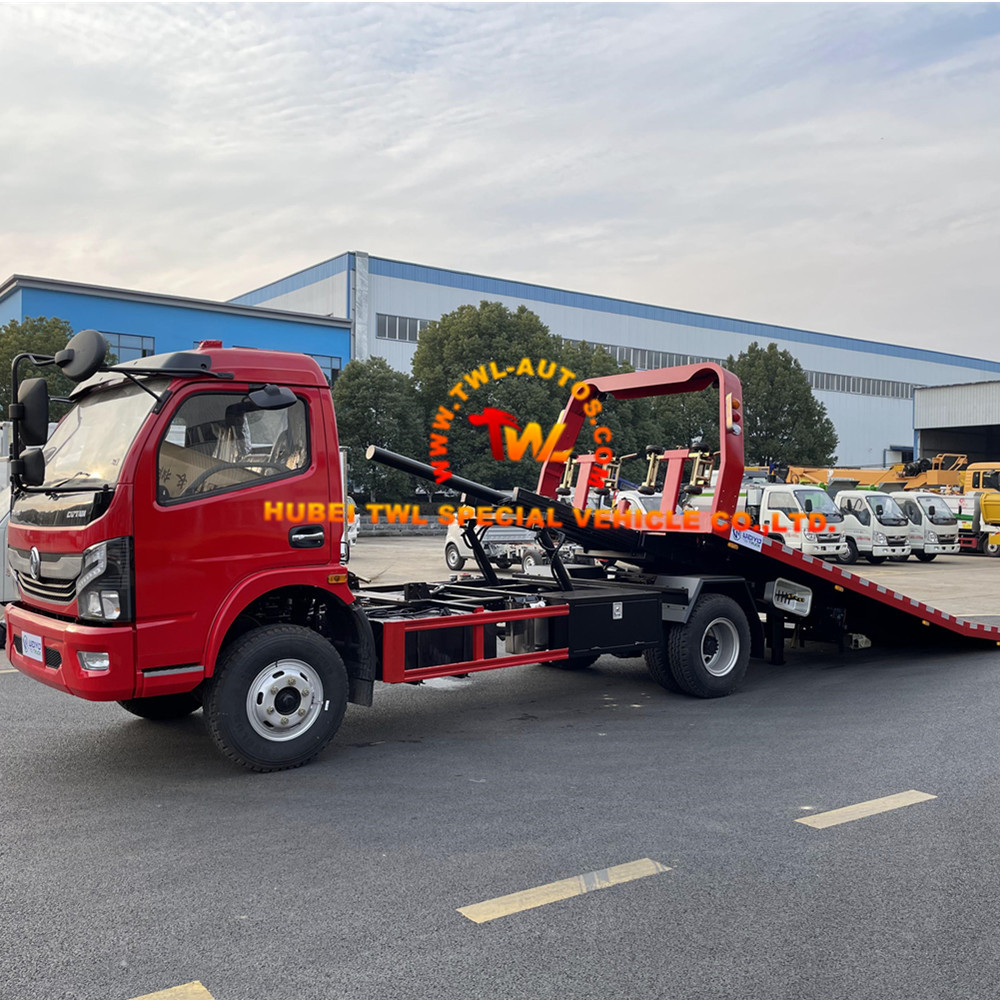

1. Hydraulic Tilt Tray Platform
· Effortless loading and unloading with a hydraulically tilted flatbed that forms a ramp for vehicles.
· Low deck height accommodates low-clearance vehicles for sports cars, sedans etc.
2. Powerful Performance

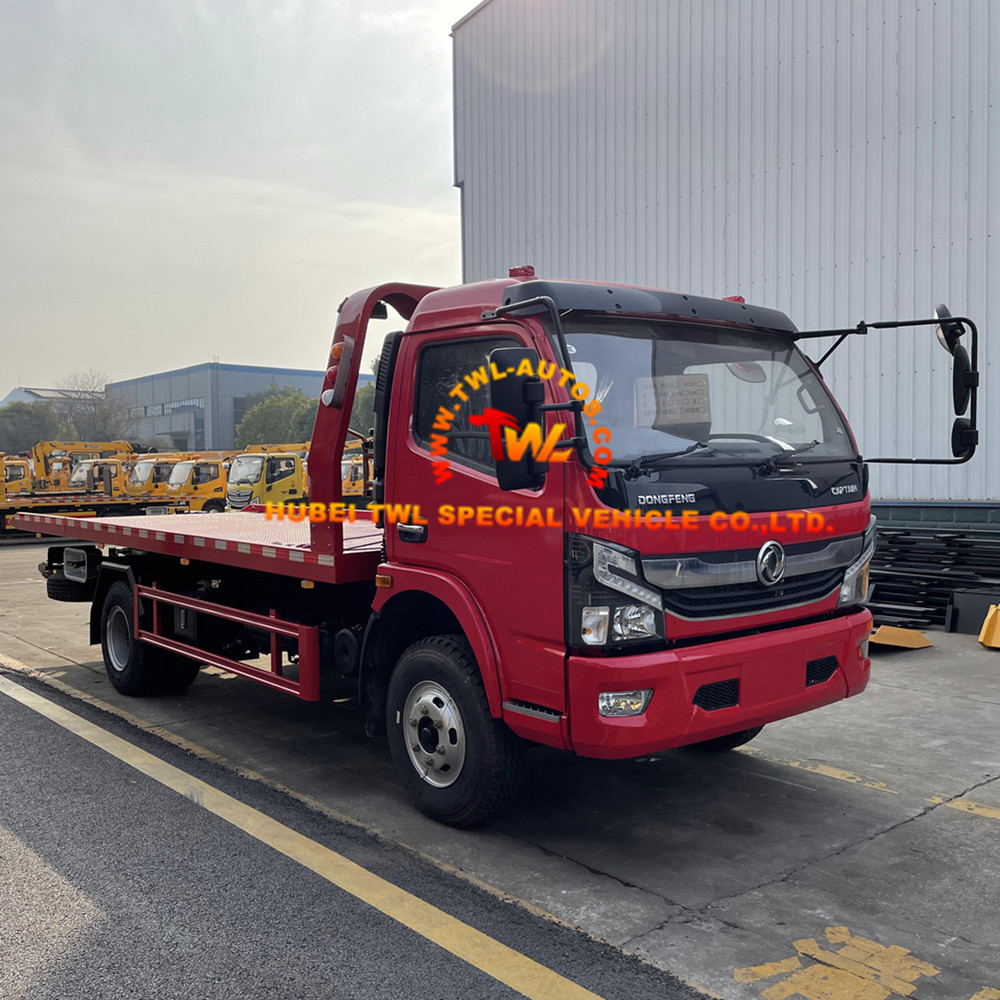

· Dongfeng Captain 4×2 chassis with a 120HP diesel engine (Euro II, III, V/VI compliant).

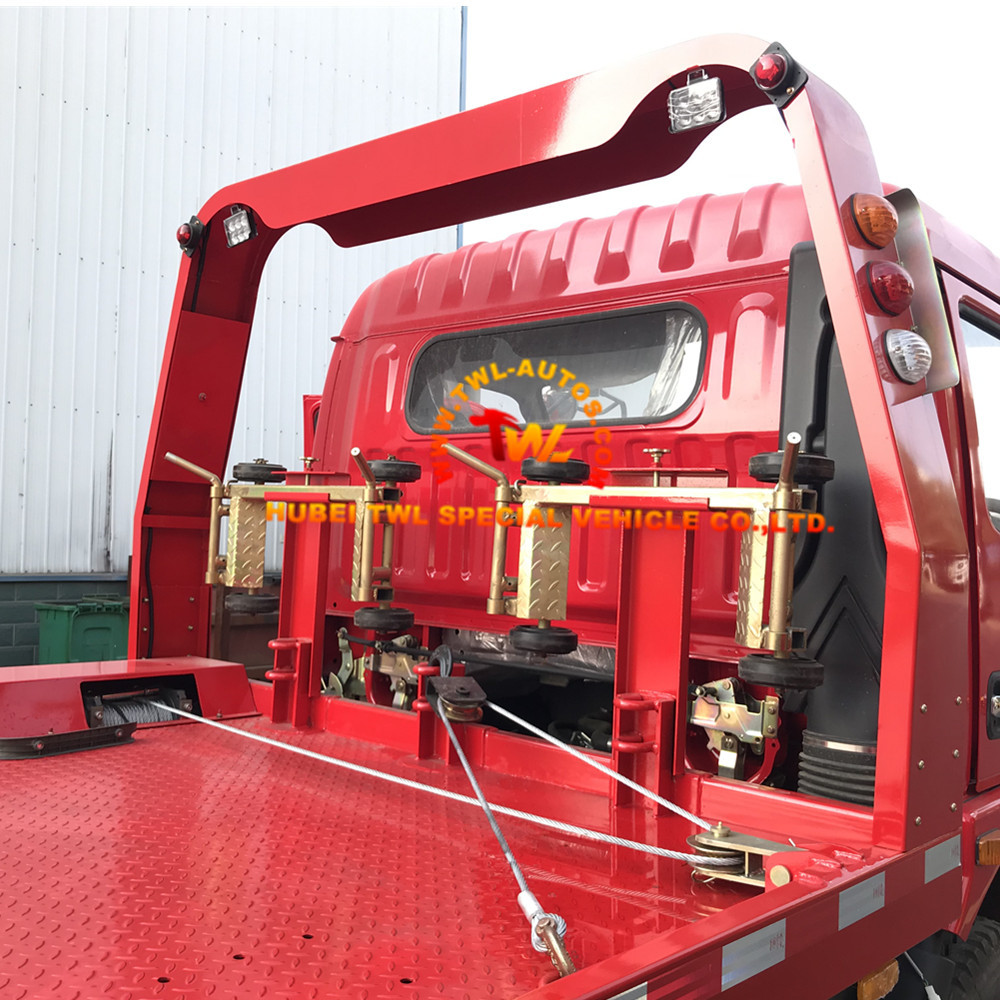

· Integrated hydraulic winch (5 ton capacity) for vehicle recovery.
3. Safety & Stability
· Anti-slip diamond-pattern steel deck and LED warning lights for nighttime safety.
4. Urban Maneuverability
· Compact design navigates narrow streets and tight spaces effortlessly.
· Customizable for police/municipal use with branding and emergency lighting.
5. Durability & Low Maintenance
· High-strength steel construction resistant to corrosion and deformation.
· Minimal maintenance hydraulic system for long-term reliability.
Applications
· Urban or City Towing: Rapid Recovery of disable cars, vans, and SUVs from accident scenes or breakdowns.
· Police and Municipal Impounds: Efficient removal of illegally parked or confiscated vehicles.
· Roadside Assistance: Support for AAA-style services and auto clubs.
· Car Dealerships: Transporting vehicles between locations.
· Vehicle Relocation: Transport new or used cars between dealerships, showrooms, and auction houses.
· Rental and Leasing Services: Offered by towing companies as a rentable solution for businesses needing temporary recovery services.
Ideal End Users for 5T Tilt Tray Flatbed Towing Truck
· Towing service companies
· Police departments
· Auto dealerships
· Municipal governments
· Roadside assistance providers
· Airport/port authorities
· Private security firms
Product Specification
| Technique Parameters | ||
| Description | Dongfeng Captain 4X2 Flatbed Towing Truck, RHD | |
| Drive Model | 4X2, 6 wheels. Right hand drive | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 7450×2290×2500 |
| Wheel base (mm) | 3800 | |
| Overhang (front/rear) (mm) | 1015/1815 | |
| Wheel track (front/rear) (mm) | 1504/1425 | |
| Approach/Departure angle(°) | 24/14 | |
| Axles | Front Axle (kg) | 2200 |
| Rear Axle (kg) | 5000 | |
| Weight in KGS | GVW. | 9495 |
| Curb Weight | 5495 | |
| Max. driving speed(km/h) | 95 | |
| Allowable passengers in cab | 3 | |
| Engine | Brand | YUCHAI |
| Model | YC4FA120-33 | |
| Type | 4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power (HP) | 120 | |
| Emission standard | Euro III | |
| Gearbox | WLY6TS55, 6 forwards & 1 reverse | |
| Fuel tank (L) | 120L | |
| Tire | 7.50R16, 6 pieces+1 spare tire | |

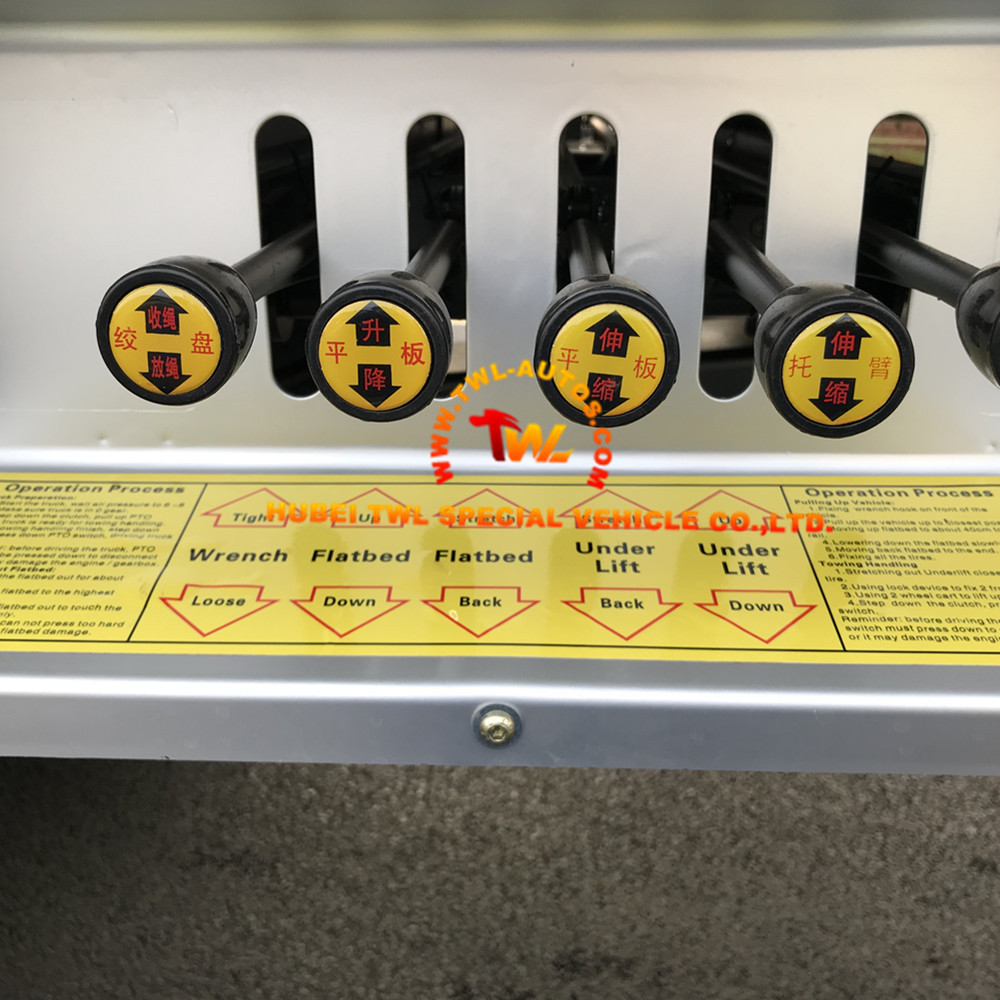

| Operation control system | Electrically hydraulic control | |
| Upper Tilt Tray Towing System | ||
| Platform System | Length(mm)×Width (mm) | 5600×2300 |
| Operating stroke (mm) | 2680 | |
| Min. angle of slope (°) | 8 | |
| Rated loading weight (kg) | 5000 | |
| Rated winch traction weight (kg) | 5000 | |
| Length of steel wire rope (m) | 21 | |
| Ground clearance of cage floor (mm) | 470 | |

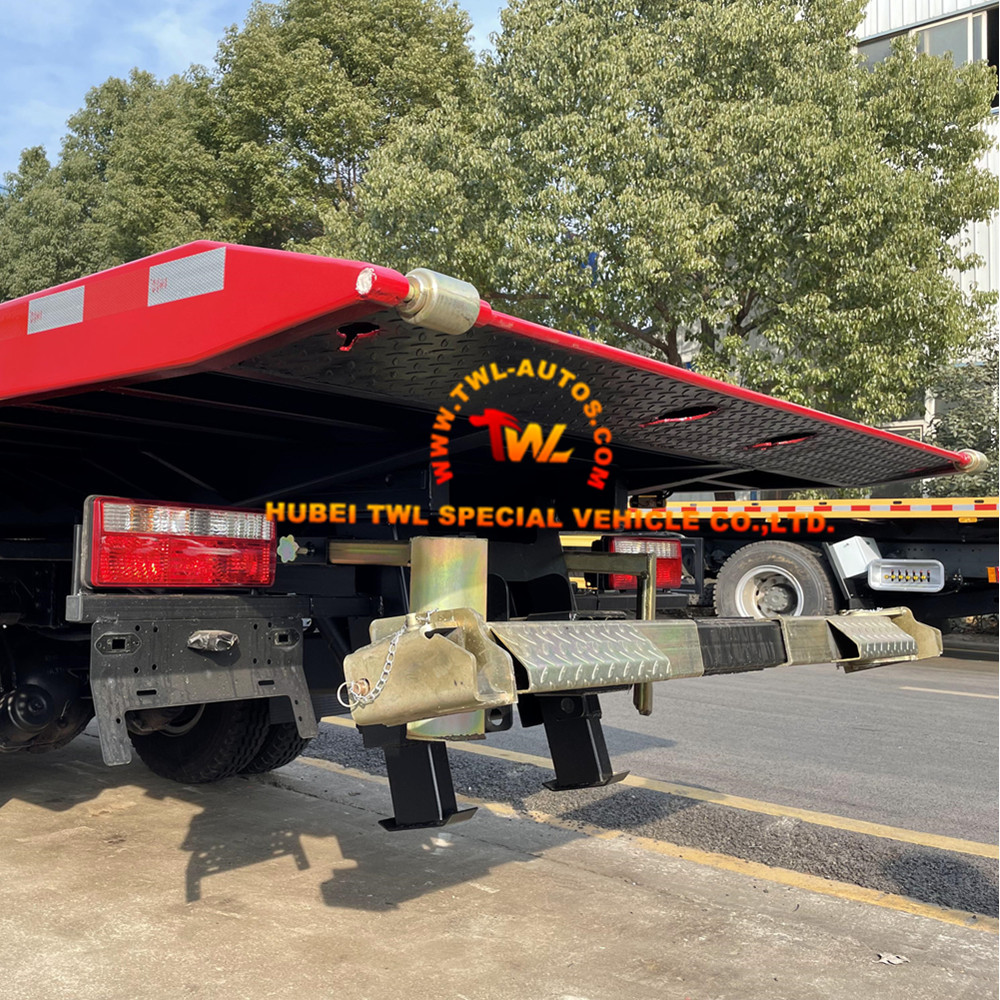

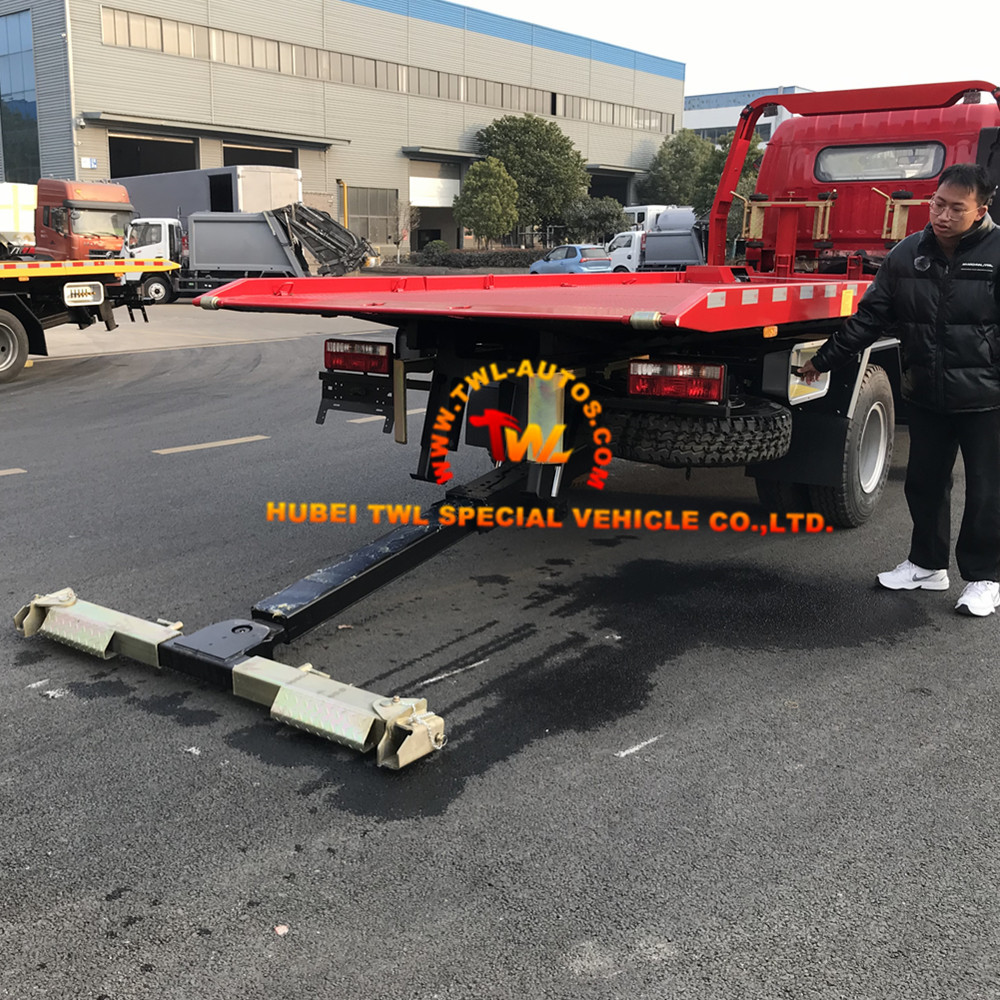

| Underlift System | Max. length of extended boom (mm) | 1680 |
| Rated lifting weight (kg) | 3500 | |
| Max. extended lifting weight (kg) | 1000 | |
| Rated traction weight (kg) | 5000 | |
| Elevation of boom (upper/ lower) (°) | 9~-10 | |
| Other Equipment | One tool box, one alarm lamp, two auxiliary wheels and 4 bandages | |

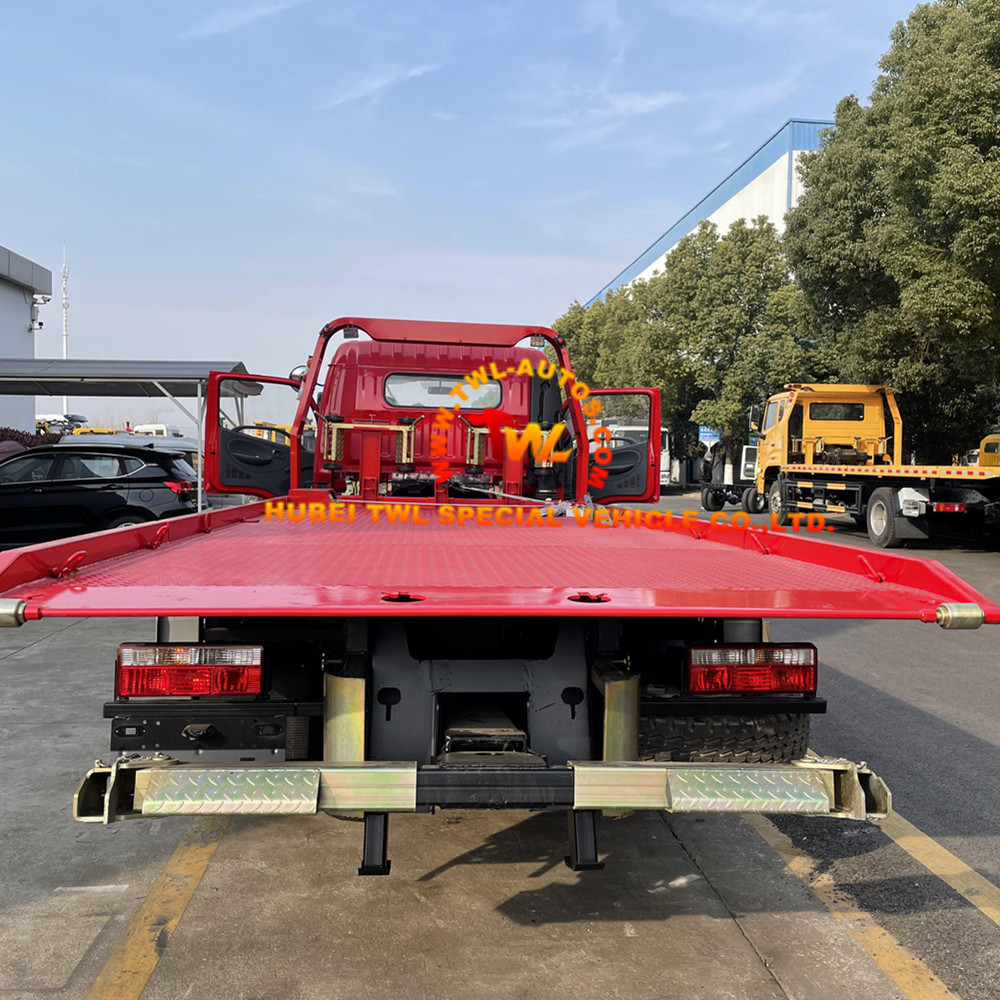

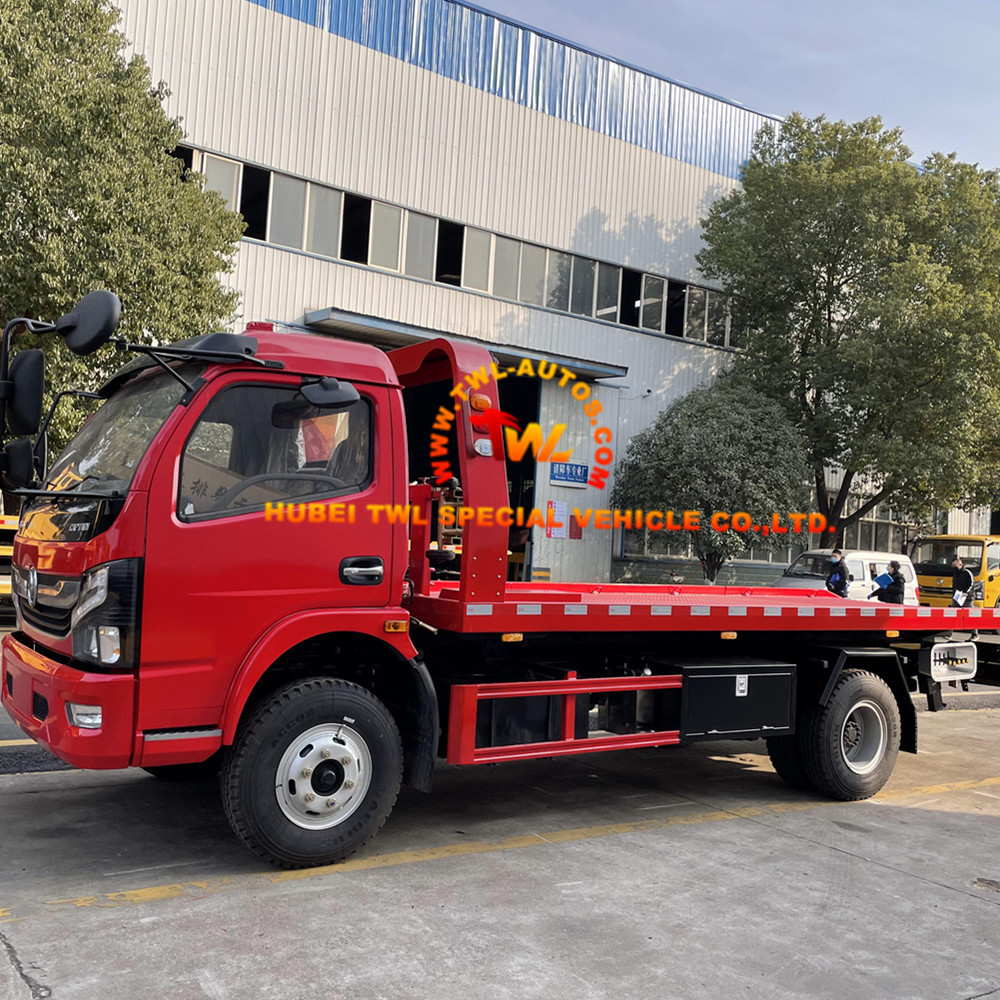

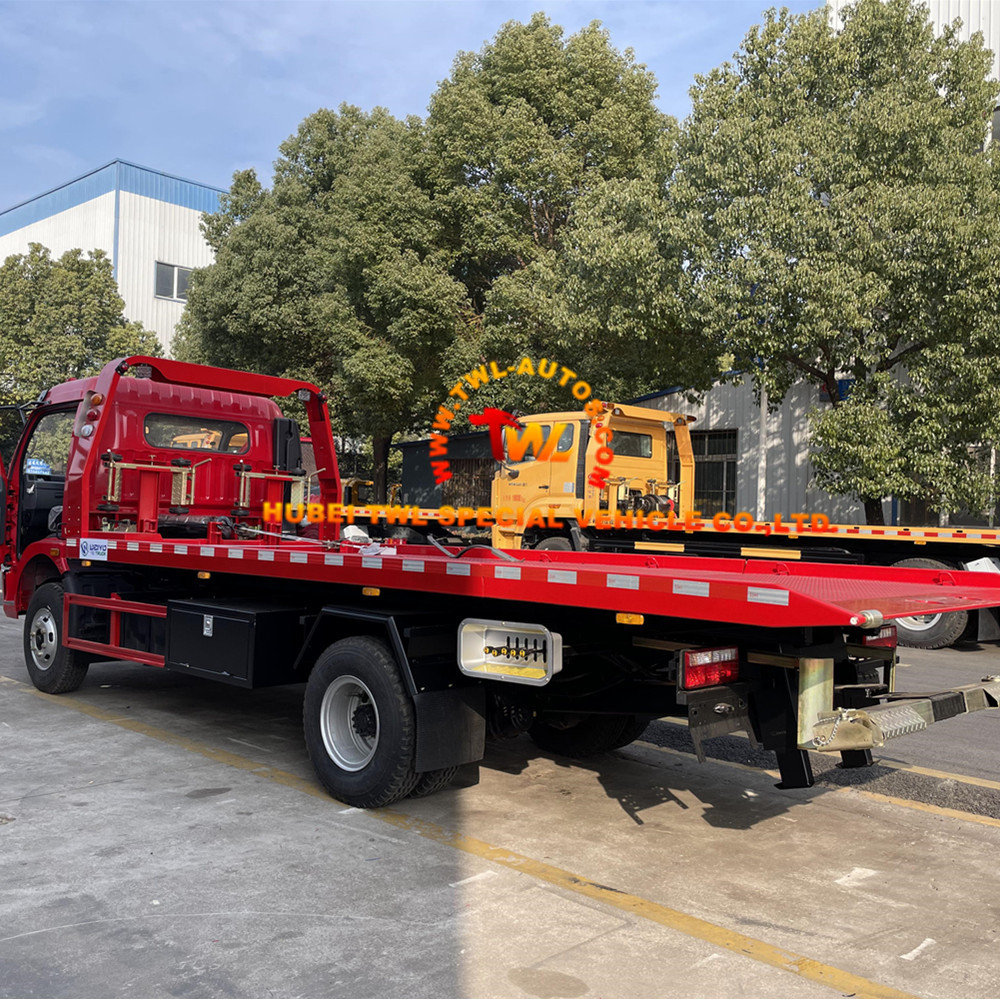

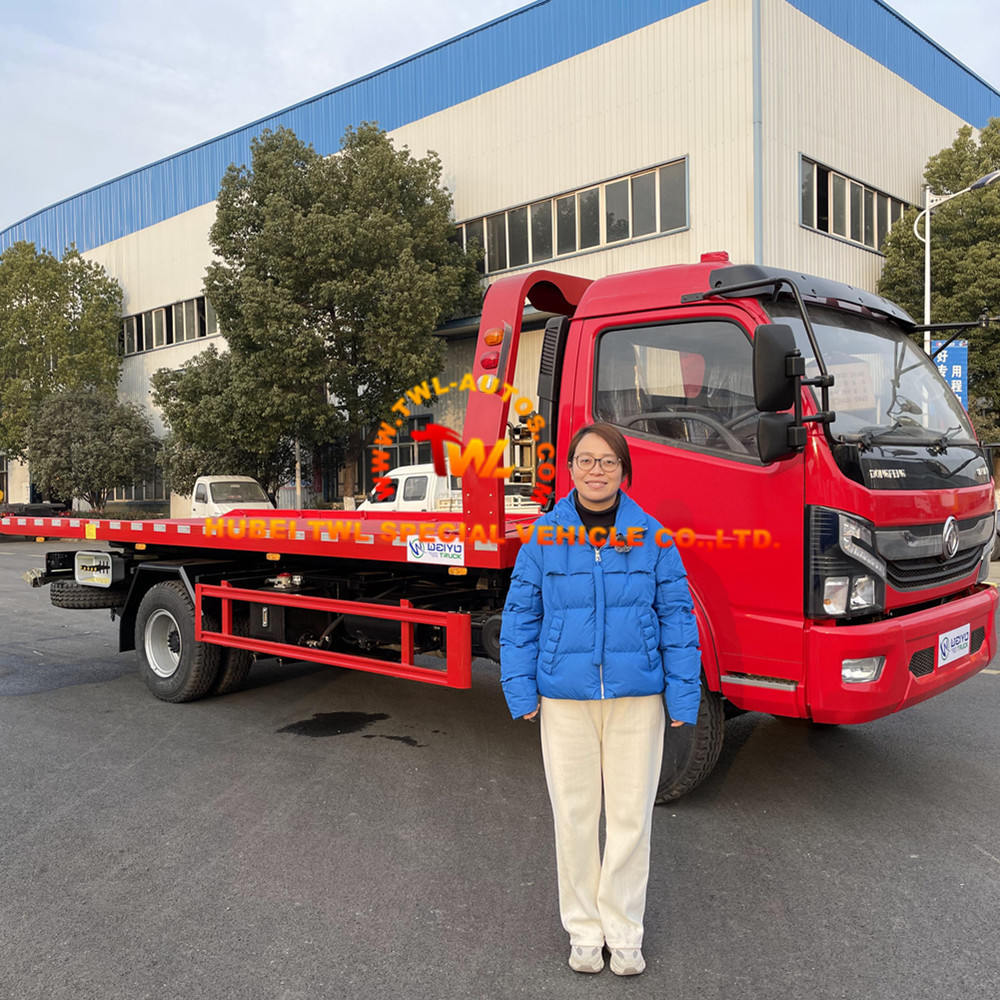

5T Tilt Tray Flatbed Towing Truck Gallery
