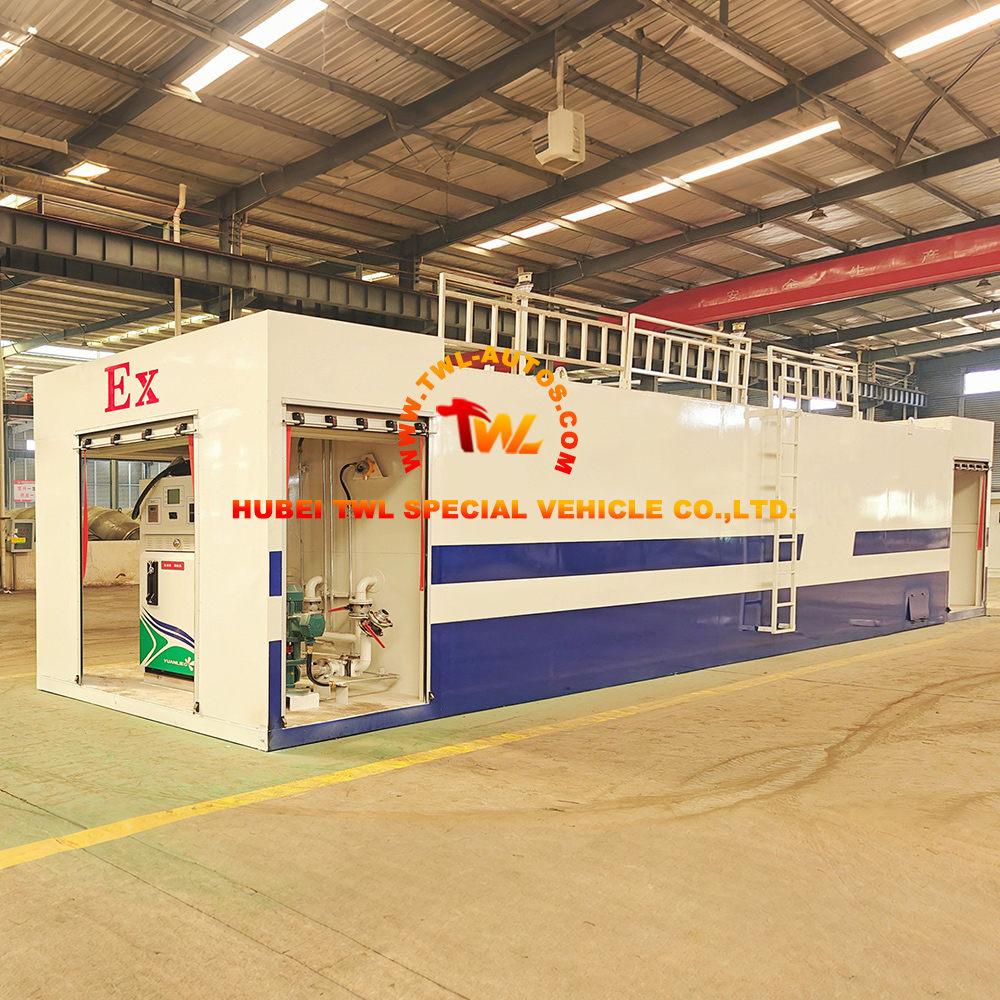

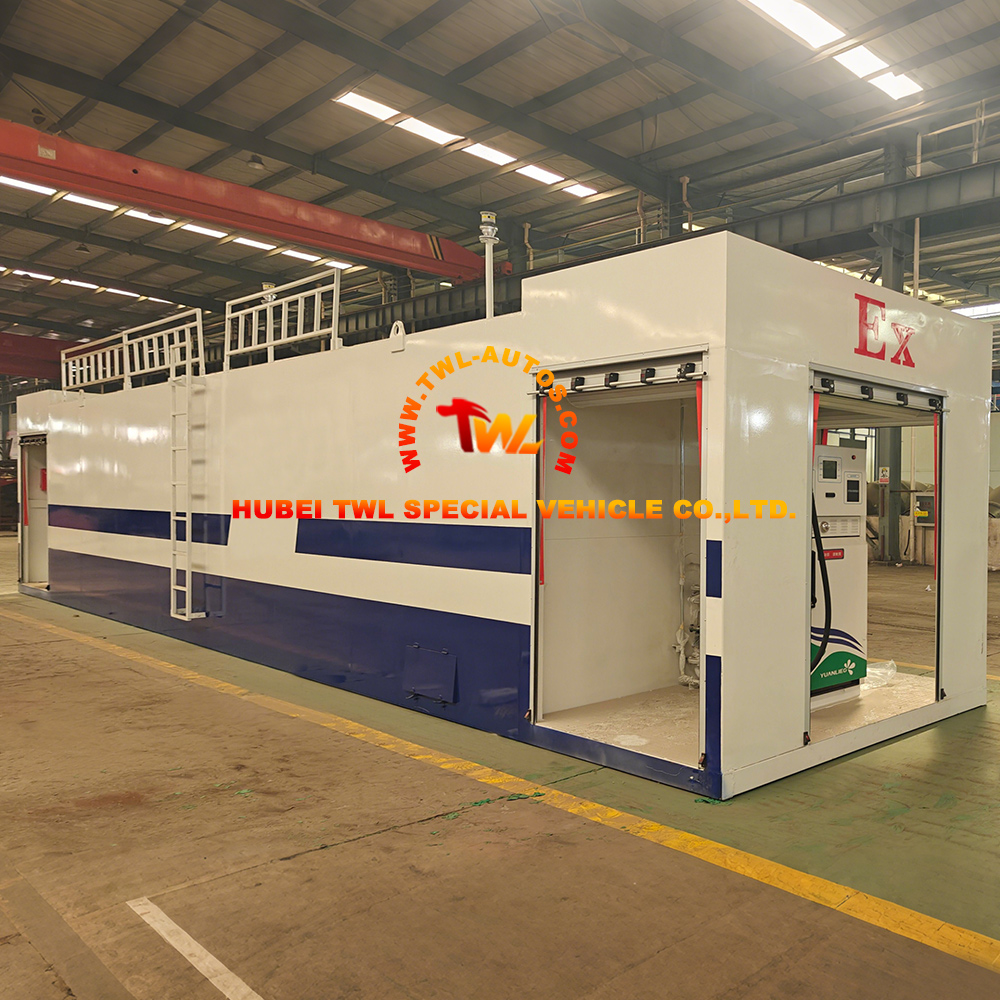

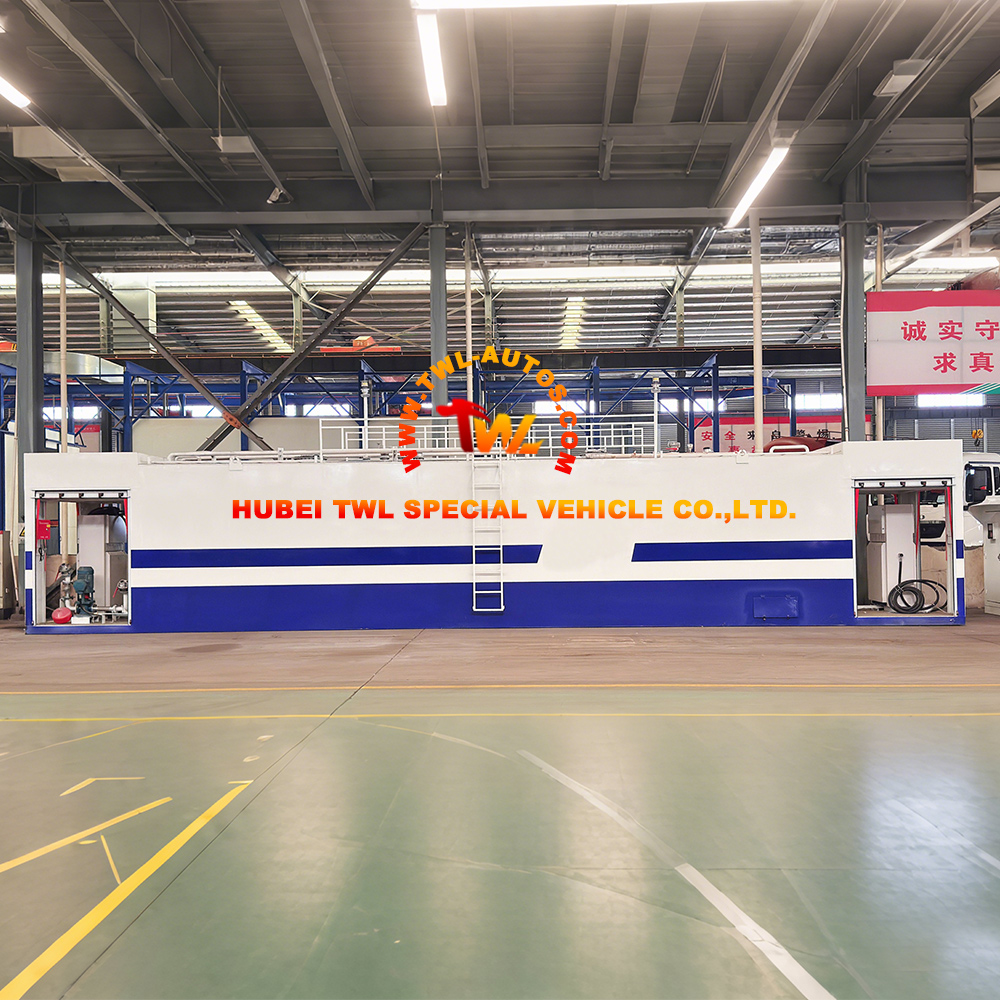

50m³ Skid-Mounted LPG Refueling Station
Deploy a complete LPG refueling hub in days, not months, with our 50m³ Skid-Mounted LPG Refueling Station. This pre-assembled, plug-and-play unit features a robust 50m³ carbon steel tank (Q235-B, 8mm/4mm walls), explosion-proof materials, vapor recovery system, emergency shut-off valve, overfill prevention, automatic fire suppression, single-pump dispenser, and liquid level gauge – all on a single skid. Ideal for commercial fleets, industrial facilities, and remote operations.
50m³ Skid-Mounted LPG Refueling Station
Our 50m³ LPG Skid-Mounted Refueling Station represents a significant leap forward in safe, flexible, and cost-effective liquefied petroleum gas refueling solutions. This fully integrated, pre-assembled unit is designed for rapid deployment and operation, eliminating the need for extensive civil works like concrete foundations, complex piping runs, and lengthy installation timelines that plague traditional built-in-place stations. The station is built around a robust 50-cubic meter LPG storage tank crafted from carbon steel Q235-B with an 8mm inner wall and 4mm outer wall, ensuring long-term durability and containment integrity. The entire tank utilizes explosion-proof materials for superior safety. Engineered for reliability, the station operates on a 380V working voltage with an 8.5KW power rating, and comes pre-equipped with a comprehensive suite of safety and operational features, making it a complete, plug-and-play refueling hub. As a skid-mounted station, it arrives pre-piped, pre-wired, and pre-tested on a single chassis. This drastically reduces installation time and costs, requiring only a leveled concrete foundation and basic utility connections to become operational. The station is safeguarded by multiple, redundant protective systems: explosion prevention (explosion-proof materials + vapor recovery during refueling), emergency response (emergency shut-off valve + emergency pressure relief device), leak and overflow protection (vapor containment, overfill prevention), fire safety (automatic fire suppression system + explosion-proof fire-resistant pressure relief valve), and operational efficiency (single-pump single-hose dispenser, unloading pump, liquid level gauge, vapor recovery during unloading).
Key Features:
· All-in-One, Pre-Assembled Skid Design: As a skid-mounted station, it arrives pre-piped, pre-wired, and pre-tested on a single chassis. This drastically reduces installation time and costs, requiring only a leveled concrete foundation and basic utility connections to become operational. No extensive civil works needed.
· Robust 50m³ Explosion-Proof LPG Storage Tank: The station is built around a 50-cubic meter LPG storage tank crafted from carbon steel Q235-B with 8mm inner wall and 4mm outer wall thickness. The entire tank utilizes explosion-proof materials for superior safety and long-term durability.
· Comprehensive Explosion Prevention & Vapor Recovery: The tank is filled with explosion-proof materials and features a vapor recovery system during refueling to minimize vapor release. A vapor recovery system during unloading captures fumes, enhancing environmental protection and operational safety.
· Emergency Response & Leak Protection Systems: Equipped with an emergency shut-off valve and emergency pressure relief device for critical incident control. Features vapor containment adaptation and overfill prevention to stop leaks before they start.
· Automatic Fire Suppression for Active Fire Safety: The integrated automatic fire suppression system provides active fire protection for the refueling station. An explosion-proof and fire-resistant pressure relief valve offers additional safety redundancy.
· Operational Efficiency & Precise Fueling: The station features a single-pump single-hose dispenser for accurate metering and fast refueling. A complete unloading pump and piping system enables easy tank replenishment, while the liquid level gauge allows for easy inventory management and monitoring.
· Plug-and-Play Deployment: The station is engineered for reliability with 380V working voltage and 8.5KW power rating. It is ready for immediate use upon delivery and installation – a complete, turnkey LPG refueling solution.
Application:
· Commercial Fleet Refueling: Dedicated refueling for LPG-powered delivery vans, taxis, buses, and municipal fleets at company depots.
· Industrial Facility Gas Supply: On-site LPG refueling for forklifts, warehouse equipment, and industrial vehicles in factories, distribution centers, and logistics parks.
· Remote Operations: Fuel supply for mining sites, oil fields, agricultural cooperatives, and construction camps without permanent fueling infrastructure.
· Logistics Depots: Centralized LPG refueling for trucking fleets and distribution center vehicles.
· Agricultural Cooperatives: Gas supply for farm equipment, crop drying, and other agricultural LPG applications.
· Government & Municipal Operations: City fleet refueling for buses, maintenance vehicles, and emergency services.
Product Specification
| Name | Describe |
| Explosion-proof storage tank | Explosion-proof storage tanks, both inner and outer tanks are reinforced with double-layer weld joints . |
| Its weld strength is higher than that of butt welds on 12mm thick steel plates. | |
| Strength. (Packaging containers for hazardous chemicals under normal pressure) | |
| Explosion-proof materials | The inner tank and the space between the inner and outer tanks are filled with explosion-proof materials. (This can be customized according to the customer’s specific needs.) |
| Explosion-proof power distribution system | 380V three-phase |
| Explosion-proof audible and visual alarm Device | Explosion-proof audible and visual alarm light: flashes 150/ min ; sound intensity ≥ 90(dB) Explosion-proof marking: Ex db ⅡC T4 Gb; Ex tb ⅢC T130℃ Db ; Protection level: IP65. |
| Safety lighting system | Safety lighting: Explosion-proof ceiling light, integrated design, aesthetically pleasing and energy-saving. Explosion- proof markings: Ex db eb mb ⅡC T6 Gb; Ex tb ⅢC T80°C Db . |
| Oil and gas alarm device | Employing imported catalytic combustion sensors and microcontroller technology, it has the function of concentration With temperature display and audible and visual alarm functions, it is installed at refueling sites or unloading areas. |
| Pump valve chamber. | |
| Emergency shut-off device (automatic shut-off protection) (Protective valve) | When encountering earthquakes, accidental overturning, falls, impacts, or other events beyond human control… In the event of a disaster, the tank automatically seals to prevent oil leakage. This device contains… The unit employs mechanical transmission components to ensure operation even in the event of a power outage. It can work effectively. The device is normally in the open position and emits… |
| In the event of a fire, its fuse melts when heated, thus shutting off the valve. | |
| Automatic fire extinguishing device | Ultrafine dry powder fire extinguishing agent, filled with an appropriate amount of nitrogen as the propellant gas, technology Performance meets the requirements of GA602-2013 standard. Operating temperature. |
| 68-93 degrees. | |
| Explosion-proof flame arrestor breather valve device | The breather valve operates at a positive pressure of 2 kPa to 3 kPa and a negative pressure of 1.5 kPa . 2 kPa, installation height greater than 4.5 m, nominal pressure: 1.0 MPa |
| Emergency pressure relief device | When the internal pressure becomes too high, the emergency pressure relief device will burst, causing… |
| This allows for rapid pressure reduction, preventing the tank from exploding due to pressure and avoiding further serious consequences. Major accident. One unit per compartment, opening pressure: 27卤2KPa | |
| Overflow prevention device | When the oil level in the tank exceeds the warning height (reaching 95% of the tank’s capacity), the tank… The body automatically locks to prevent oil spillage. |
| Lightning protection grounding, static Electrical grounding system | Includes electrostatic grounding alarm, lightning surge protector, and oil unloading device. |
| Aluminum alloy electrostatic clamps and grounding copper braided wires connected to the vehicle. | |
| to the grounding electrode at the application site (the user must ensure the grounding electrode is properly connected). | |
| Resistance < 4Ω. |
