4.2m Mobile Kitchen Truck – Fully Equipped for Outdoor Catering & Food Service
A professional-grade mobile kitchen truck with a 4.2m cargo box, fully equipped with cooking, refrigeration, storage, and utility systems. Designed for versatility, durability, and efficient operation in outdoor catering, food vending, events, and mobile food service.
4.2m Mobile Kitchen Truck – Fully Equipped for Outdoor Catering & Food Service
This mobile kitchen truck is built on a robust chassis with a total permissible mass of 4495kg. It features a fully insulated and structurally sound body, equipped with essential kitchen appliances and utility systems for immediate operation. Ideal for entrepreneurs, caterers, and food service businesses needing a self-contained, mobile cooking solution.
Key Features
1. Durable & Insulated Body:
Body dimensions: 4130mm (L) x 2000mm (W) x 2150mm (H).
Construction: High-quality steel tube frame, external cold-rolled steel sheet, internal stainless steel sheet, filled with 5cm thermal insulation.
Floor: Bamboo plywood base with aluminum tread plate finish.
2. Smart Body Structure & Expandable Space:

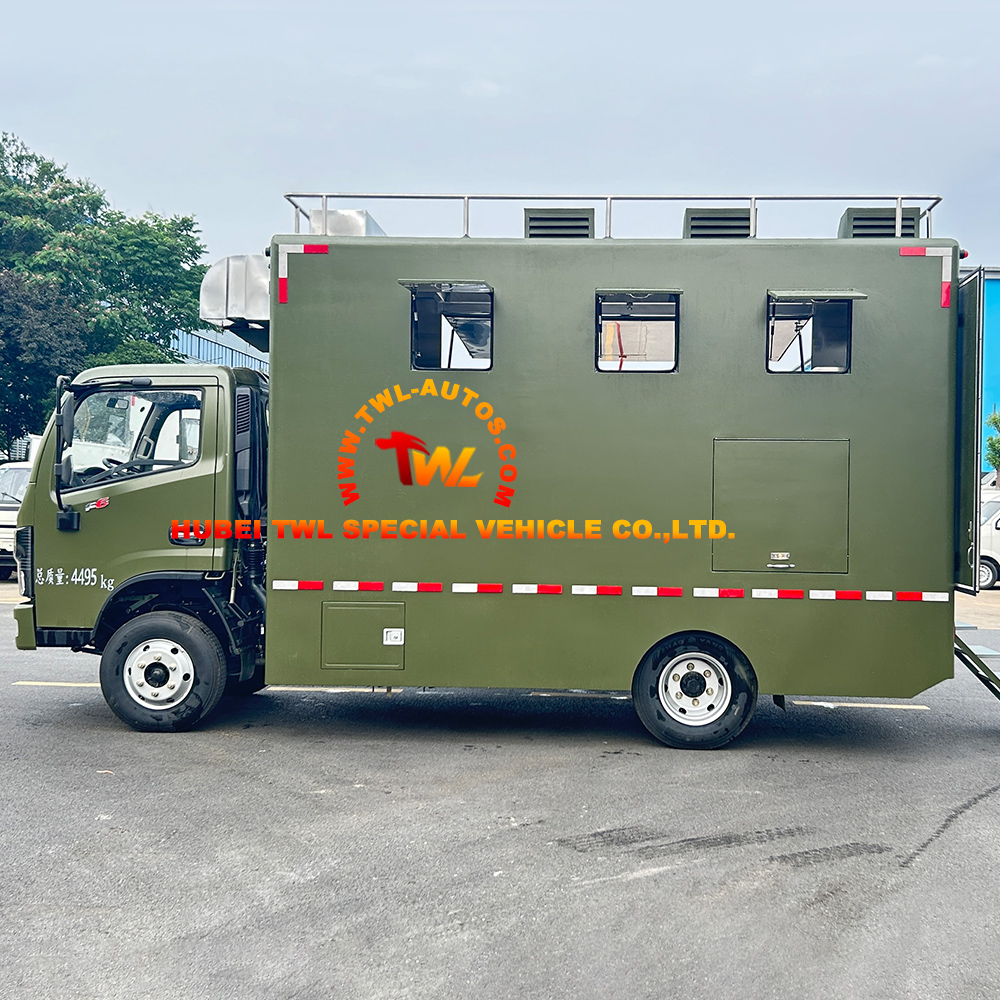

One side: Three upward-opening vents and one upward-opening access door.

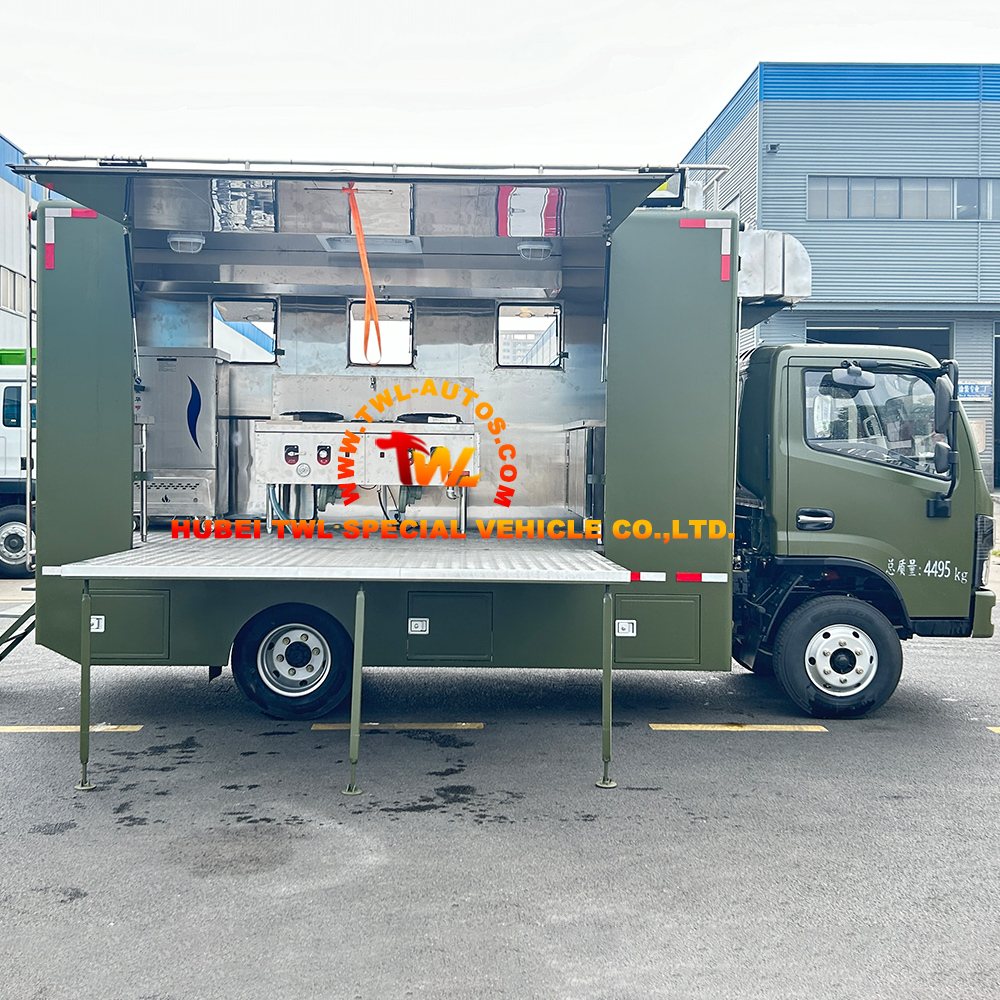

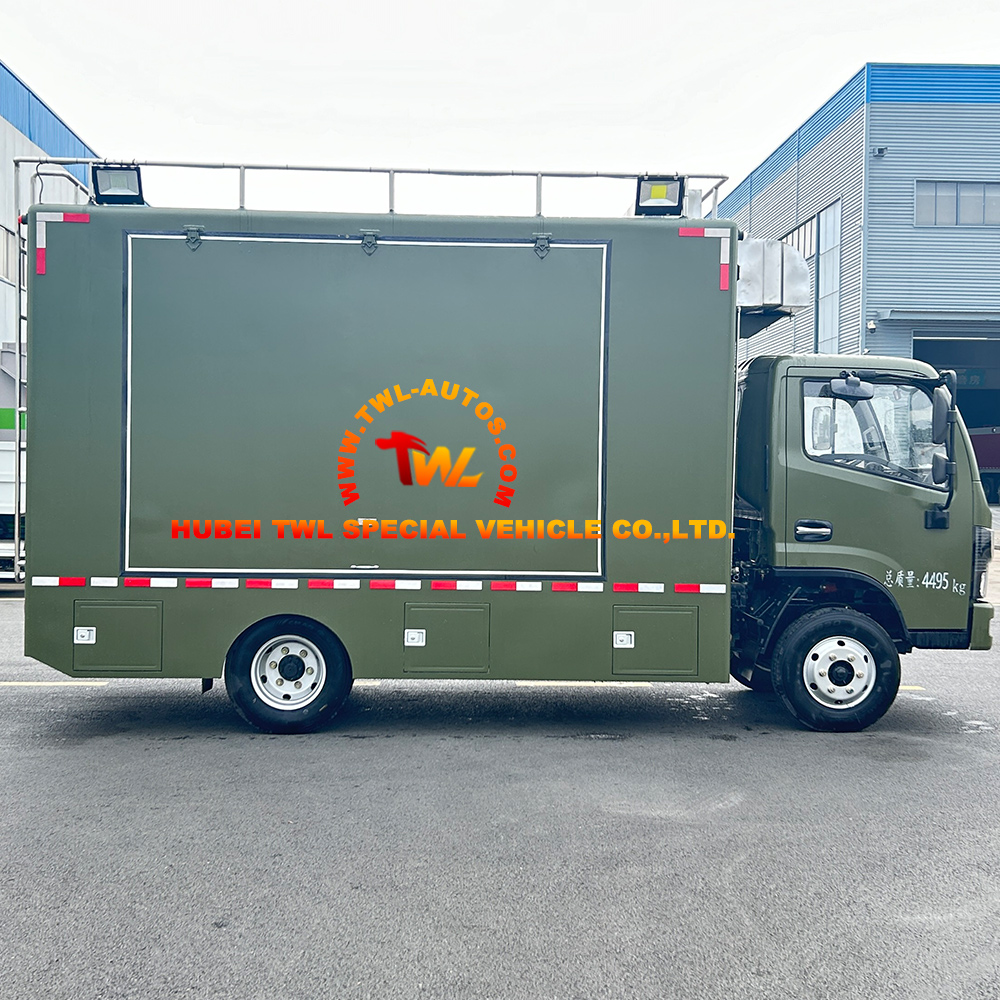

Opposite side: Upward-opening panel revealing a manually operated flip-out extension platform.
Platform: Steel rectangular tube frame, bamboo plywood base, aluminum tread plate finish. Size: 2680mm x 1600mm.

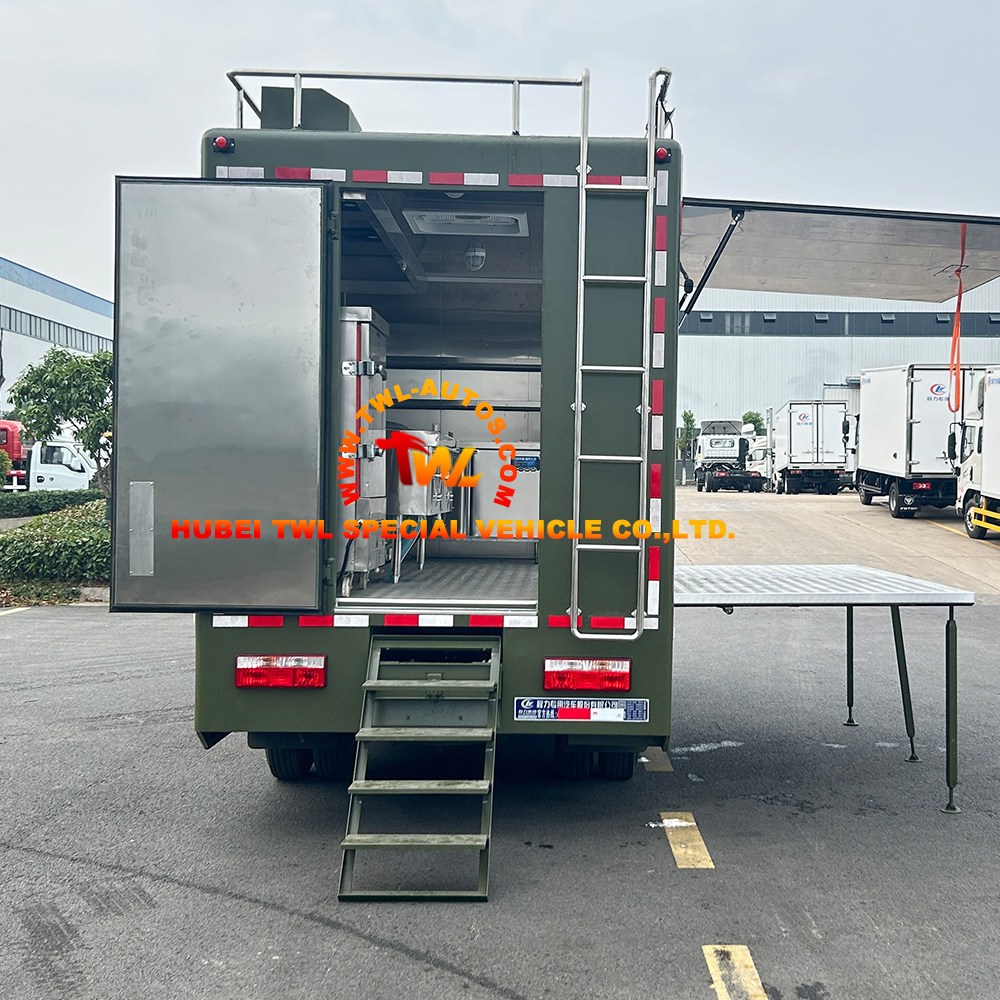

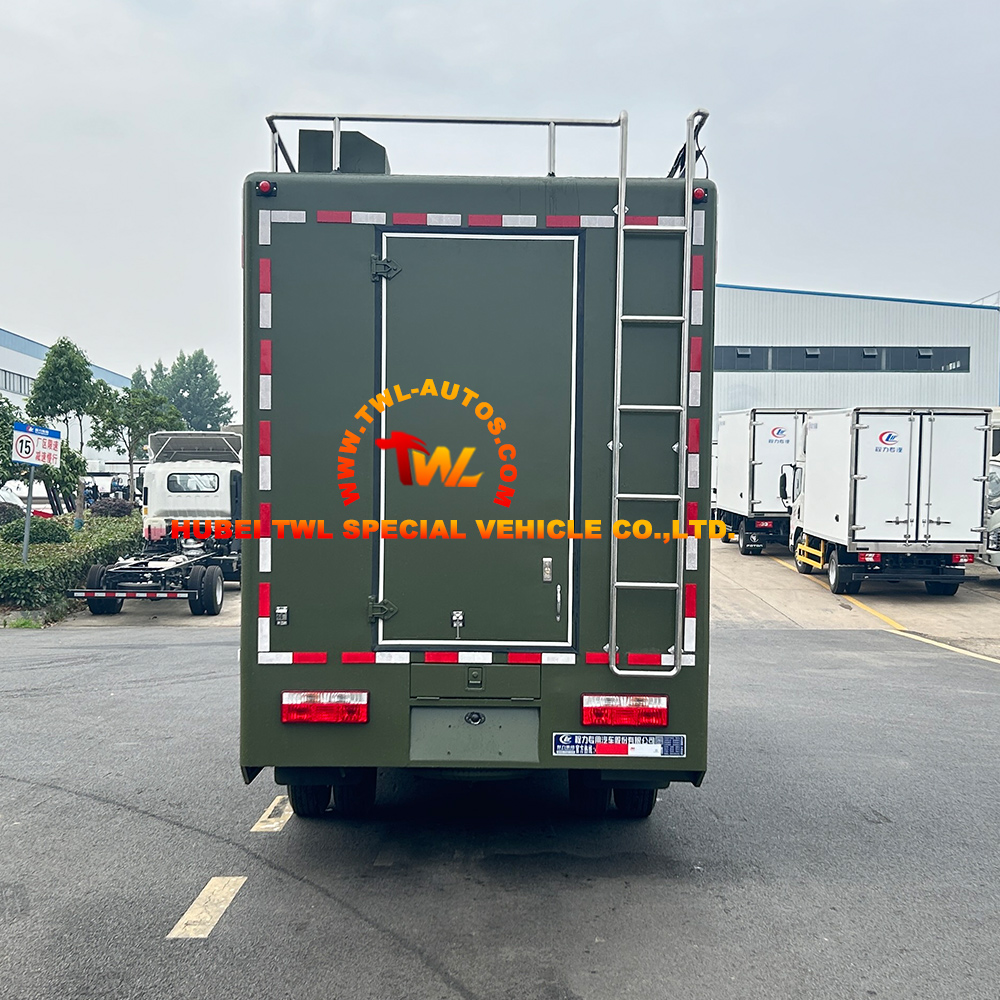

Rear: Single side-opening door.
3. Complete Professional Kitchen Setup:

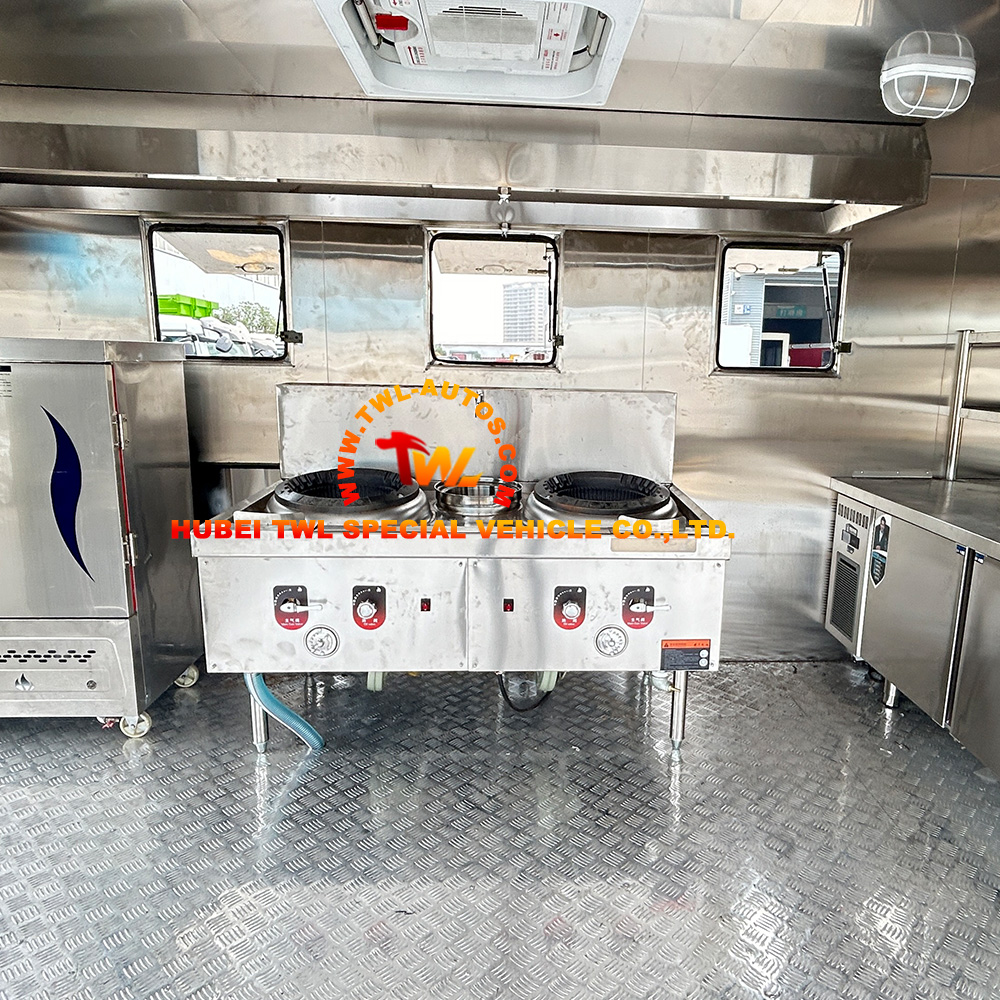

Cooking: 1.8m dual-burner high-power stove (compatible with diesel & methanol/LPG).
Refrigeration: 1.8m stainless steel countertop refrigerated cabinet (chilling) with a stainless steel vegetable rack on top.
Preparation: 1x stainless steel sink.
Steaming: 1x 12-tray stainless steel rice steamer cabinet (electric & LPG dual-fuel).
Ventilation: Stainless steel range hood with 3 exhaust fans.
4. Integrated Utility Systems:
Water System: 1x Stainless steel water tank (1600x450x400mm) mounted above the cab. 1x 220V pressure pump.
Fuel System: 1x Stainless steel fuel tank (1220x400x260mm) mounted on the roof.
Electrical System: 3x equipment sockets, 1x main switch box, 2x interior explosion-proof lights (24W), 2x exterior top-mounted work lights (50W).
5. Safety & Accessories:
Safety: 270mm high stainless steel guardrail around the roof, 1x interior emergency escape skylight/vent.
Access: 1x rear roof access ladder (stainless steel), 1x pull-out entry step ladder (steel).
Applications
Mobile Food Vending: Operation as a food truck for streets, markets, and festivals.
Outdoor Catering & Events: Providing kitchen support for weddings, corporate events, parties, and large gatherings.
Construction Site & Remote Area Catering: Delivering hot meals to workforce in isolated locations.
Emergency & Disaster Relief: Serving as a field kitchen for relief operations.
Pop-up Restaurant or Café: A quick-deployment solution for temporary dining concepts.
Product Specification
| Category | Specification Item | Details |
| Chassis & General | Total Permissible Mass | 4495 kg |
| Body Type | 4.2-meter Cargo Box | |
| Body Structure | Internal Dimensions (L×W×H) | 4130 mm × 2000 mm × 2150 mm |
| Construction | High-quality steel tube frame. Exterior: cold-rolled steel sheet. Interior: stainless steel sheet. Insulated with 5cm thermal panel. | |
| Floor | Bamboo plywood base with exterior aluminum tread plate finish. | |
| Body Features & Access | Side 1 | Three upward-opening ventilation windows. One upward-opening access door below. |
| Side 2 | Upward-opening panel hiding a manual flip-out extension platform. | |
| Extension Platform | Size: 2680 mm × 1600 mm. Frame: steel rectangular tube. Base: bamboo plywood. Finish: aluminum tread plate. | |
| Rear | Single side-opening door. | |
| Roof Safety | 270mm high stainless steel guardrail (perimeter). | |
| Access | 1x Rear roof access ladder (stainless steel). 1x Pull-out entry step ladder (steel). | |
| Emergency | 1x Interior escape/ventilation skylight. | |
| Kitchen Equipment | Cooking Station | 1x 1.8m dual-burner high-power stove. Fuel Options: Diesel & Methanol/LPG dual-fuel capable. |
| Refrigeration & Prep | 1x 1.8m stainless steel countertop refrigerated cabinet (chilling). 1x Stainless steel vegetable rack (mounted above cabinet). | |
| Cleaning | 1x Stainless steel sink. | |
| Ventilation | Stainless steel range hood with 3x exhaust fans. | |
| Steaming | 1x 12-tray stainless steel steaming cabinet. Energy Options: Electric & LPG dual-fuel capable. | |
| Utility Systems | Water System | 1x Stainless steel water tank. Dimensions: 1600(L) × 450(W) × 400(H) mm. Location: Mounted on front panel above the cab. |
| Water Pressure | 1x 220V pressure pump. | |
| Fuel Storage | 1x Stainless steel fuel tank. Dimensions: 1220(L) × 400(W) × 260(H) mm. Location: Roof-mounted. | |
| Electrical System | Power Supply | Standard 220V system for equipment. |
| Outlets & Control | 3x Equipment sockets. 1x Main power switch box. | |
| Lighting | Interior: 2x Explosion-proof lights (24W each). Exterior: 2x Top-mounted work lights (50W each). | |
| Applications | Primary Use | Mobile food vending, outdoor catering, event food service, remote site catering, emergency field kitchen, pop-up restaurants. |
