4 Axle 80Tons Fence Stake Side Wall Semi trailer
TWL 3-axle ADR side tipper trailers are engineered for durability, stability, and high payload performance. Fully compliant with Australian ADR standards, they are an ideal solution for heavy-duty bulk transport across mining and construction sectors.
4 Axle 80Tons Fence Stake Side Wall Semi trailer

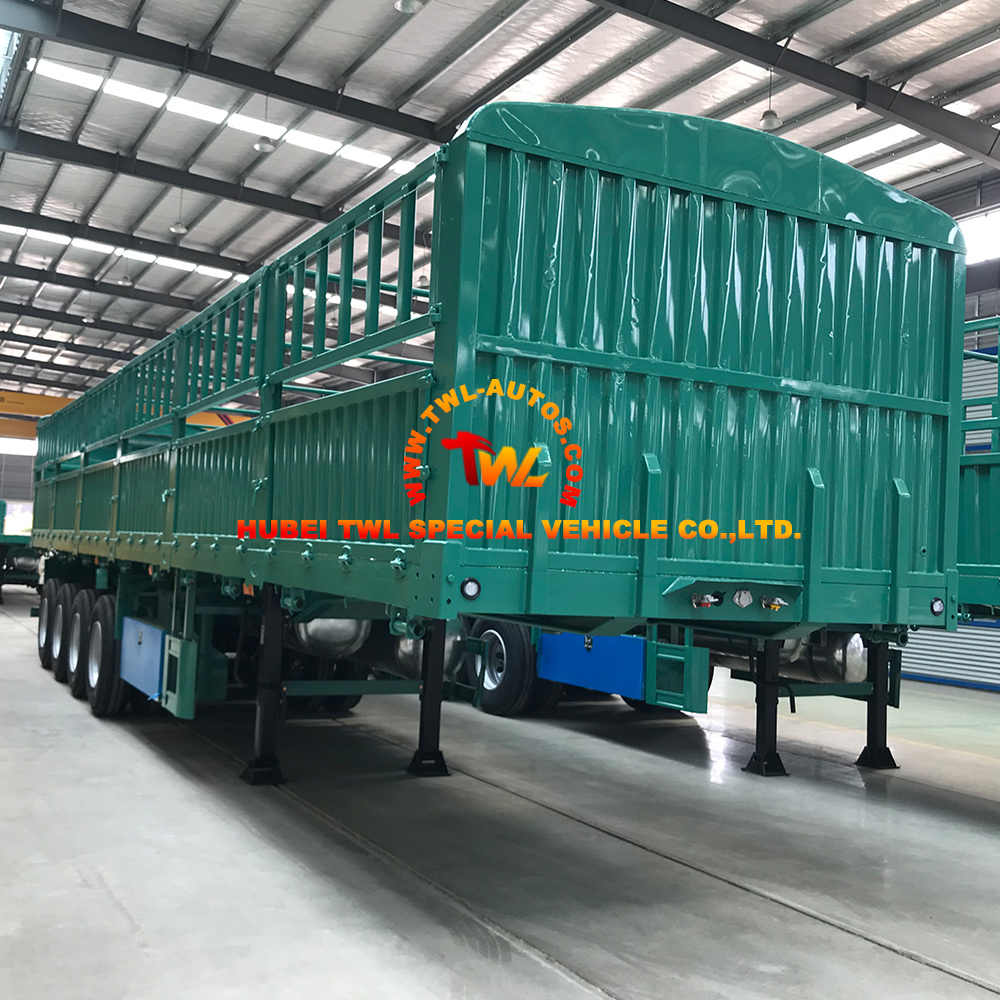

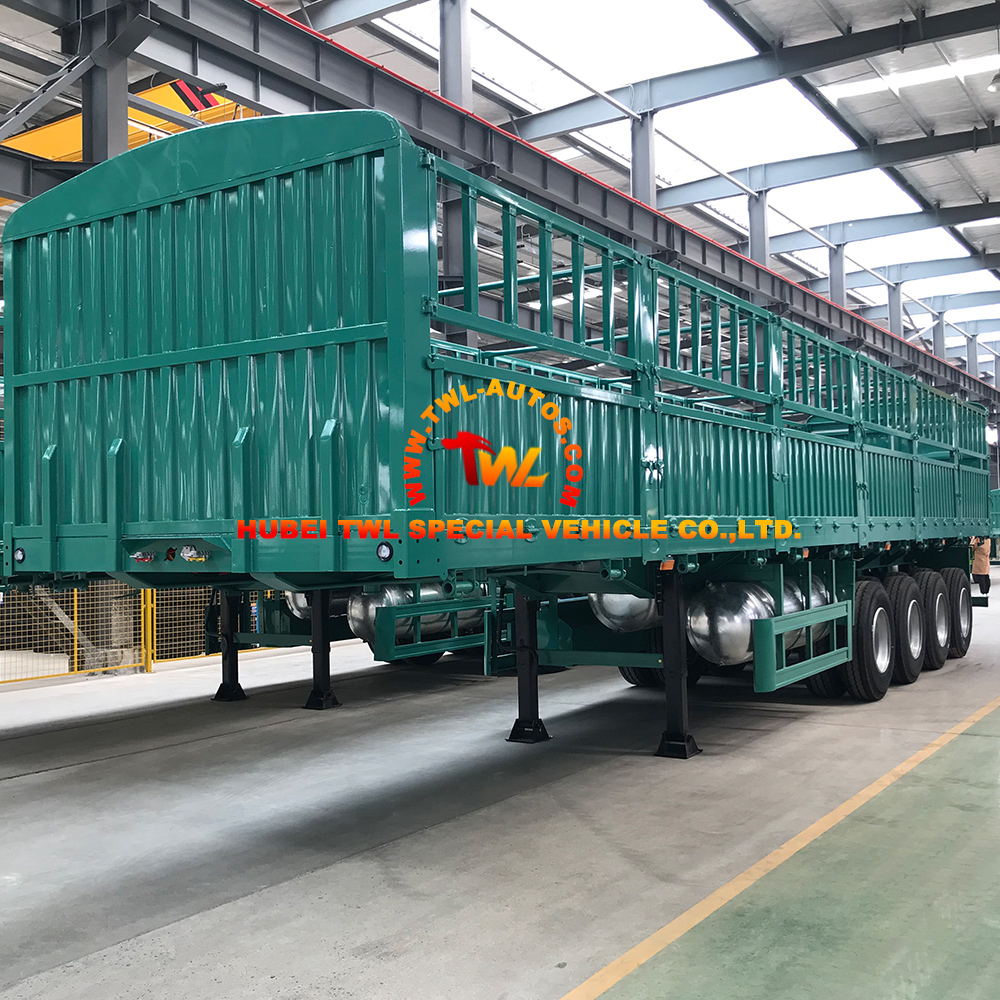

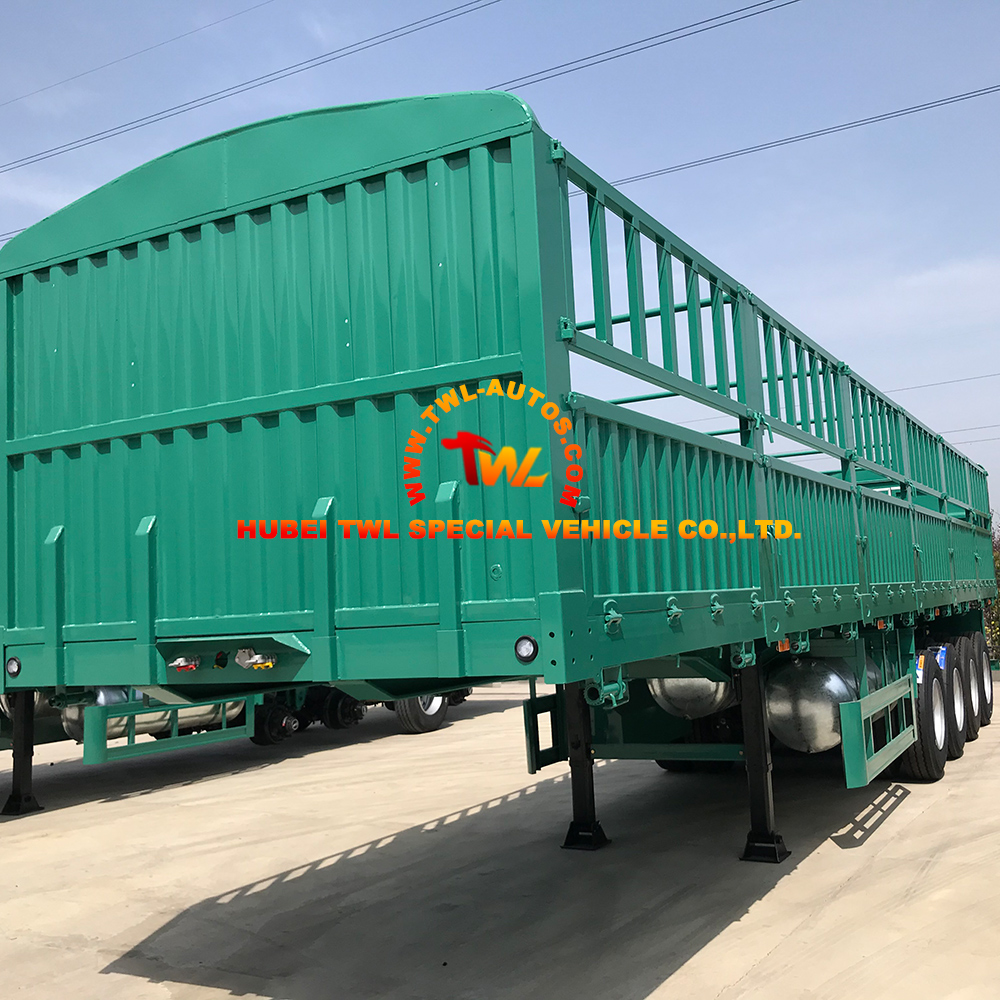

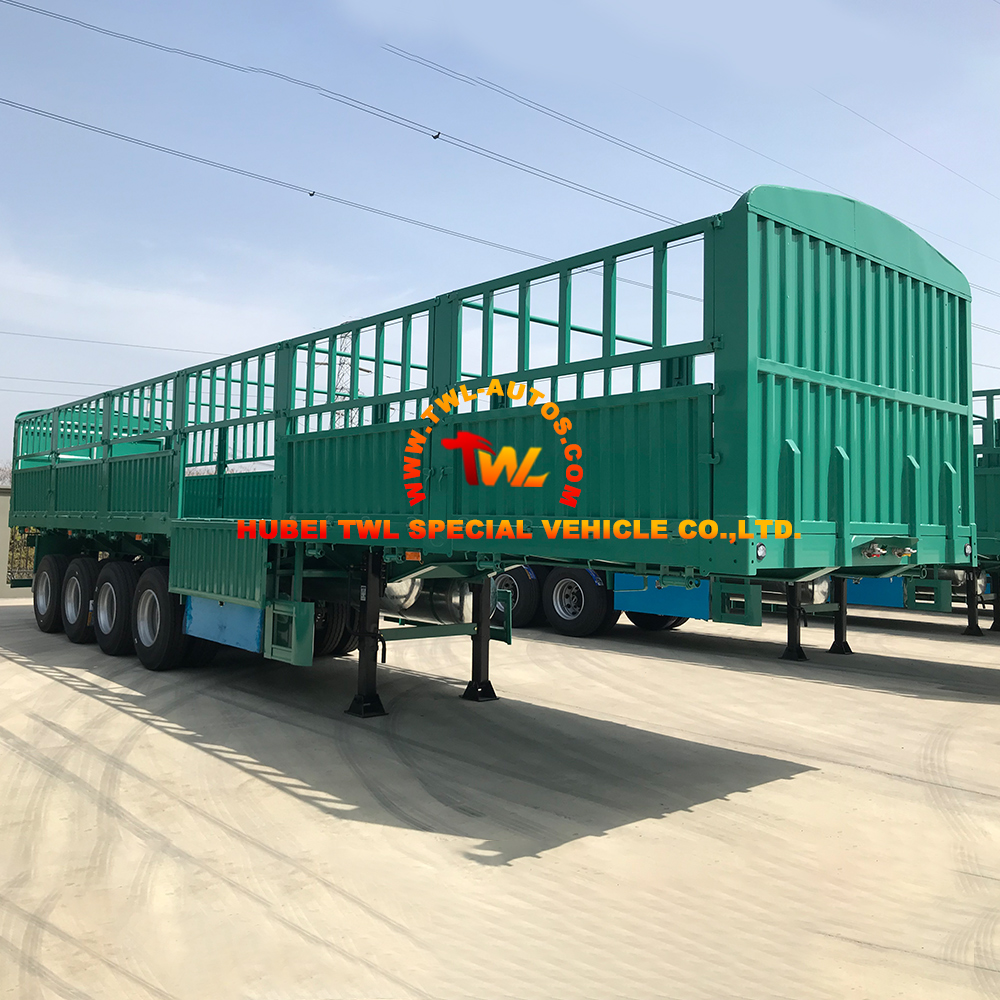

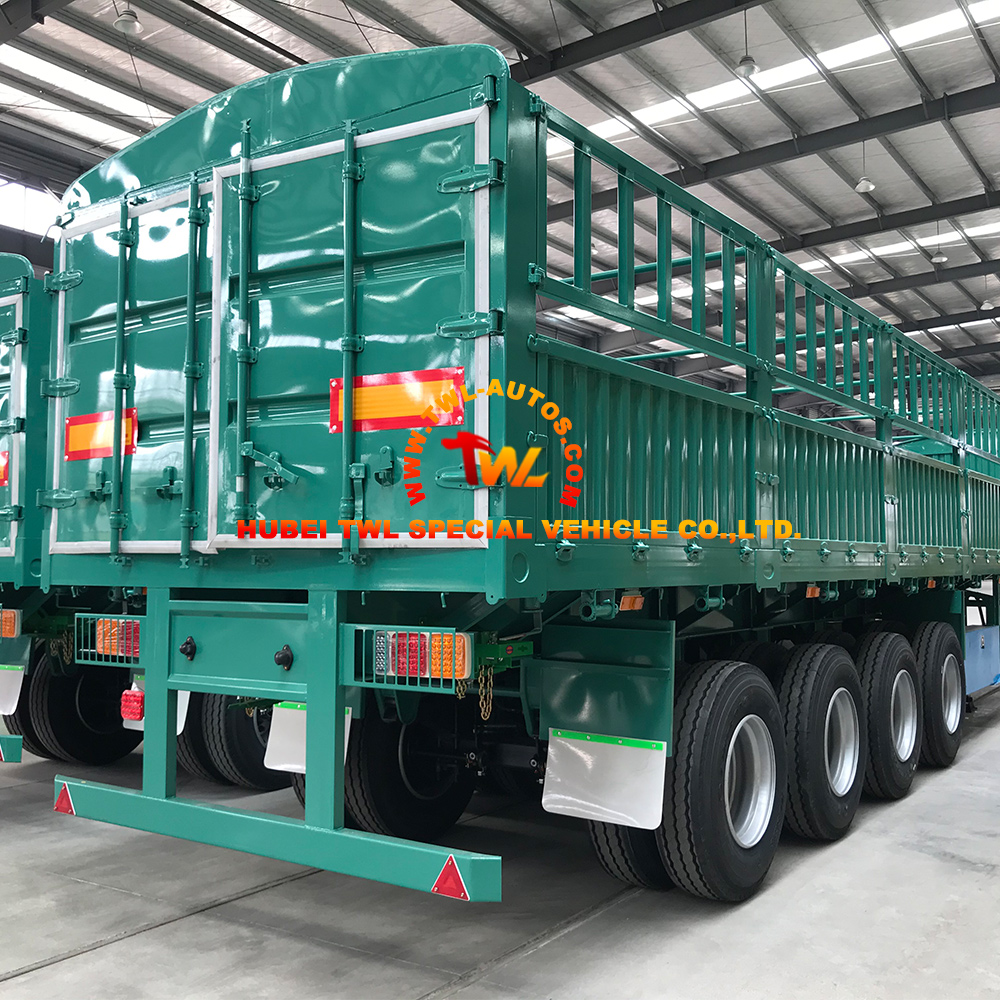

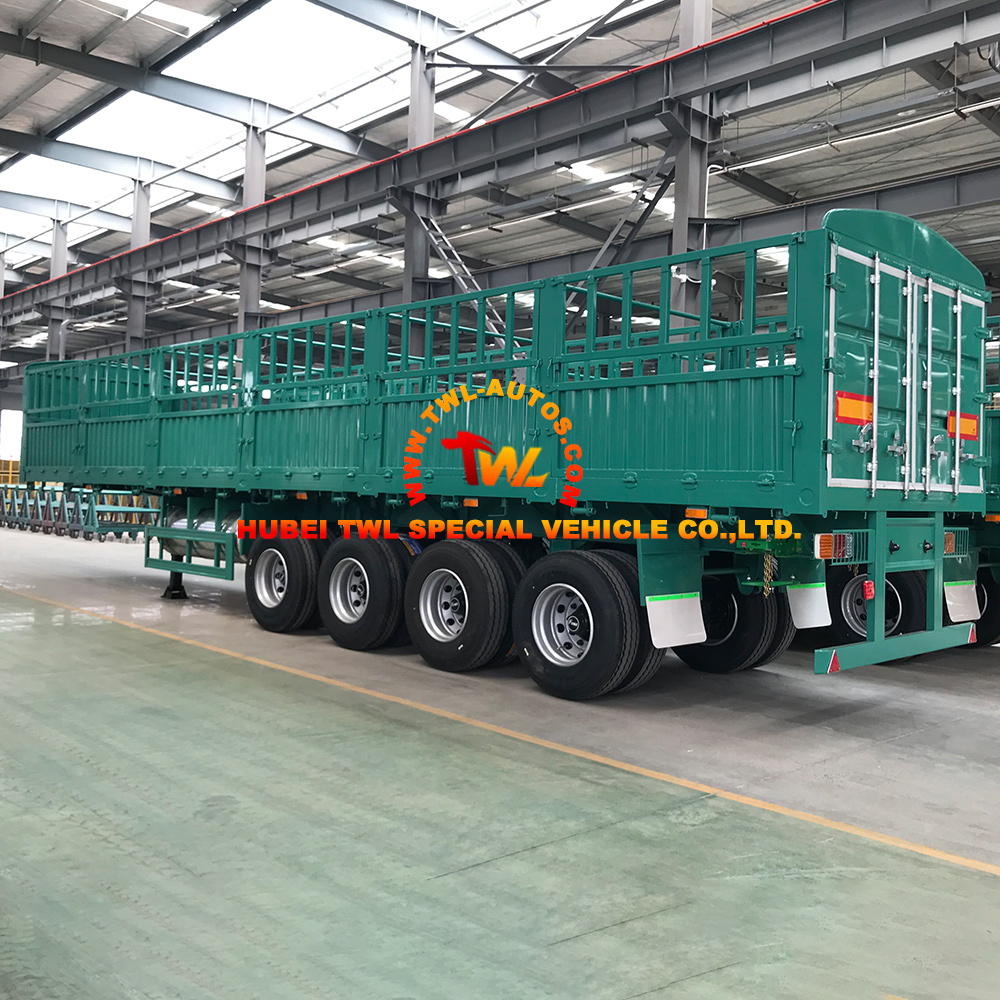

This 4 Axle 80Tons Fence Stake Side Wall Semi trailer is designed for robust performance and versatility in transporting heavy cargo. Equipped with four 13-ton axles, including a front liftable axle, and a combination of mechanical and airbag suspension systems (one airbag, three leaf spring sets), it ensures smooth operation and load stability. Built with JOST 28-ton two-speed landing gear and JOST king pin, it supports container transport efficiently. The trailer features 12 twist locks for secure container handling, a customizable fence/side wall height (1500mm standard, 1000+500mm or custom), and 16 tires (12R22.5) including one spare.
The manufacturing process ensures superior quality, including precision plasma cutting, specialized I-beam submerged arc welding, blasting for surface preparation, electrophoresis coating, epoxy zinc primer application, and thorough assembly of all components. Final packaging is customized according to client requirements.
Key Features
1. Heavy-Duty & Reliable: Four 13-ton axles with liftable front axle and advanced suspension ensure stable, safe, and reliable transport of heavy loads.
2. High-Quality Manufacturing: Utilizes precision plasma cutting, I-beam welding, and multi-step surface treatment (blasting, electrophoresis coating, epoxy zinc primer) for long-lasting durability and corrosion resistance.
3. Flexible Design: Fence/side wall height and trailer configuration can be customized to meet specific cargo requirements.
4. Efficient Loading: 12 twist locks allow for secure container loading and quick operations.
5. Comprehensive Assembly: Includes all essential components such as tires, rims, king pin, landing gear, suspension, brake system, air and electrical wiring, ensuring ready-to-use delivery.
Product Specification
| size | 13000x2500x3250mm |
| payload | 60tons, or 80tons. |
| tare weight | 10000kg |
| axle | 3x13ton/14ton/16ton/20ton BPW, FUWA, L1, HJ, CLW brand can be opentional |
| suspension | mechanical suspension/air suspension/american type/germany type can be opentional |
| tire | 11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional |
| wheel rim | 8.25/9.0/8.0/8.5 |
| kingpin | 2″/3.5″ |
| I beam | up:14mm;bottom:16mm;middle:8mm;height:500mm;width:140mm:material:Q345B |
| landing gear | jost c200 /fuwa two speed 28ton |
| floor/side board | floor:4mm/board:3mm |
| twist lock | (opentional) |
| spare tire carrier | 2 pcs |
| tool box | 1 or more can be opentional |
| air wiring | doule air line ; |
| electricity wiring | 6 core wiring;24v or 12v ;LED lamp; |
| brake system | wabco relay valve;drum brake;t30/30 brake chamber |
| paiting | complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime; 2 coats of final paiting |
| cylinder | 130#/140# 5pcs/6pcs opentional |
| accessories | brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp |
4 Axle 80Tons Fence Stake Side Wall Semi trailer
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
