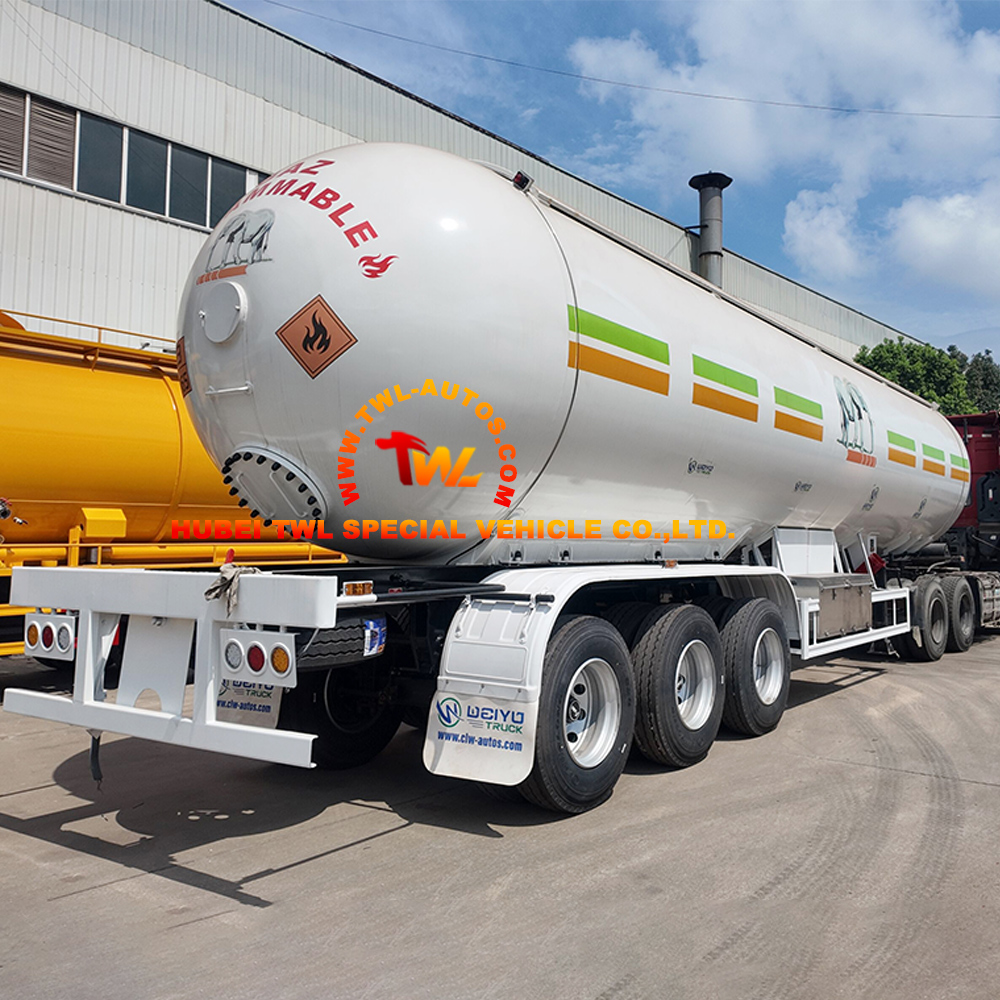

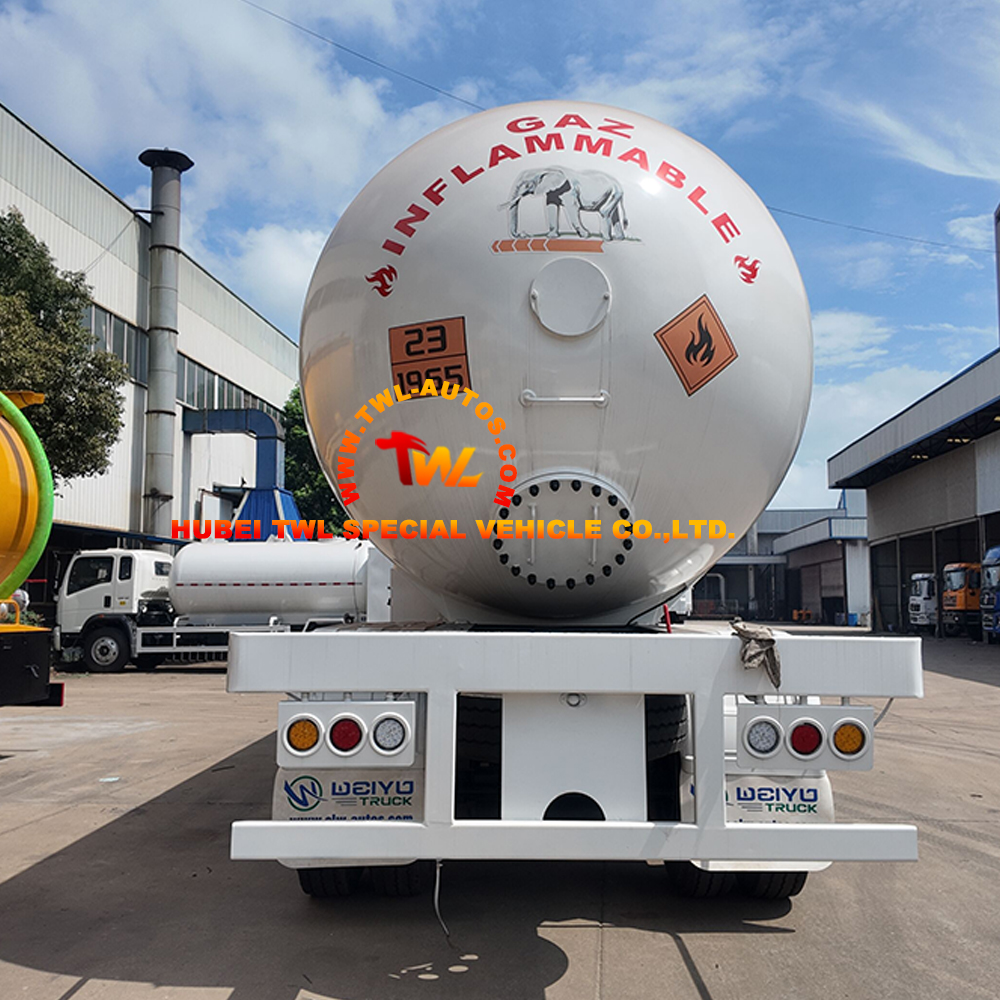

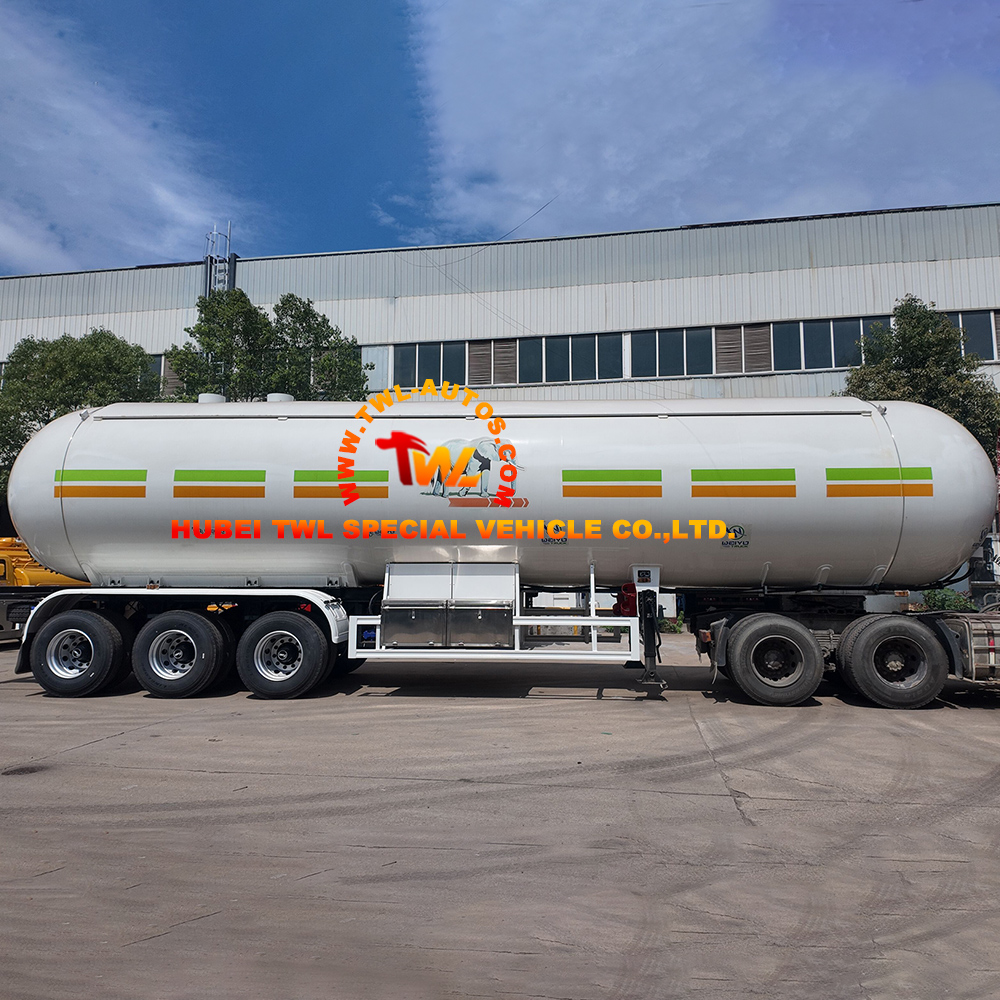

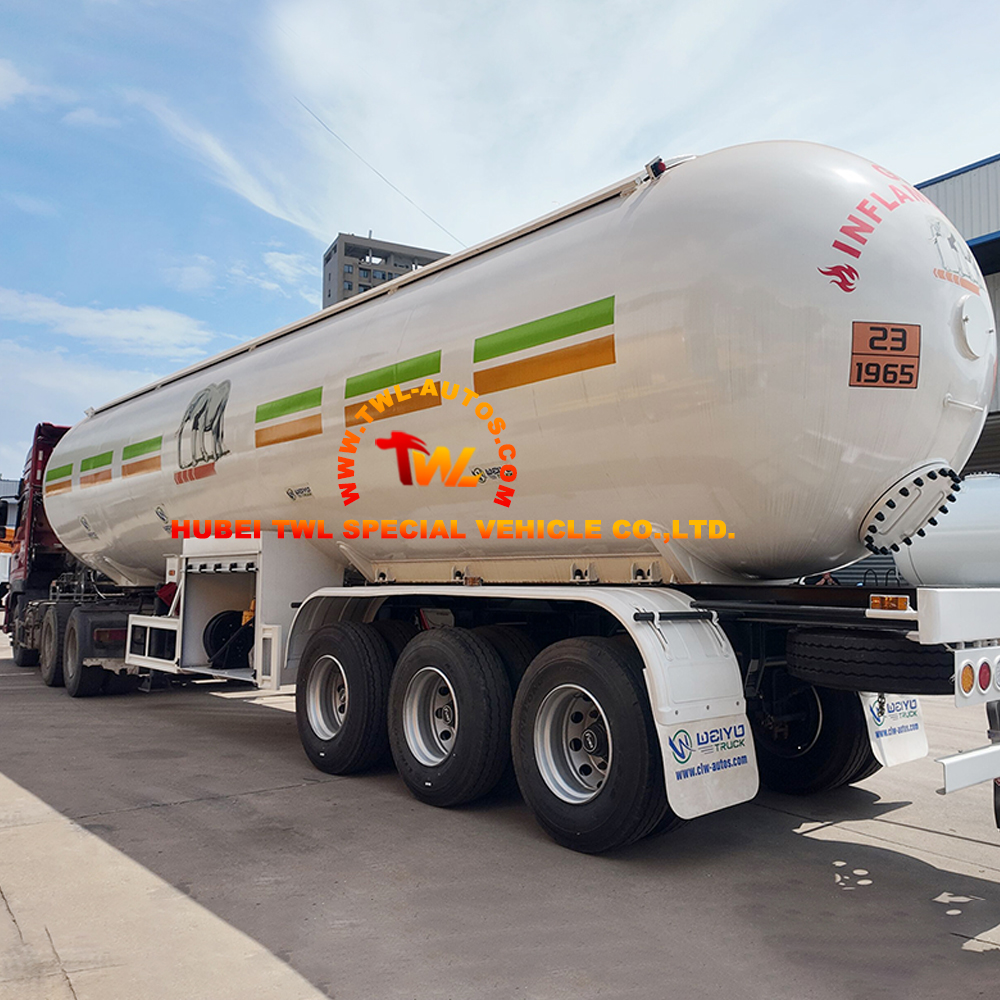

30mt 61.9cbm Propane Gas Tanker Trailer
An LPG trailer is a specialized tanker designed for the safe and efficient transportation of Liquefied Petroleum Gas (propane gaz and butane gaz) over the road. These trailers are critical components in the energy supply chain, primarily used for delivering fuel from bulk storage terminals to industrial facilities, commercial businesses, agricultural operations, and domestic distribution points. They enable the reliable supply of this essential, clean-burning fuel for heating, cooking, vehicle power, and industrial processes.
30mt 61.9cbm Propane Gas Tanker Trailer
Our 61.9 CBM LPG Semi-Trailer is engineered to meet these diverse demands with a focus on safety, durability, and operational excellence. Here are its standout features:
Robust Tank Design & Safety Compliance
· High-Capacity Vessel: Constructed with 61.9 CBM volume and a 41,000 kg gross weight rating for maximum payload efficiency.
· Premium Material & Build: Tank body made from 12mm Q345R steel with 14mm elliptical end plates, ensuring structural integrity. Features a 1.0mm corrosion allowance and a full 1.0 weld joint factor.
· Pressure-Rated for Safety: Designed to handle LPG’s volatile nature with a 1.61 MPa / 16.1 bar working pressure, rigorously tested at 2.12 MPa / 21.2 bar.
Reliable & Efficient Filling System

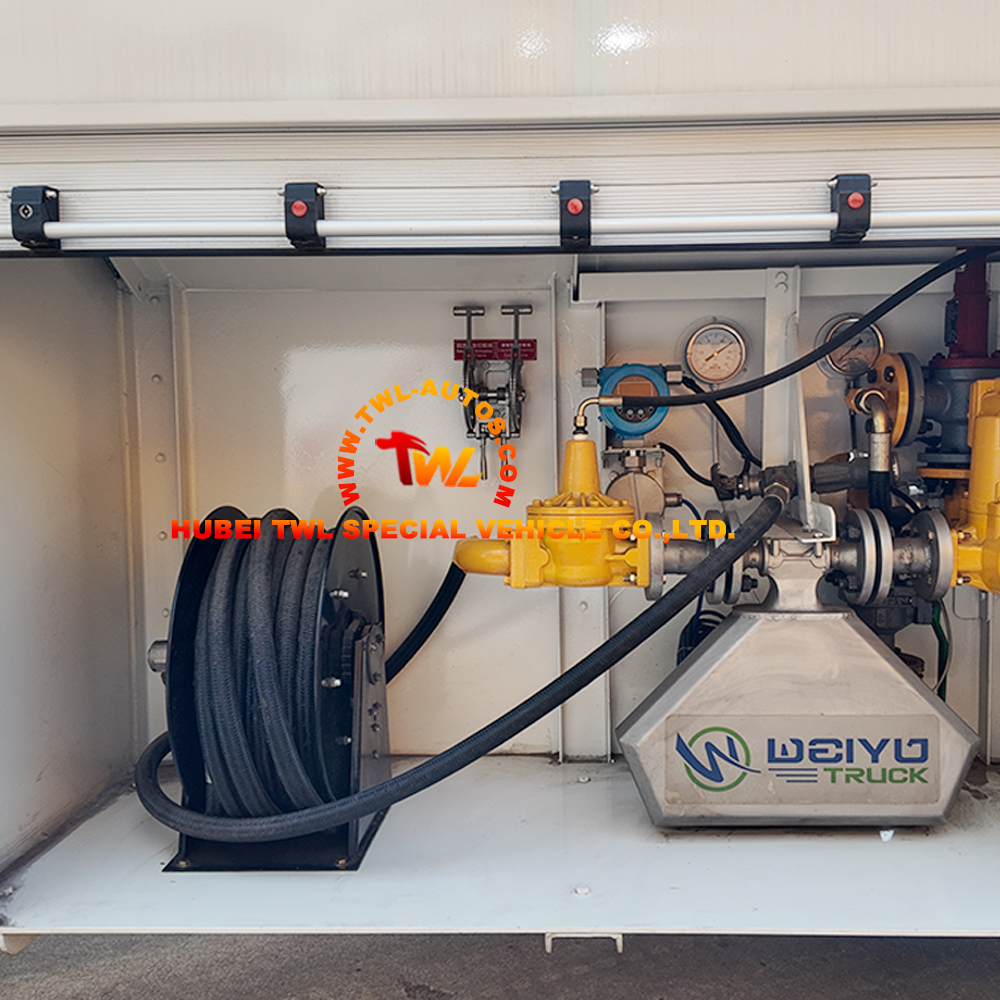

Fast Pumping: Powered by a high-performance USA CORKEN Z2000 LPG Vane Pump with a hydraulic motor for quick, reliable unloading.
Accurate Metering: Integrated Coriolis Mass Flow Meter ensures precise measurement and billing.
Complete Transfer Kit: Includes a 15-meter filling hose, REGO brand filling gun, and standard vapor/liquid phase connections for universal compatibility.
Comprehensive Safety & Monitoring Suite
· Critical Gauges: Equipped with a Rochester floating ball level gauge, pressure gauge, and thermometer for real-time tank status monitoring.
· Multiple Safety Shut-offs: Features an emergency shut-off handle and a truck emergency brake button for rapid response.
· Built-in Protection: Includes safety valves and an electrostatic conduction band to prevent hazardous static discharge.
Durable Chassis & Running Gear
· Heavy-Duty Axles: Fitted with three 13-ton FUWA axles for superior load-bearing capacity and road stability.
· Proven Components: Utilizes a JOST king-pin and mechanical leaf spring suspension for reliable coupling and durability.
· Full Equipment: Comes with 12R22.5 tires (12+1 pcs), fenders, tire carriers, a sun shelter, and a DN450 manhole for easy maintenance access.
This trailer is finished with a corrosion-resistant primer and topcoat, ready for your company’s logo. It is the ideal LPG transport solution for businesses seeking a dependable, safe, and high-capacity asset for their logistics fleet.
Product Specification
| Overall Technical Parameters | |
| Capacity of Tank | 61.9CBM |
| Overall Dimensions(L*W*H) | 13350*2550*3995mm |
| Curb Weight (kg) | 15000 |
| Total Weight(kg) | 41000 |
| Loading medium | Liquefied Petroleum Gas (propane&butane) |
| Fluid Property | Flammable |
| Design Temperature | -19 ℃~+50 ℃ |
| Design Working Pressure | 1.61 Mpa/16.1 Bar |
| Hydraulic Testing Pressure | 2.12 Mpa/ 21.2 Bar |
| Corrosion Allowance(mm) | 1 |
| Weld Joint Factor | 1 |
| Materials and Thickness | Tanker Body: Q345R, 12mm |
| End plate: Q345R, 14mm, Elliptical | |
| Baffles: Q345R | |
| Upper Structure | |

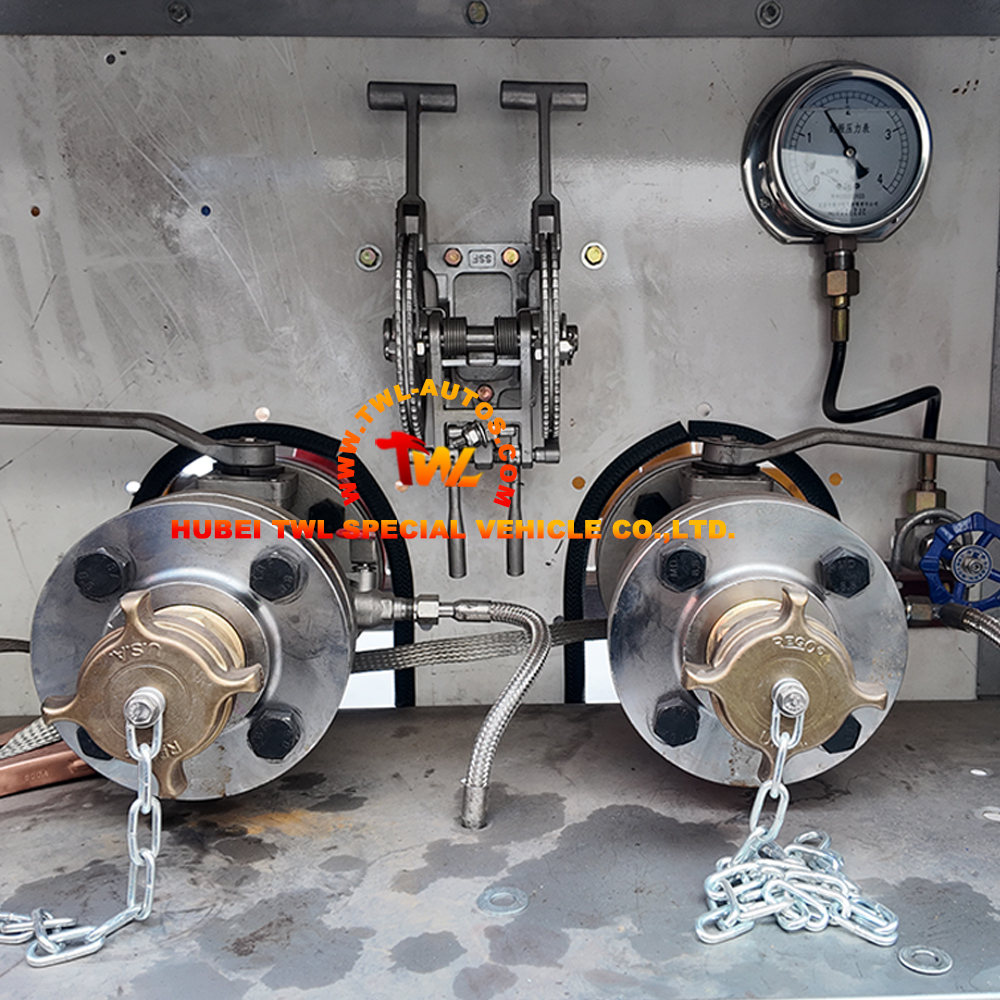

| Filling system | LPG Vane Pump: USA brand CORKEN Z2000 & Hydraulic Motor |
| Vapour & Liquid Phase: Threaded type with Rego connector and cap | |
| Flow Meter: Chinese brand Coriolis Mass Flow Meter | |
| Filling Hose: 15 meters long rubber hose | |
| Filling Gun: 1pcs, Rego brand | |
| Level Gauge: Rochester floating ball level gauge | |
| Pressure Gauge x1 | |
| Thermometer x1 | |
| Safety Equipment | Emergency Shut-off Handle |
| Truck Emergency Brake Button | |
| Safety Valves | |
| Running System | |
| Axles | 13T FUWA Axles x 3 units |
| Suspension | Mechanical suspension with leaf spring |
| King-pin and Coupling | JOST king-pin |
| Tire | 12R22.5, 12+1 pcs |
| Other Details | |
| Sun shelter | On top of the tanker |
| Manhole | 1 pc, DN450 |
| Fire Extinguisher holder | 2 pcs |
| Fender | 2 pcs |
| Tire Carrier | 2 pcs |
| Electrostatic conduction band | 1 pc |
| Painting and Logo | Two coats of primer, one coat of surface painting |
| Customized color of tanker body with client’s logo | |
