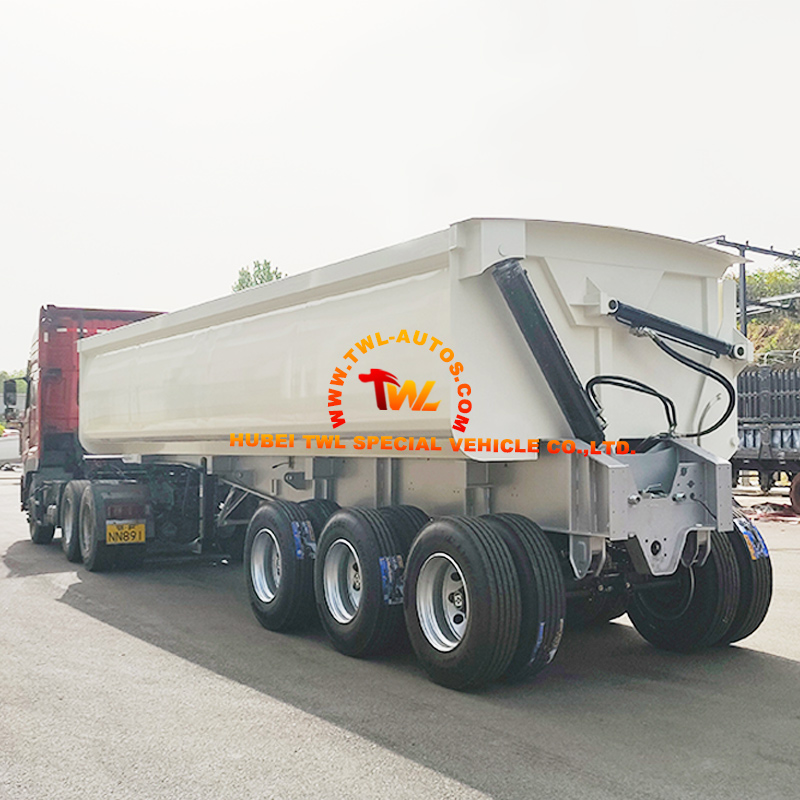

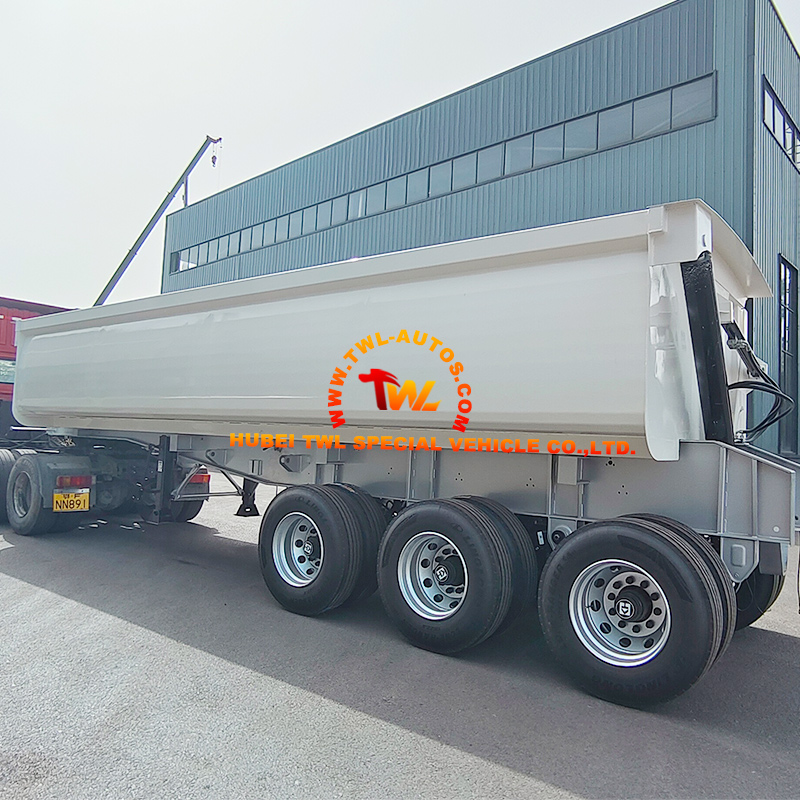

3-Axle ADR Compliant Side Tipper Semi Trailer
TWL 3-axle ADR side tipper trailers are engineered for durability, stability, and high payload performance. Fully compliant with Australian ADR standards, they are an ideal solution for heavy-duty bulk transport across mining and construction sectors.
3-Axle ADR Compliant Side Tipper Semi Trailer
Our 3-Axle ADR-Compliant Side Tipper Trailer is purpose-built for demanding Australian transport conditions. Designed to fully meet Australian Design Rules (ADR), this heavy-duty side tipper delivers outstanding stability, safety, and efficiency for bulk material transport.
With a high-tensile steel chassis, reliable hydraulic tipping system, and premium brand components (FUWA, JOST, WABCO), this trailer is widely used across mining, construction, agriculture, and waste management sectors in Australia.
Built for long service life and low maintenance, it is also customizable for 40HQ and 40FR container shipping, ensuring cost-efficient international delivery.
Key Features
1. ADR-Compliant for Australian Operations
TWL 3-axle side tipper trailers are designed and manufactured in full compliance with Australian Design Rules, ensuring legal road use, high safety standards, and smooth registration across different Australian states. This compliance makes them a reliable choice for long-term fleet deployment in Australia.
2. Heavy-Duty and Durable Construction
The trailer features a high-tensile steel fabricated I-beam chassis with a strength rating of 345 MPa, providing excellent resistance to fatigue and deformation. Automatic submerged-arc welding guarantees consistent structural quality, allowing the trailer to withstand harsh mining, construction, and off-road working conditions.
3. Stable 3-Axle Load Distribution
With three high-capacity axles, the trailer offers improved load balance and driving stability when carrying heavy bulk materials. This configuration reduces stress on individual axles, enhances handling performance, and supports payloads of up to 40 tonnes during long-distance transport.

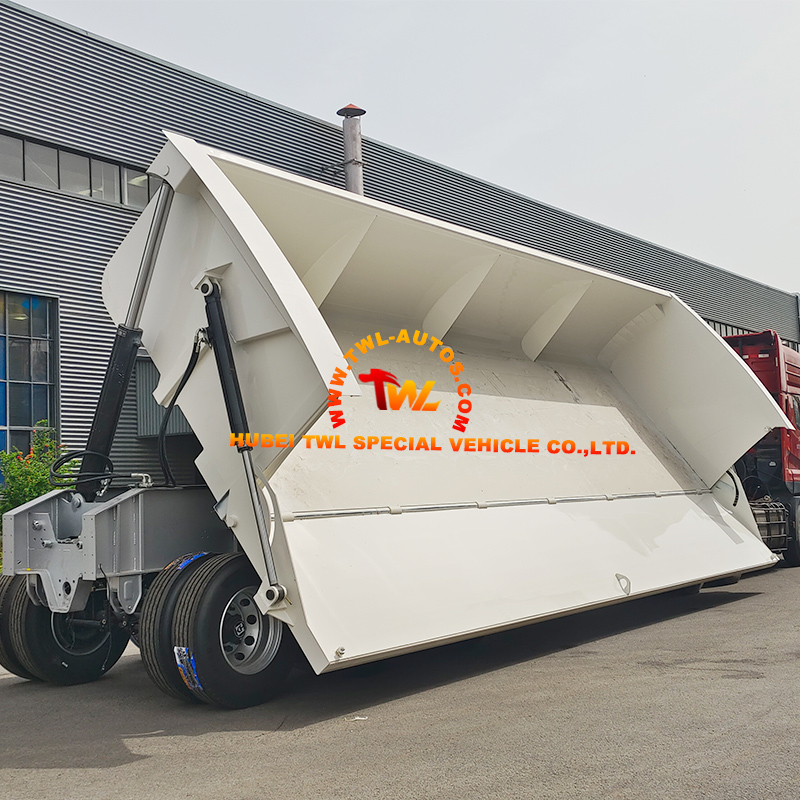

4. Efficient and Safe Side Tipping System
The dual hydraulic side tipping cylinders deliver smooth, controlled, and fast unloading, improving overall operating efficiency. This side tipper design reduces unloading time while maintaining a high level of safety during material discharge.
5. Low Maintenance and Long Service Life
Reinforced structural components combined with premium braking and running gear significantly reduce maintenance frequency and downtime. This design approach helps lower total operating costs and extends the service life of the trailer.
6. Flexible Customization Options
TWL offers a wide range of customization options, including suspension types, wheel rims, kingpin sizes, road-train brackets, and container loading solutions. Each trailer can be tailored to specific operational requirements and Australian transport conditions.
Product Specification
| Category | Item | Specification |
| General | Overall Length | 34 FT (10,500 mm) |
| Overall Width | 2,480 mm | |
| Overall Height | 2,840 mm | |
| Tare Weight | 8,500 kg | |
| Payload Capacity | Up to 40,000 kg | |
| Chassis & Body | Chassis Type | Heavy-duty fabricated I-beam, 345 MPa high-tensile steel |
| Welding Process | Automatic submerged-arc welding | |
| Finish | Sandblasted SA 2.5, 2K primer, 2-pack top coat | |

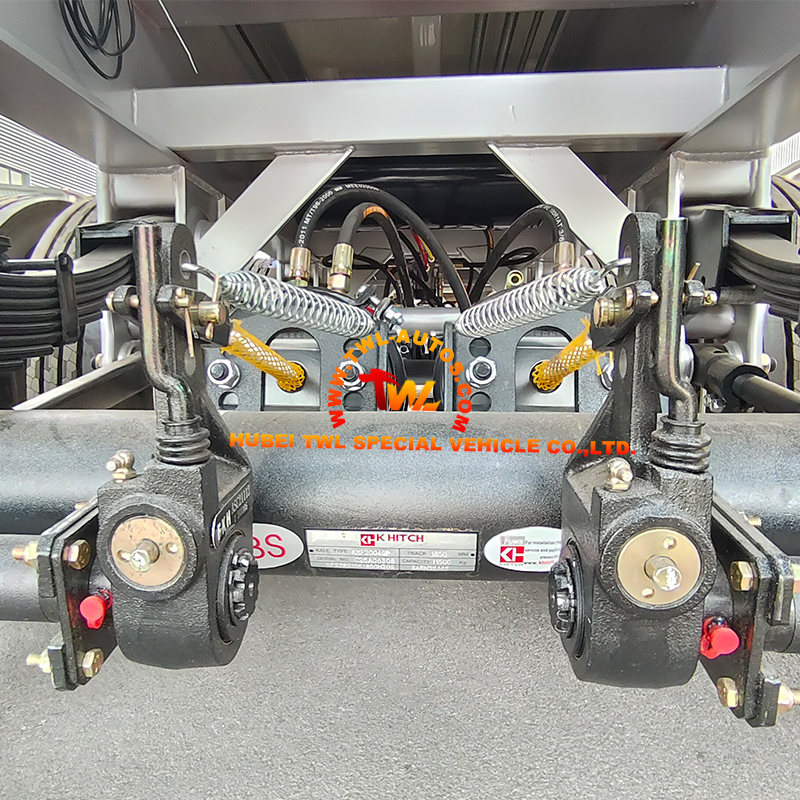

| Axles & Suspension | Axles | 3 × FUWA / K-HITCH, 11.5 tons each |
| Suspension | Mechanical, 10-leaf spring | |
| Optional Suspension | Air suspension | |

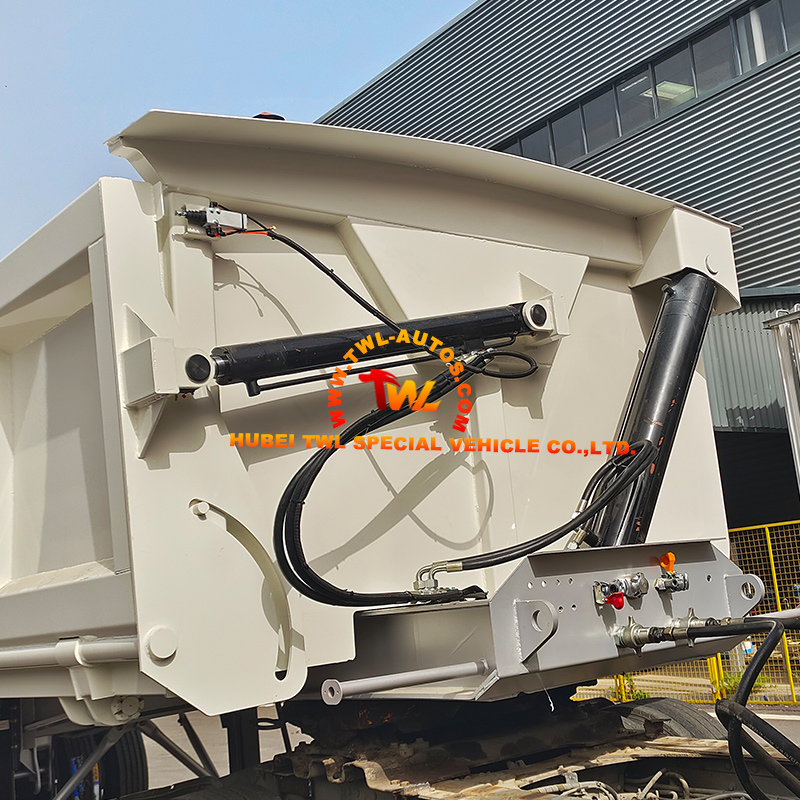

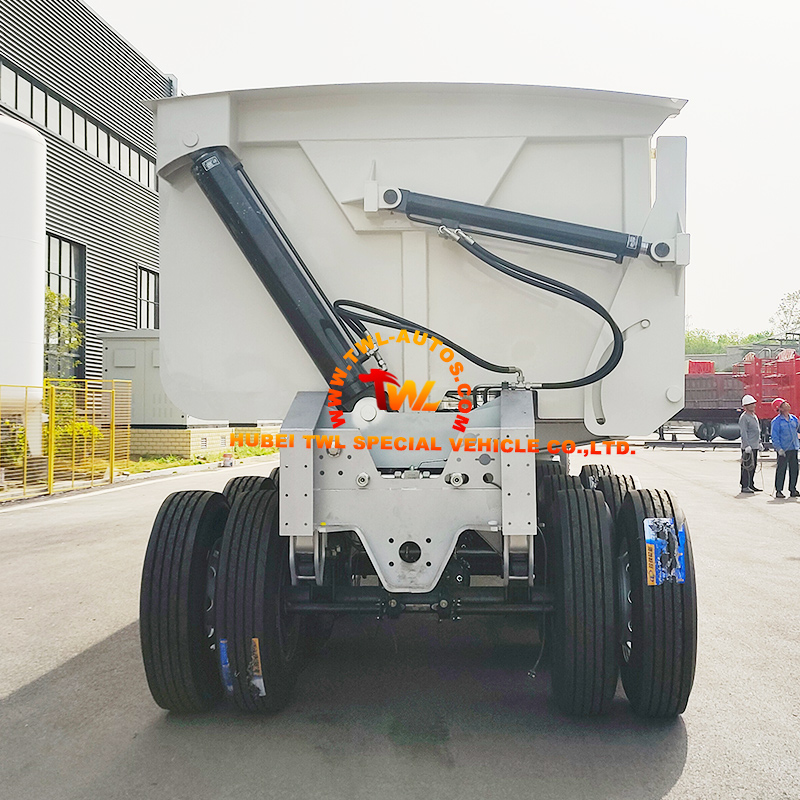

| Hydraulic System | Tipping Cylinders | Dual side tipping cylinders Ø150 mm |
| Door Cylinder | Ø80 mm | |
| Braking System | Brake Chambers | 3 × T30/30 spring brake chambers |
| Air Tanks | 40 L | |
| Brake Control | WABCO air braking system | |
| Running Gear | King Pin | JOST 50 mm or 90 mm (dual bosses) |

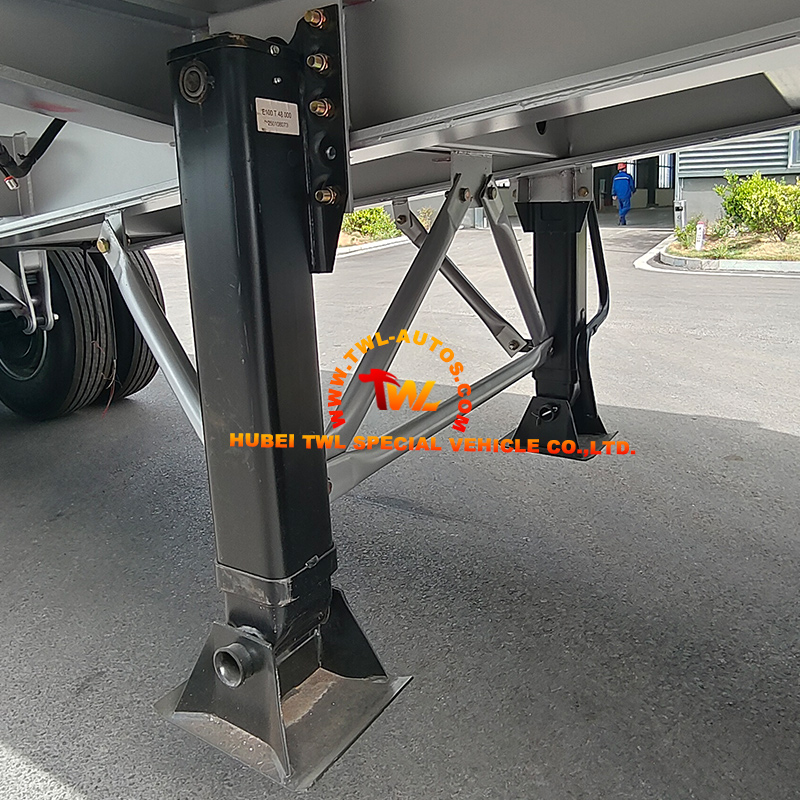

| Landing Gear | JOST two-speed, manual operation | |
| Wheels & Tires | Wheel Rims | 9.0R22.5, 10-stud steel rims (alloy optional) |
| PCD | 335 mm | |
| Spare Tire Rack | Dual swinging type | |
| Safety & Lighting | Mudguards | Spring-tension rubber over tri-axle group |
| Lighting | Orion ADR LED rear combination lights & side lights | |
| Wiring | ADR standard wiring with 7-pin socket | |
| Road Train | Road Train Bracket | 20 mm thick folded C-channel with reinforced gussets |
| Logistics | Container Loading | Suitable for 40HQ and 40FR container loading |
| Compliance | Certification | Australian ADR compliant |
