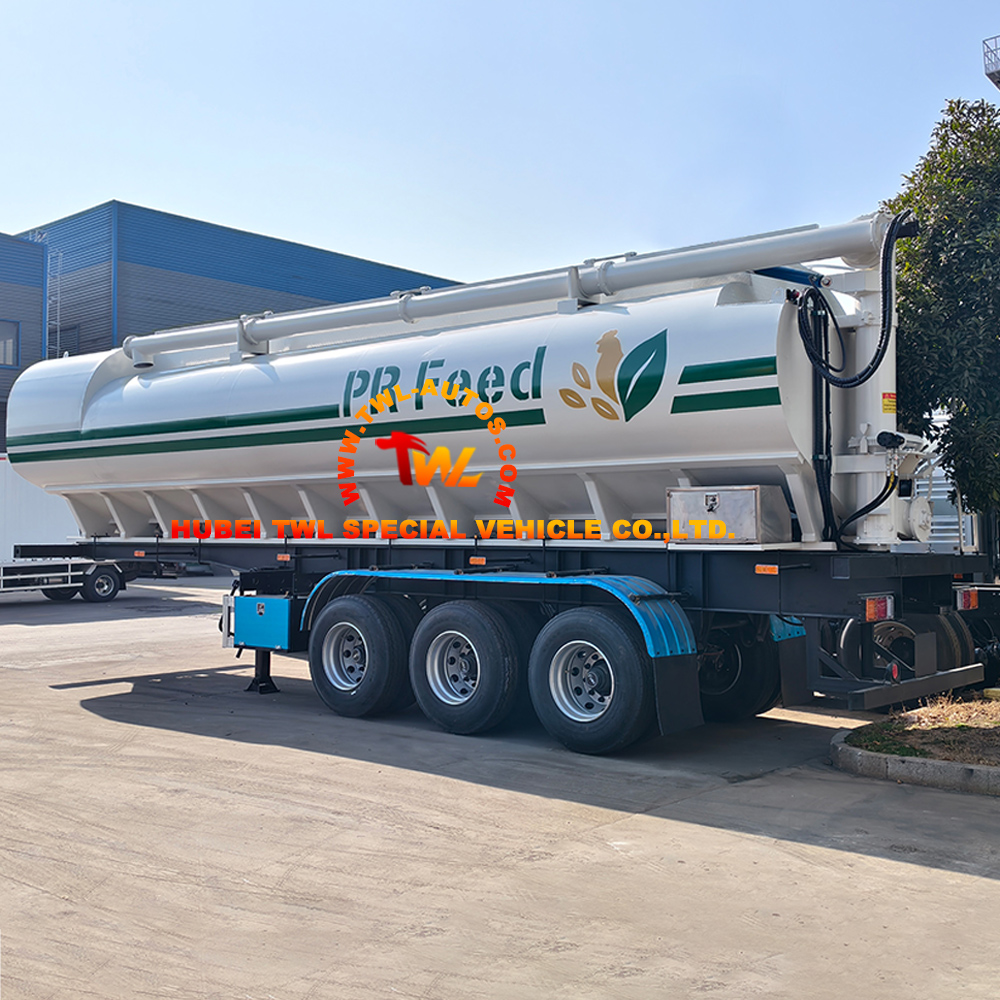

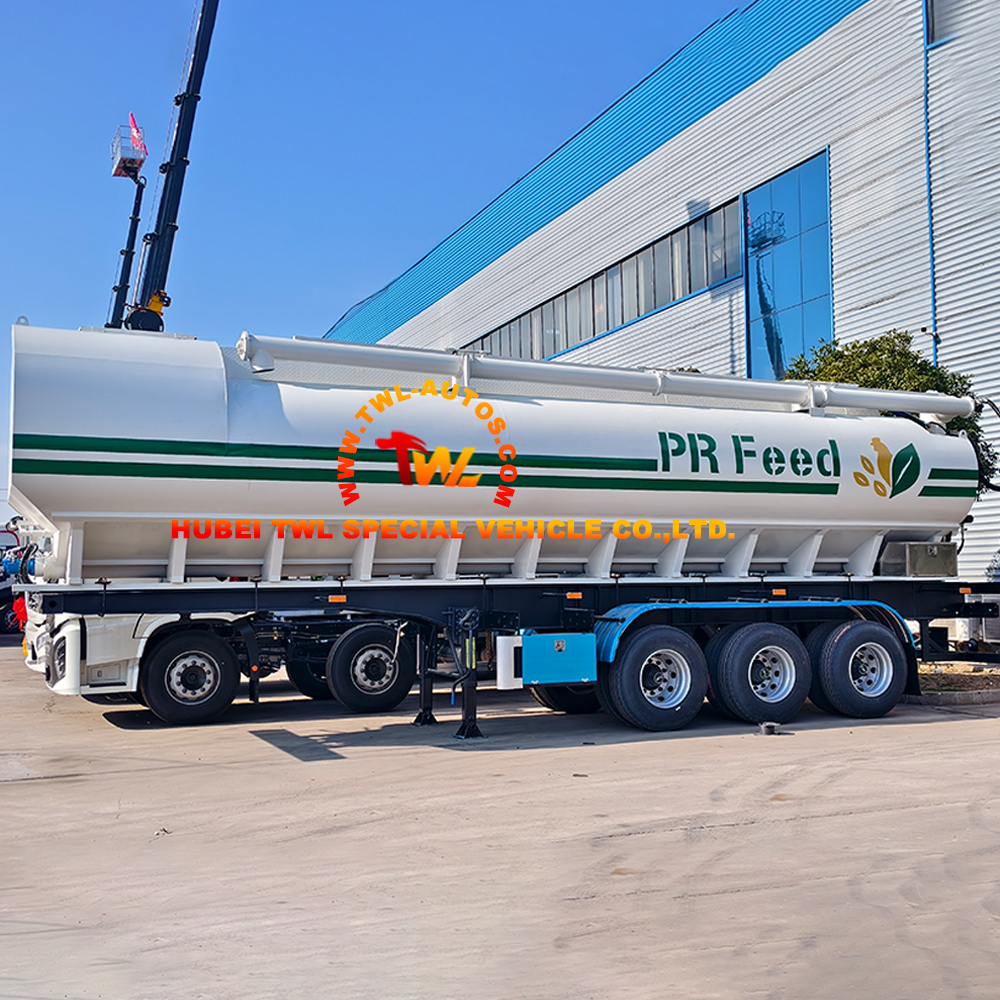

3-Axle 55m³ Aluminum Bulk Feed Semi-Trailer
Engineered for the demanding requirements of modern agricultural logistics, the 3-Axle 55m³ Aluminum Bulk Feed Semi-Trailer combines exceptional payload capacity with lightweight aluminum construction and high-speed hydraulic discharge. Designed for feed mills, farms, and logistics operators, this trailer delivers efficient, reliable transport of bulk feed, grains, and agricultural products with minimal residue and maximum operational efficiency.
3-Axle 55m³ Aluminum Bulk Feed Semi-Trailer

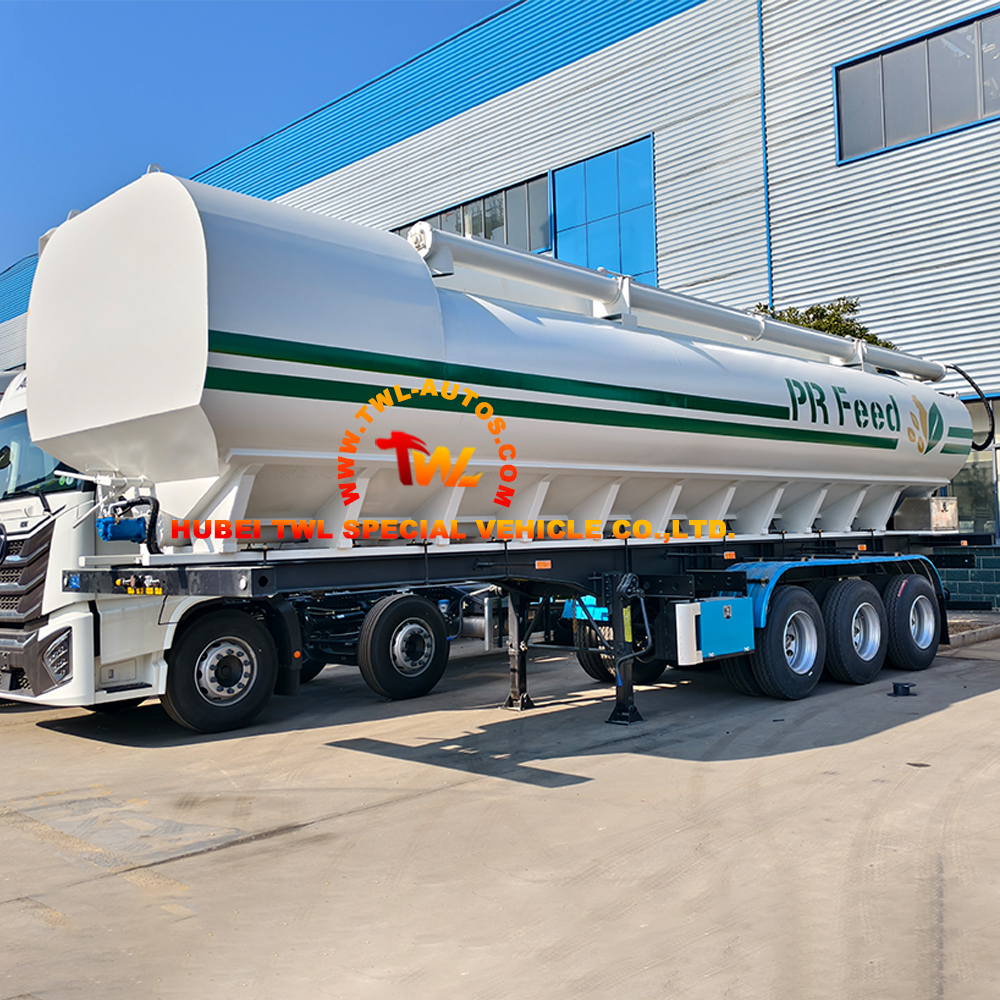

The 55m³ Aluminum Bulk Feed Semi-Trailer is a purpose-built transport solution designed to meet the unique challenges of bulk agricultural logistics. Constructed with a lightweight aluminum alloy tank mounted on a high-strength steel chassis, this trailer offers an optimal balance of payload capacity and structural durability. The 55 cubic meter volume is divided into five independent compartments, enabling the transport of multiple feed types in a single journey. The hydraulic discharge system features a top auger with 7.5-meter lift height and 180-degree rotation, delivering unloading rates of up to 750 kg/min. Built on a robust triple-axle chassis with FUWA axles and ABS braking, this trailer ensures stable performance across diverse road conditions.
Key Features:
· Lightweight Aluminum Alloy Tank: Constructed from high-strength aluminum alloy for maximum payload capacity. The unique elliptical top and square body design optimizes structural strength while minimizing weight. Curbside catwalk and rear ladder provide safe access for inspection and maintenance.

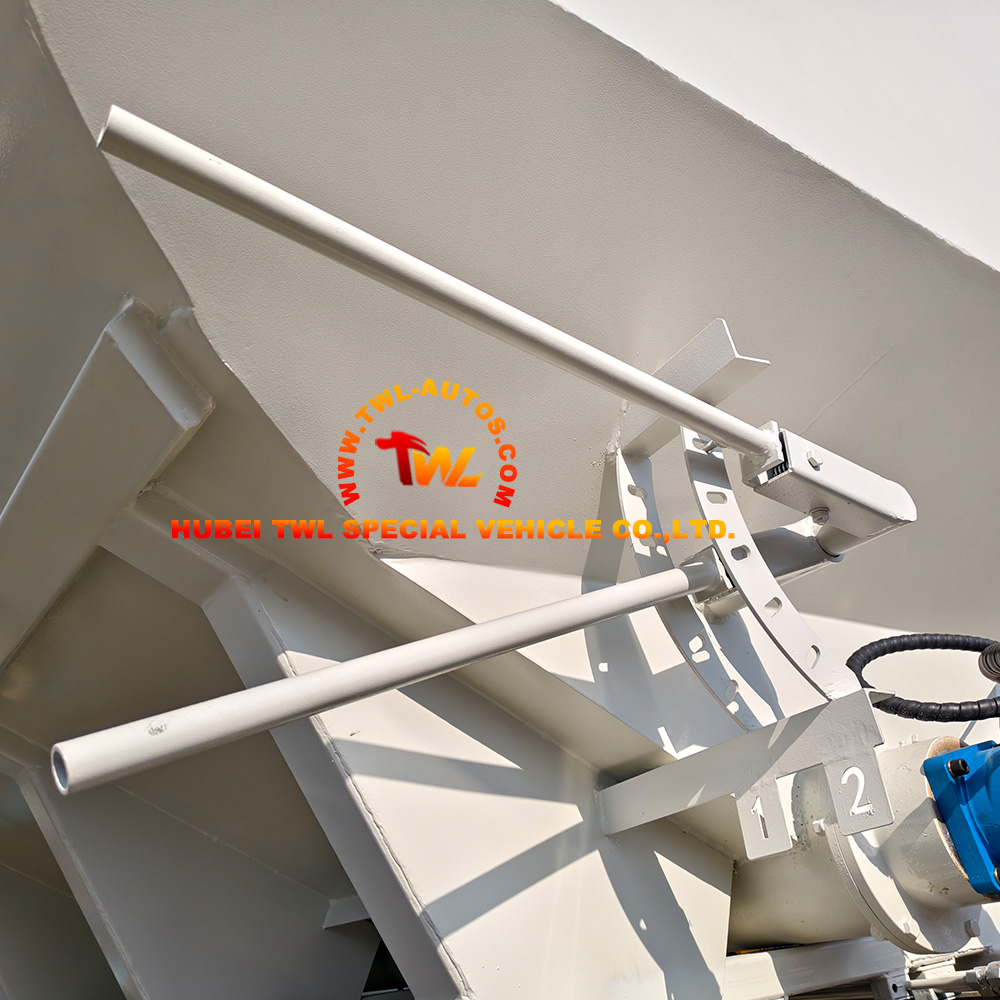

· 55m³ Capacity with 5 Independent Compartments: Five internal compartments enable transport of multiple feed types or formulations in a single load. Each compartment can be discharged independently, with sequence and speed controls allowing precise unloading operations from rear to front.

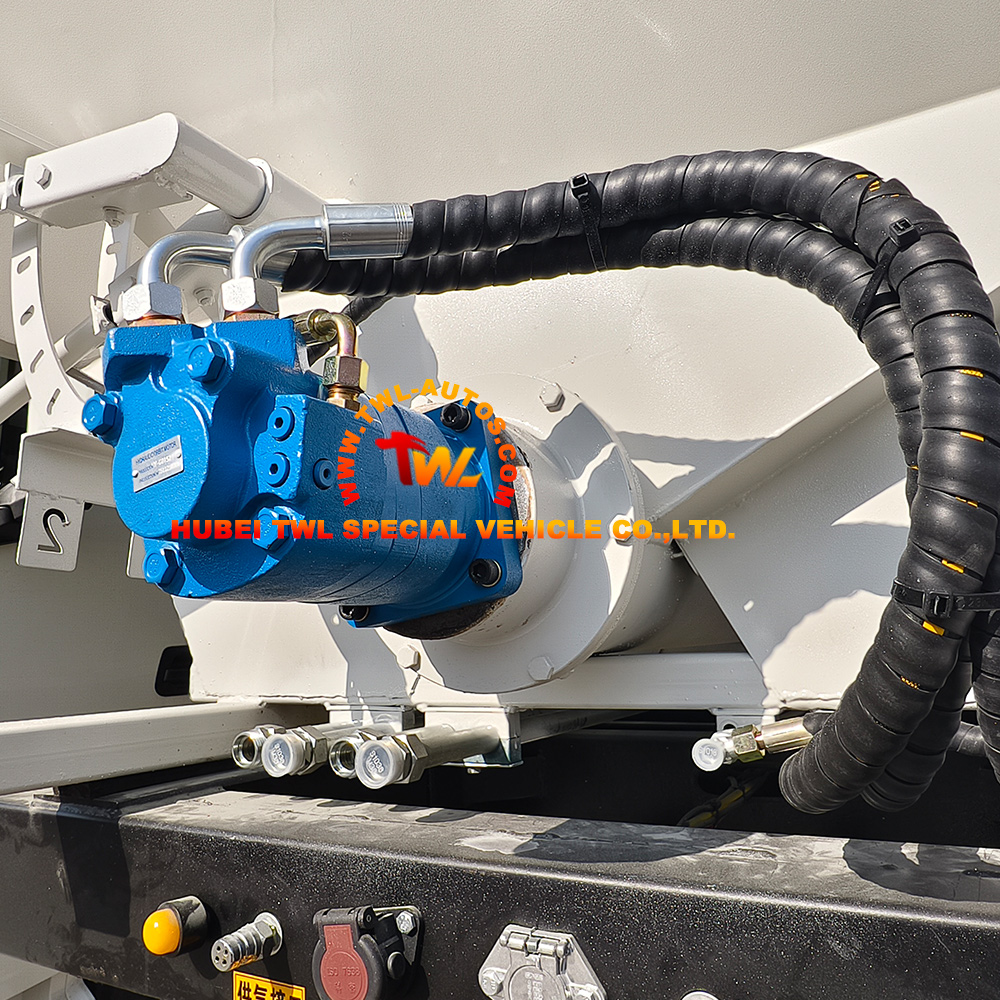

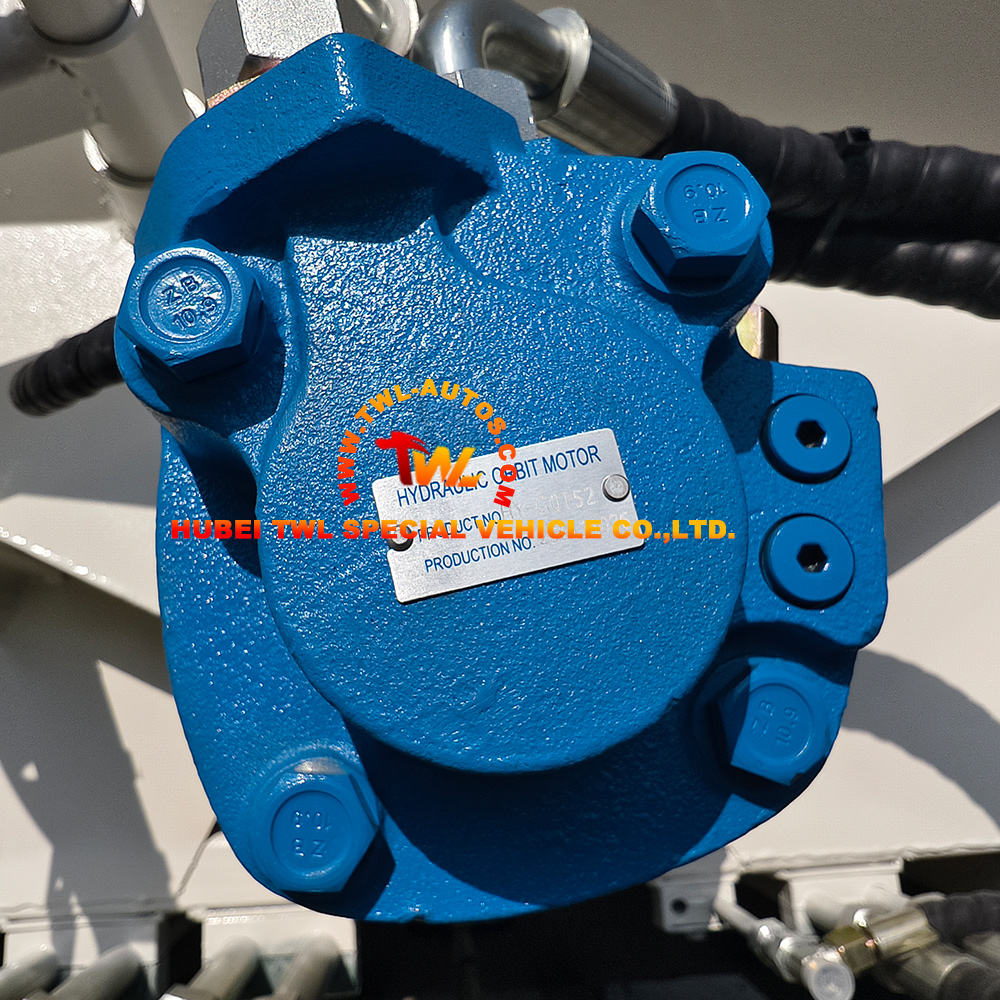

· High-Performance Hydraulic Discharge System: Powered by a hydraulic pump and motor system driving three augers with four hydraulic motors. The top auger features hydraulic lifting control and 180-degree rotation for flexible positioning. Unloading speeds of 650–750 kg/min significantly reduce turnaround time.
· High-Strength Steel Chassis: Features a 960mm wide main beam with 200/450mm high, 6mm thick web longitudinal girders constructed from high-tensile steel. This design provides exceptional anti-bending and deformation resistance for long-term durability.

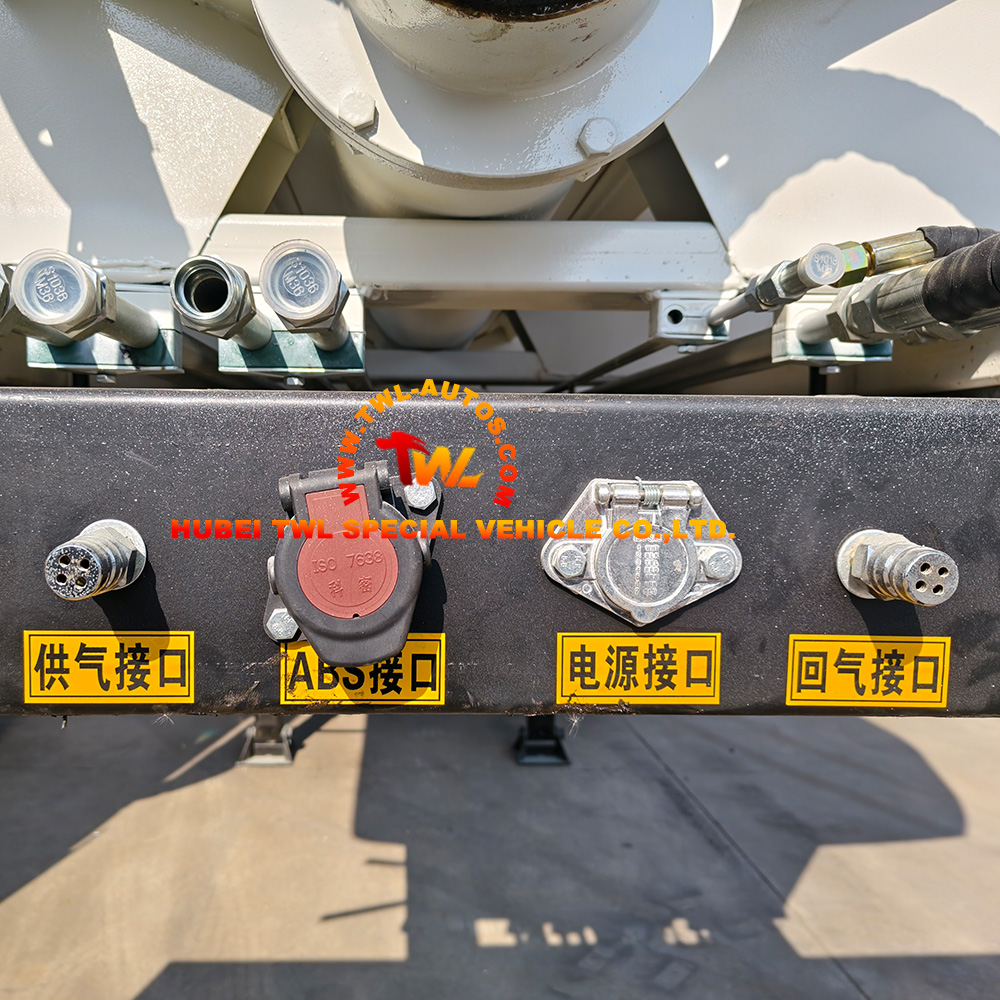

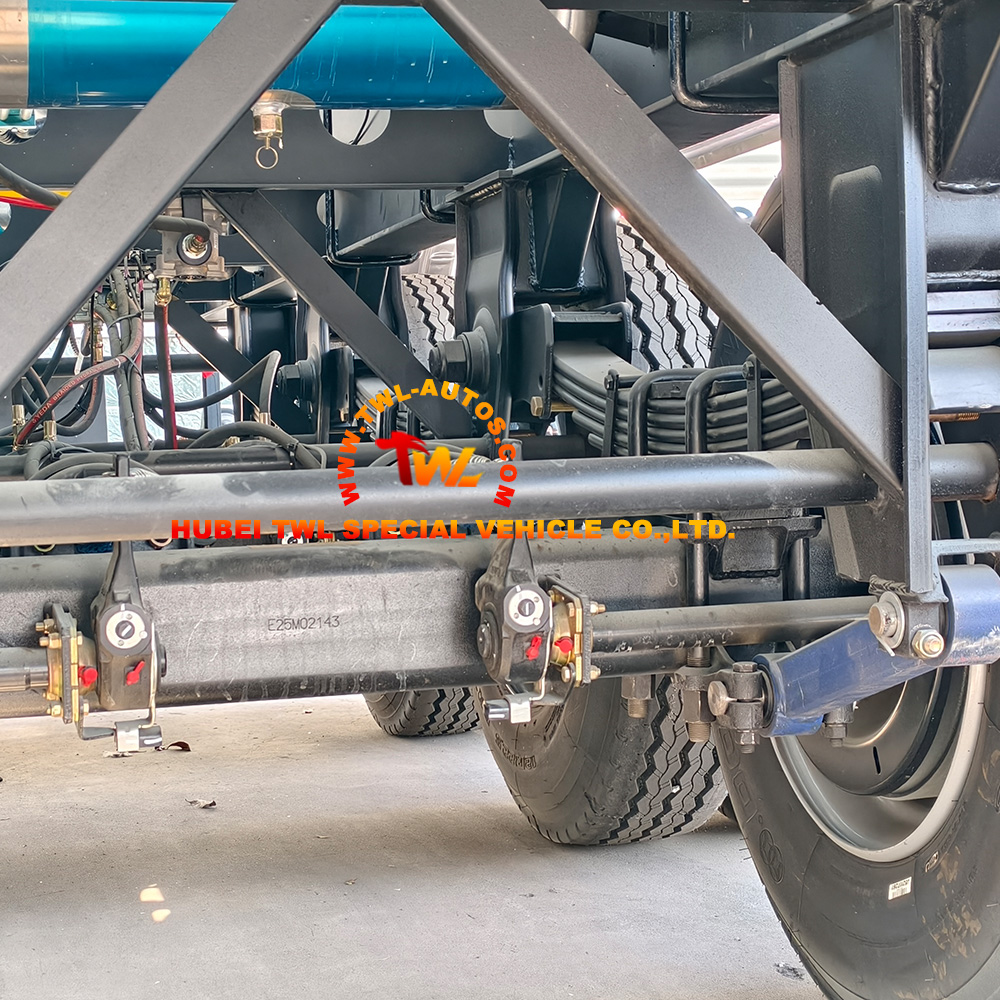

· Reliable Running Gear: Equipped with 3 x 13-ton FUWA axles with ABS, low-pressure alarms, and automatic slack adjusters. The 10+13 leaf spring suspension ensures stability on varied terrains while protecting cargo integrity.
· Efficient Unloading with Low Residue: The auger system features high-performance spiral blades designed for complete discharge. Residual material is less than 0.22 tons, minimizing product waste and simplifying cleaning between loads.
Application:
· Agricultural farms for direct feed delivery
· Feed production plants for transport to distribution points
· Export and import terminals requiring high-speed loading/unloading
· Logistics companies specializing in agricultural products
· Large-scale livestock operations
Product Specification
| Semi-Trailer Specification | |
| Trailer Overall Size | 13000x2550x3995 |
| Tank Volume | 55 Cubic meters |
| Tank Material | 4mm Aluminum alloy steel |

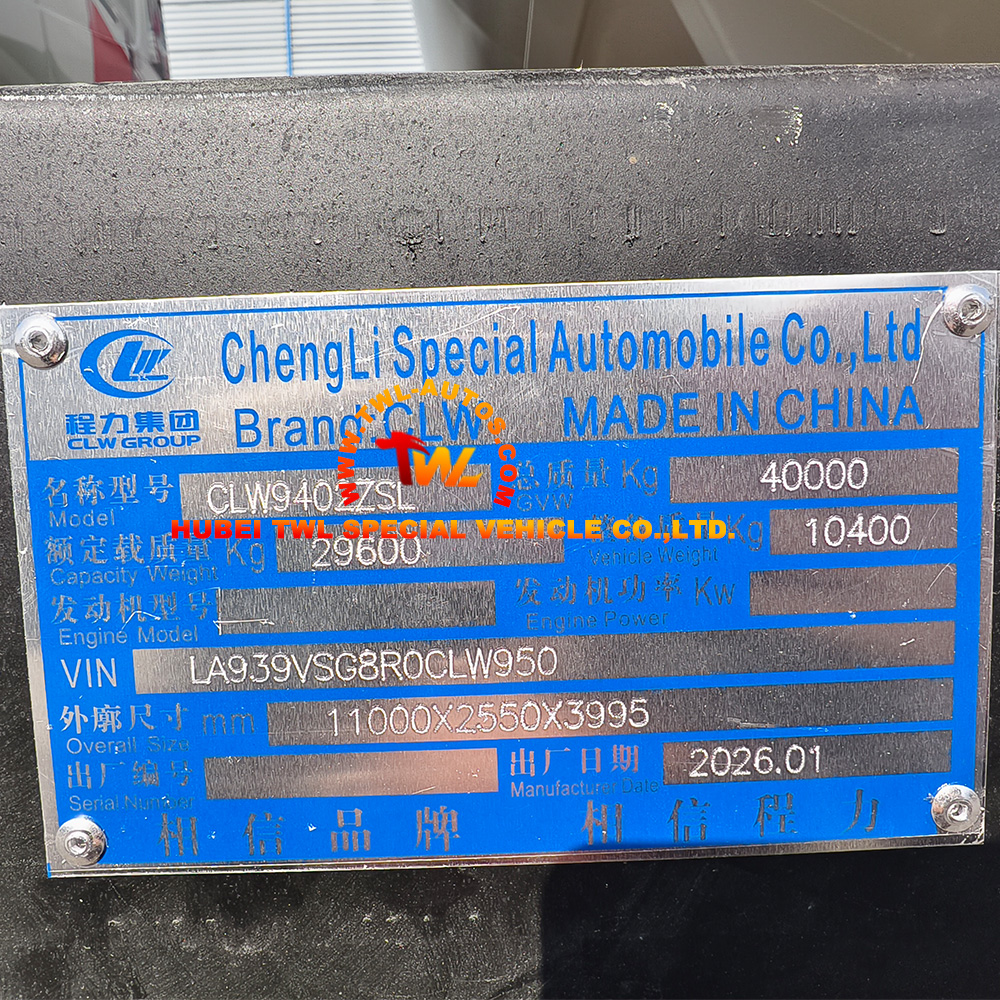

| Gross Vehicle Weight(GVW) | 40000kg |
| Curb Weight(kg) | 10400kg |
| Loading Capacity(kg) | 29600kg |
| Axle Brand & Capacity | FUWA, 13 Tons x3 Axles |
| Suspension | Mechanical muti-leaf spring(10+13) |

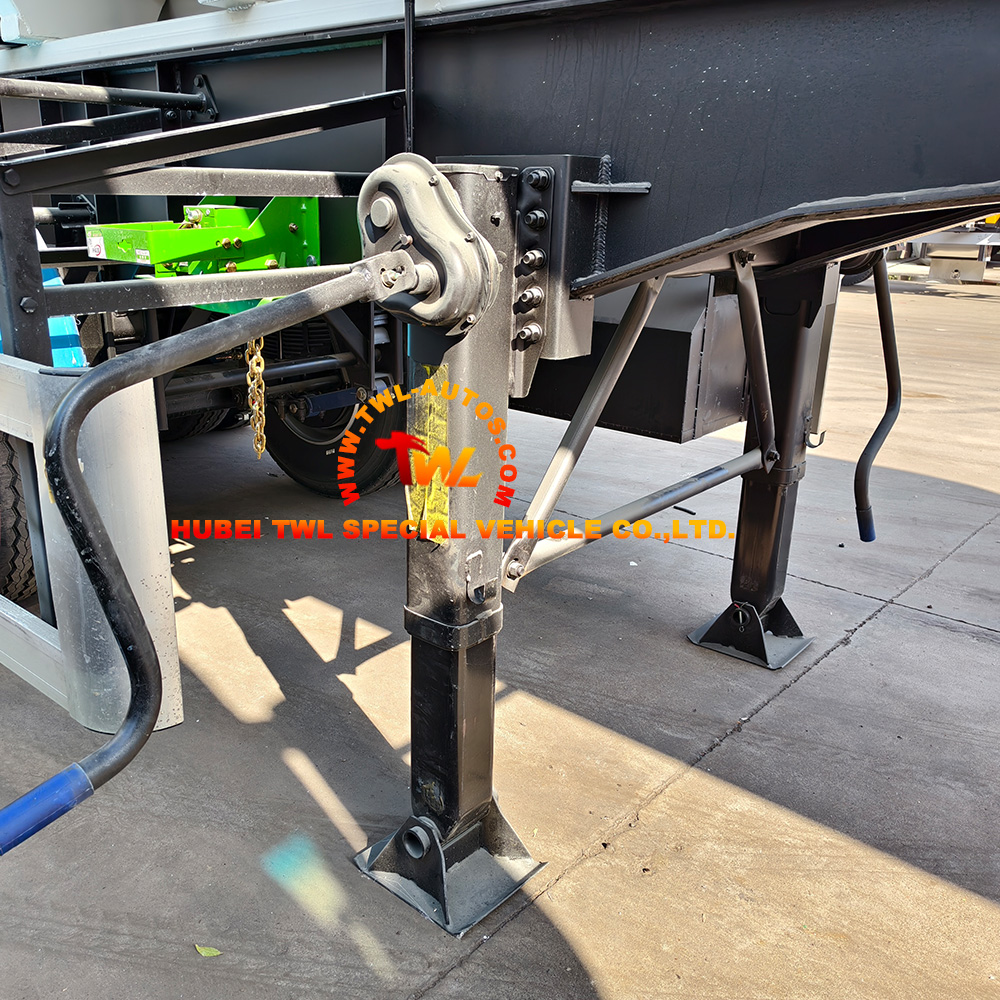

| Lifting Leg | FUWA, 28tons |
| Traction Brand & Size | Jost, 90# |
| Brake | 16tons brake pad |
| Wheel Base(mm) | 7120+1310+1310mm |

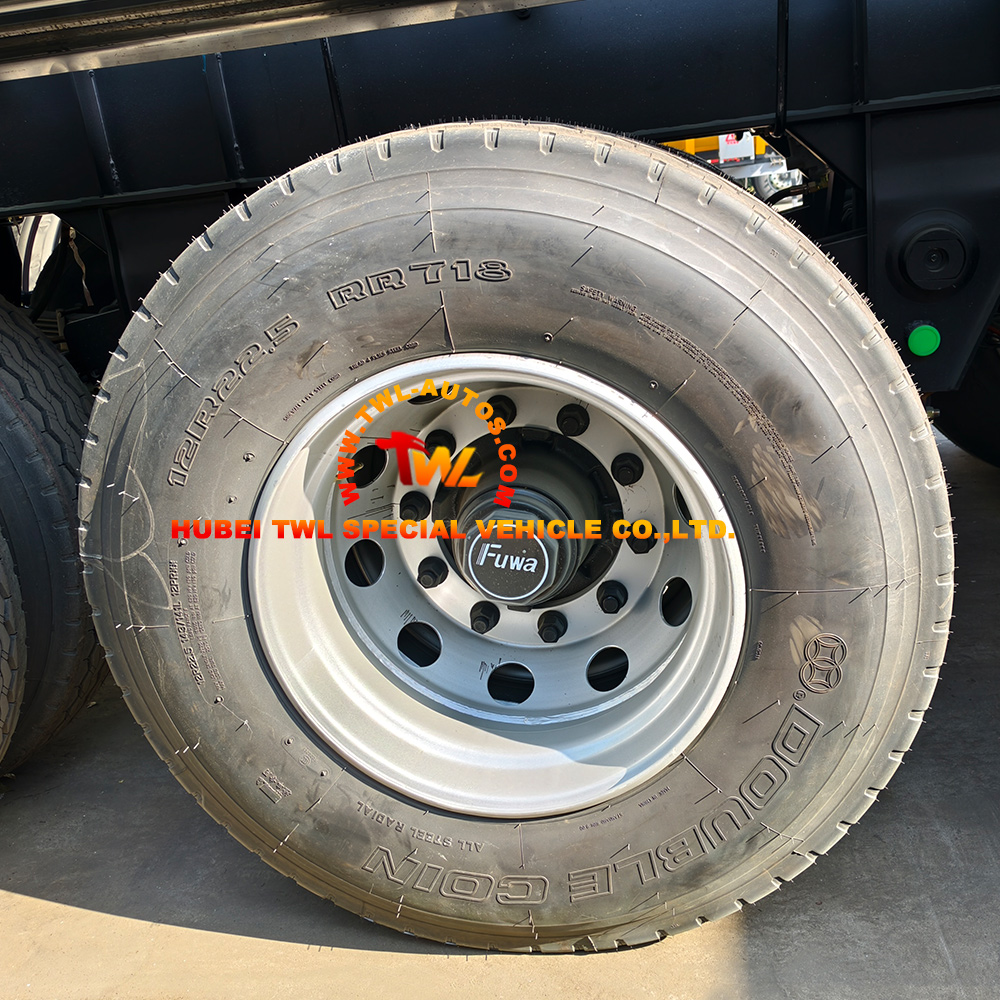

| Tires | 12R22.5 / 12pcs with one spare |
| Compartment | 5 compartments |

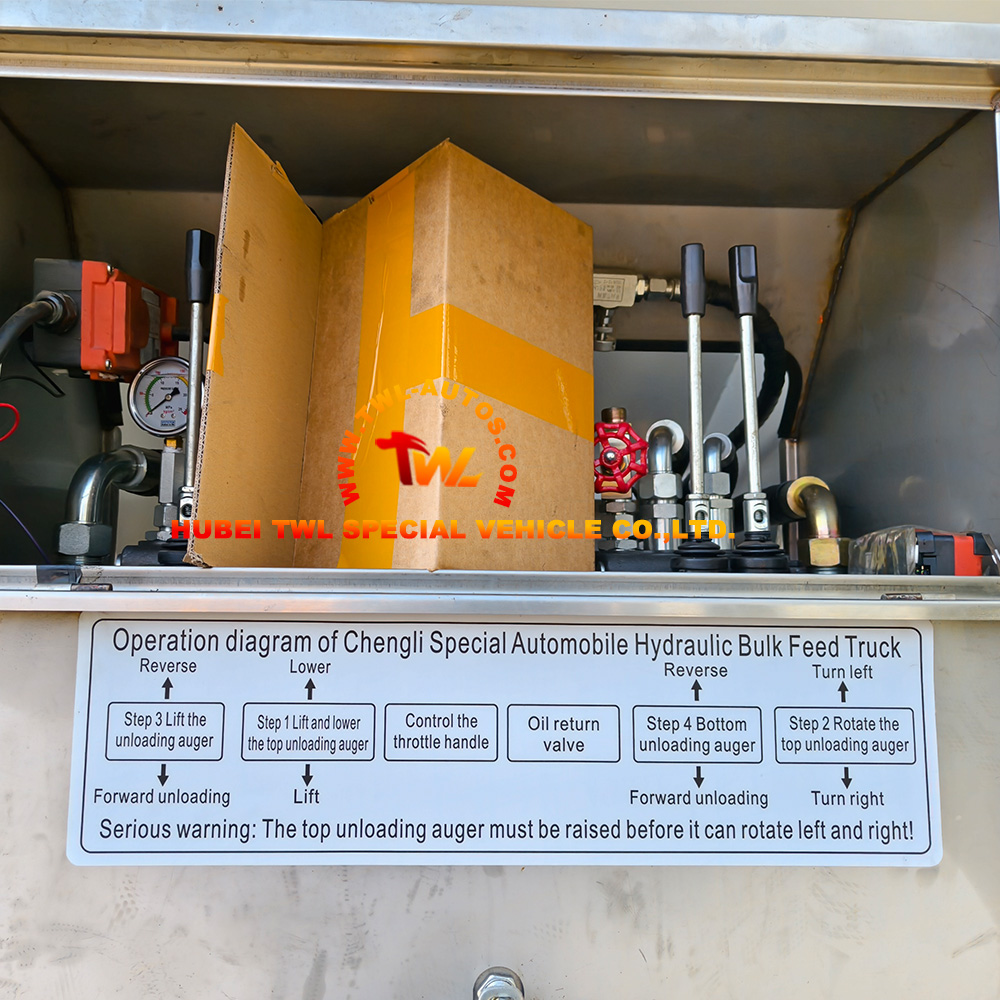

| Driving Form | 4pcs hydraulic motors, 1pc hydraulic pump, a set of hydraulic valves, and 1pc hydraulic oil tank |
| Discharge Capacity | 400~500kg/min |
| Auger Number | 3pcs hydraulic augers |

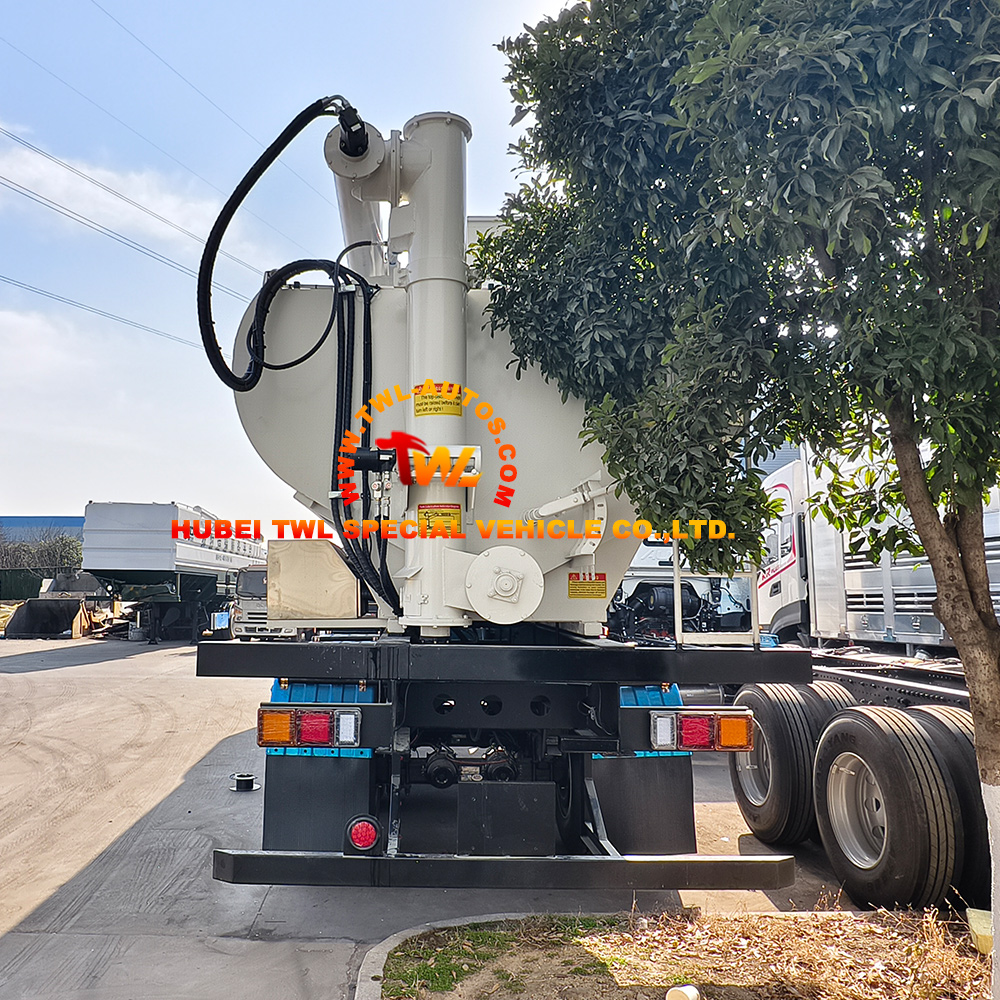

| Discharging Distance | Top auger (9 meters) is hydraulically controlled for lifting, and can rotate 180 degrees left and right |
| Accessories | Large capacity water-proof detachable tool box |
| Optional configurations | 1. Installation of remote control operation for the auger lifting and rotation; |
| 2. Installation of hydraulic auger; | |
| 3. Extension of the auger length | |
