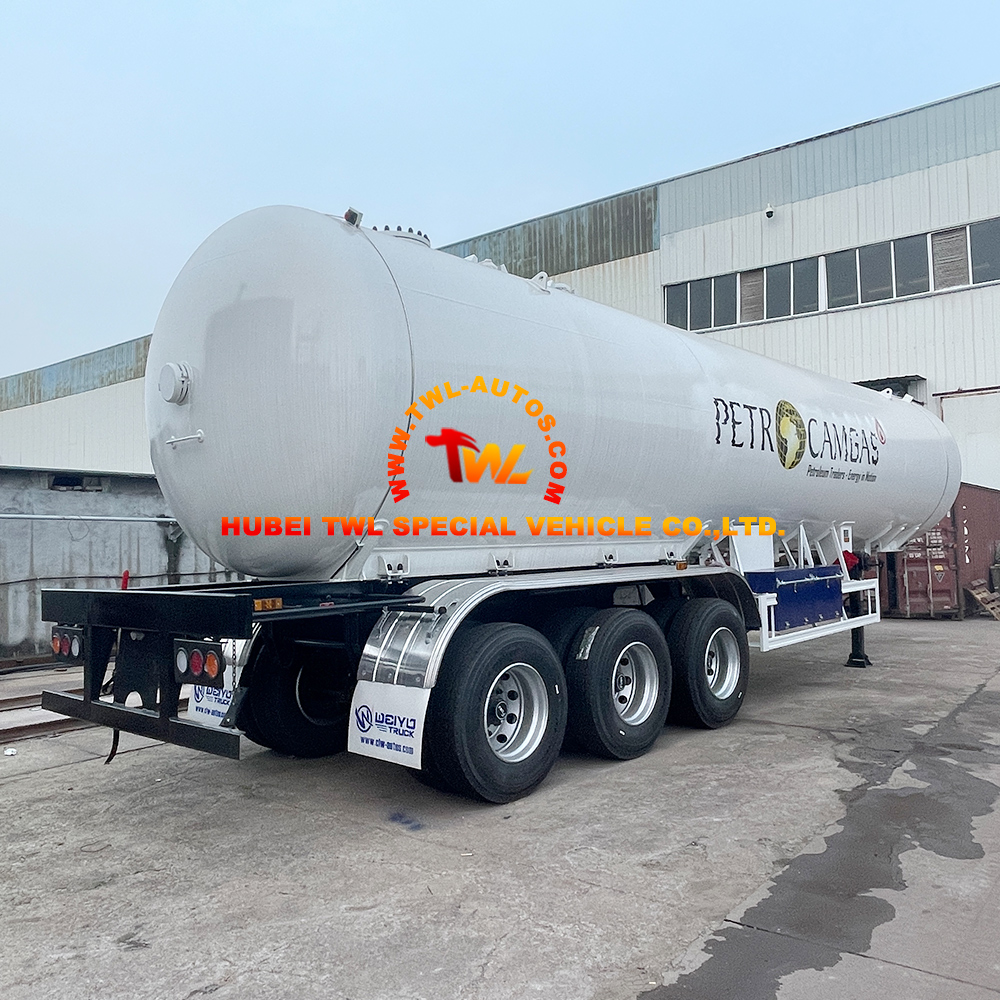

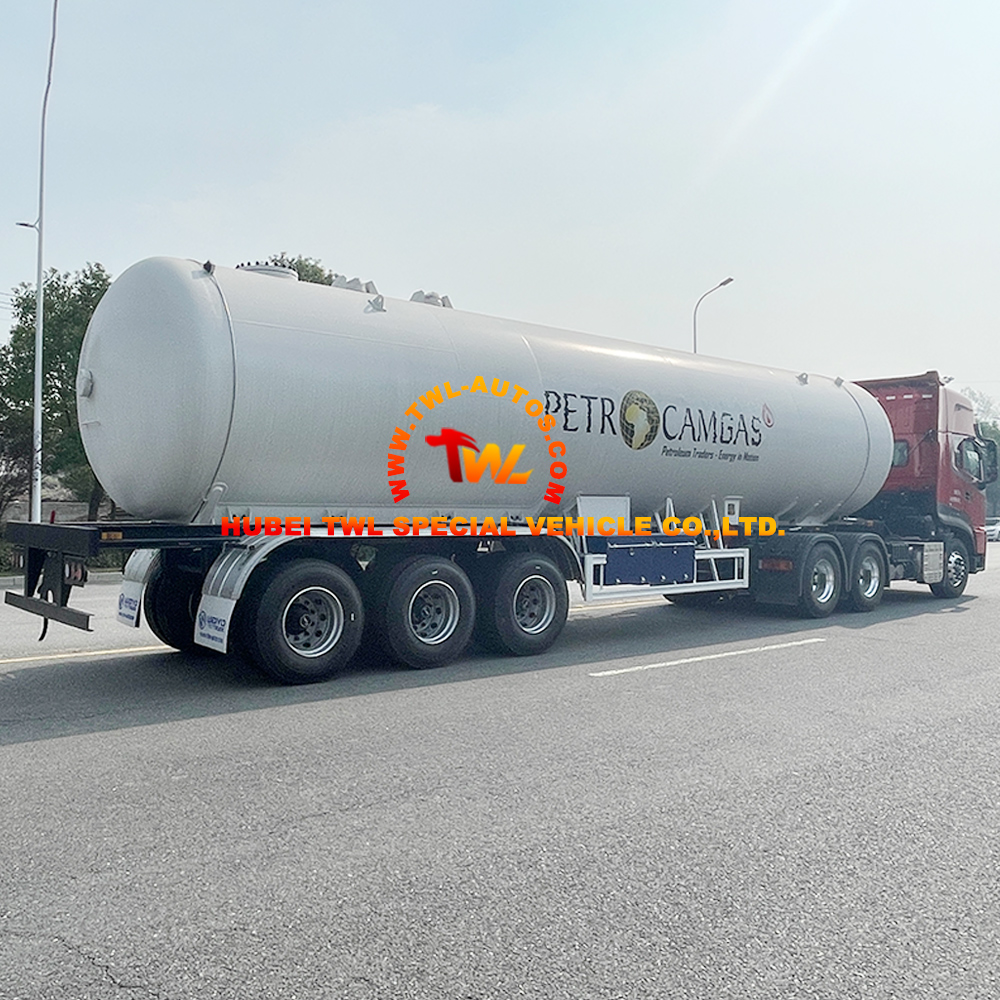

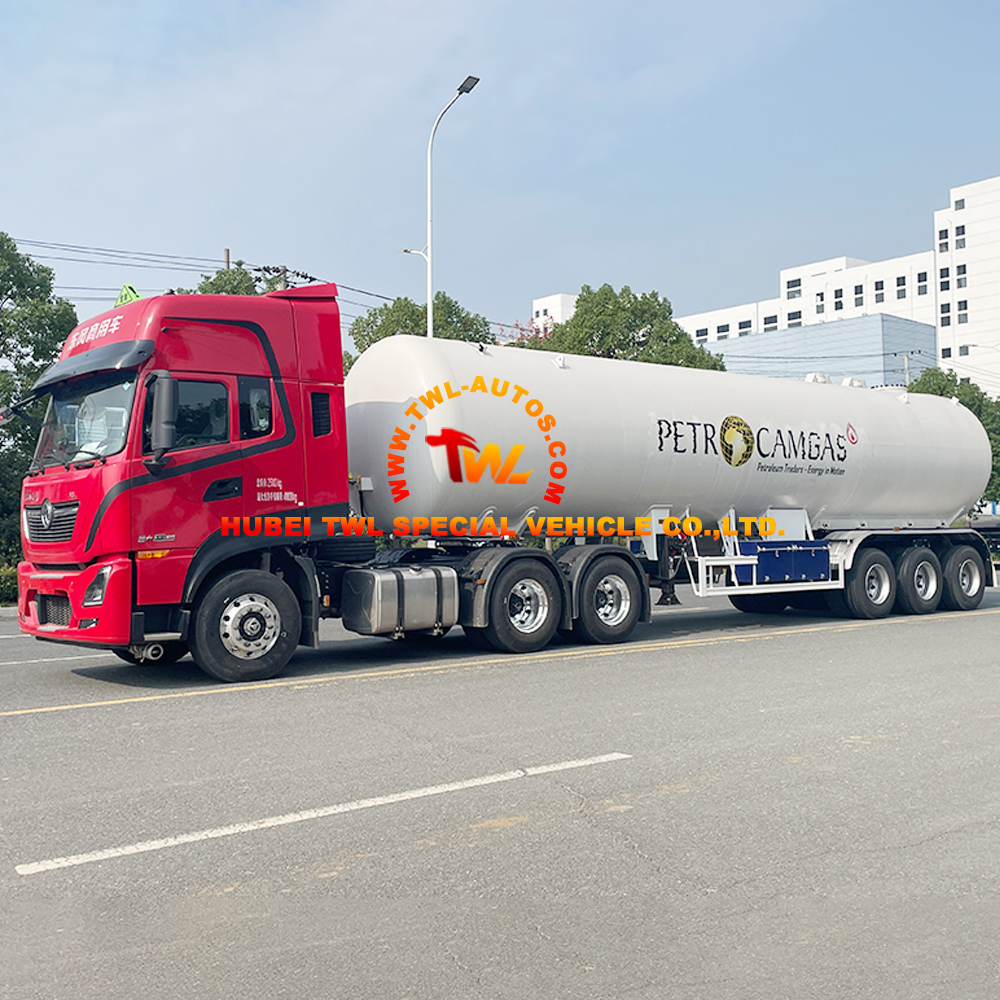

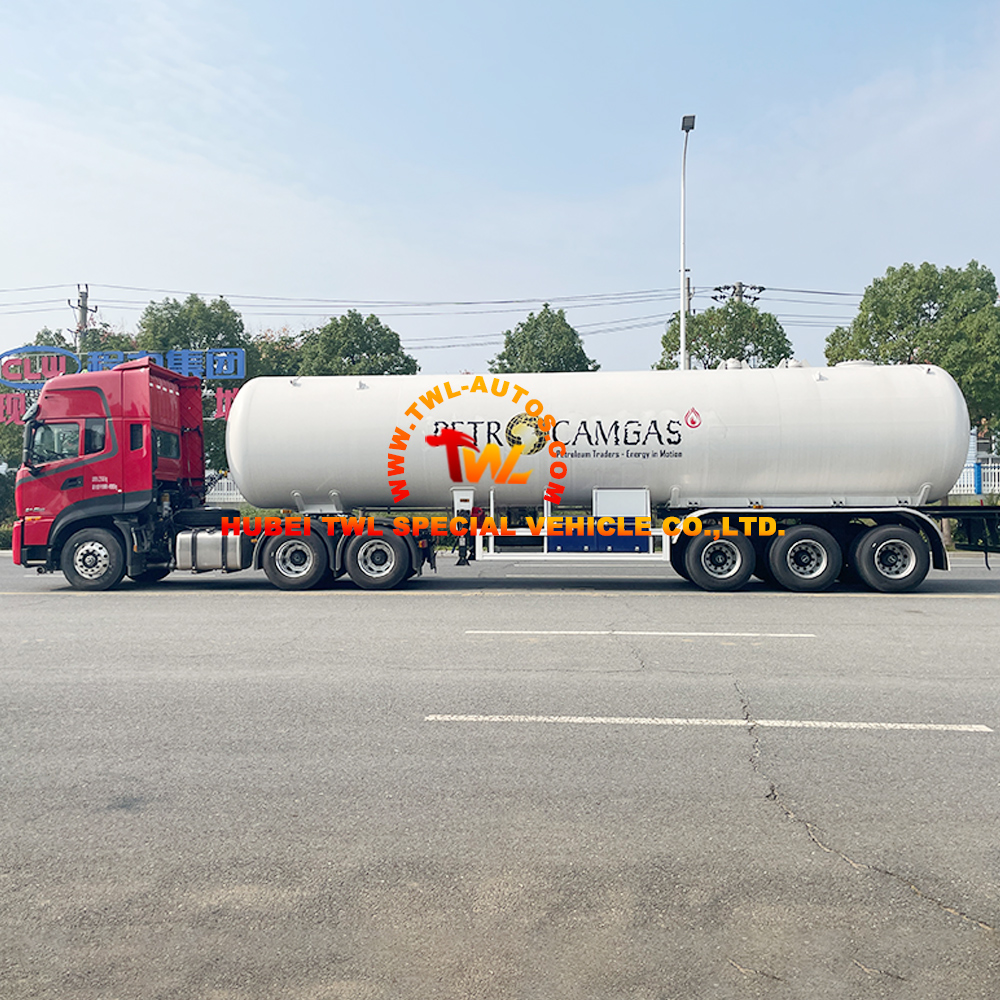

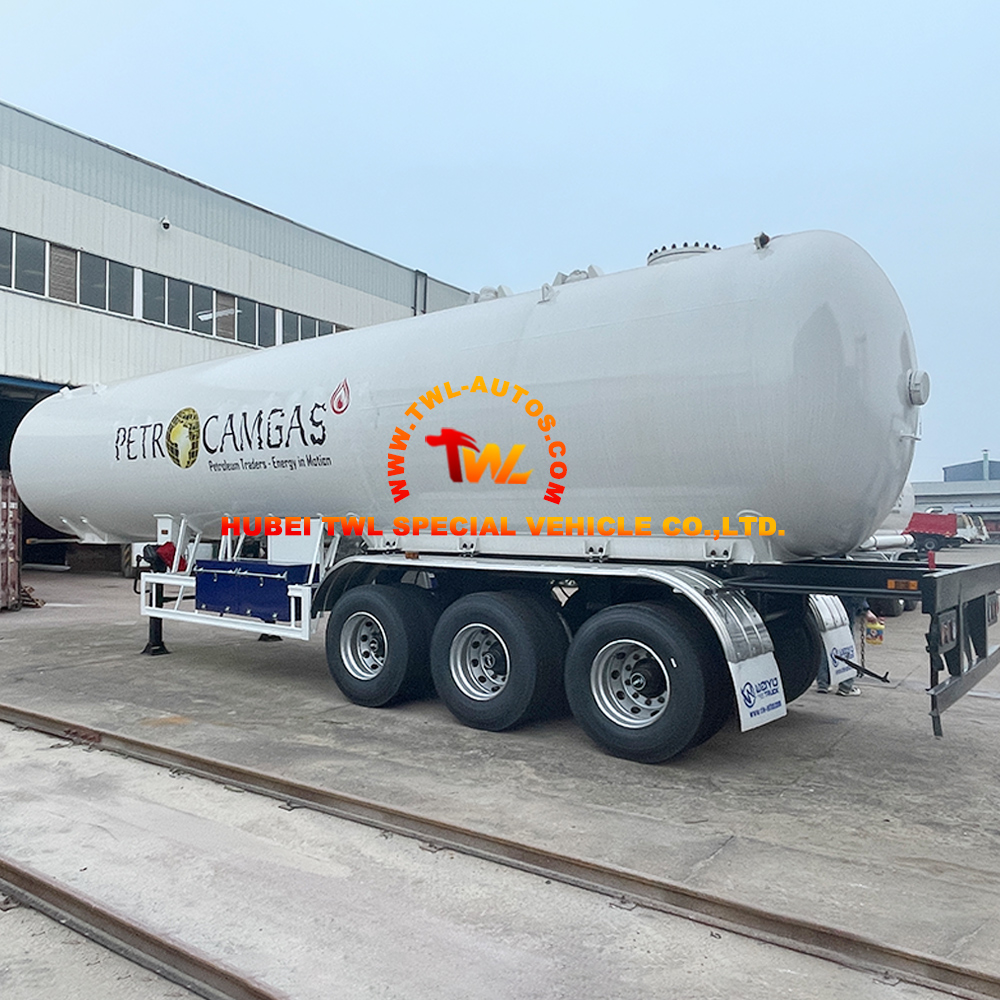

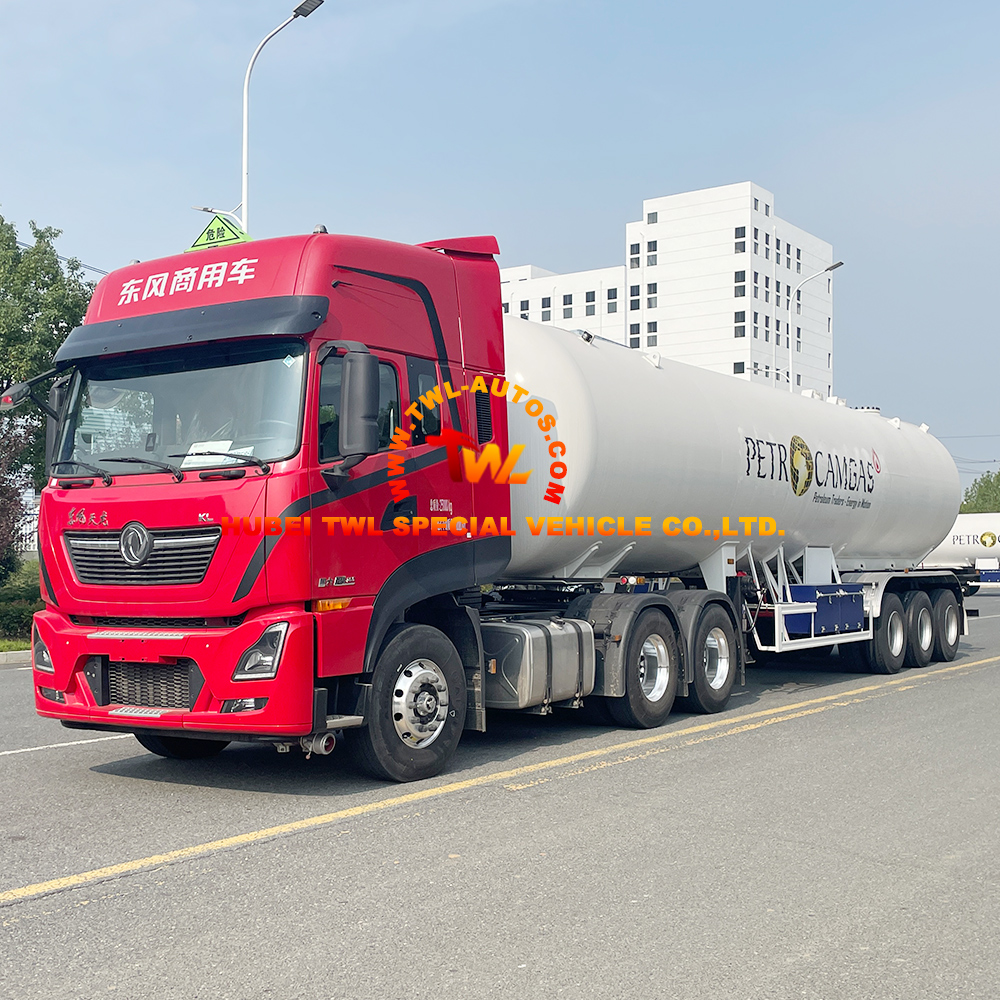

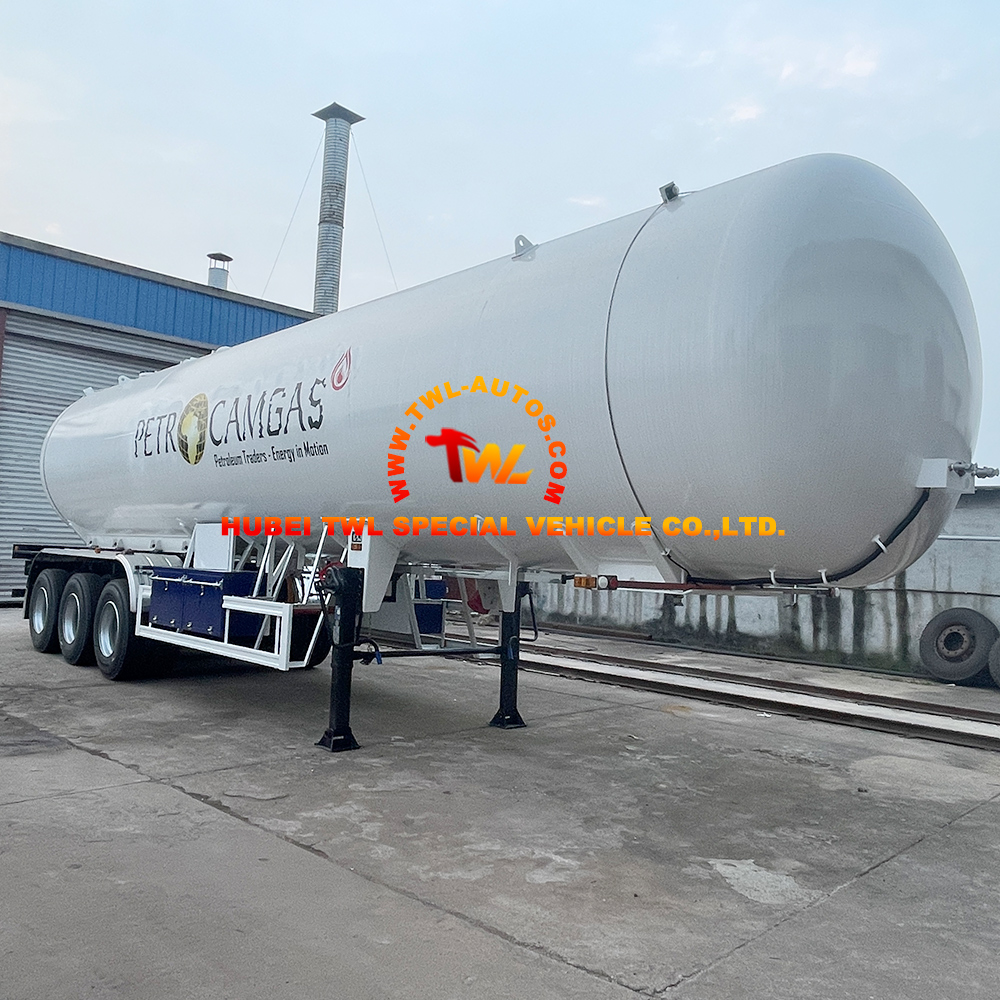

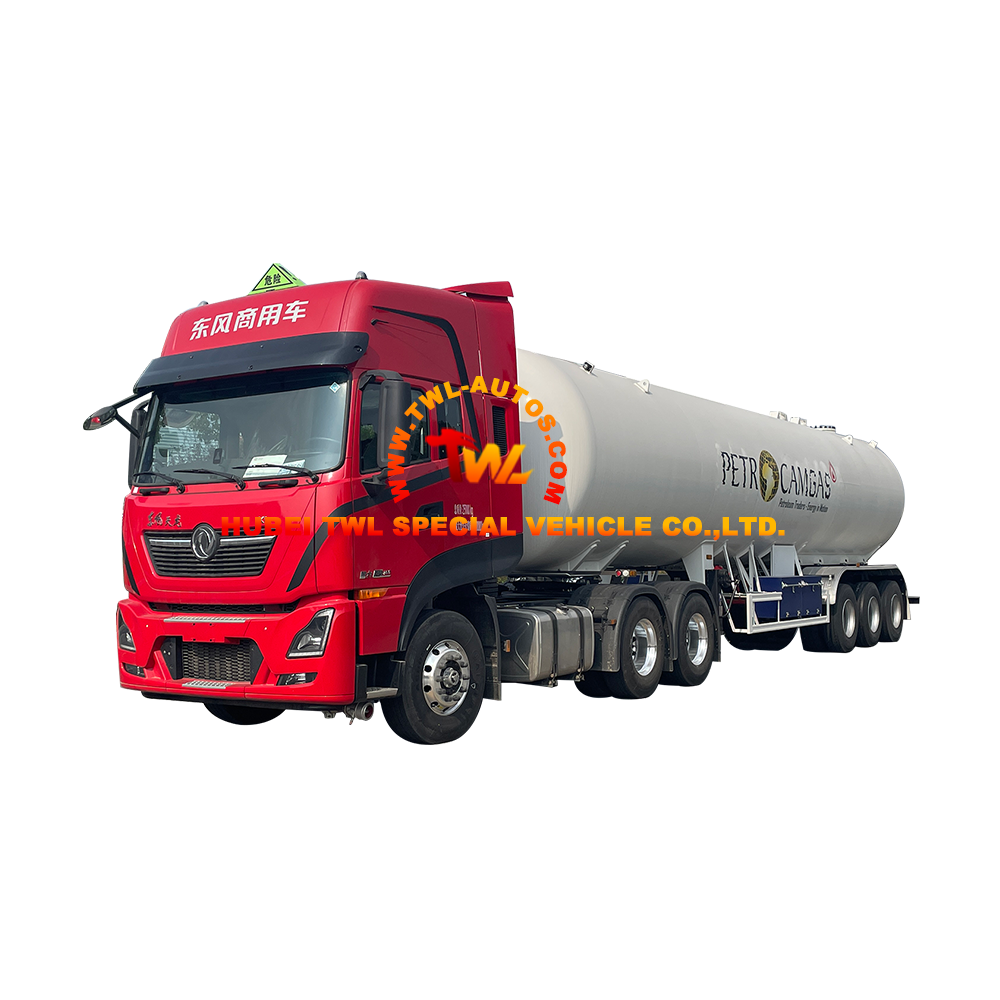

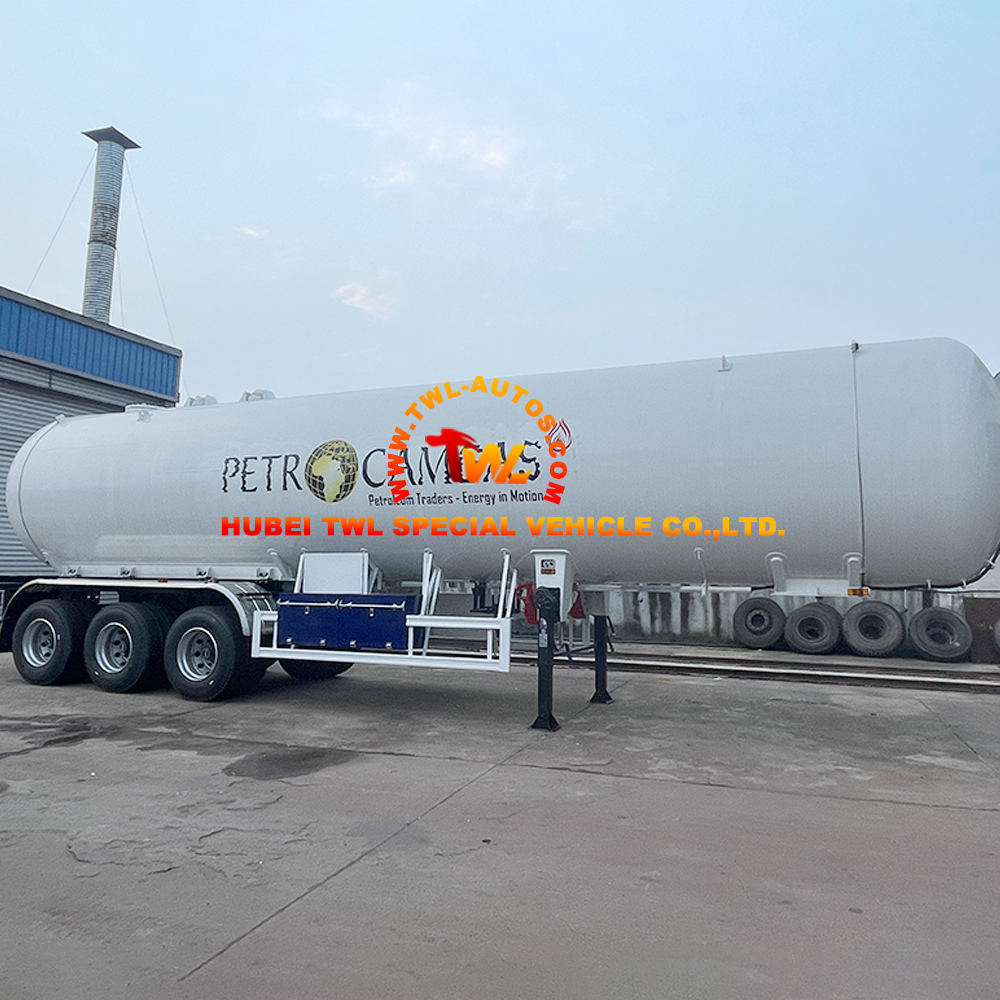

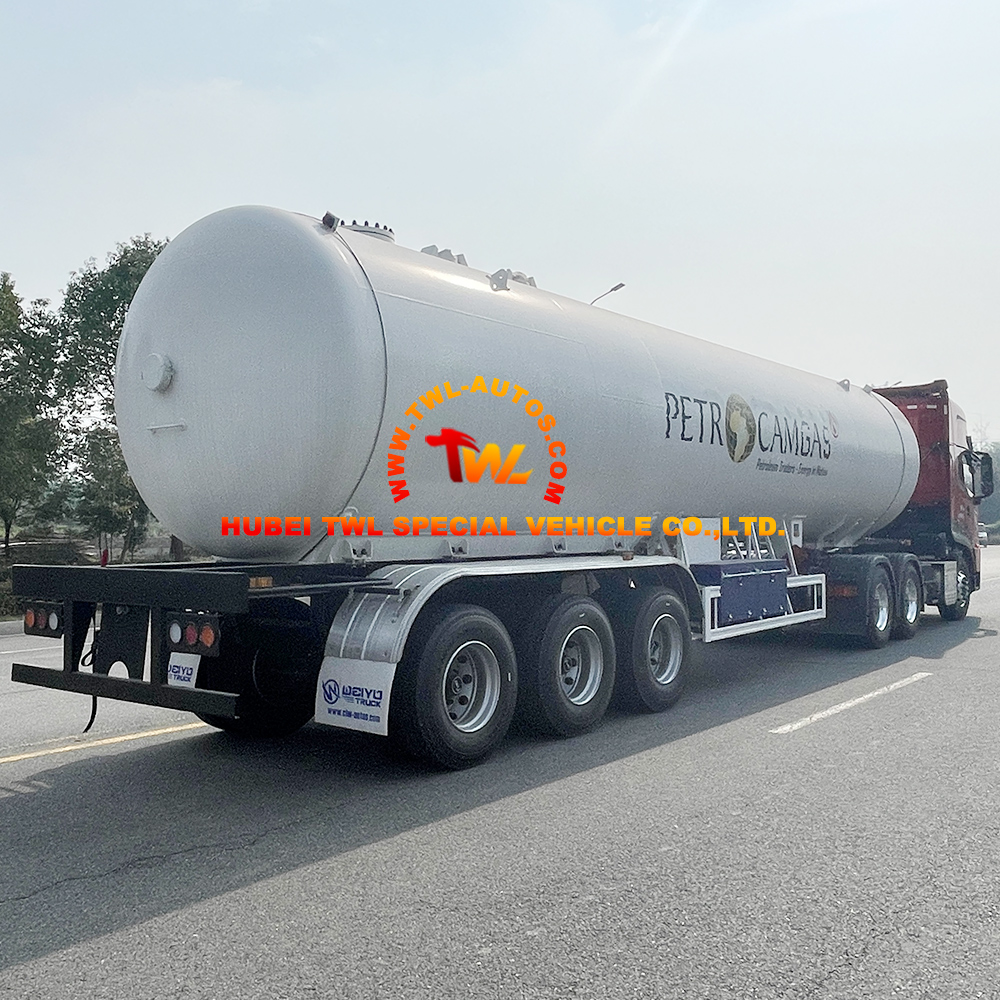

3-Axle 25 Ton LPG Tank Semi-Trailer
A high-capacity, fully certified LPG transport solution engineered for safety and durability. This 25-ton tri-axle tank semi-trailer is constructed from Q345R pressure vessel steel and integrates comprehensive safety systems—including emergency shut-off valves, pressure relief devices, and real-time liquid level monitoring. Designed for long-haul energy logistics, it delivers reliable, compliant transport of liquefied petroleum gas from refineries to depots, industrial sites, and distribution centers.
3-Axle 25 Ton LPG Tank Semi-Trailer
As a Top 3 global manufacturer of special-purpose trucks since 2004, CLW Group brings decades of engineering expertise to the 25 Ton LPG Tank Semi-Trailer. Built to meet stringent international pressure vessel standards (GB standard compliance), this tri-axle unit is designed for the demanding requirements of LPG road transport. The semi-trailer combines high-strength Q345R steel with a heavy-duty Fuwa axle configuration and a fully integrated safety architecture, ensuring that volatile cargo is transported with maximum stability, efficiency, and regulatory compliance across long distances and varied terrain.
Key Features:
· High-Strength Pressure Vessel Construction: Fabricated from Q345R pressure vessel steel with a 12mm cylindrical shell and 14mm elliptical heads, the tank is engineered to withstand the high-pressure, volatile nature of LPG. This robust construction ensures long service life and superior impact resistance under full-load operating conditions.
· Tri-Axle Heavy-Duty Undercarriage: Equipped with three Fuwa 13-ton axles, a Jost kingpin, Jost landing legs, and 12R22.5 heavy-duty tires, the chassis delivers exceptional load-bearing stability and durability. This configuration is specifically designed to safely handle 25-ton payloads while maintaining road stability and braking performance.
· Integrated Safety & Monitoring Systems: Safety is embedded throughout the design. The tank features an emergency shut-off valve, spring-loaded safety valves, a pressure relief device, and a temperature gauge, ensuring full compliance with GB Standard LPG transport regulations. These components work together to prevent overpressure conditions and enable immediate emergency response.
· Real-Time Liquid Level Indication: A percentage float-type level gauge provides continuous, accurate monitoring of LPG volume inside the tank. This allows operators to precisely control fill levels, prevent overfilling, and maintain safe loading/unloading procedures.
· Efficient Fluid Transfer System: The dedicated pipeline system is equipped with quick-connect fittings and emergency cut-off valves, enabling rapid, safe loading and unloading operations while minimizing the risk of gas leakage or spillage.
Applications:
· Long-Haul LPG Distribution: Transport bulk LPG from refineries, import terminals, and storage facilities to regional gas depots, cylinder filling plants, and industrial hubs via highway and intercity routes.
· Industrial & Commercial Fuel Supply: Deliver LPG to manufacturing plants, power generation facilities, and commercial operations requiring reliable fuel for heating, processing, and production.
· Residential Gas Grid Support: Supply LPG to rural communities and suburban areas without pipeline natural gas infrastructure, ensuring consistent access to cooking and heating fuel.
· Petrochemical Supply Chain Logistics: Serve as a mobile transport link between production sites, intermediate storage, and end-user facilities within integrated petrochemical networks.
· Emergency Energy Resupply: Deploy to disaster-affected regions or areas with disrupted energy infrastructure to provide critical LPG supplies for essential services and relief operations.
Product Specification
| Tanker Essential Information | |
| Volume of Tank (cbm) | 49.6 |
| Overall Dimensions(L*W*H)(mm) | 12700*2480*3800 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12351 |
| Estimated Tare Weight (kg) | 15550 |
| Payload(kg) | 23000 |
| Total Weight(kg) | 38650 |
| Wheelbase(mm) | 6800+1310+1310 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | -19℃~50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345R,12mm, |
| End plate：Q345R,14mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.21 |
| Manhole (As Customer’s Requirement) | |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN50 or As Customer’s Requirement |
| Type | Manuel rotation type |
| Location | At the rear of the end plate |
| Running System | |
| Axles | 3*13T FUWA brand |
| Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
| Landing leg | JOST or Fuwa |
| King Pin | #90(3.5 inch) or #50(2.0 inch) |
| Control System | |
| Emergency Cut-off Valves | 2 |
| Ball Valve | 2 |
| Liquid Gauge | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Accessories | |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Fender | 6 |
| Testing | Overall treatment in a furnace,600℃ to 640 ℃ |
| 100% Flaw detection of all plate | |
| 100% Hydraulic test pressure for tanker | |
| 100% X-ray welding seam detection for the tanker | |
| 100% Hydraulic test pressure for tanker | |
| 100% Air leakage test for piping and valves | |
| Painting | Logo painting as Customer’s Requirement |
