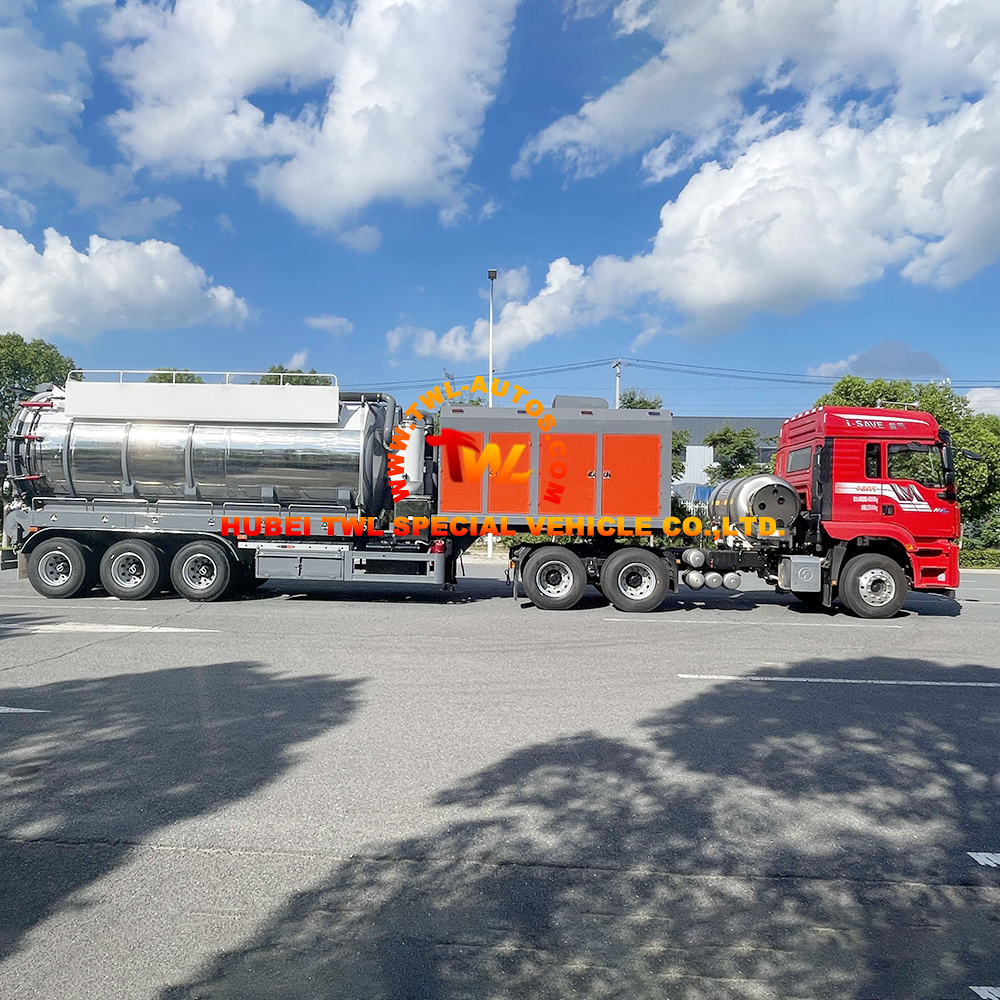

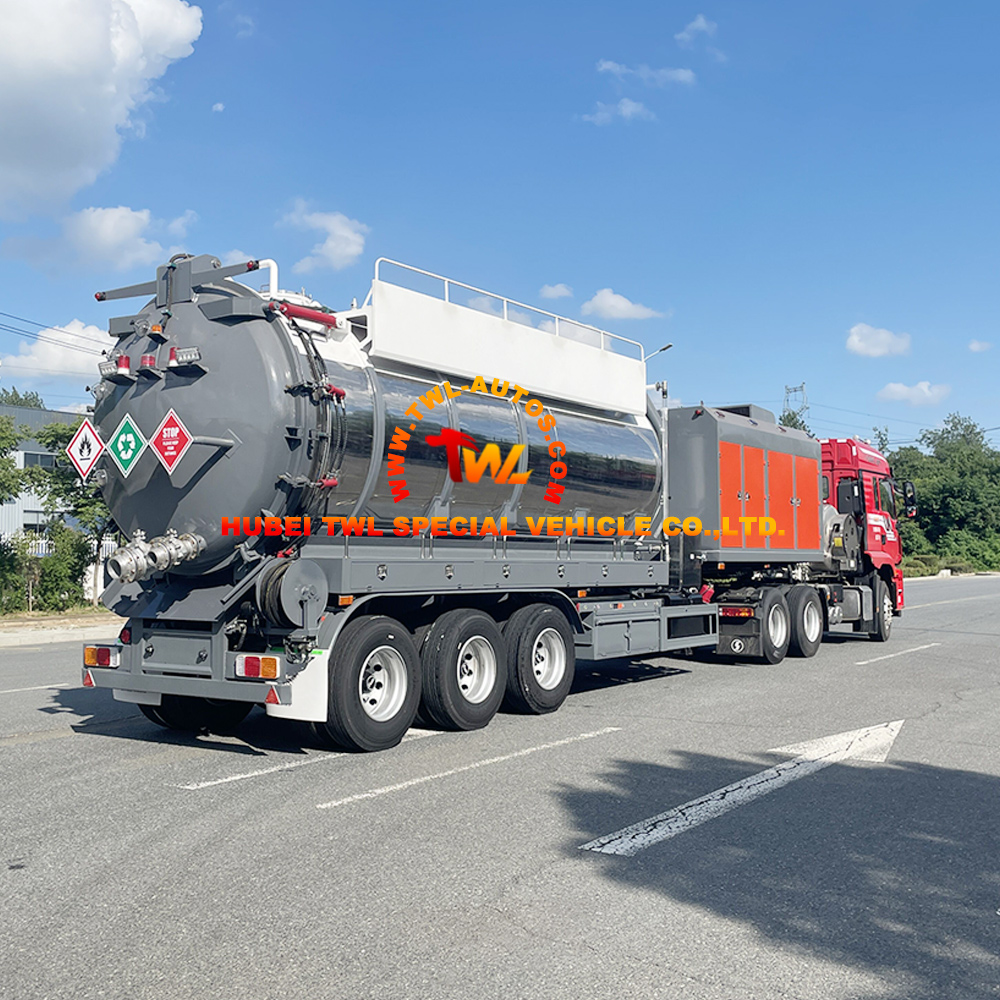

25m³ 316 Stainless Steel Vacuum Tank Semi-trailer
Our 25m³ vacuum tank semi-trailer is specifically designed for the heavy-duty collection and transport of sludge, sewage, and industrial effluent. Constructed from premium 316L stainless steel and powered by a dedicated auxiliary engine driving an Italian Jurop vacuum pump, this unit guarantees superior corrosion resistance and unrivaled suction power. For multi-functional tasks, the integrated high-pressure washing system transforms this trailer from a simple suction unit into a complete liquid handling solution, ensuring your operation run efficiently and safely in the most demanding environments.
25m³ 316 Stainless Steel Vacuum Tank Semi-trailer
In the world of environmental sanitation, equipment failure is not an option. This semi-trailer is built to withstand the test of time and the harshest chemical conditions. By combining a massive 25 cubic meter capacity with a robust hydraulic drive system independent of the tractor unit, we ensure maximum productivity. The integration of a high-pressure water system allows operators to perform “suction and jetting” simultaneously, making it the ultimate tool for sewer maintenance, industrial cleaning, and large-scale spill response.
Key Features & Benefits
1. Premium Stainless Steel Construction
· Material: Tank constructed from high-grade 316L Stainless Steel, offering exceptional resistance to corrosive chemicals, brine, and acidic waste.

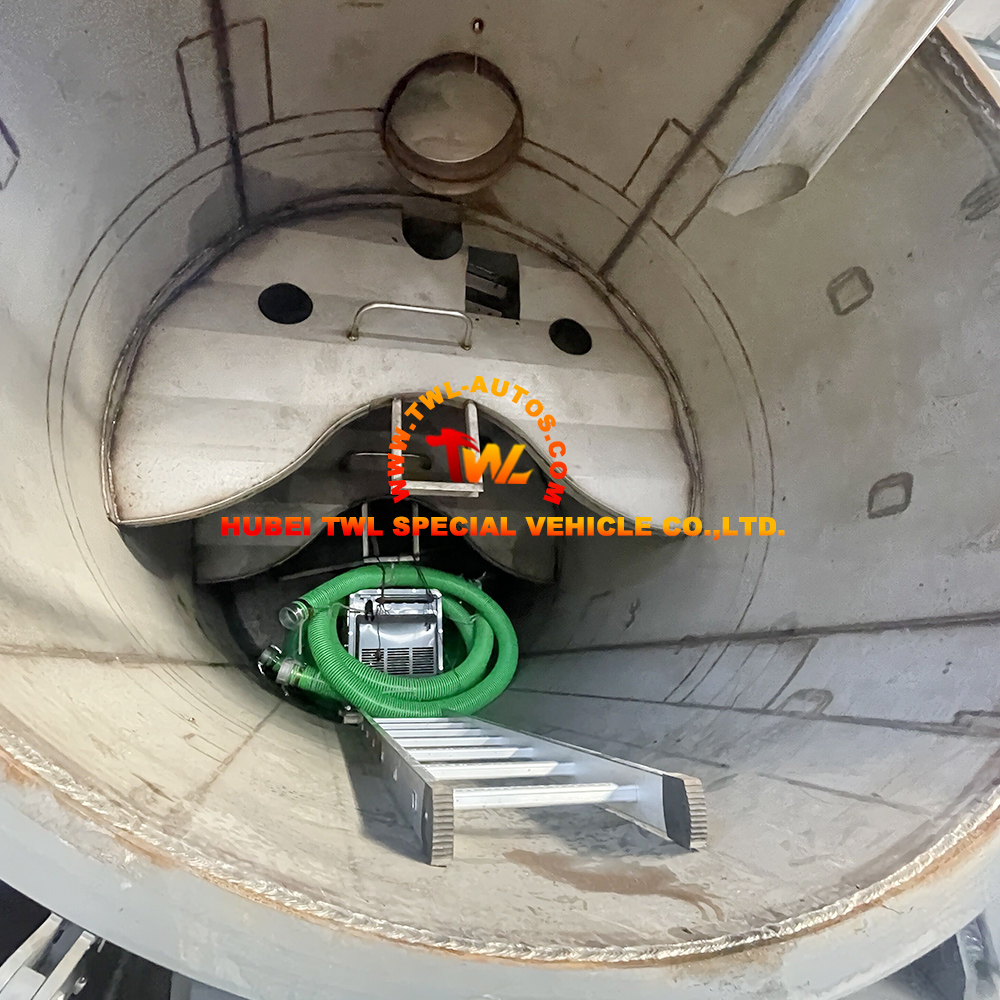

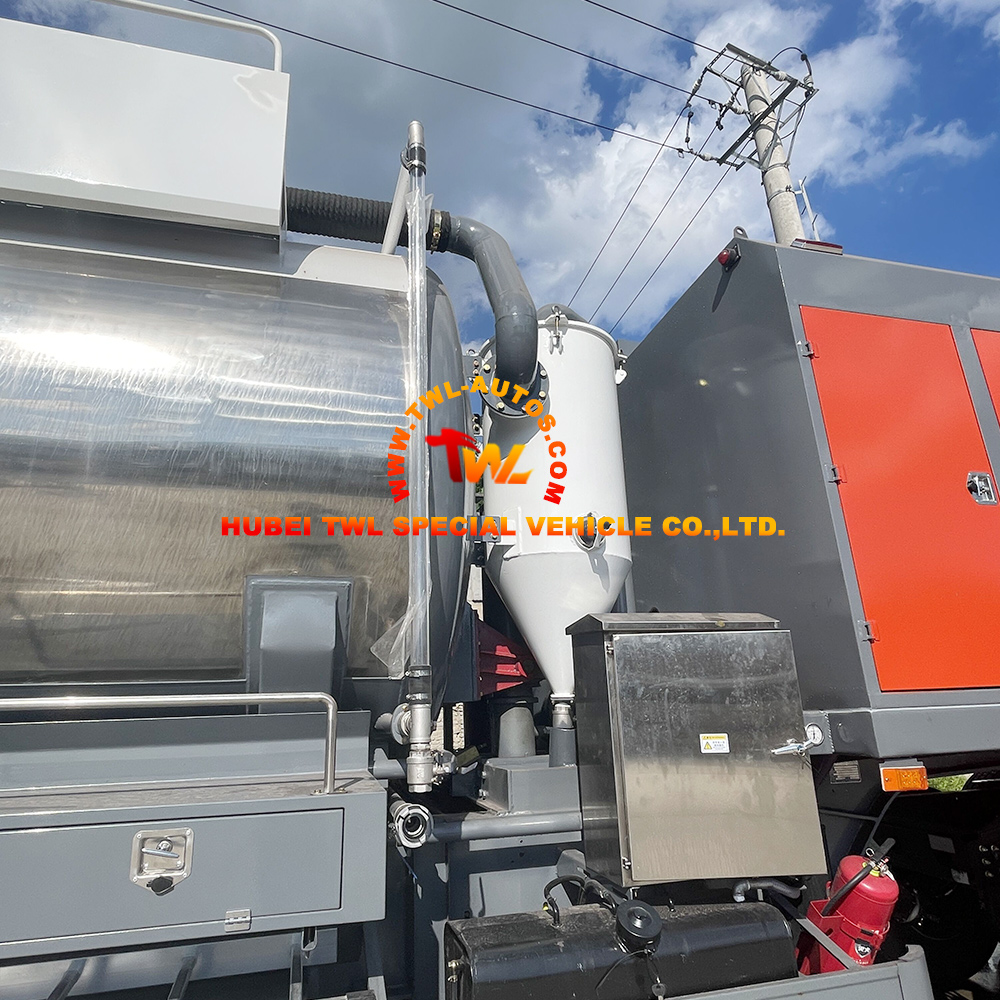

· Design: Internally fitted with anti-surge baffles for safe liquid transport and stability during transit. Includes a rear sight glass for visual level monitoring and a cyclone anti-overflow valve to prevent accidental spillage.
· Durability: All wetted components, including valve inlets/outlets, are manufactured from Euro-standard stainless steel.
2. Independent & Powerful Vacuum System

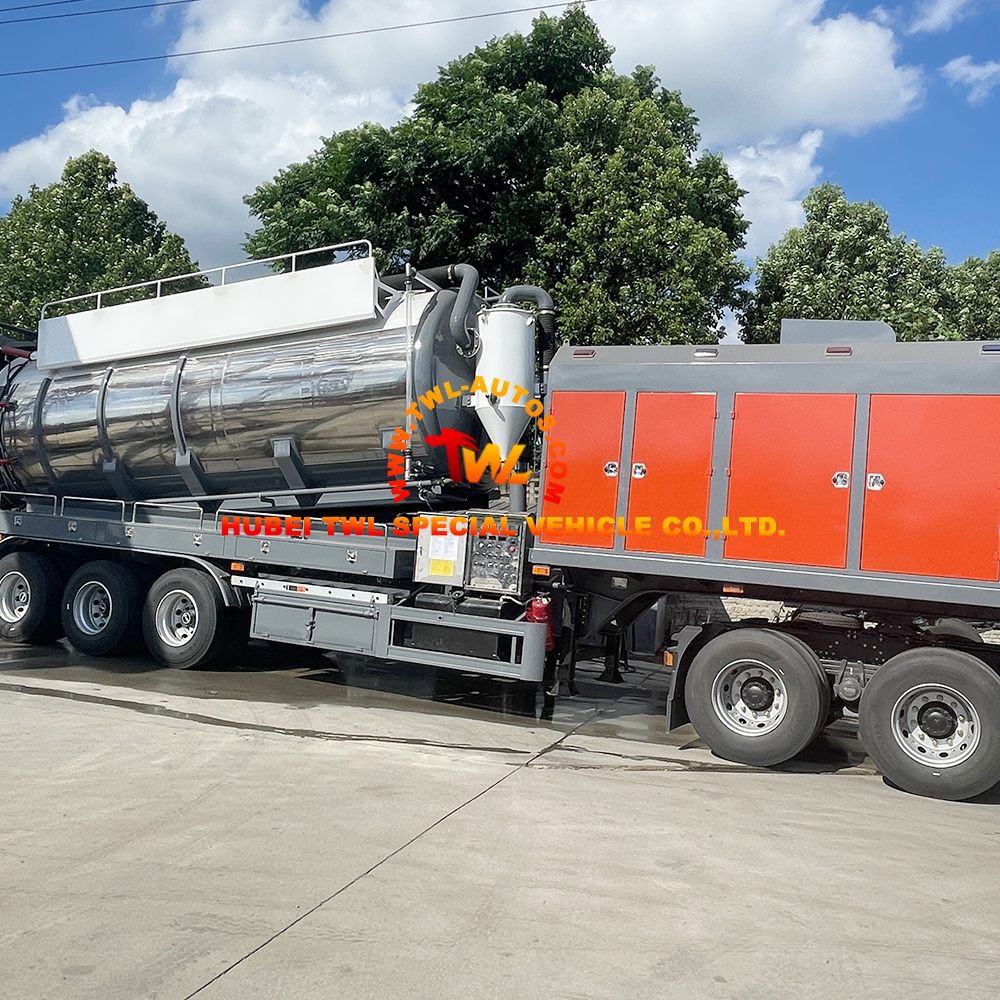

· Auxiliary Engine: Driven by a standalone diesel engine (Cummins, Isuzu, or optional brands) to eliminate reliance on the chassis engine. This ensures consistent suction power and fuel efficiency regardless of the towing vehicle.
· Hydraulic Drive: Features a smooth hydraulic transmission system that reduces noise and maintenance needs while providing variable speed control.
· Vacuum Pump:
Standard: High-efficiency Italian Jurop PVT series pump.
Flow Rate: Up to 2600 m³/h.
Vacuum Degree: Achieves up to 93% vacuum (approx. 8m water column).
Upgrades: Optional upgrades to Jurop PVT 700/1000 for even higher flow demands.
3. Integrated High-Pressure Jetting System
· Fresh Water Tank: Comes equipped with a 5m³ stainless steel freshwater tank (customizable capacity).
· High-Pressure Pump: Choose from cost-effective Chinese pumps or premium Italian/German brands for intensive commercial use.

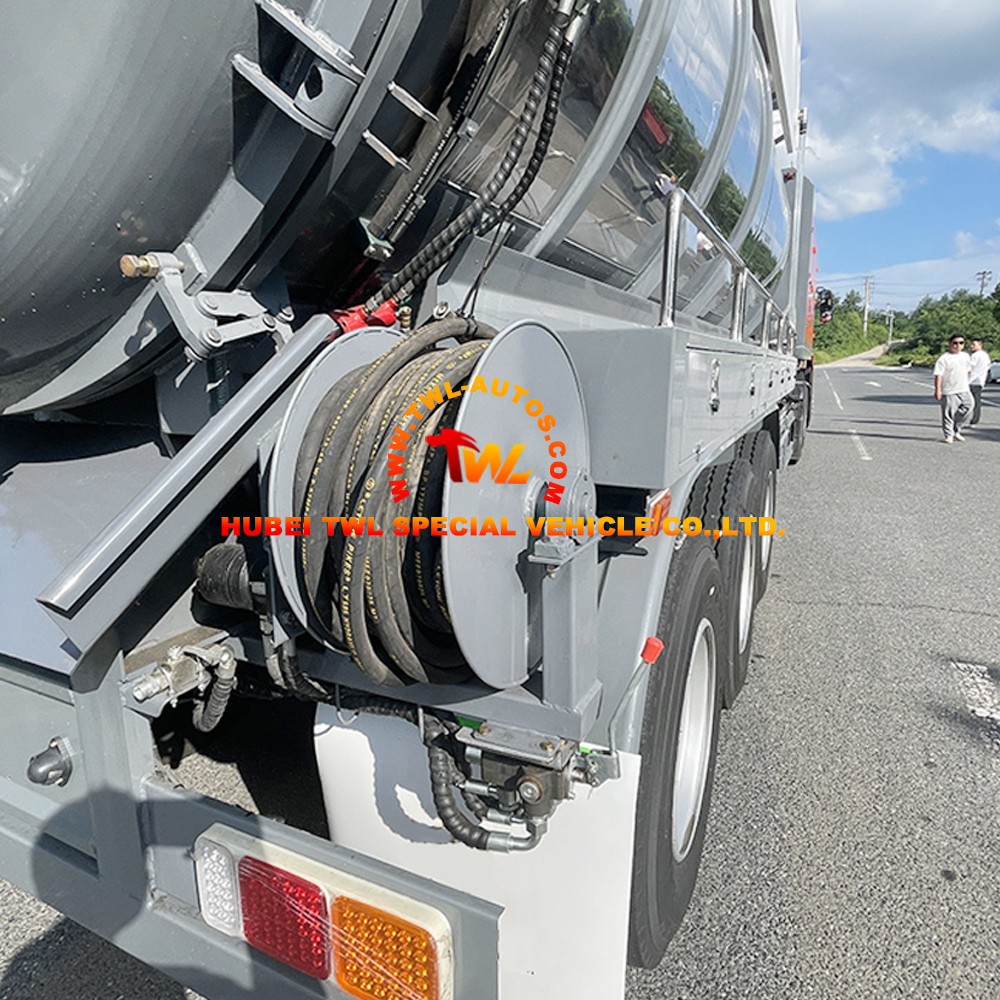

· Hose Reel: Features a hydraulic or manual 15-meter hose reel with a trigger gun and interchangeable nozzles (flat jet, rotary, etc.) for breaking up solid blockages.
· Drive Options:
Integrated: PTO via splitter gearbox from the auxiliary engine.
Independent: Standalone small diesel engine for the high-pressure pump, allowing uninterrupted suction and washing operations simultaneously.
Applications
· Municipal Services: Sewage plant sludge removal, septic tank emptying, and drainage pipe unblocking.
· Industrial Use: Collection of non-explosive industrial waste liquids, chemical spill recovery, and mining slurry transport.
· Environmental Protection: River dredging, oil spill cleanup, and hazardous waste site remediation.
· Agriculture: Transport of digestate, manure, and other liquid fertilizers
Product Specification
| Technical parameters | |||
| Tank design | Tank volume 25m³ | sewage tank | 20 m³ (cylindrical tank) |
| Water tank | 5m³ (customized as request) | ||
| Tank material | 316 stainless steel | ||
| Tank thickness | 8mm | ||
| Maximum design pressure of the tank | 0.05 bar / -1 bar | ||
| Tank safety support | Inner baffle plate and outer reinforcing hoop | ||

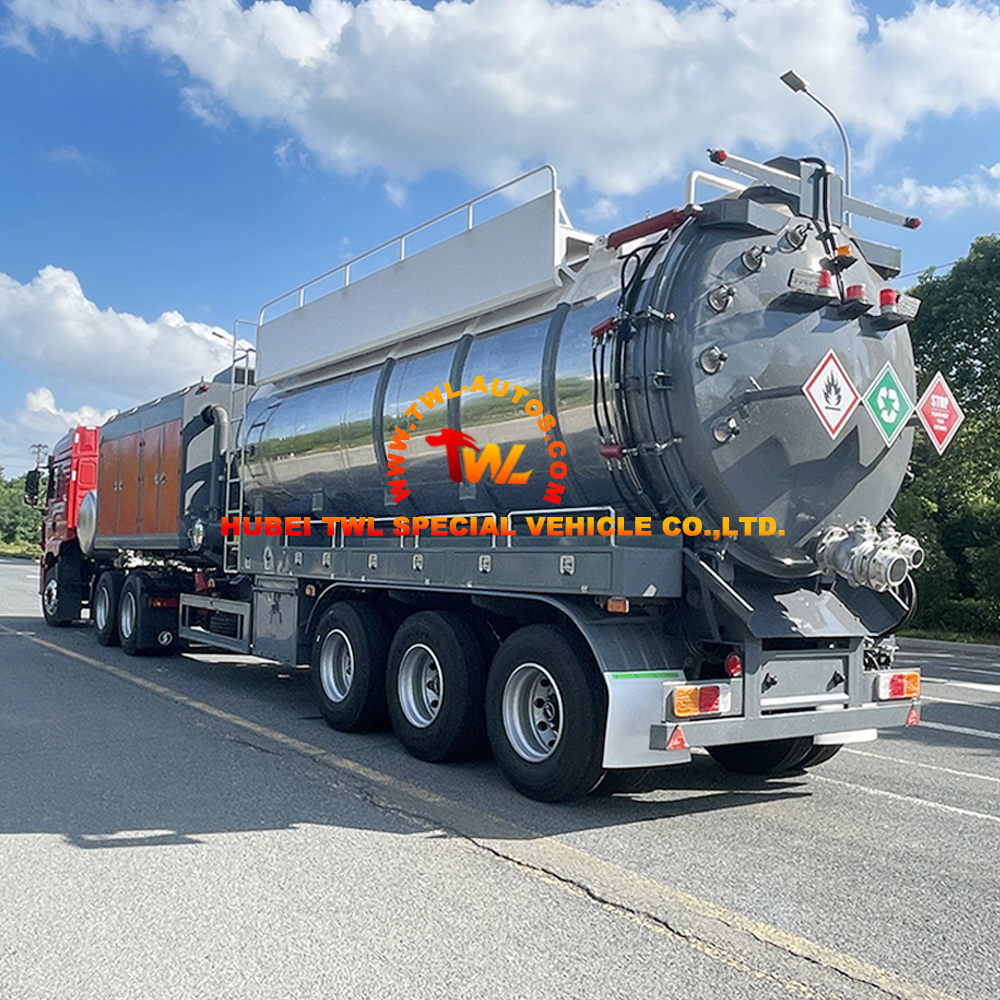

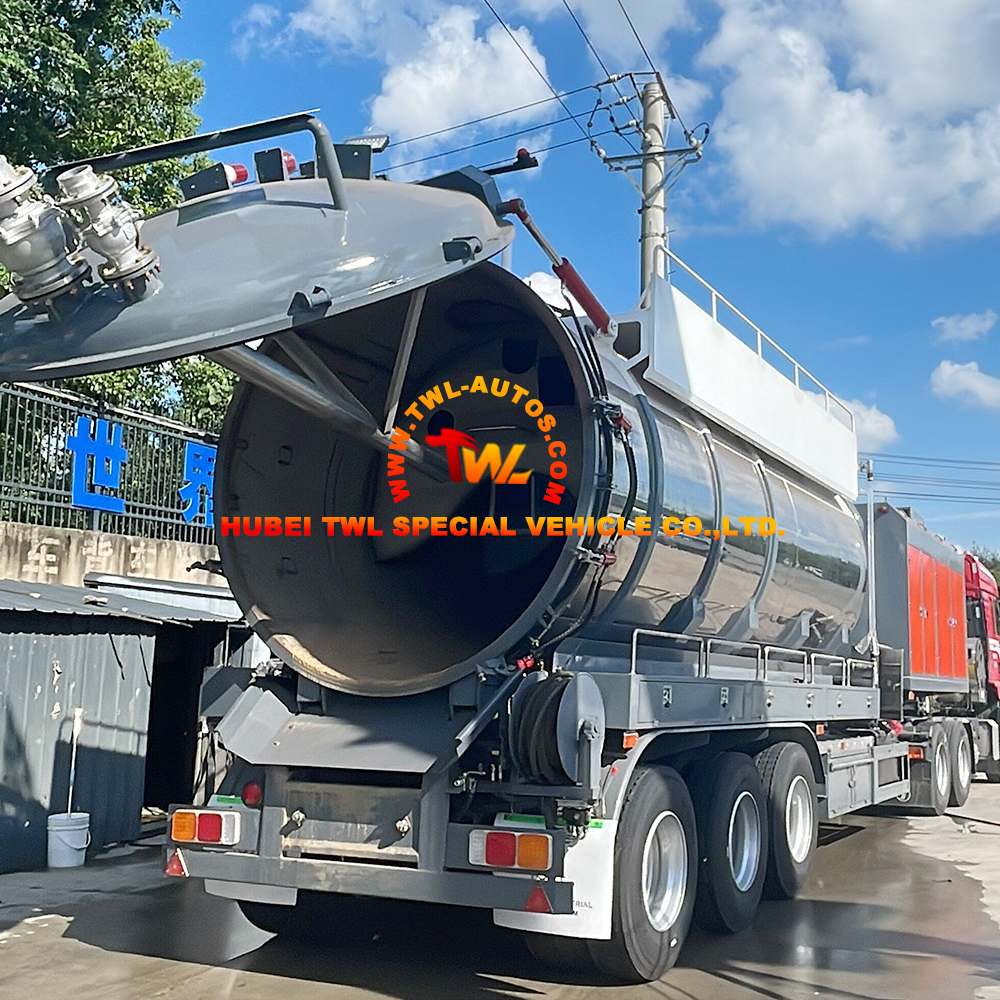

| Back cover opening method | Hydraulic opening | ||
| Back cover locking method | Rotary manual locking | ||
| Sewage suction system | Secondary brand | Cummins | |
| Vacuum pump brands | Italian vacuum pump Jurop PVT700 | ||
| flow | 4150 m³/h; 2445 cfm | ||
| rotational speed | D2500 rpm | ||
| vacuum degree | 93% (28.0 ” in HG) | ||
| Power at maximum absolute pressure | 112 kW, 151 hp | ||
| Self-respect | 640kg (1.411lbs) | ||
| Positive pressure | Overpressure safety valve | ||
| negative pressure | Vacuum relief valve (-80KPM) | ||
| filter | Metal Filter | ||
| High-pressure cleaning system | High pressure pump brands | Italy or Chinese pump | |
| Automatic pipe laying device | 15 meters | ||
| Adjustable high-pressure water gun | 0-45° | ||
| Suction and discharge | Equipped with unloading pipe with a diameter of Ø150 mm . | ||
| Equipped with suction pipes ( Ø 100 mm) | |||

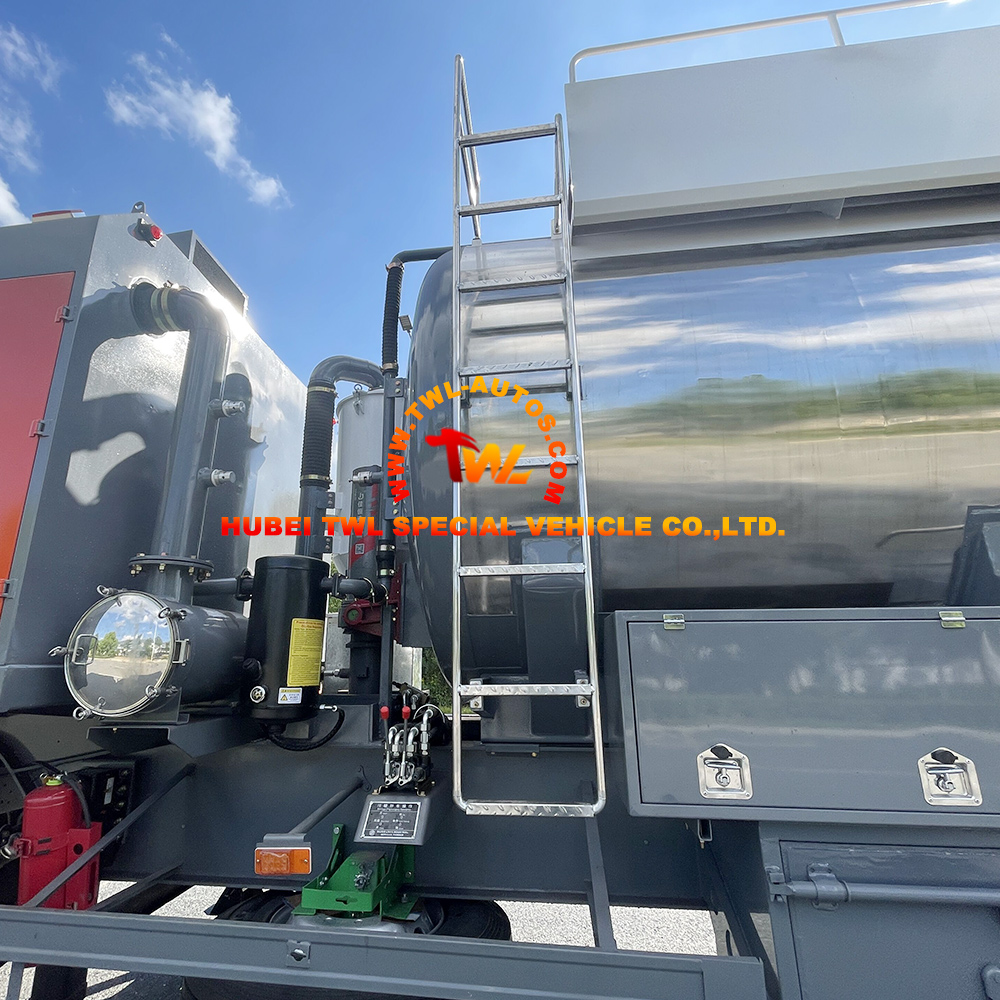

| other | With ladders, control panel, hydraulically opened rear cover with manual locking | ||
| Color and markings can be designed according to customer requirements. | |||
