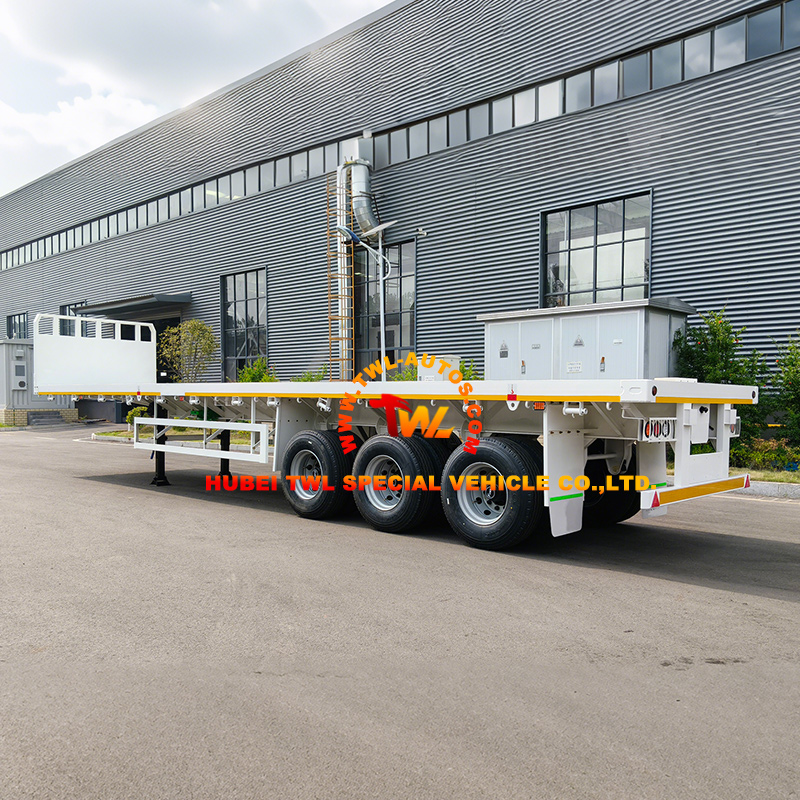

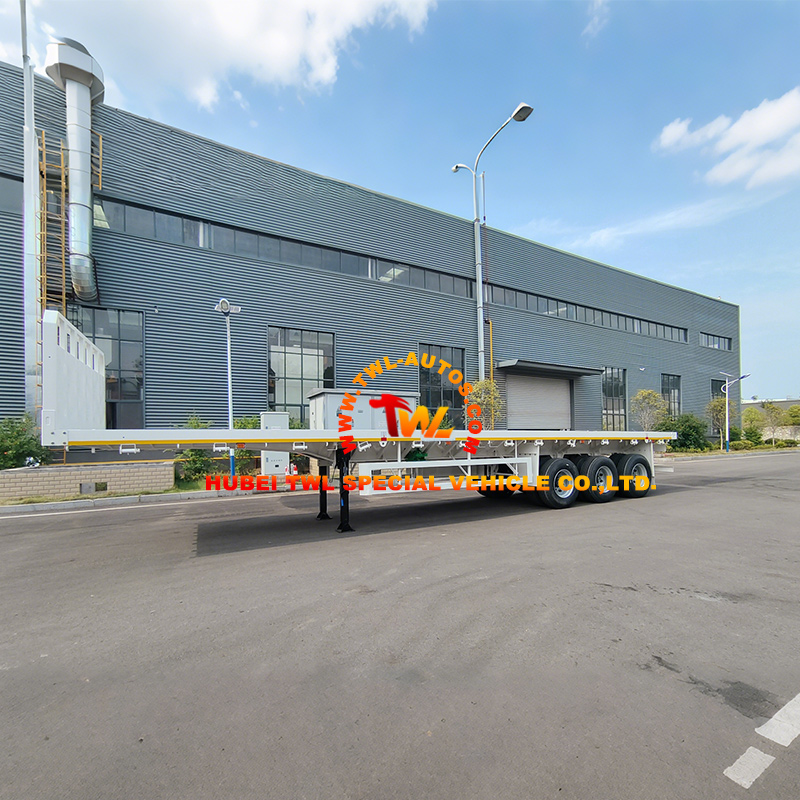

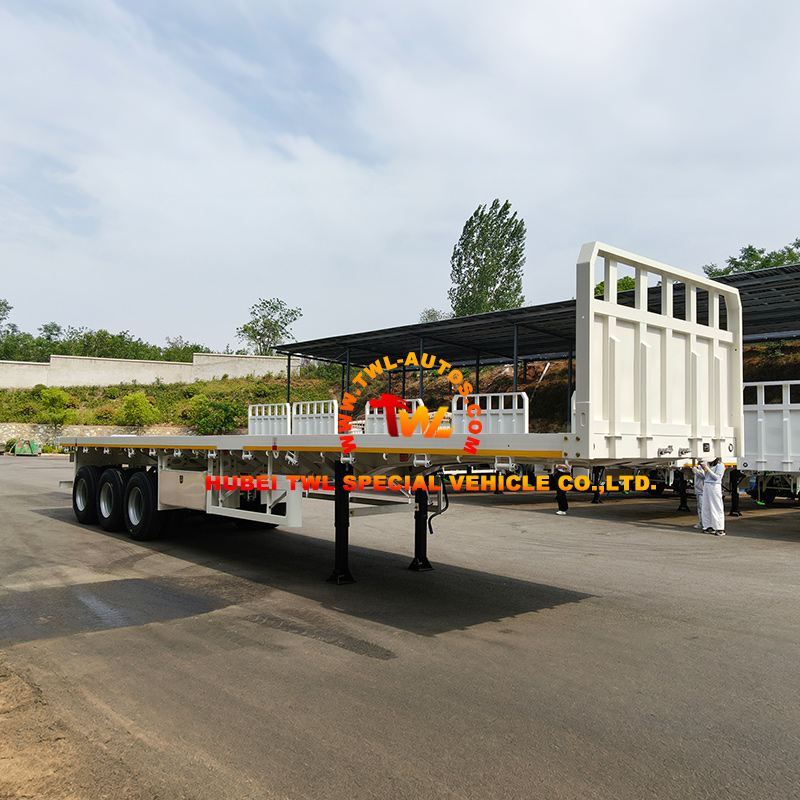

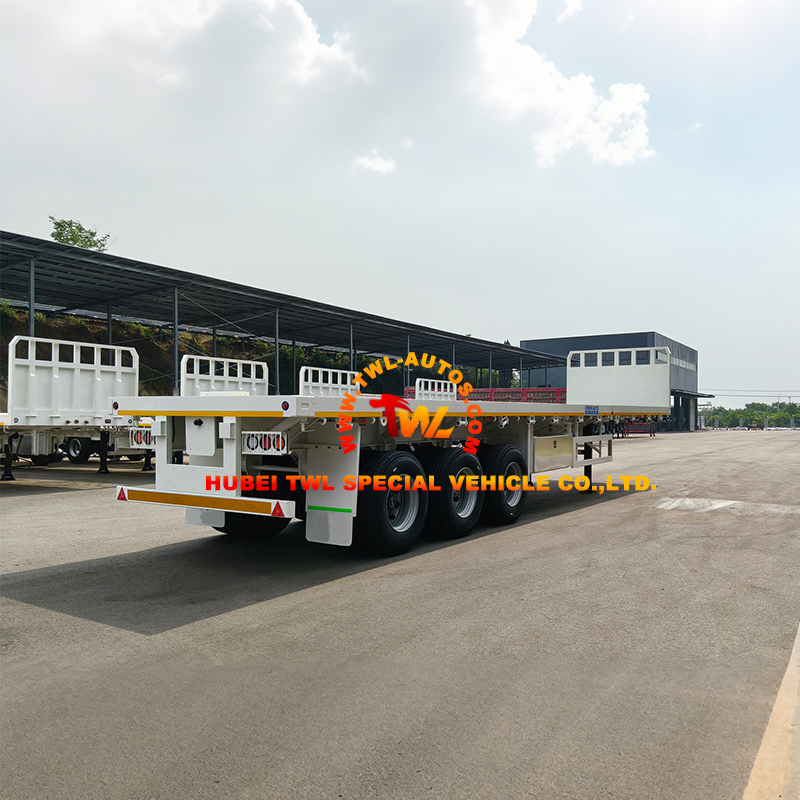

12.7 Meter White Flatbed Semi-trailer
The 12.7 Meter White Flatbed Semi-trailer is a versatile, heavy-duty transportation platform designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. Engineered for the efficient and secure hauling of oversized, heavy, and bulk cargo, this trailer features a clean, durable white finish, a robust steel frame, and a flat, unobstructed deck. With its standard 12.7-meter length and high load-bearing capacity, it is an ideal solution for logistics, construction, machinery transport, and general freight across diverse industries.
12.7 Meter White Flatbed Semi-trailer
Key Advantages
1. Robust & Durable Construction
-
High-tensile steel frame ensures superior strength and longevity under heavy loads.
-
Dense cross member spacing provides excellent load distribution and deck stability.
-
White corrosion-resistant paint offers a clean appearance and protection against weathering.
2. Versatile & High-load Capacity
-
12.7-meter deck length accommodates a wide variety of cargo, from construction materials to machinery.
-
High payload capacity maximizes transport efficiency and reduces trip frequency.
-
Removable side rails and stake pockets allow flexible cargo securing and customization.
3. Superior Safety & Stability
-
Heavy-duty axles and suspension system ensure smooth towing and stability at highway speeds.
-
Anti-slip deck surface enhances safety during loading, unloading, and transport.
-
Comprehensive LED lighting and reflective markings improve visibility and road safety.
4. Operator-friendly Design
-
Low deck height and optional ramps facilitate easier loading of equipment and palletized goods.
-
Easy-to-operate landing gear and accessible tie-down points streamline operations.
-
Clean white finish allows for easy identification of damage and simple maintenance.
5. Customizable & Compliant
-
Configurable with different axle numbers, suspension types, and add-ons (ramps, toolboxes, etc.).
-
Designed to meet international road transport regulations for ease of cross-border operations.
-
Suitable for branding with company logos and fleet identification.
Applications
This 12.7 Meter White Flatbed Semi-trailer is designed for a wide range of heavy and oversized transport applications:
-
Construction & Building Materials: Transport of steel beams, piping, lumber, and pre-cast concrete.
-
Heavy Machinery & Equipment: Hauling of excavators, loaders, tractors, and industrial machinery.
-
Logistics & General Freight: Carriage of palletized goods, containers, and bulk commodities.
-
Wind Energy & Infrastructure: Transport of wind turbine components, bridge sections, and pylons.
-
Agriculture & Forestry: Movement of farm equipment, harvesting machinery, and timber.
-
Vehicle Transportation: Hauling of cars, buses, and commercial vehicles.
-
Event & Exhibition Logistics: Transport of stage equipment, exhibition booths, and mobile displays.
Product Specification
| Category | Parameter | Specification |
| TRAILER STRUCTURE | Type | Flatbed Semi-trailer |
| Overall Length | 12,700 mm | |
| Overall Width | 2,500 mm (standard) / 2,550 mm (wide option) | |
| Deck Height | 1,100 – 1,200 mm (from ground) | |
| Deck Material | High-tensile steel (Q345B) with anti-slip patterned surface | |
| Main Beams | I-beam or box beam construction, reinforced design | |
| Cross Members | Dense spacing (approx. 300-400 mm) for uniform load distribution | |
| Finish | White industrial-grade paint (corrosion-resistant primer and topcoat) | |
| AXLE & SUSPENSION | Number of Axles | 2 or 3 axles (customizable) |
| Axle Type | Heavy-duty American or German brand (e.g., JOST, BPW) | |
| Axle Load Capacity | 12 – 13 tons per axle | |
| Suspension | Mechanical leaf spring suspension (air suspension optional) | |

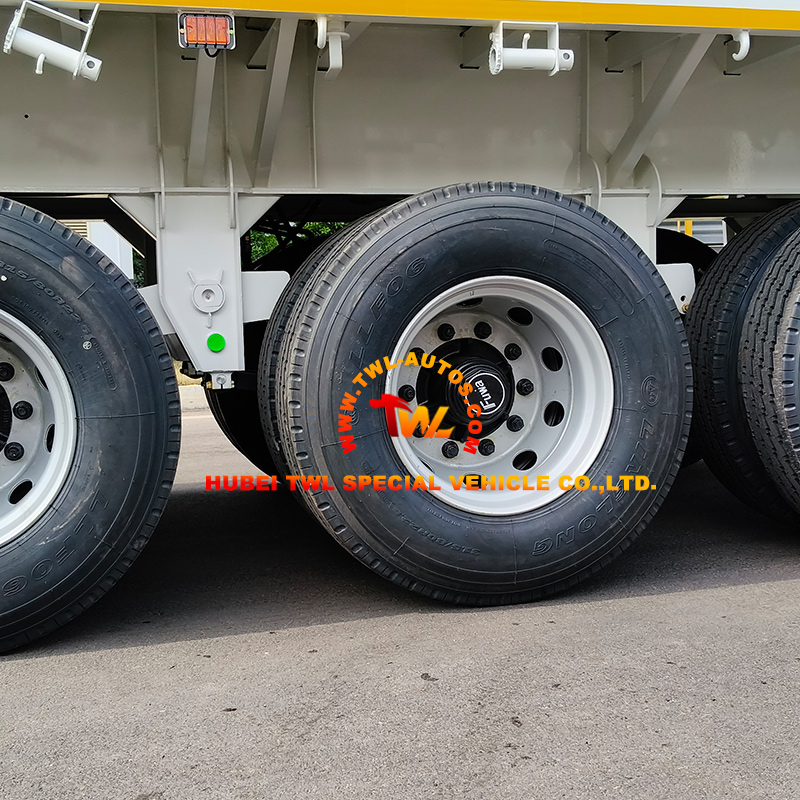

| Tire Specification | 12.00R20 / 12.00R22.5 (8-12 pcs depending on axle configuration) | |
| Brake System | Dual-line air brake, ABS optional | |
| Landing Gear | Heavy-duty three-stage landing gear (manual or hydraulic) | |
| LOADING CAPACITY | Payload Capacity | 30 – 50 tons (depending on axle configuration and regulations) |
| Deck Loading Length | 12,000 – 12,300 mm (effective) | |
| Deck Loading Width | 2,400 – 2,480 mm (between side rails) | |
| Max. Distributed Load | Evenly distributed load capacity as per design | |
| Tie-down Points | Multiple D-rings along deck edges (spaced 1,000 – 1,500 mm) | |
| LOADING FEATURES | Side Rails | Removable or foldable steel side rails (standard height 600 mm) |
| Stake Pockets | Provided for wooden sideboards or additional securing | |
| Ramps | Optional rear hydraulic folding ramps or slide-out ramps | |
| Gooseneck | Fixed gooseneck with beavertail design for smoother loading | |
| DIMENSIONS & WEIGHTS | Total Length (including goose) | 12,700 mm (trailer only) |
| Total Width | 2,500 mm | |
| Total Height (unloaded) | 1,400 – 1,600 mm | |
| Tare Weight | 5,800 – 7,200 kg (depending on configuration) | |
| Gross Vehicle Weight (GVW) | Up to 60,000 kg (region-dependent) | |
| Kingpin Setting | 90 mm or 3.5-inch American standard | |
| ELECTRICAL & LIGHTING | Lighting System | Full LED lighting package (clearance, turn, brake, side markers) |
| Reflectors | Red/white reflective tape as per regulations | |
| Wiring | Waterproof, dustproof harness with junction box | |
| Additional Features | Optional toolboxes, spare tire carrier, work light package | |
| CERTIFICATION | Design Standards | Complies with GB1589, EN, and international transport regulations |
| Paint Standard | White rust-resistant paint, suitable for branding and fleet colors |
