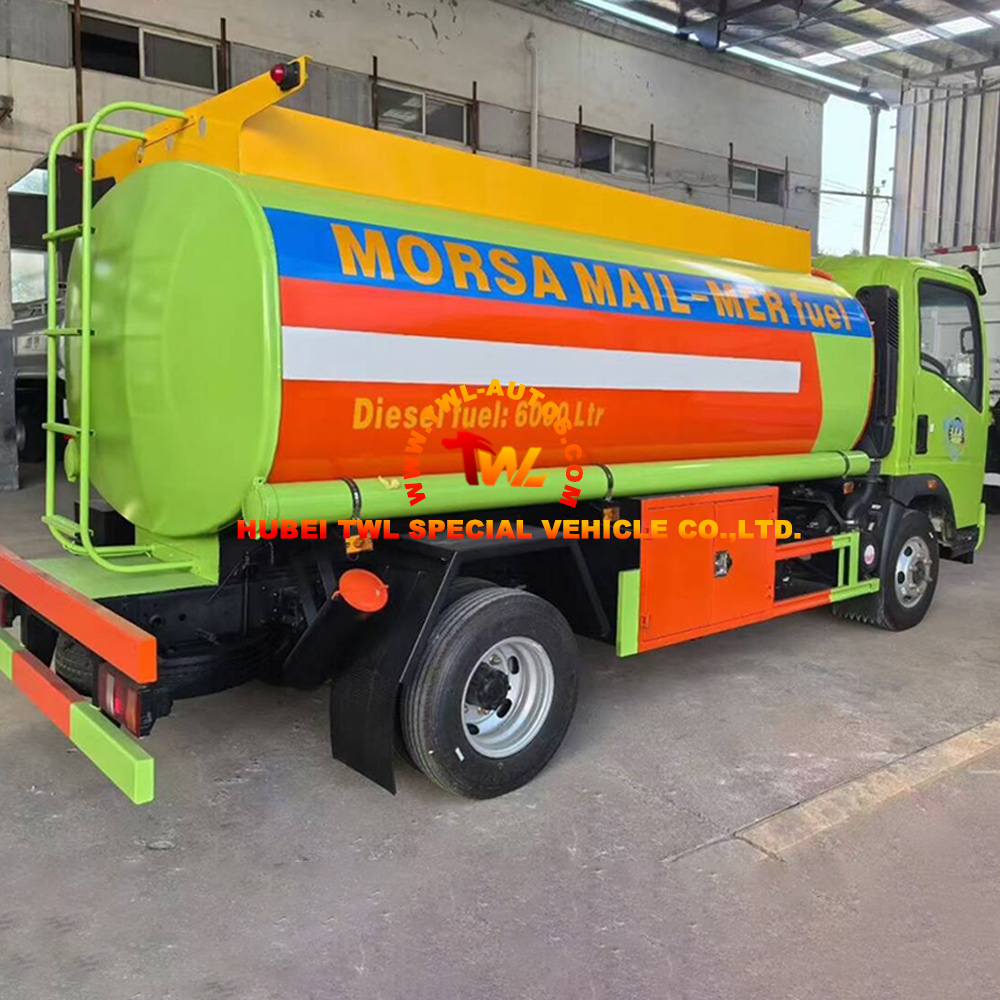

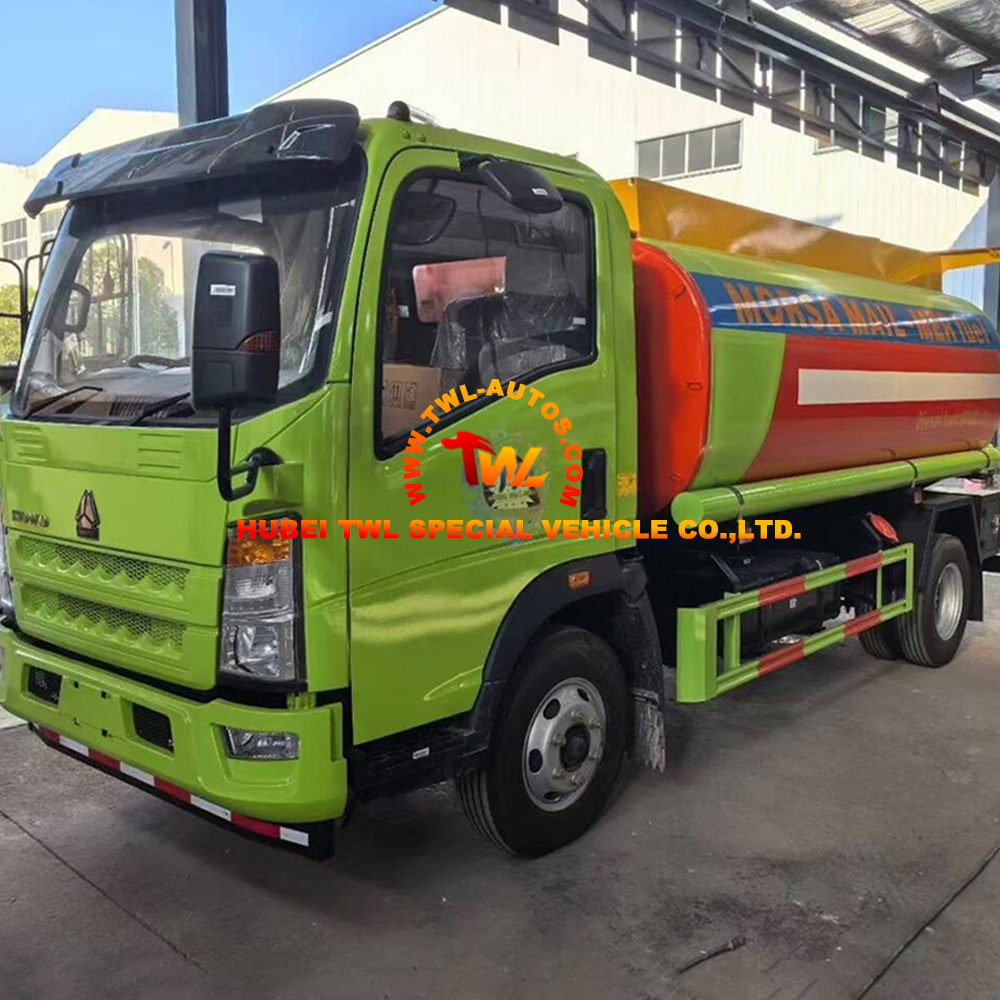

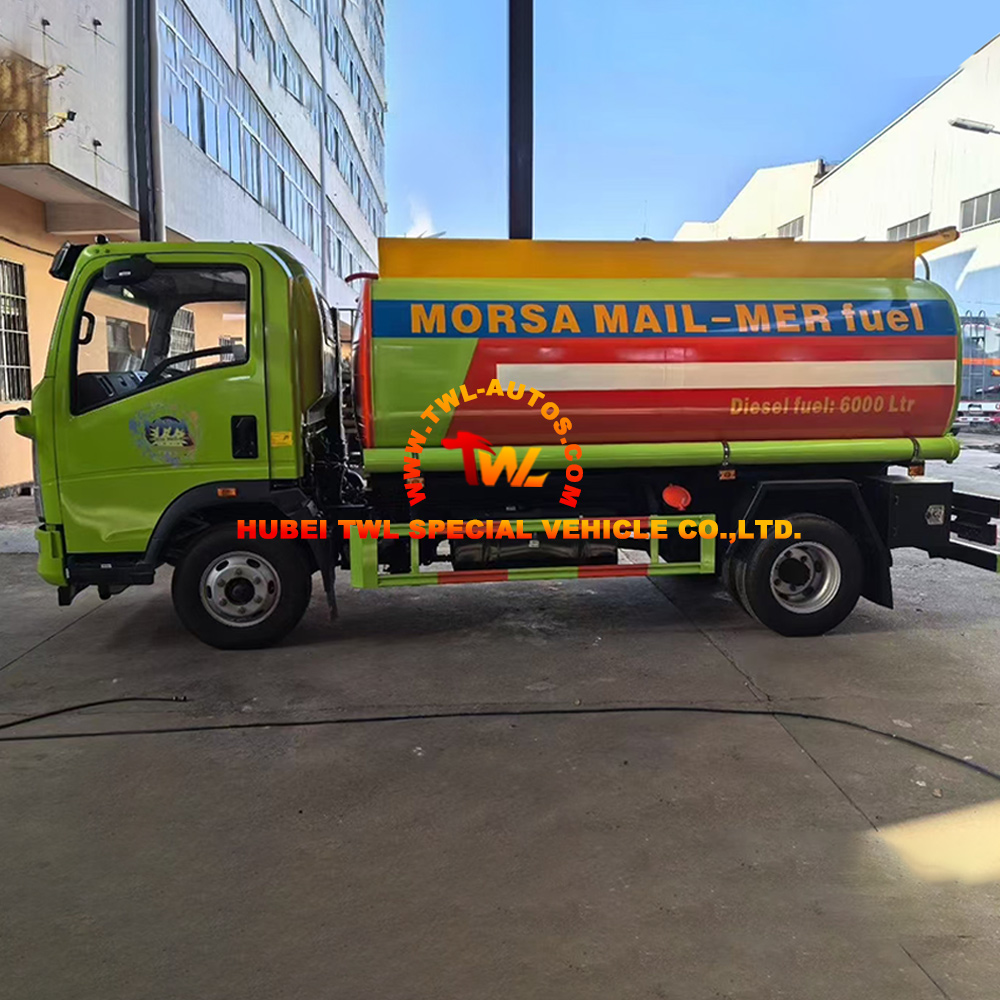

6 CBM HOWO 4x2 RHD Diesel Fuel Tank Truck
The 6000L Fuel Tank Truck, built on a reliable HOWO chassis, is designed for the efficient and safe transportation of diesel fuel. Combining a powerful 120hp engine with a robust 5mm carbon steel tank, this 4x2 truck offers exceptional durability and a class-leading payload of 7500kg. Available in both Left and Right Hand Drive, it is the perfect logistics solution for mining, construction, and fuel distribution sectors.
6 CBM HOWO 4x2 RHD Diesel Fuel Tank Truck
This vehicle is a professional fuel distribution truck engineered for heavy-duty performance. It features a 5CBM mono-block tank constructed from high-strength carbon steel, ensuring longevity and resistance to wear. The integration of a Chaochai 6-cylinder diesel engine with a 6-speed overdrive transmission guarantees optimal fuel economy and smooth operation across various terrains.
Key Features
· Chassis & Drivetrain: High-quality HOWO ZZ1087 chassis with a 3800mm wheelbase for stability. Powered by a fuel-efficient CY4102 engine (120hp) mated to a 6-speed gearbox.
· Tank Construction: Durable 5mm carbon steel tank body and end plates for impact resistance. Designed with a mono-block cylinder shape to prevent pressure accumulation.
· Safety Equipment: Standard safety features include a 500mm aluminum manhole cover with a breather valve, a bottom valve, and a rear 80mm discharging valve.
· Corrosion Protection: The entire chassis undergoes sandblasting to remove rust, followed by an anti-corrosive primer and two topcoats of finish paint.
· Convenience & Standards: Equipped with 7 tires (including one spare), a standard tool box, and two fire extinguishers to meet international safety standards.
Application
· Fuel Distribution: Transporting diesel and other non-corrosive fuels to rural petrol stations or commercial sites.
· Mining & Construction: Refueling heavy machinery and vehicles directly on-site.
· Industrial Supply: Providing bulk fuel supply for industrial generators and heating systems.
· Agricultural Use: Supporting large-scale farming operations with reliable fuel logistics.
Product Specification
| Chassis | |
| Vehicle model | 5000Liter RHD HOWO 4*2 Fuel Tank Truck |
| Chassis model | ZZ1087 |
| Driving model | Left or Right hand drive |
| Overall dimensions | 6995×2500×3200(mm) |
| Cube Weight | 4150 |
| Payload | 7500 |
| Wheel base | 3800 |
| Exhaust/hp | 3225/88 |
| Max speed | 90 |
| Tire specification | 7.50R16 |
| Traction system | 4*2 |
| Number of axles | 2 |
| Engine type | CY4102, 120hp |
| Transmission | 6-speed with over drive |
| Axle Load(kg) | 2400/7200 |
| Engine | Chaochai,diesel,6-cylinder in-line with water cooling |
| Tank Body | |
| Shape | Mono block Cylinder |
| Total Volume(m3) | 5CBM |
| Tanker Body Material | 5mm carbon steel |
| End plate | 5mm carbon steel |
| Manhole cover | Aluminum manhole cover, 500mm ,1 set with 1 breather valve |
| Bottom Valve | 1 set |
| Discharging valve | 1 set 80mm discharging valve |
| Tire | 7.50R16 with one spare tire, total 7 pieces |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Fire Distingwish | 2 sets |
| Accessories | One standard tool box |
